Ricoh M2700 M2701 IM2702 Field Service Manual Ver 1.0 PDF

Description

Ricoh M2700 M2701 IM2702 Field Service Manual Ver 1.0 PDF DOWNLOAD

Description

This is the official Ricoh Field Service Manual (Version 1.0, April 2019) for the M 2700 (D0B2), M 2701 (D0B3), and IM 2702 (D0B4) A3 monochrome multifunction printers. Published by Ricoh Co., Ltd., this factory-issued manual provides in-depth technical guidance for installation, preventive maintenance, replacement/adjustment, system maintenance, troubleshooting, and detailed component descriptions—essential for service technicians and engineers.

Ideal for professionals seeking a ricoh im 2702 service manual pdf, ricoh m 2700 m 2701 field service manual, ricoh im2702 replacement adjustment guide, ricoh m2700 troubleshooting sc codes pdf, ricoh d0b4 sp mode manual download, or a complete ricoh multifunction copier service manual 2019.

Key Sections Covered:

• 1. Product Information Machine configurations, options, comparison with predecessor models (e.g., MP 2014 series), and specifications.
• 2. Installation Requirements (environment, space, power), main machine installation (separate for D0B2/D0B3 and D0B4), paper feed units (PB2030/2040), anti-condensation heaters, bypass tray cover, wireless LAN, PaaS setup, inner tray, fax option, NFC card reader, and data encryption.
• 3. Preventive Maintenance PM tables, parts settings, replacement procedures, and operation checks.

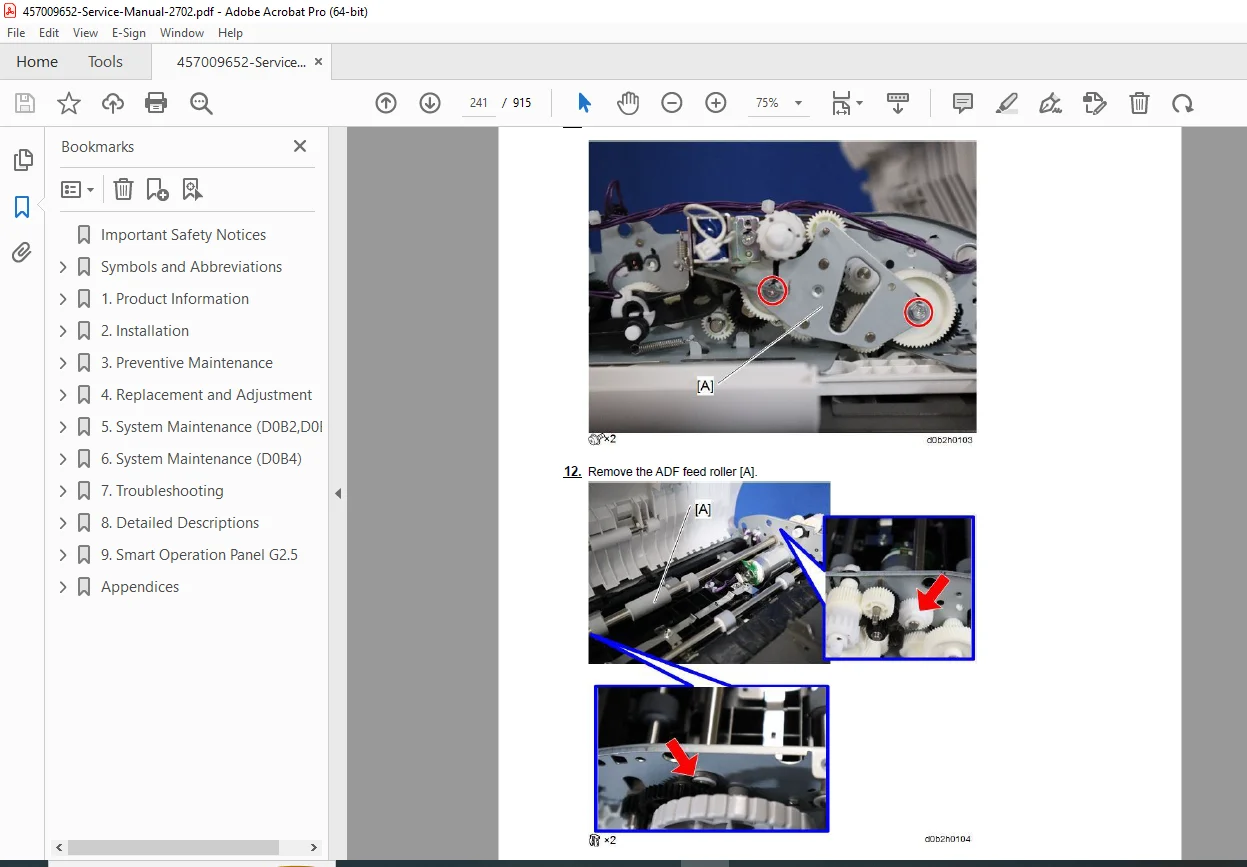

• 4. Replacement and Adjustment Special tools, grease application points, exterior covers, ADF (D0B3/D0B4), operation panel, scanner, laser unit, PCDU (drum, charge roller, developer), fusing unit, paper feed/exit, duplex, electrical components (boards, motors, clutches, sensors), and post-replacement adjustments (printing, scanning, ADF).
• 5-6. System Maintenance Service/SP modes (separate for basic and smart panel models), test patterns, SMC printing, firmware updates (SD card, remote, smart/Auto RFU), data upload/download (address book, NVRAM), log capture, and import/export functions.
• 7. Troubleshooting Self-diagnostics, SC codes (detailed descriptions), jam detection, and other issues (e.g., streaks, noise).

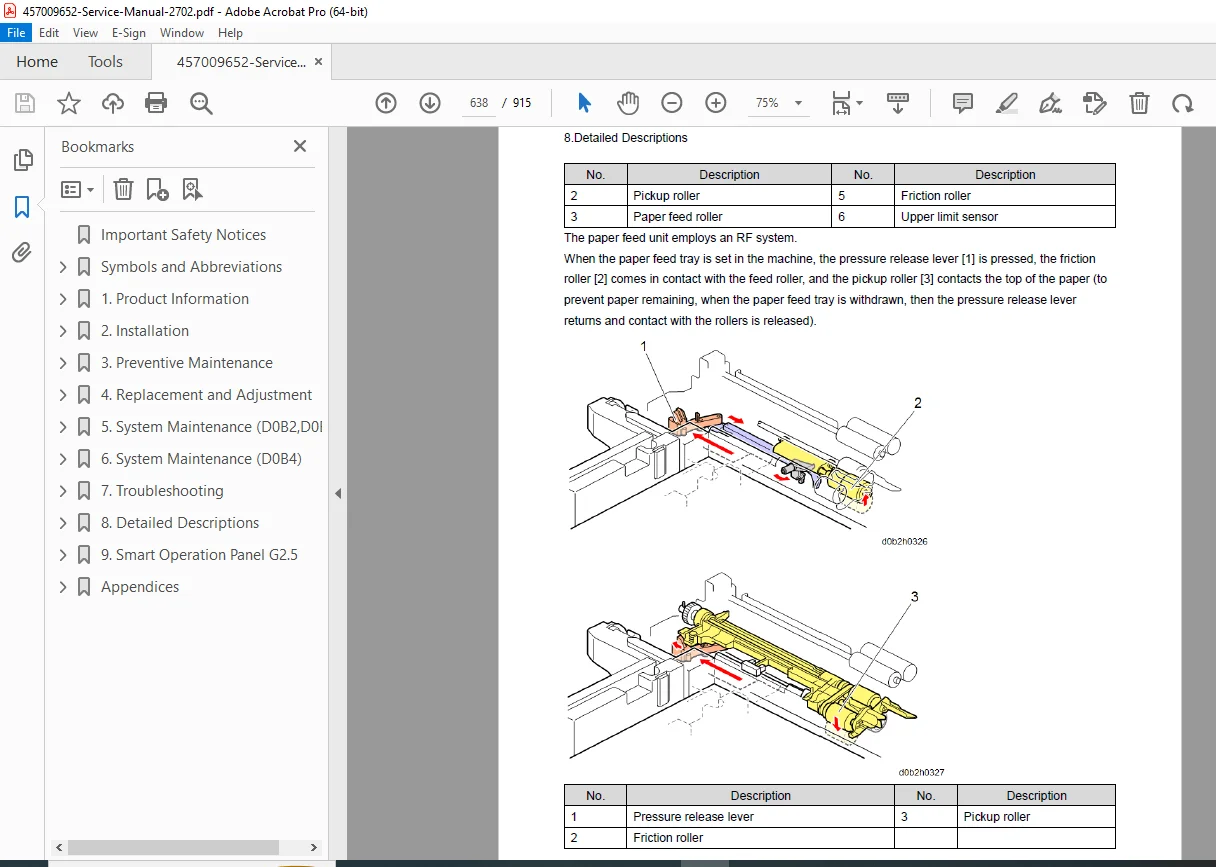

• 8. Detailed Descriptions Component layout, paper path, drive, ADF, scanning, laser exposure, PCDU, development, transfer/separation, fusing, paper feed, duplex/exit, and board structure.
• 9. Smart Operation Panel G2.5 (IM 2702/D0B4 specific) Replacement, mechanisms, maintenance modes, and troubleshooting.

File Details:

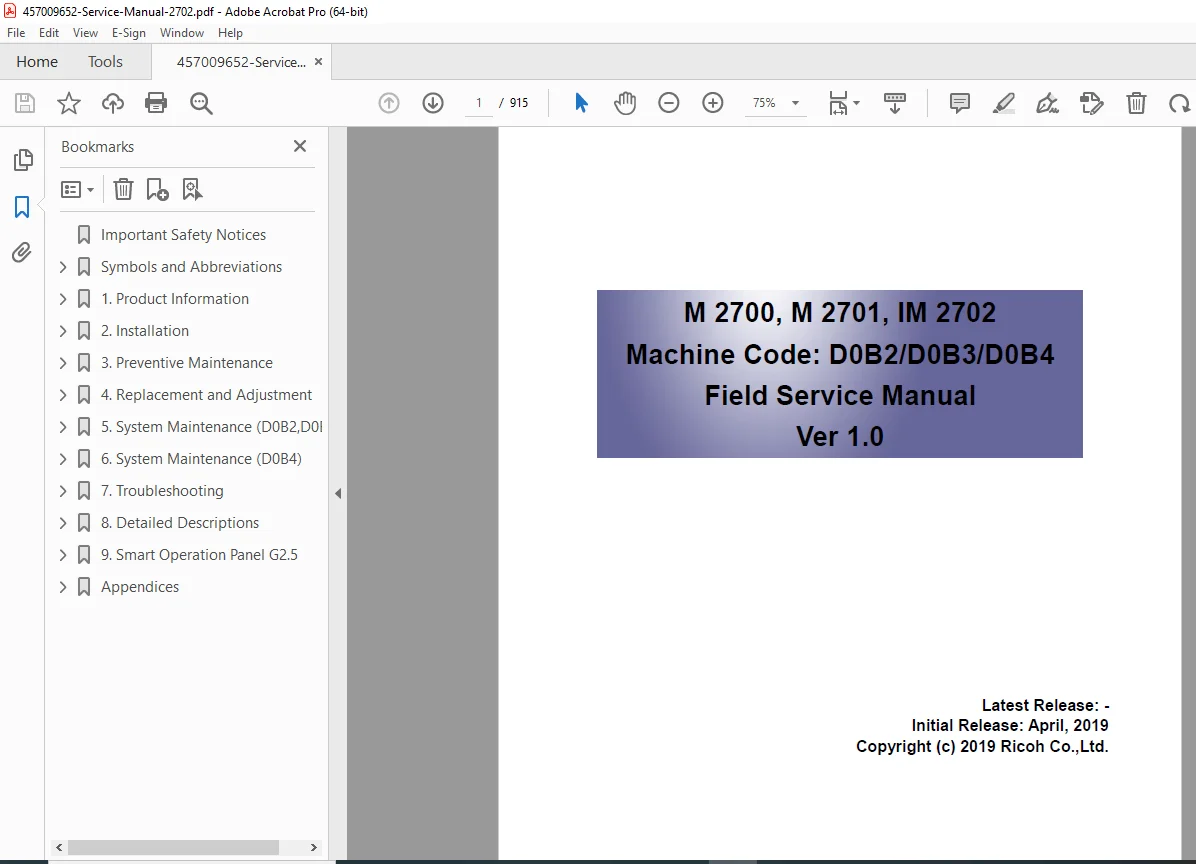

• Manual Name: Field Service Manual for M 2700, M 2701, IM 2702 (Machine Code: D0B2/D0B3/D0B4)
• Models Covered: M 2700 (D0B2), M 2701 (D0B3), IM 2702 (D0B4)
• Year: 2019 (Version 1.0, initial release April 2019)
• PDF Quality: High-resolution scanned pages with clear text, diagrams, exploded views, and tables
• Number of Pages: 915

Master servicing the Ricoh M 2700/M 2701/IM 2702 series with this authoritative factory manual. Download instantly after purchase—immediate access to professional diagnostics, repairs, and maintenance to minimize downtime and ensure peak performance!
