Ricoh SP 4100N / SP 4110N Laser Printer Service Manual – PDF Download
$28.95
Factory Ricoh Service Manual for SP 4100N, SP 4110N, and SP 4100NL printers (G176/G177/G176L).
Covers installation, service tables, SC codes, mechanical alignment, NVRAM handling, fusing system, and laser diagnostics.
Description
Ricoh SP 4100N / SP 4110N Laser Printer Service Manual (G176/G177/G176L) – PDF Download
Description
Overview
The Ricoh SP 4100N / SP 4110N Service Manual (Document No. 003037MIU) is the official maintenance and repair guide for the G176, G177, and G176L printer models. This comprehensive manual is used by certified Ricoh service engineers for troubleshooting, preventive maintenance, and detailed electrical and mechanical repairs. It applies to equivalent models branded under Gestetner, Lanier, Savin, and Ricoh Aficio product lines

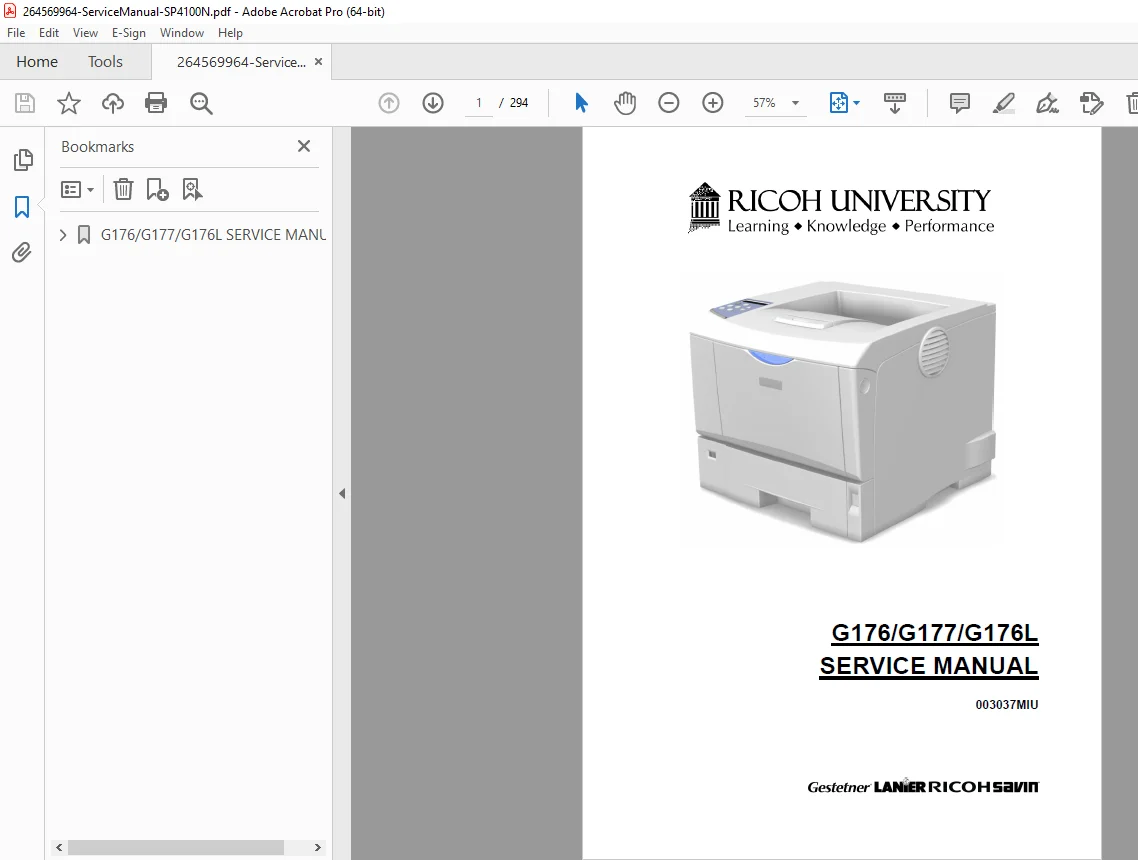

264569964-ServiceManual-SP4100N
IMAGES:
Main Sections
Installation & Environment Requirements – Power ratings (120V/220–240V), ventilation, temperature limits (10–27°C), and leveling tolerances.
Preventive Maintenance – Replacement intervals for fusing units, transfer rollers, feed rollers, and friction pads at 90K page counts; service mode reset via SP7-804.
Replacement & Adjustment – Disassembly order for covers, fuser, main motor, HVPS, PSU, laser diode, and controller board; torque and grounding checks.

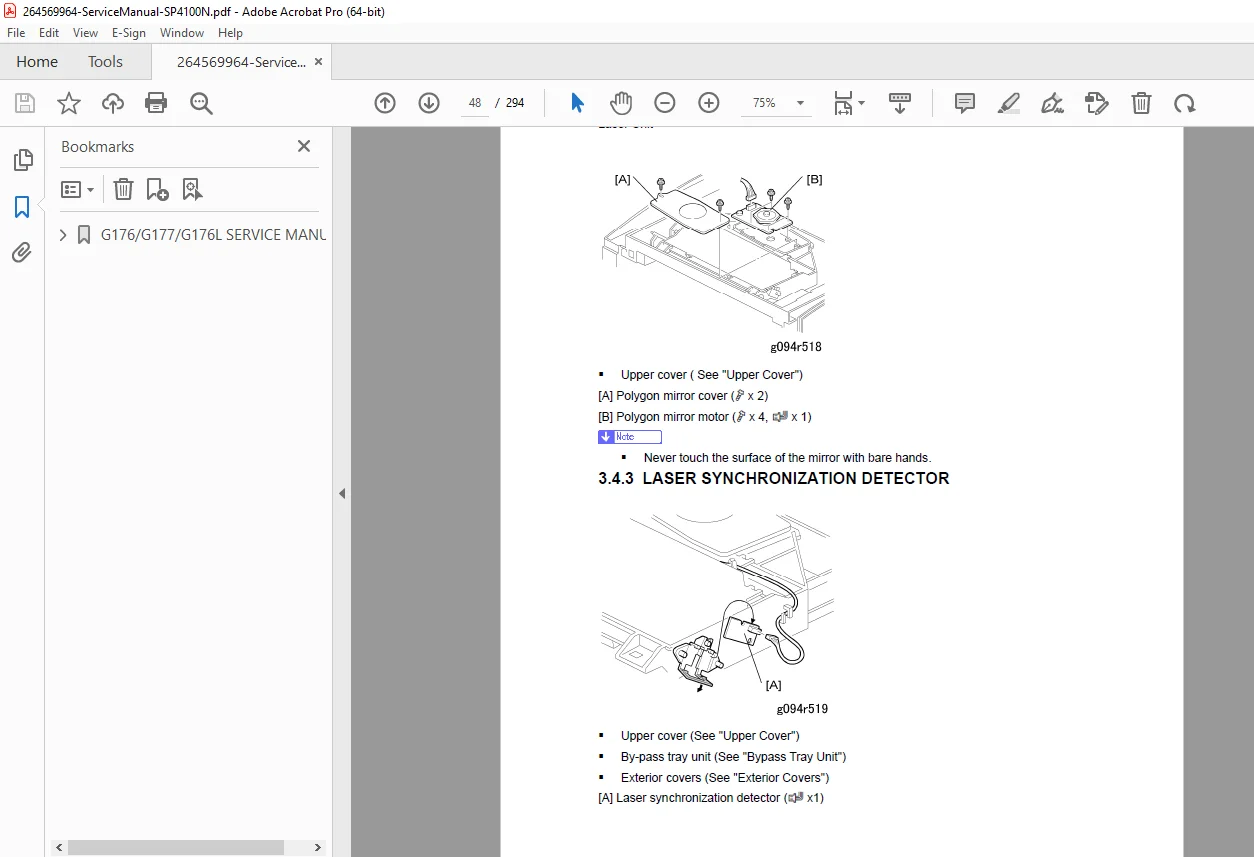

Laser Unit Service – Polygon mirror motor inspection, synchronization detector alignment, and LD drive board calibration; safety precautions per CDRH regulations.
Troubleshooting (SC Codes) – Extensive error code list (SC302–SC998) covering fusing, polygon motor, NVRAM, HDD, and SD card faults with reset methods
264569964-ServiceManual-SP4100N
Service Tables – Service mode SP1–SP8 commands, NVRAM data handling, firmware upgrade via SD card, and controller DIP switch mapping.
Detailed Descriptions – Full paper feed path, fusing drive control, energy saver circuitry, image processing, toner detection logic, and controller board structure.
Specifications – Electrical, environmental, and print engine data, plus controller interfaces (USB, Ethernet, IEEE 802.11b, Gigabit options).
Key Technical Highlights
| Parameter | Specification |
|---|---|
| Models Covered | SP 4100N / SP 4110N / SP 4100NL (G176/G177/G176L) |
| Print Engine | Monochrome Laser, 1200×1200 dpi |
| Processor | PowerPC-based Controller |
| Memory Options | 128–256 MB SD/PCMCIA |
| Interface Options | Ethernet, USB 2.0, Parallel, Wireless (802.11b) |
| Maintenance Kit Cycle | Every 90,000 pages |
| Firmware Update | SP5-xxx, SD Card Slot 2 procedure |
| Operating Systems Supported | Windows, macOS, UNIX, Novell NetWare |
| Power Requirements | 120V/60Hz or 220–240V/50–60Hz |
| Temperature Range | 10°C–27°C |
📄 File Details
| Parameter | Information |
|---|---|
| File Name | 264569964-ServiceManual-SP4100N.pdf |
| Manual Title | Ricoh SP 4100N / SP 4110N Laser Printer Service Manual |
| Part / Doc No. | 003037MIU |
| Edition / Revision | Rev. 1 (2008) – G176L Addition |
| File Type | PDF (Digital Download) |
| File Size | 5.51MB |
| Page Count | ~294 pages |
| Language | English |
| Searchable Text | Yes (OCR Enabled) |
| Publisher | Ricoh Corporation, Japan |
| Delivery | Instant Digital Download |
