Factory Service Manual for Ricoh MP C3001 / MP C3501 color multifunction printers (D086 / D087). Includes installation, machine configuration, preventive maintenance, image adjustment, replacement & disassembly, fusing & drive system, SP mode tables, troubleshooting, jam codes, SC error codes, electrical boards, firmware update & service diagnostics. Suitable for technicians & service engineers.
Description
Ricoh MP C3001 / MP C3501 Service Manual — PDF Download
Description

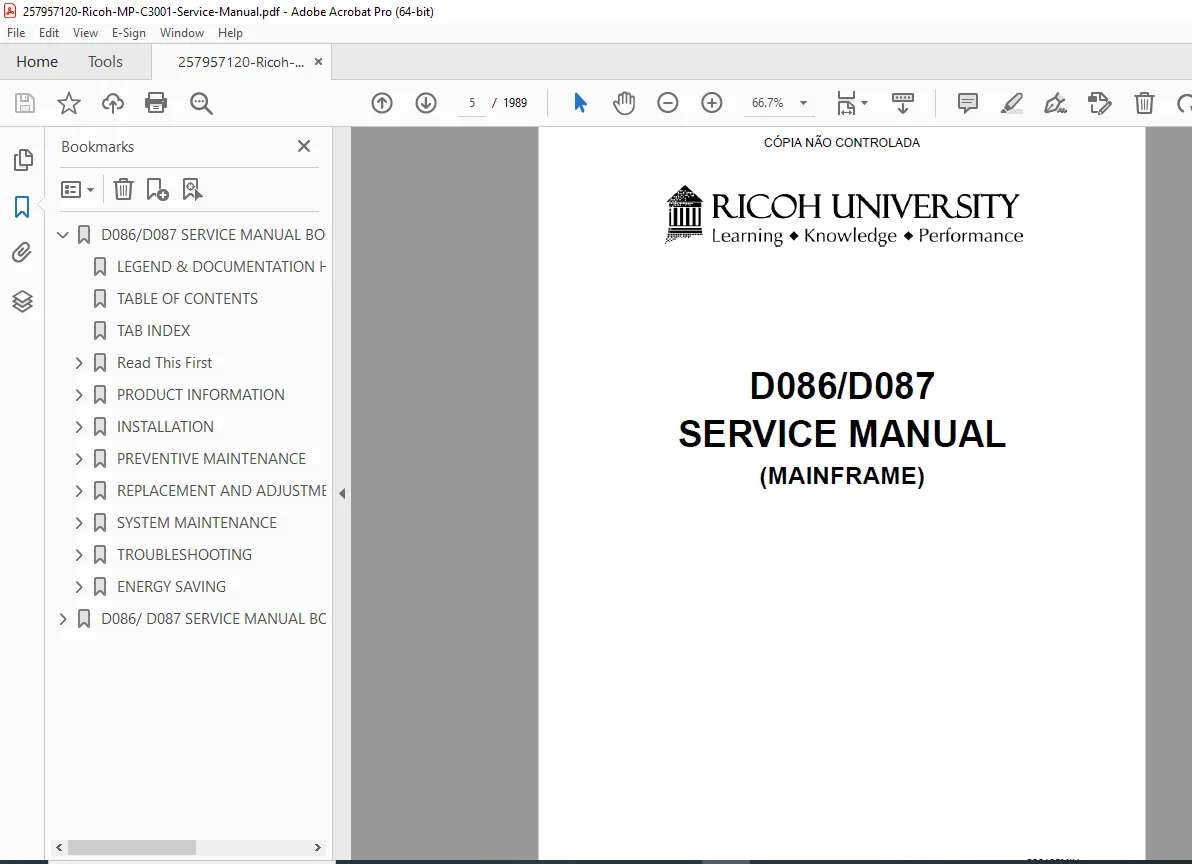

This is the official Ricoh MP C3001 / MP C3501 Service Manual (Mainframe) — the same document used in Ricoh University technical training and field service support.
The manual covers the full engineering, maintenance, diagnostics, and repair procedures for the:
Ricoh MP C3001 / MP C3501
Gestetner LD630C / LD635C
Lanier MP C3001 / MP C3501
Savin C9130 / C9135
(Model codes: D086 / D087)
✅ Chapters & Technical Coverage
📌 Product Information & System Layout
Includes:
Component layout & paper path (p.1-2 to 1-4)
Drive layout (motors, clutches, ITB & drum drive)
Machine configuration & option mapping
Environmental & installation requirements
Component diagrams are clearly illustrated on pages 1-2 / 1-3 / 1-4.
⚙️ Installation & Option Modules
Covers installation & wiring for:
Paper Feed Units PB3100 / PB3110 / LCIT
Bridge & Side Tray units
Finishers SR3000 / SR3050 / SR790
1-Bin & Internal Shift Tray
Envelope Feeder
ADF DF3050
Includes full installation flow & socket charts.
🛠️ Preventive Maintenance & Adjustments
PM Maintenance Tables
Developer & drum procedures
Registration & magnification adjustments
Color registration alignment
Printer gamma correction

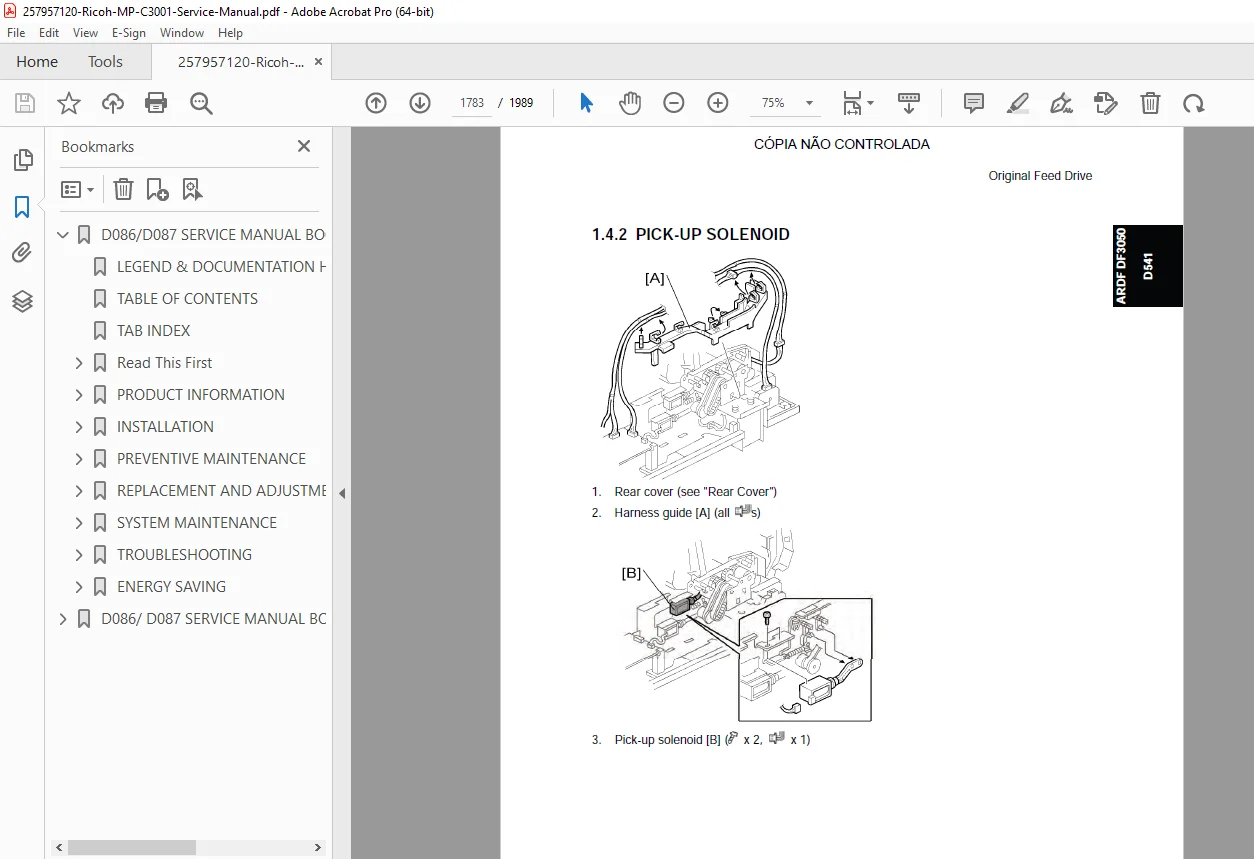

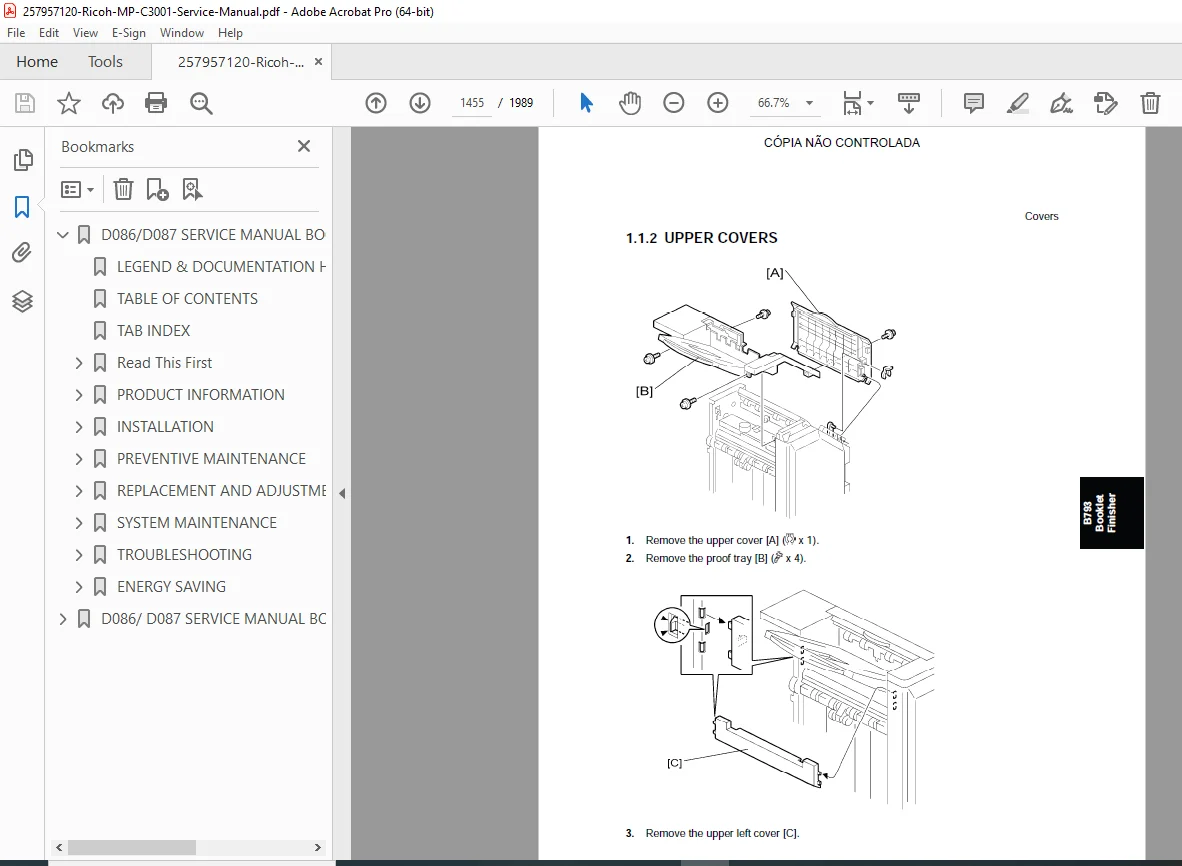

🧩 Replacement & Disassembly Procedures
Step-by-step guides for:
Scanner unit & optics
Drum & developer units
ITB & cleaning unit
Toner supply & collection
Drive system & motors
Paper feed & duplex transport
Fusing assembly & IH heater system
Exploded diagrams + reassembly notes included.
🧪 System Maintenance & SP Mode
Covers:
SP mode entry & service functions
Data logs & debug logs
NVRAM backup / restore
HDD handling & security
Firmware update procedures
Language install & reset modes
🚨 Troubleshooting & Diagnostics
Includes:
SC Error Code Tables
Paper jam detection & jam codes
Image quality troubleshooting
Sensor tests & output checks
Developer & toner process checks
Extremely useful for:
✔️ Field engineers
✔️ MFP repair technicians
✔️ Copier workshops
✔️ Service training & diagnostics
📁 File Details
| Field | Value |
|---|---|
| Manual Name | Ricoh MP C3001 / MP C3501 Service Manual (Mainframe) |
| Models Covered | D086 / D087 Series |
| Brands | Ricoh, Savin, Gestetner, Lanier |
| Pages | 1980+ pages |
| Format | PDF (Searchable, bookmarked) |
| Contents | Installation, PM, Replacement, Fusing, Drive, SP Mode, Troubleshooting, SC Codes |
| Quality | High-resolution factory manual |
