Royal Enfield Super Meteor 650 EMS P-Code Diagnostics Service Manual – PDF

Description

Royal Enfield Super Meteor 650 EMS P-Code Diagnostics Service Manual

This diagnostic service manual for the Royal Enfield Super Meteor 650 covers the Engine Management System (EMS) P-Code fault diagnostics in exhaustive detail. It is the resource a technician reaches for when the MIL lamp illuminates and a stored fault code needs to be traced, tested, and resolved at the connector-and-multimeter level.

File Details

• Manual Type: EMS P-Code Diagnostics Service Manual
• Brand: Royal Enfield
• Model: Super Meteor 650
• Language: English
• Page Count: Approximately 1016 pages
• File Format: PDF

Chapters Covered

The manual is organized as a complete P-Code diagnostic index, with each fault code receiving its own procedure. The systems covered include:

• O2/HEGO Sensor Diagnostics (Clutch Side RHS and Magneto Side LHS): Heater control circuit open/low/high, heater plausibility, signal circuit low/high/open, mixture too lean/rich, out-of-range during deceleration, circuit range/performance
• MAP Sensor Diagnostics (Clutch Side and Magneto Side): Circuit range/performance/stuck, circuit low/open, circuit high, out-of-range diagnosis
• Intake Air Temperature Sensor: Circuit range/performance/stuck, circuit low, circuit high/open, out-of-range diagnostic
• Throttle Position Sensor: Circuit out of range, circuit low/open, circuit high
• Engine Oil Temperature Sensor: Range/performance/plausibility, circuit low, circuit high/open, over-temperature, out-of-range
• Crankshaft Position Sensor: Crankshaft position sensor error, engine over-speed detection
• Fuel Injectors (Clutch Side and Magneto Side): Circuit open, circuit low, circuit high
• Ignition Coils (Clutch Side and Magneto Side): Primary control circuit low/open, primary control circuit high
• Canister Purge Valve: Circuit open, circuit low, circuit high
• Idle Air Control: System circuit low, system circuit high
• Battery Voltage: Battery voltage low, battery voltage high
• Sensor Supply Circuits: Sensor supply 1 low/open, sensor supply 1 high, sensor supply 2 low/open, sensor supply 2 high
• Starter Relay: Circuit low, circuit high
• Electric Fuel Pump Relay: Circuit open, circuit low, circuit high
• Roll Over Sensor: Circuit low, circuit high/open
• Headlight Relay: Circuit open, short circuit to ground, short circuit to battery positive/control circuit high
• Gear Position Sensor: Out of range, circuit low, circuit high/open
• Side Stand Switch: Circuit low, circuit high/open
• Neutral LED: Circuit low, circuit high
• Accessory Relay: Circuit open, circuit low, circuit high
• Engine Misfire: Cylinder 1 misfire detected, cylinder 2 misfire detected
• MIL Circuit: MIL circuit malfunction
• CAN Bus: CAN bus short circuit/CAN circuit malfunction, lost communication with ABS module

Each diagnostic procedure follows a consistent, technician-focused structure: error description, driving symptoms, preliminary checks, test lead wire method with step-by-step continuity testing, resistance testing, input voltage testing, output voltage testing, decision points for part replacement, and a DTC clearing procedure. The manual does not simply list codes; it walks through the electrical diagnosis of each one.

What This Manual Enables

Armed with this Super Meteor 650 EMS P-Code diagnostics manual, a technician can diagnose and repair every listed engine management fault code without guesswork. The procedures use a universal multimeter and the recommended test lead wire (1.0mm – 40 series) and addon harness kits to isolate faults to the sensor, the wiring harness, or the ECU. This is the difference between replacing parts on suspicion and testing a circuit to specification.

The manual covers both the Clutch Side (RHS) and Magneto Side (LHS) sensor sets, which is critical on the parallel-twin Super Meteor 650 where each cylinder has its own O2 sensor, MAP sensor, injector, and ignition coil. A fault on one side does not mean the other side shares the same values or pin locations, and this manual gives side-specific pinouts, wire colors, ECU socket positions, and expected readings.

Diagnostic Depth

For every P-code, the manual gives the exact multimeter mode and range, the connector pins to probe, the expected value or range, and the decision point that follows. Continuity checks confirm whether the wiring harness is intact. Resistance checks verify the sensor itself. Voltage checks confirm the ECU is supplying and receiving the correct signal. When a value falls outside the specification, the manual states whether to replace the sensor, the wiring harness, or the ECU.

The manual also includes DTC clearing procedures after repair, including the driving cycle method for turning off the MIL when a scan tool is not available: switch the ignition key and kill switch ON, start the engine, run the vehicle at idle for at least 30 seconds until O2 feedback is ON, then switch off the kill switch and ignition key. Four repetitions of this cycle will either clear the code or move it to history.

Who This Manual Is For

This manual suits Royal Enfield service technicians, independent motorcycle mechanics working on the Super Meteor 650, and owners who do their own diagnostics. It assumes access to a multimeter and the test lead wire kit, but no other special equipment. The procedures are written to be followed at the motorcycle, with the fuel tank and seat removed where needed for access, and with all connectors identified by pin number and wire color.

The document is marked DRAFT, which reflects its current revision status in the service literature. It is a working diagnostic document, not a polished consumer guide.

Delivery

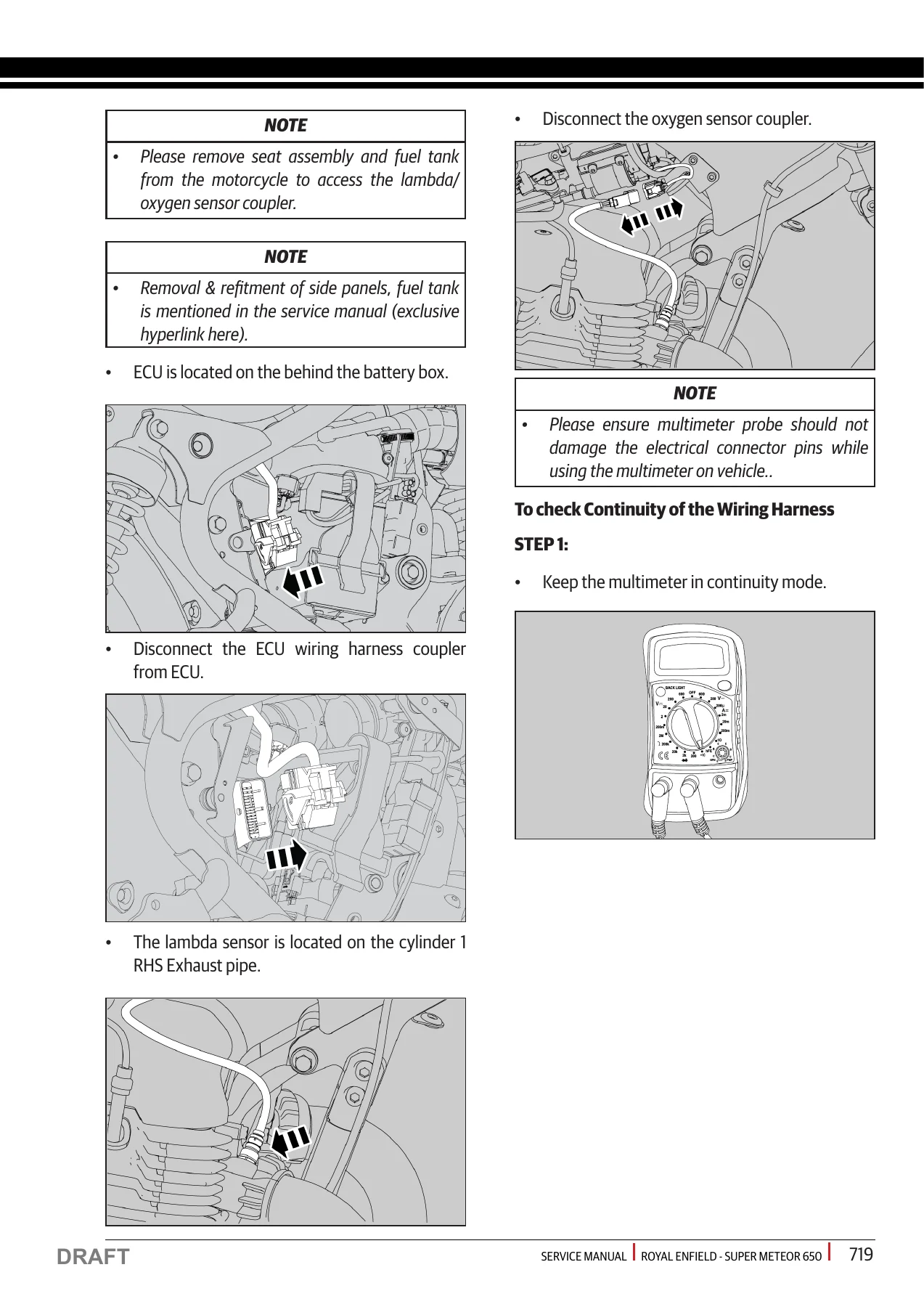

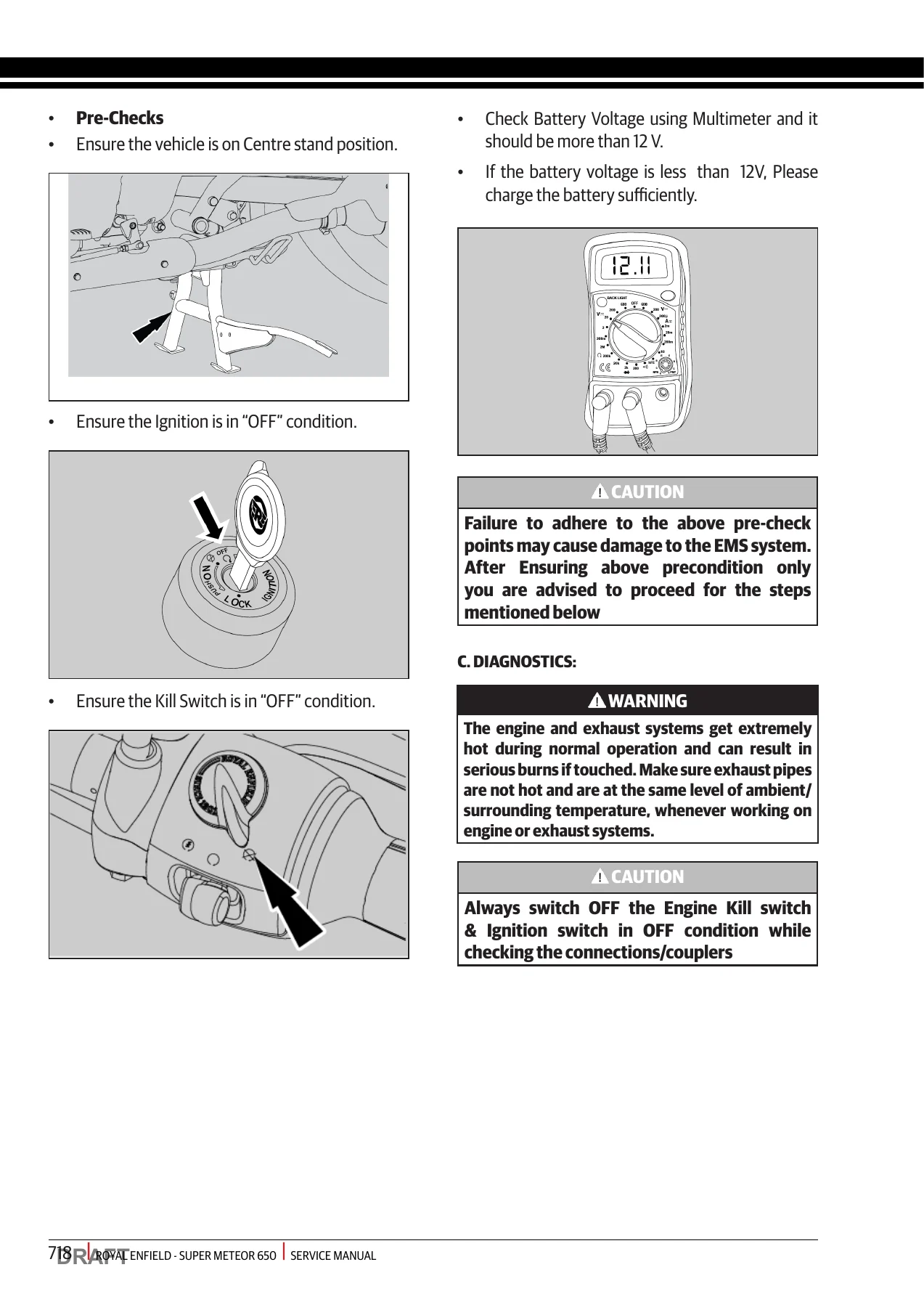

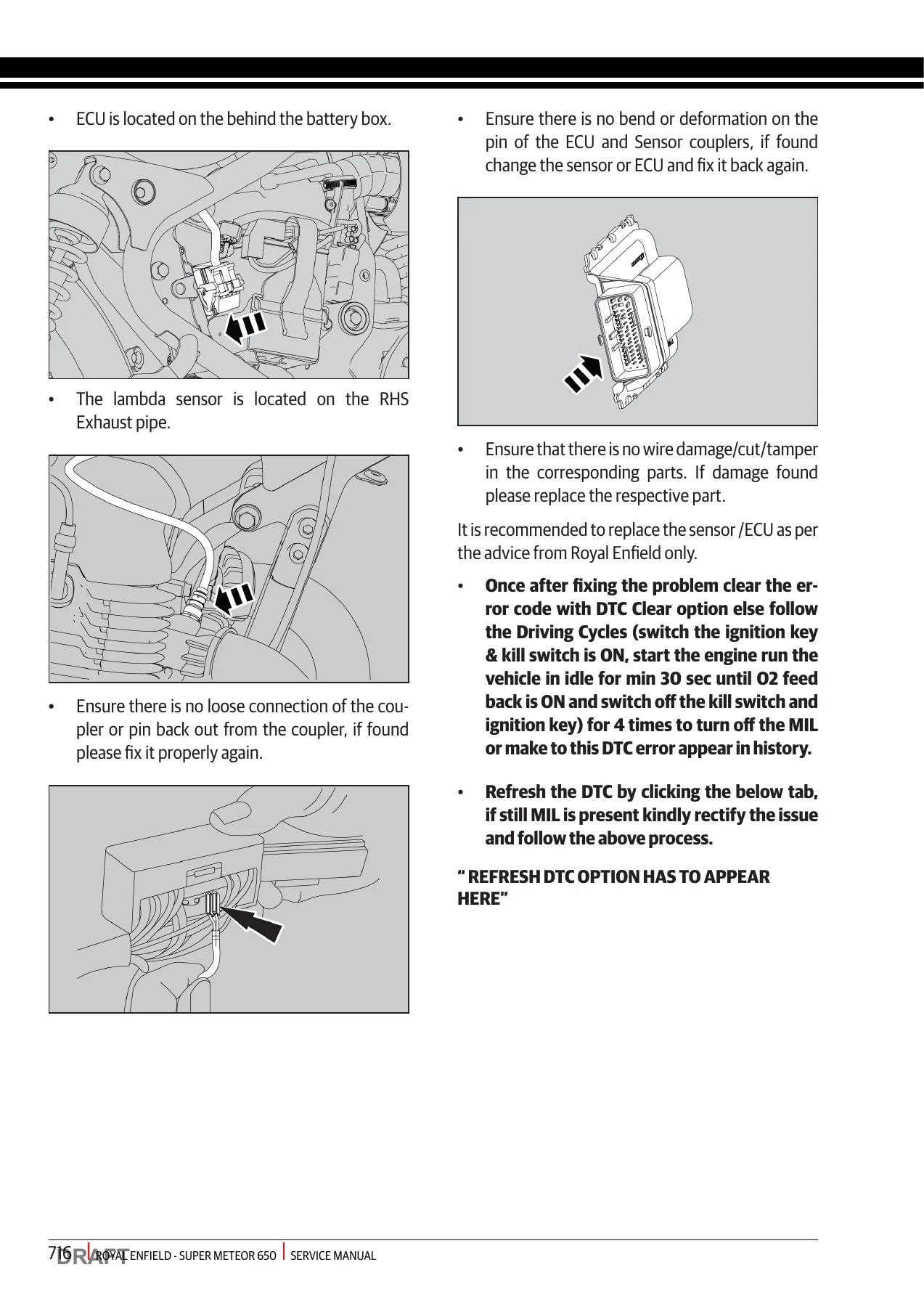

IMAGES PREVIEW

This Royal Enfield Super Meteor 650 EMS P-Code Diagnostics Service Manual is delivered as an instant PDF download after payment. There is no shipping, no waiting for a physical book, and no restriction on which device you view it on. Print the pages you need for the workshop, or keep the entire diagnostic reference on a tablet or laptop at the bench.

When the MIL is on and the code is stored, this manual is what tells you which pin to probe next.
