Samsung Hw f550 Crystal Surround Air Track Service Manual – PDF DOWNLOAD

Description

Samsung Hw f550 Crystal Surround Air Track Service Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:52
DOWNLOADABLE:YES
FILE TYPE:PDF

SAMSUNG HW F550 CRYSTAL SURROUND AIR TRACK SERVICE MANUAL – PDF DOWNLOAD:

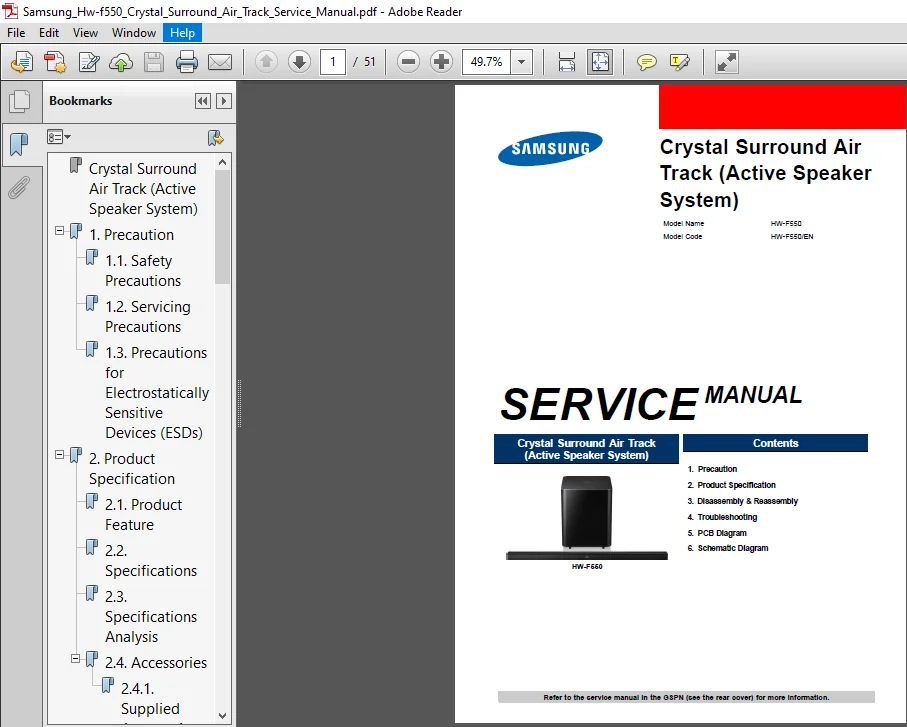

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Samsung Hw f550 Crystal Surround Air Track Service Manual

Safety Precautions

1) When reinstalling the chassis and its assemblies, be sure to restore all of the protective devices, including the control knobs and the compartment covers.
2) Make sure that there are no cabinet openings through which people (particularly children) can make contact with dangerous internal components.
3) Design Alteration Warning : Never alter or add to the mechanical or electrical design of the unit.
Example : Do not add auxiliary audio or video connectors. Such alterations might create a safety hazard. Also, any design changes or additions will void the manufacturer’s warranty.

Servicing Precautions

1) Servicing precautions are printed on the cabinet. Follow them.
2) Always unplug the unit’s AC power cord from the AC power source before attempting to :
(a) Remove or reinstall any component or assembly, (b) Disconnect an electrical plug or connector, (c) Connect a test component in parallel with an electrolytic capacitor.
3) Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring may be clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.
4) After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the portion around the serviced part has not been damaged.
5) Check the insulation between the blades of the AC plug and accessible conductive parts (examples : metal panels, input terminals and earphone jacks).
6) Insulation Checking Procedure : Disconnect the power cord from the AC source. Connect an insulation resistance meter (500 V) to the blades of the AC plug. The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
7) Never defeat any of the B+ voltage interlocks. Do not apply AC power to the unit (or any of its assemblies) unless all solid-state heat sinks are correctly installed.

TABLE OF CONTENTS:

Samsung Hw f550 Crystal Surround Air Track Service Manual

Crystal Surround Air Track (Active Speaker System)..................... 1
1. Precaution.......................................................... 4
	1.1. Safety Precautions............................................ 4
	1.2. Servicing Precautions......................................... 6
	1.3. Precautions for Electrostatically Sensitive Devices (ESDs).... 7
2. Product Specification............................................... 8
	2.1. Product Feature............................................... 8
	2.2. Specifications................................................ 9
	2.3. Specifications Analysis.......................................10
	2.4. Accessories...................................................12
		2.4.1. Supplied Accessories....................................12
3. Disassembly & Reassembly............................................13
	3.1. Overall Disassembly and Reassembly............................13
4. Troubleshooting.....................................................15
	4.1. Checkpoints by Error Mode.....................................15
		4.1.1. No Power................................................15
		4.1.2. No Sound output (Digital)...............................16
		4.1.3. No Sound output (Analog)................................20
	4.2. Measures to be taken when the Protection Circuit operates.....23
		4.2.1. AMP Pre-Inspection relating to Power Protection.........23
	4.3. Initialization & Update.......................................24
		4.3.1. How to check the Firmware version.......................24
		4.3.2. How to initialize.......................................24
		4.3.3. USB Update procedure....................................25
5. PCB Diagram.........................................................26
	5.1. Wiring Diagram................................................26
	5.2. MAIN PCB Top..................................................27
		5.2.1. Pin Connection..........................................28
		5.2.2. Test Point Wave Form....................................29
	5.3. MAIN PCB Bottom...............................................30
		5.3.1. Pin Connection..........................................31
		5.3.2. Test Point Wave Form....................................32

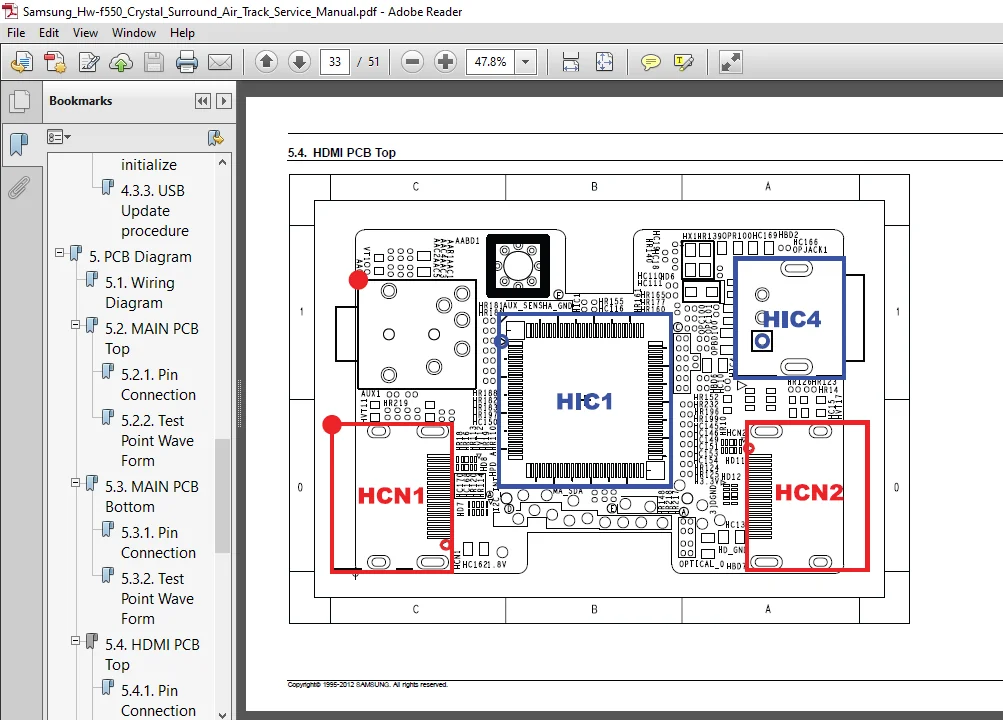

	5.4. HDMI PCB Top..................................................33
		5.4.1. Pin Connection..........................................34
		5.4.2. Test Point Wave Form....................................35
	5.5. HDMI PCB Bottom...............................................36
		5.5.1. Pin Connection..........................................37
	5.6. IR PCB Top....................................................38
		5.6.1. Pin Connection..........................................39
	5.7. IR PCB Bottom.................................................40
6. Schematic Diagram...................................................41
	6.1. Overall Block Diagram.........................................41
	6.2. MAIN-1........................................................42

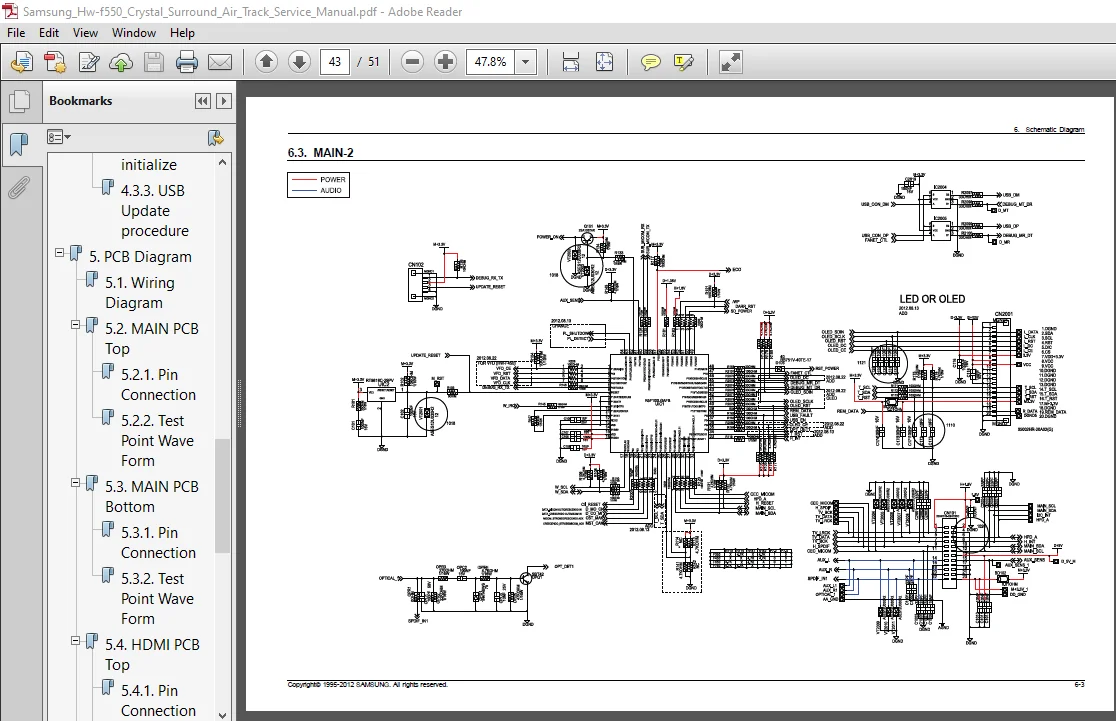

	6.3. MAIN-2........................................................43
	6.4. MAIN-3........................................................44
		6.4.1. Test Point Wave Form....................................45
	6.5. MAIN-4........................................................46
		6.5.1. Test Point Wave Form....................................47
	6.6. HDMI..........................................................48
		6.6.1. Test Point Wave Form....................................49
	6.7. IR............................................................50

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
