Sandvik LH517 Parts Catalog – Section 4 Frame Structures (L817D641, 2018)

This is the Section 4 Frame Structures volume of the Sandvik LH517 parts catalog, published under document reference L817D641 with a 2018 date. It is a pure illustrated parts breakdown: every assembly in the section is shown as an exploded or sectional drawing with numbered callouts, and each callout resolves to a part number, a description and a required quantity in the accompanying list. If you are rebuilding, repairing or ordering for the load frame and body structure of an LH517, this is the reference the parts counter works from.

File Details

• Manual type: Illustrated parts catalog (spare parts listing)
• Brand: Sandvik
• Machine: LH517
• Document number: L817D641
• Section: 4 – Frame Structures
• Date: 2018
• Language: English
• Format: PDF
• Extent: 145 numbered catalog pages

Chapters Covered

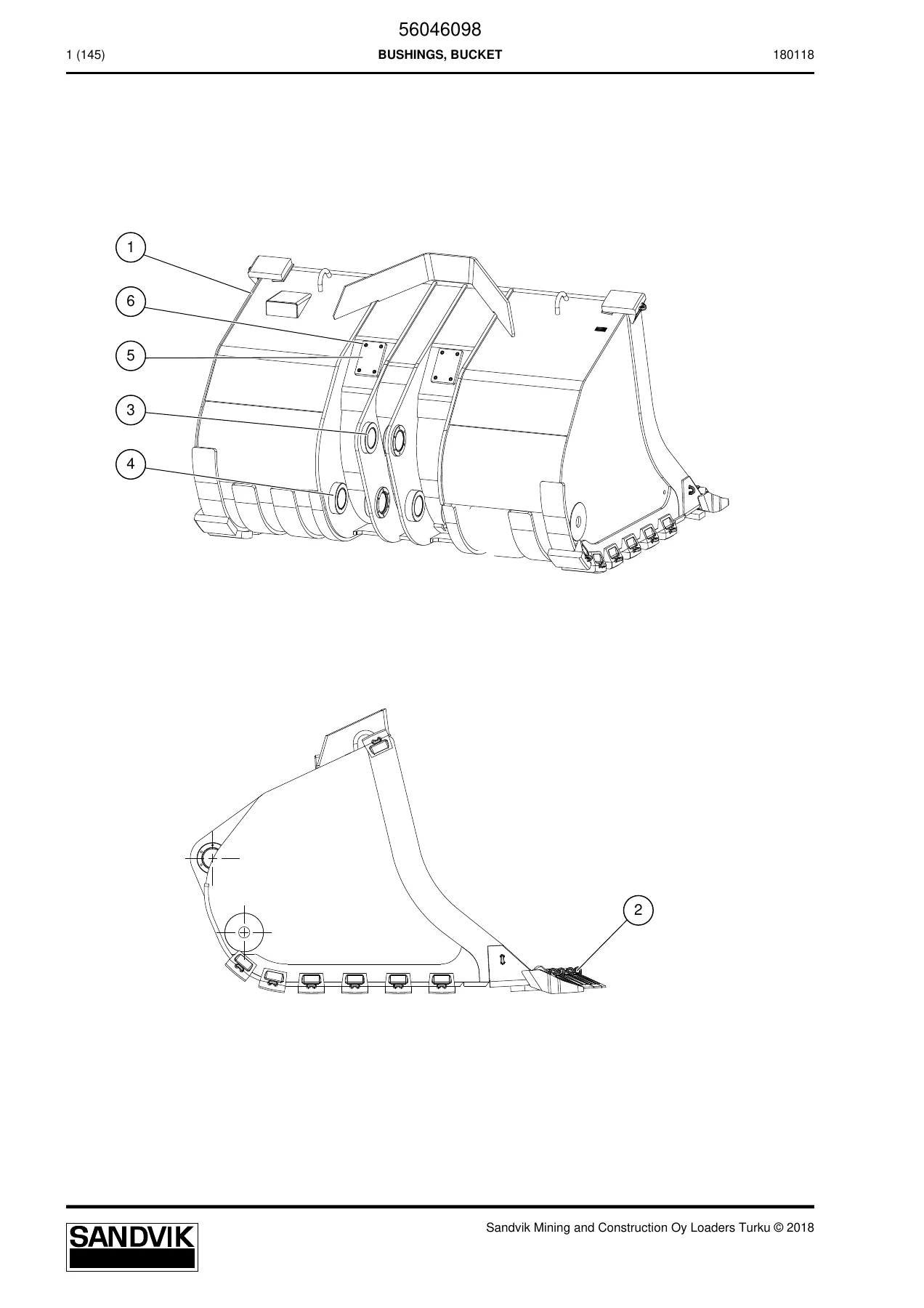

• Bushings, Bucket – 56046098
• Bucket, Welding – 56010909 / 56010910
• Assembly – 56007766, including wear pieces, corner shrouds, straight shrouds, transition shrouds and pin kits

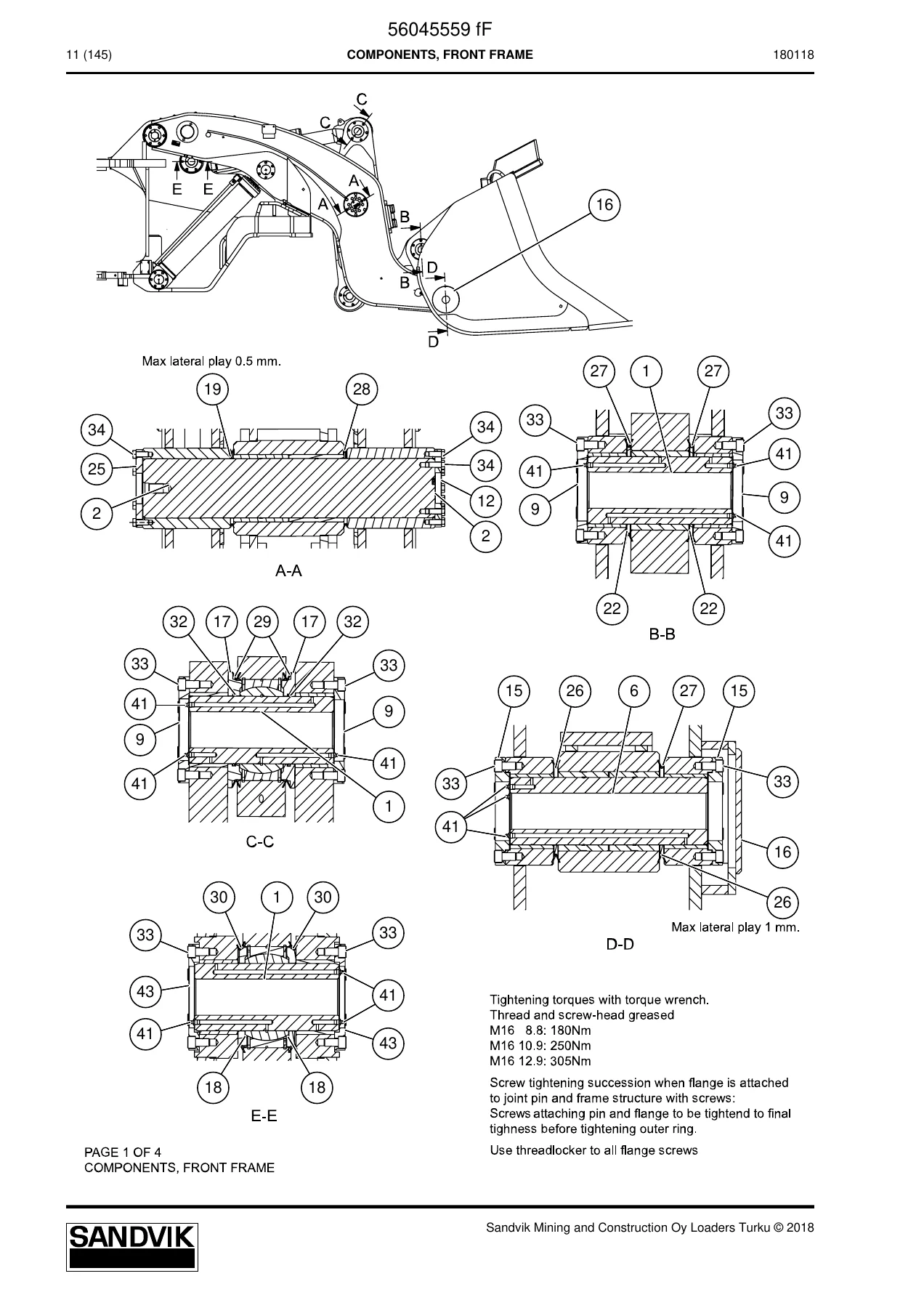

• Components, Front Frame – 56045559 with clevis pins, flanges, rings, spacers, V-seals, O-rings and grease nipples
• Frame Assembly, Front – 56204783
• Bushings, Front Frame – 56204784
• Equipment, Front Frame – 56045534 with guards, pins, locking plates, limiters and sensor assemblies
• Guard – 56023147, including rail slide, guide plates and slipper pads
• Limiter – 02724910 and 56043965
• Sensor Assembly – 56046084 and Sensor, Mounting – 56023145
• Bushings, Lift Arm – 56045500 and Bushings, Swing Lever – 56045520
• Dogbone – 56027788
• Retarding Unit – 56044488
• Components, Rear Frame – 56027450 with bearings, covers, clevis pins, adjusting plates and shaft seals
• Bushings, Rear Frame – 56026345

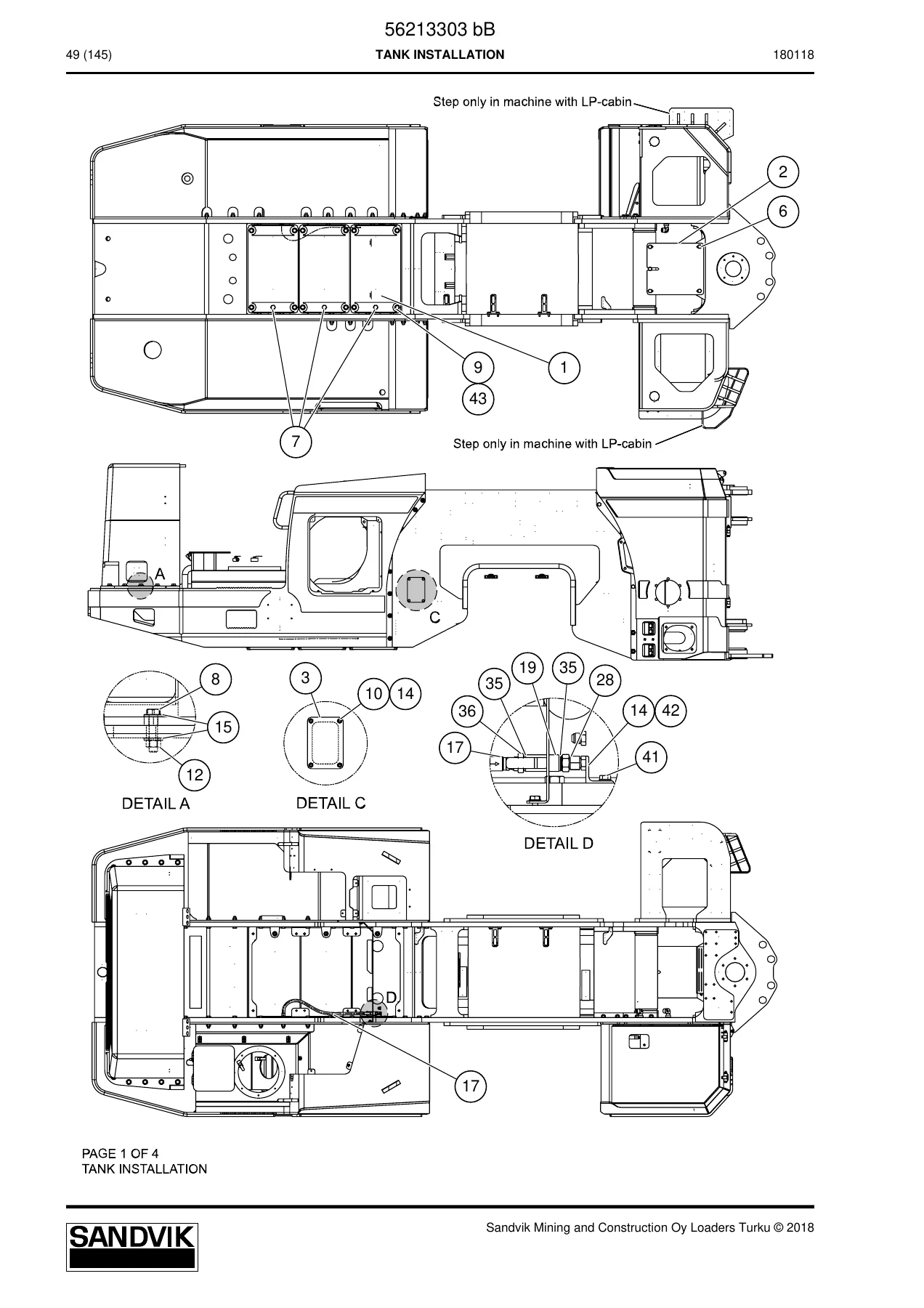

• Tank Installation – 56213303
• Tank Assembly, Rear – BG00693701, BG00396821 (rear, left)
• Housing Assembly – 56020130 and BG00500148
• Covers and Mudguards – 56034355, 56212157
• Cover – 56022237 and BG00878496
• Hinge – 02995580 and BG00655223
• Railing – 56212199
• Electric Components Assembly – BG00500086
• Harness, Wiring – BG00501818, BG00500124, 56049573
• Protection Mesh – BG00327074
• Chock, Wheel – 56041779 and Stopper – 56037052
• Signs and Decals Assembly – 56039524

What that list translates to on the floor is this: the catalog takes the LH517 from the bucket lip all the way back to the rear tank and the last warning decal, and it does it at component level. The bucket group is broken down twice – once as the welded bucket with its wear plates and heel castings, and again as the ground-engaging tool set with corner shrouds, straight shrouds and transition shrouds in their individual widths, plus the pin kit that holds them. The frame groups resolve every pin, bushing, ring spacer, V-seal and O-ring that goes into a front or rear frame joint, with the spacer thicknesses called out individually so you can shim a pivot correctly rather than guess. Later sections cover the cosmetic and protective structure – mudguards, railings, engine and expansion tank covers, safety mesh grills, the wheel chock and the stopper pedestal – and the document closes with the full decal schedule, itemised by position and part number.

Because each drawing carries its own Ref. column that ties a callout balloon to a part number and a quantity, you can read a component off the illustration and order from the same page without cross-referencing a separate index. Assemblies that themselves contain sub-assemblies point you to the page where they are broken down further, so you can keep drilling down until you reach the individual bolt or seal.

Who this catalog suits

Workshop planners building a parts list before a frame overhaul, fitters identifying a worn bushing or a bent pin from a drawing rather than a description, and stores staff who need the correct part number and quantity the first time. It is equally useful for confirming what a joint is supposed to contain when a machine arrives already dismantled and the spacers and seals have been lost.

Fasteners and hardware included

Hardware is not treated as an afterthought here. Hexagon socket head screws, hexagon head bolts in full and half thread, Nyloc nuts, plain washers and circlips all appear as numbered line items with their size and standard – M16X25, M20X130, M12X40 and similar – alongside the components they retain. Grease nipples, hydraulic adapters, ball valves, check valves and USIT seals are listed the same way in the tank and rear frame groups.

Get the Sandvik LH517 Frame Structures parts catalog

With this Sandvik LH517 parts catalog open on the bench you can identify and order front frame, rear frame, bucket, tank, cover, railing and decal components by their exact part numbers, confirm quantities per assembly before you commit to a purchase order, and rebuild pivot joints to the spacer and seal arrangement the drawing specifies instead of assembling from memory. Getting the part number right the first time is what keeps a frame job on schedule; guessing is what puts a machine back in the yard a second time.

IMAGES PREVIEW

The file is delivered as an instant PDF download – no shipping, no waiting on a courier, no physical binder to lose. Open it on a laptop in the workshop, a tablet next to the machine or a phone at the parts counter, and print whichever exploded view you need for the job in front of you.
