SANY SY485C1 Hydraulic Excavator Parts Manual PDF – SY0483BH12618 Illustrated Parts Catalog

Description

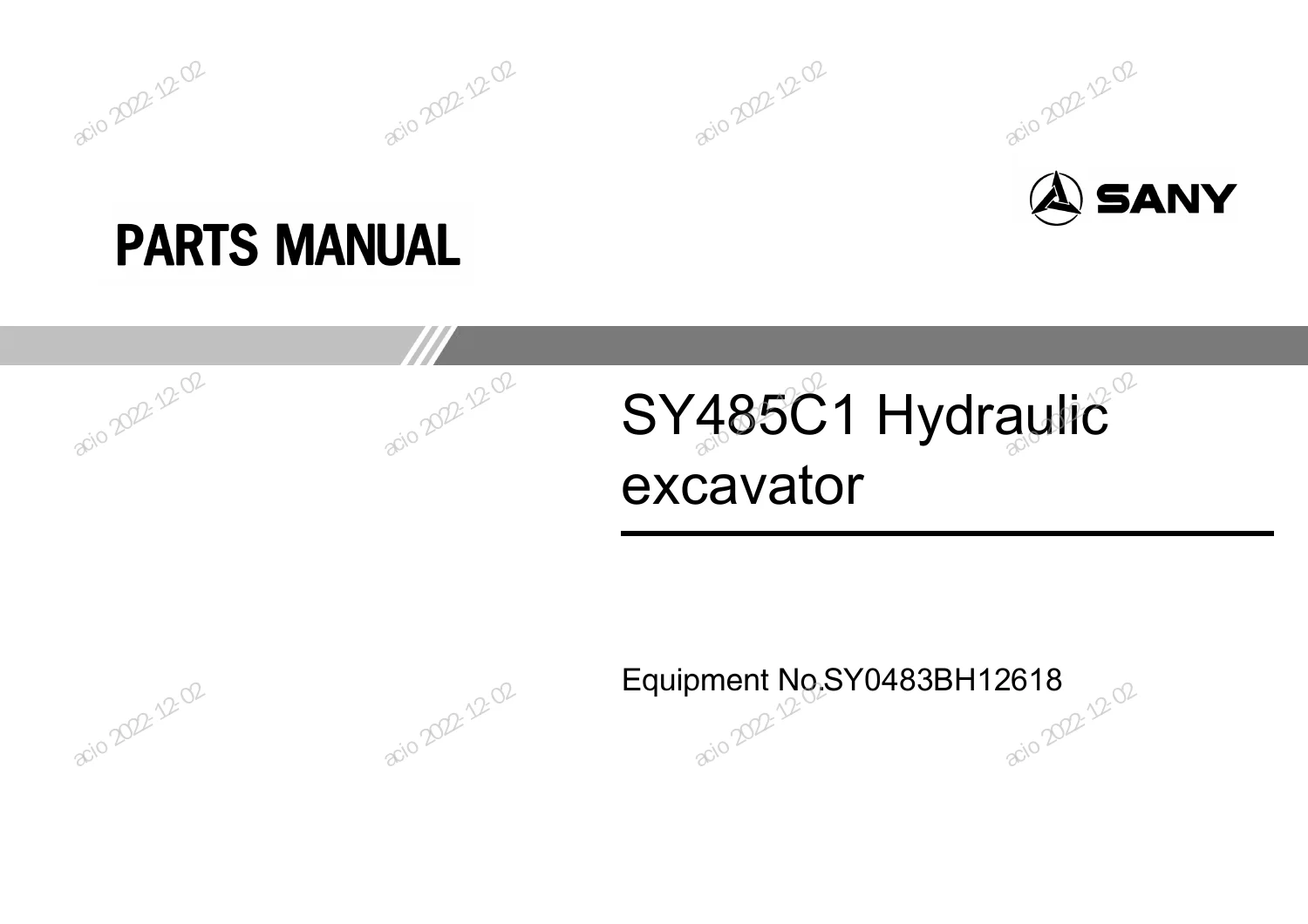

The SANY SY485C1 Hydraulic Excavator Parts Manual is the illustrated parts catalog published for equipment No. SY0483BH12618. Across 568 pages it breaks the whole machine down into twelve numbered chapters and lists every serviceable component with its SANY part number, index position, quantity and part name. Instead of guessing at a description or measuring a worn component, you look the item up in the group it belongs to and order against the number printed here.

File Details

• Manual type: Illustrated parts catalog / parts manual
• Brand: SANY
• Model: SY485C1 hydraulic excavator
• Equipment No.: SY0483BH12618
• Document date shown: 2022-12-02
• Language: English
• Page count: 568 pages
• File format: PDF
• Organisation: 12 chapters, each assembly given its own part number and page breakdown

Chapters Covered

Every chapter opens with an index page that lists the assemblies inside it by part number, so you can jump straight to the right exploded view rather than paging through the book.

• Chapter 1 – SY485C1 Hydraulic Excavator (13978403): top-level breakdown of the machine into work device, electrical system, slewing device, travel device, power system, cab assembly, coating, optional parts, assembly panels and accessories

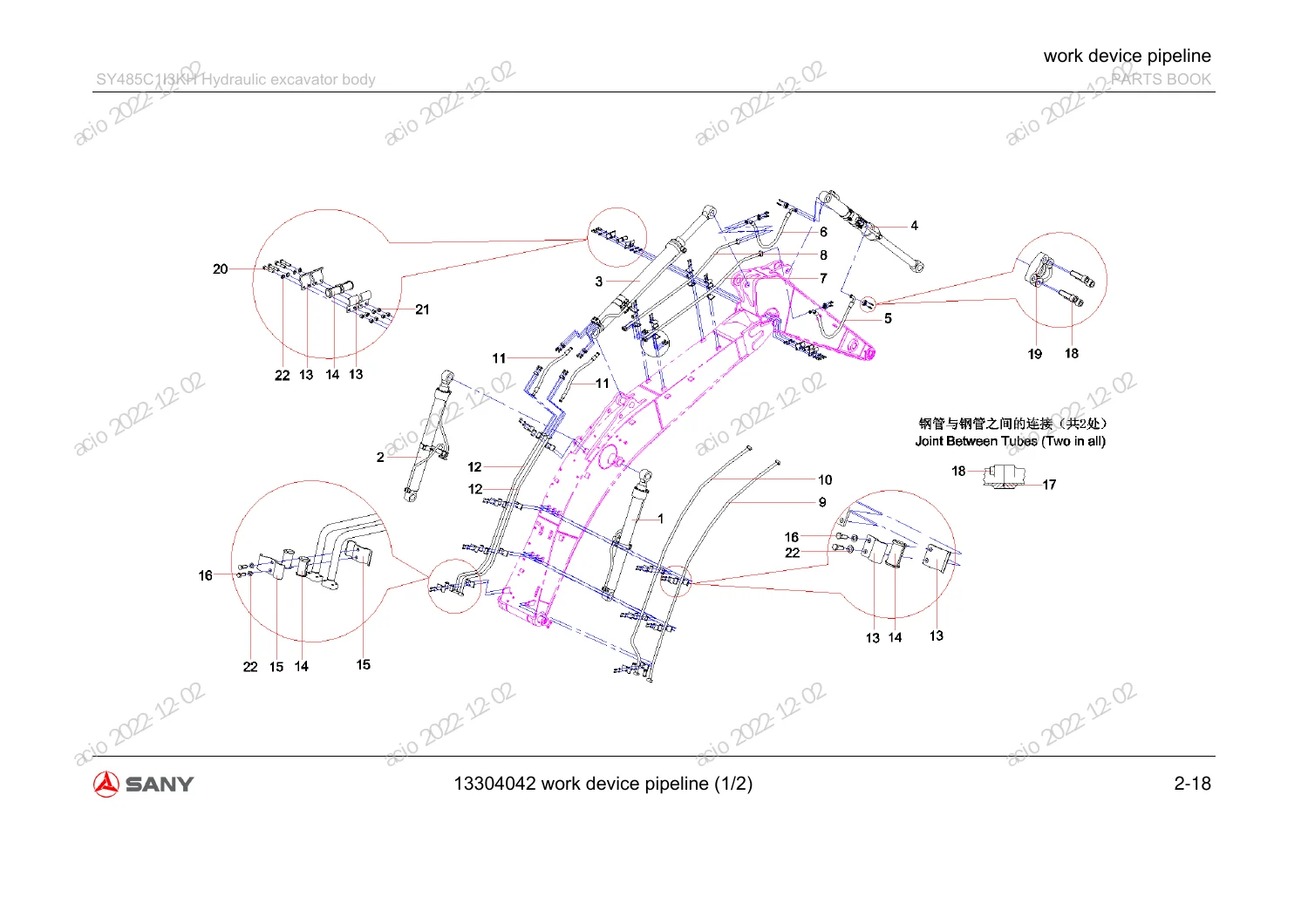

• Chapter 2 – Work Device (14038340 / 14038338): boom, arm, bucket, bucket assem, connecting rod assy, shaft sleeves, dust rings, spacers, pin shafts, lock pins, bushings, abrasion proof rings, shims, washers, bolts and nuts; lubricating pipeline assem (13303565); transit joint (A810201031035); work device pipeline (13304042) with rubber hoses, bucket steel pipes and tubes, single and double clamps; boom cylinder assembly (13304040 / 13304039); arm cylinder assembly (13304037); arm cylinder (60248643); bucket cylinder assem (13304036)
• Chapter 3 – Electrical System Assembly (14038121 / 13304257): cab electrical system (13304258) covering control display, control switch harness, ignition switch, dial fuel control, indicator lamps, radio and antenna, working lights, speaker/audio equipment and controller brackets; electric cabinet assembly (13304259) with fuses, fuse box, battery relay, glow relay, starter relay, power lines and battery wires; pump room harness (13304260); vehicle body harness assembly (13304261); boom harness assembly (13304262); assembly of electric control box (13304263)

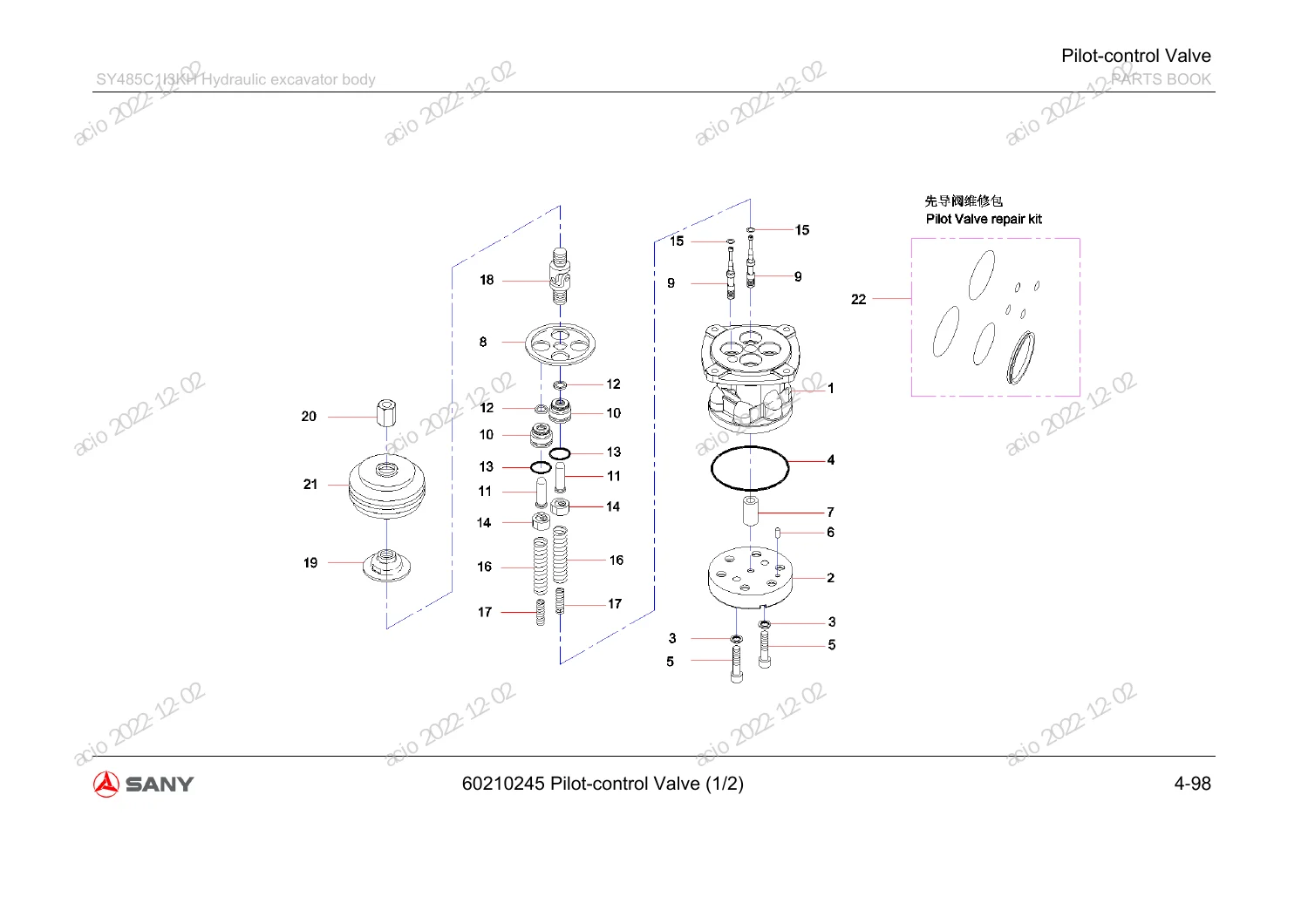

• Chapter 4 – Slewing Device (14038344): plate hydraulic system (13308319); hydraulic oil tank (13510936); filter element (12353451) with oil return filter, end cover and oil draining barrel; pipe of main pump (13308021); plunger pump (60242827) covering regulator, piston/cylinder assemblies, drive shaft, bearings, swash plate, valve cover, seal oil and snap rings; platform main road (13308041); pipe of drain system (13308050); main valve frame (13503268); radiator installation (13301167); axial piston motor (60248398); breathing valve (60129702); multi-way valve (60242783) in twelve parts covering travel valve spools, boom/arm/bucket/swing spools, valve covers, relief valves, logic valves and O-rings; reducer assembly (60191651); motor (60201949); reducer (60201948); pilot system (13310215); PPC pipeline (13310212); pilot valve (60283709); pilot-control valve (60210245); left handle assembly (11145459); right handle assembly (11145480); pipeline of main valve frame and electro (13309359); electromagnetic reversing valve (60243482); pilot pipeline of main pump (13309991); filter oil (B229900000063); air conditioning system (13278021); evaporator (60168171); electrical systems for air conditioning (10473304)
• Chapter 5 – Travel Device (14036611): seal module (11163607); tensioning equipment (60246966) with cylinder, spring, fork, bush, bar, lock plate and grease valve; undercarriage hydraulic system (13301522) covering swing joint assembly, reducer assemblies, hose and fitting hardware; swing mechanism (13294690) with slewing ring, bush, pin and square joint; crawler assembly (13623036) listing track shoes, track links, pins, bushes, track rings and main pin shaft
• Chapter 6 – Power System (13294706): engine (60239999) covering cylinder head cover (60320130), cylinder head (60320131), cylinder block (60320132), oil pan and level gauge (60320133), camshaft and valve (60320134), camshaft (60016650), crankshaft/piston and flywheel (60320135), timing gear case and flywheel housing (60320136), inlet manifold (60320137), exhaust manifold (60320138), ventilation system (60320139), thermostat and housing (60320141), water piping (60320142), fan and fan belt (60320143), turbocharger system (60320144), fuel injection system (60320147), fuel filter and bracket (60320148), fuel filter assemblies (60320115 / 60320114), fuel pump and pipe (60320149), oil cooler and oil filter (60320150), oil pump and oil strainer (60320151), oil and vacuum piping (60320152), emission piping (60320153), engine electrical control parts (60320154), battery and engine electrical parts (60320155), coupling/injection pump (60320156), radiator (60320157), wiring harness and fuse (60320158) and fixing parts for the wiring harness (60320159); damping and transmission system (13289665); flanging coupling (60352558); gas system (13304907); muffler (60250310); fuel system (13307855); fuel tank assembly (13548761); diesel fuel cleaner (60205949); oil water separator (60249071); pump assembly, fuel (60018583); fuel water separator (60064763); fule filter (60250940); intake system (13294025); air cleaner assembly (60270815); air filter (60241870); cooling system (13294027); radiator (60250328)
• Chapter 7 – Cab Assembly (14037913): JWDW04 large excavator cab subassembly (13269885) and cab main body (13269886); skylight assembly (11162034); inner-decoration assembly (13069429); electric system (13471741); door latch assembly (A222200000147); front window assembly (11181278); running control mechanism (13284295); seat and control cabinet (13300780); mechanical suspension driver seat (B229900000265); armrest AS, left (60204189); right armrest box assembly (60204190); bottom board rack of cab (13299430)
• Chapter 8 – Coating (14036582 / 13311535): decals, nameplates, warning labels, caution boards, anti-skid tape and machine markings
• Chapter 9 – Optional Parts (14035423): crushing hammer platform pipeline, working device pipeline, camera assembly, light and alarm unit and workwear
• Chapter 10 – Assembly Panels (13312148): right door, upper cover for main pump, top cover assembly, engine cover, radiator hood assembly, implementation, back board of engine compartment, clapboard assemblies, bottom cover plate assembly, cabin for radiator, assembly of bumper block, air filter room, air filter plate assembly, front board of engine compartment, cover plate for fueling tank, battery protective assembly, bracket for rear mirror, hydraulic oil tank cover plate, main pump cabin and main pump upper partition plate
• Chapter 11 – Accessories (14035990): enclosure (13311449) with O-ring kit, suction filter, air filter element, hydraulic tank breather filter, fuel filter elements, diesel filter, V-belt, hydraulic filter element, fuses, oil cups, grease nipples, dust rings and packing, plus accompanying tools (10567878) covering socket sets, Allen wrenches, double-ended spanners, chain wrench, grease gun, pliers and toolbox
• Chapter 12 – Other Fittings: boom cylinder (60248644) and bucket cylinder (60291387) exploded breakdowns with rods, end closures, cylinder bodies, pistons, retaining rings, seals, wiper scraper seals and repair kits, plus a consolidated fittings section listing adapter fittings, split flanges, rubber hoses, clamps, cushions, boom, bucket assembly, jiggle bars, connecting rod and steel pipes

Read as a whole, this is a complete disassembly map of the SY485C1. Every assembly is split into its individual components rather than being sold to you as a sealed unit, which means a technician can identify the exact O-ring, shim, pin, bushing, hose or spool that has failed and order only that item. The multi-way valve alone runs to twelve pages of internal parts, and the engine chapter goes down to individual valve guides, spring seats, crankcase bolts, pistons, rings and connecting rod components. Where an assembly is drawn in an exploded view, the index numbers on the illustration match the index column in the table beside it, so you can trace a component from the drawing to its part number without ambiguity.

How the Part Numbers Are Organised

Each chapter carries a master part number of its own – for example 14038340 for the work device, 60242783 for the multi-way valve, or 60239999 for the engine – and every sub-assembly beneath it has its own number, such as 13304040 for the boom cylinder assembly or 13304258 for the cab electrical system. Within each table the columns are consistent: an IC reference that ties the row to the illustration, an index number, the SANY part number, the quantity required, and the part name.

Some entries are shown as “Modification or other” rather than a fixed part number. These are positions where the catalogue identifies the item by name and quantity but leaves the number to be confirmed against the machine’s build, which is normal for hoses, pipes, steel tube assemblies and welded brackets that vary between production runs. Treat those rows as a description of what is fitted, and cross-check the physical part before ordering.

What This Parts Catalog Supports

Because it is a parts catalogue rather than a repair guide, it will not give you torque figures or step-by-step overhaul instructions. What it does give you is certainty about what a component is called and what number to quote. That makes it the right document for rebuilding a boom or arm cylinder, replacing a damaged hose or steel pipe on the work device, chasing an electrical fault through the cab or body harness, ordering seals and bearings from the travel drive, identifying internal parts of the multi-way valve or plunger pump, replacing cab glass, locks, hinges or interior trim, sourcing panel covers and hood assemblies, or simply building a stock list of the filters, O-rings and consumables this machine takes.

Why It Matters

On a machine of this size, a wrong part is not a small inconvenience. A mis-identified O-ring in a cylinder, an incorrect relief valve, or a hose with the wrong end fitting means downtime, a second order, and in the worst case a damaged component that costs far more than the part itself. Working from the manufacturer’s own parts breakdown removes that guesswork. You can confirm whether a component is supplied as a single item or as part of a kit, check how many of a fastener or washer a given assembly needs, and see exactly where an item sits before anything comes apart.
