Scania LHD and RHD Trucks Wiring Diagram Handbook with Component List

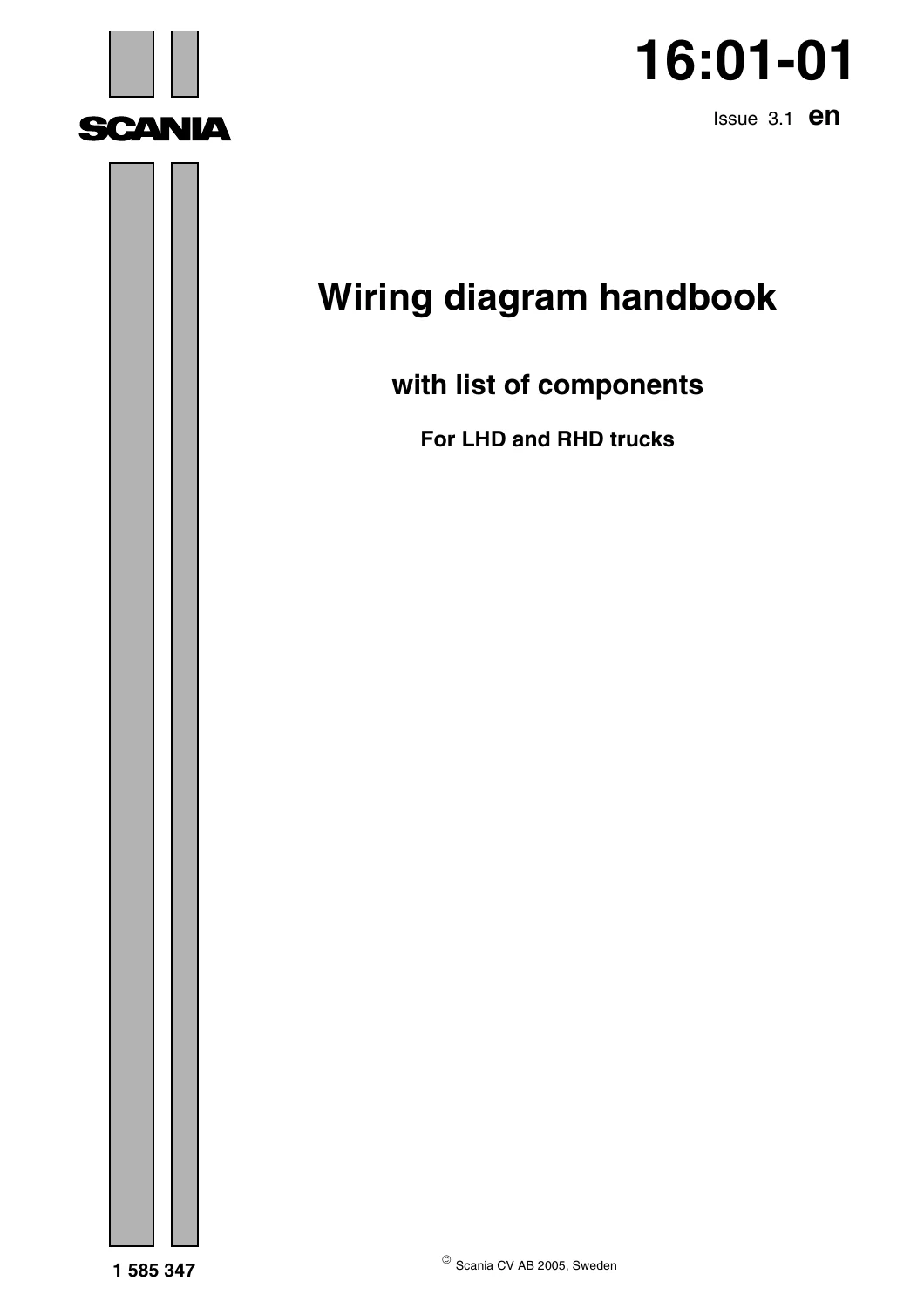

This Scania Wiring Diagram Handbook with Component List (document 1 585 347, insert 16:01-01, Issue 3.1) is the electrical reference Scania built specifically for technicians working across both left-hand drive and right-hand drive truck configurations. Rather than a single circuit sheet, it is a full handbook explaining how Scania’s electrical documentation works, then backing that up with location drawings and a complete component list so every code seen on a diagram can be traced to a physical part on the vehicle.

• Manual type: Wiring Diagram Handbook with List of Components
• Brand: Scania
• Applicable to: LHD and RHD trucks
• Document number: 1 585 347
• Insert / section: 16:01-01
• Issue: 3.1
• Language: English
• Page count: 211 pages
• File format: PDF

Chapters Covered

• General introduction to the handbook’s scope
• ADR – Scania ADR vehicles
• Two types of ADR electrical system (chassis-earthed and chassis-insulated)
• Regulations governing electrical equipment on ADR vehicles
• Wiring Diagrams – Connection diagram explained
• Wiring Diagrams – Circuit diagram explained
• Connection diagrams index by system (engine/fuel, gearboxes, axles, brakes, suspension, engine controls, basic electric system, instruments, cab components, accessories)
• Cable marking system and coding logic
• Translation table for diagram terminology
• Bulbs reference

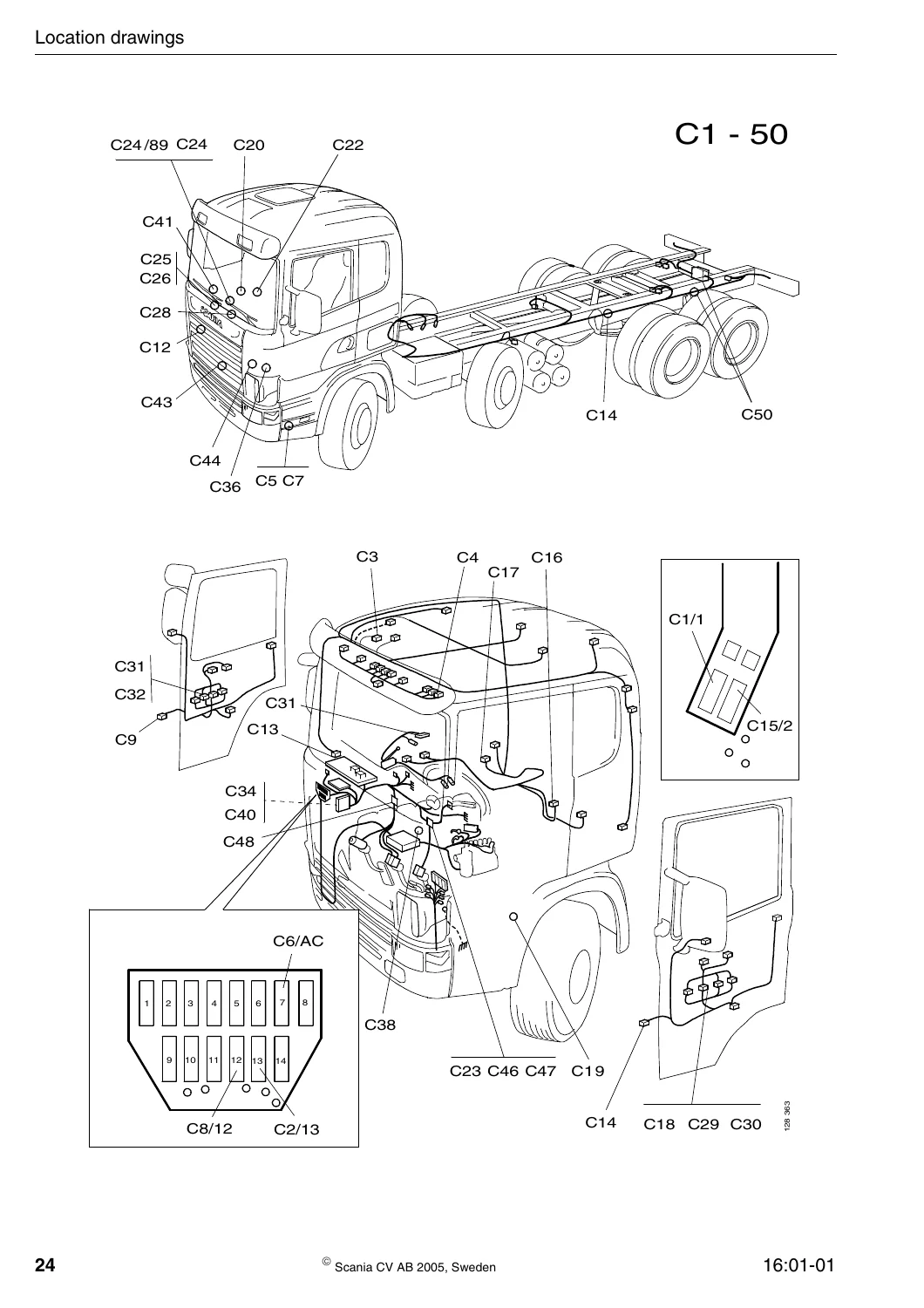

• Location drawings (component groups B, C and beyond, shown on the chassis and cab)
• List of components with cross-references to circuit diagrams and current paths
• Supplementary wiring diagram sheets: Coordinator (Generation 4 with EDC S6 and EDC MS6), diagnostic panel, diagnostic socket, VPS alarm and theft protection, high positioned headlights for snow-plough fitment, electric-gas and ignition system for natural gas engines, manual gearbox with torque converter (ZF), front axle brake pressure reduction, 4-circuit Bosch ABS, EBS, and automatic exhaust brake (EEB)

IMAGES PREVIEW

Together these sections turn the handbook into a working system: the opening chapters teach you to read a Scania connection diagram versus a circuit diagram, the cable marking chapter decodes exactly what a code like 15HB.RD-2.5+C8-3 means, and the location drawings then show physically where components B1 through C150 and beyond actually sit in the cab, on the frame, and behind the dash. The appended sheets extend that same system into option-specific circuits that many base handbooks leave out.

Reading the Diagrams

The handbook draws a clear line between the two diagram types used throughout Scania’s workshop documentation. The connection diagram shows which components exist in a circuit and how they are physically wired together, using a lettered/numbered grid so any point can be located quickly. The circuit diagram instead groups components into numbered current paths, showing where each one draws power from and where it earths — ideal for chasing a fault through a specific function rather than a specific harness run. Having both explained side by side in one Scania wiring diagram handbook means you are never guessing which diagram style applies to the fault in front of you.

Cable Marking and the Component List

Every cable in a Scania harness carries a marking that encodes its function, colour, and cross-section, plus the component it connects to and the pin number — this handbook breaks that marking down field by field with a worked example. The component list that follows carries that logic through to hundreds of individual parts, organised by code group (switches, connectors, diodes and resistors, control units, fuses, earth points, heated equipment, lamps, motors and more), each cross-referenced back to its circuit diagram, current path, and wiring diagram insert.

Because the handbook covers both LHD and RHD electrical layouts, it also flags where component location differs between the two configurations rather than assuming a single layout for every reader — useful if your workshop services trucks built for different markets.

What This Handbook Gives You

With this Scania wiring diagram handbook on hand, a technician can identify any cable marking on the vehicle, trace a circuit fault to the correct current path, locate the physical component behind a diagram code, and confirm which wiring diagram insert applies to a given system — from basic chassis wiring through to ADR-specific circuits, natural gas ignition, ABS/EBS braking electronics, and optional coordinator/EDC configurations. Having the correct diagram logic and component references in front of you avoids miswired repairs and repeat comebacks. The full 211-page handbook downloads instantly as a PDF after purchase — no shipping wait, no physical copy to store — and it opens on a laptop, tablet, or phone in the workshop, or prints out for bench reference whenever you need it.
