Scania P G R S Series Dismantling Information Manual – December 2017

Description

Scania P G R S Series Dismantling Information Manual – December 2017

This is the Scania P, G, R and S series Dismantling information booklet issued by Scania CV AB in December 2017 (en-GB edition). It is written for the people who take these trucks apart rather than the people who keep them running: reconditioning workshops, dismantling yards and recycling companies. Across 106 pages it sets out how fluids are drained, how hazardous components such as airbags and batteries are handled, how polymer parts are identified for sorting, and how the vehicle is safely raised and supported before any of that work begins.

One point worth being clear about before you buy. Scania states in the opening pages that the booklet applies to its newer models but does not cover every part, and that the information is incomplete. It is an end-of-life and pre-treatment reference, not a full workshop or overhaul manual. If you need component-level rebuild procedures, this is not that document.

File Details

• Manual type: Dismantling information / end-of-life pre-treatment booklet
• Brand: Scania
• Models: P, G, R and S series
• Edition: December 2017, en-GB
• Document reference: 00:45-06
• Publisher: Scania CV AB
• Language: English
• Pages: 106
• Format: PDF

Chapters Covered

• General – Dismantling information; Exchange components; Hazardous substances and materials; Identification of plastics; Lifting and supporting on stands
• Engine – Engine removal; Oil filter; Rotor (centrifugal oil cleaner); Engine oil draining
• Cooling system – Coolant draining

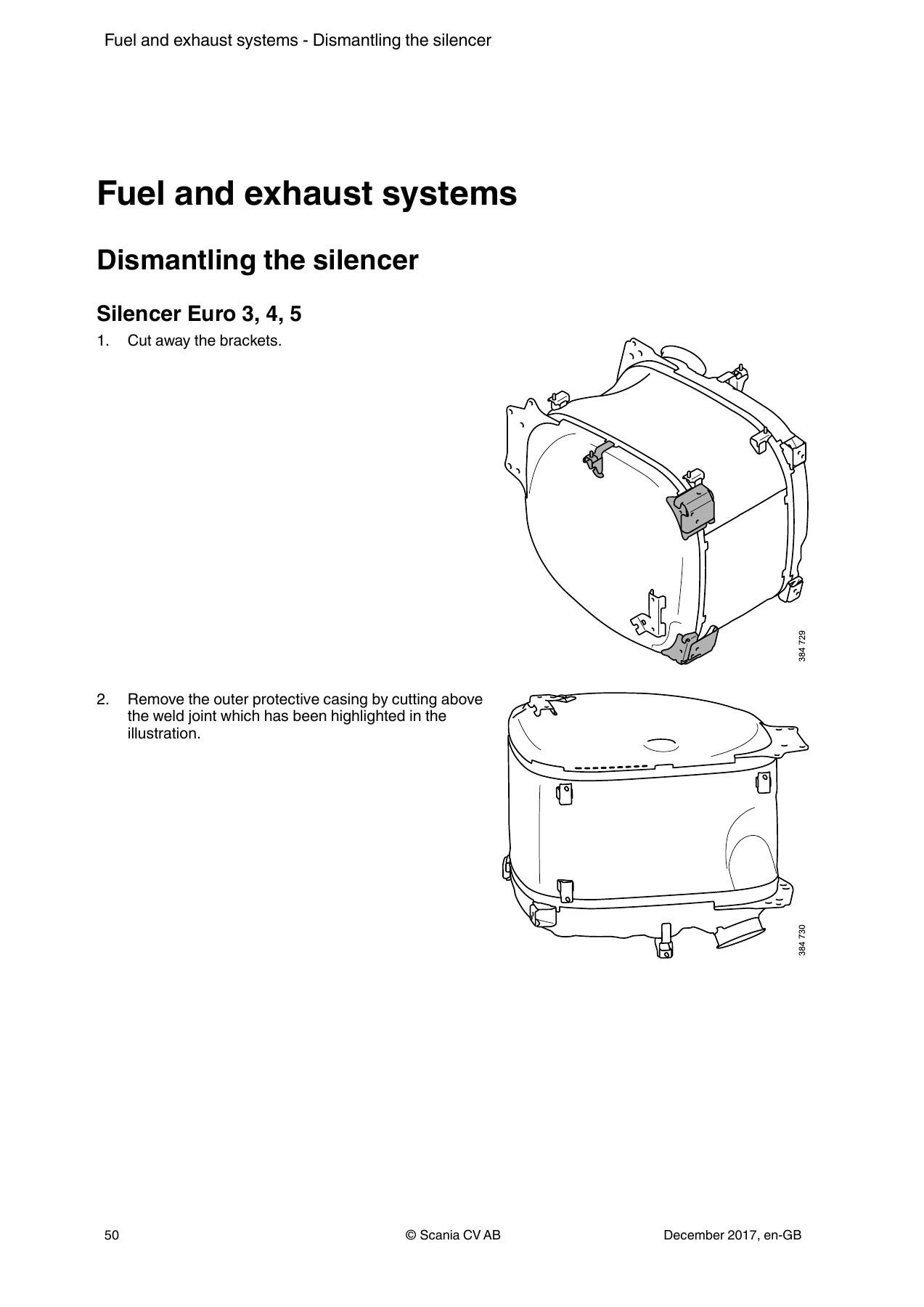

• Fuel and exhaust systems – Dismantling the silencer; Reductant tank; Fuel tank
• Coupling – Connection and operation (clutch fluid draining)
• Gearbox – Gearbox removal tooling and safety
• Brakes – Pneumatic system – Compressed air tanks; Spring brake chamber
• Suspension – Air suspension
• Steering – Removal of the steering wheel airbag
• Electrical system – Chassis central electric unit; Removal of curtain airbags; Batteries
• Instrument – Removal of the instrument panel
• Cab – Body – Canopy – Cab tilt system; U4 refrigerator; A/C compressor; Working with refrigerant; Compressor for the auxiliary cab cooler (E114)

Read end to end, the booklet follows the logical order of a vehicle being retired. It starts with the environmental and legal background to end-of-life treatment, moves into what has to come out of the truck before anything else can be touched, then works system by system from the engine bay through the driveline and chassis and finishes inside the cab. That ordering is deliberate: several procedures depend on an earlier one having been done, and the text says so where it matters.

Draining, Fluid Volumes and Hazardous Materials

The hazardous substances chapter is the practical heart of the Scania P G R S series dismantling information manual. It tabulates the lubricants, fluids and components recovered during pre-treatment along with approximate volumes, which is exactly what you need when planning containment and disposal capacity. Engine oil is given as 27-38 litres on 7-9 litre engines, 40-44 litres on the 13 litre and 32-47 litres on the 16 litre. Coolant runs 30-52 litres, 40-62 litres and 45-102 litres across the same engine sizes. Fuel filter housing and high pressure fuel pump residues are listed for D9/13 XPI, D9/13/16 XPI, D16 XPI and D13 PDE installations.

Driveline and chassis volumes follow the same pattern: gearbox 13-50 litres, transfer gearbox 6.5 litres, retarder around 7.5 litres, M33 electric machine 5.5 litres, Opticruise longitudinal stroke damper 0.09 litres, steering axle 2.2 litres of ATF, axle gear 9-13 litres, bogie-geared axle 11-12 litres, ZF portal axle 19.5 litres, hub reduction gears 2 litres and ZF hubs 0.7 litres. Cab tilt pump and cylinder hold 1.7-2 litres of Pentosin oil. R134a charges are given for the A/C at roughly 1,200 g and the cab refrigerator at 30-47 g.

Alongside the volumes, the manual carries specific warnings on isocyanates released above 150 degrees C during grinding, welding and cutting of painted parts, and a full procedure for fire-damaged vehicles covering weakened lifting points, unpunctured gas dampers as an explosion risk, immediate battery disconnection and contaminated wash water.

Identifying and Sorting Plastics

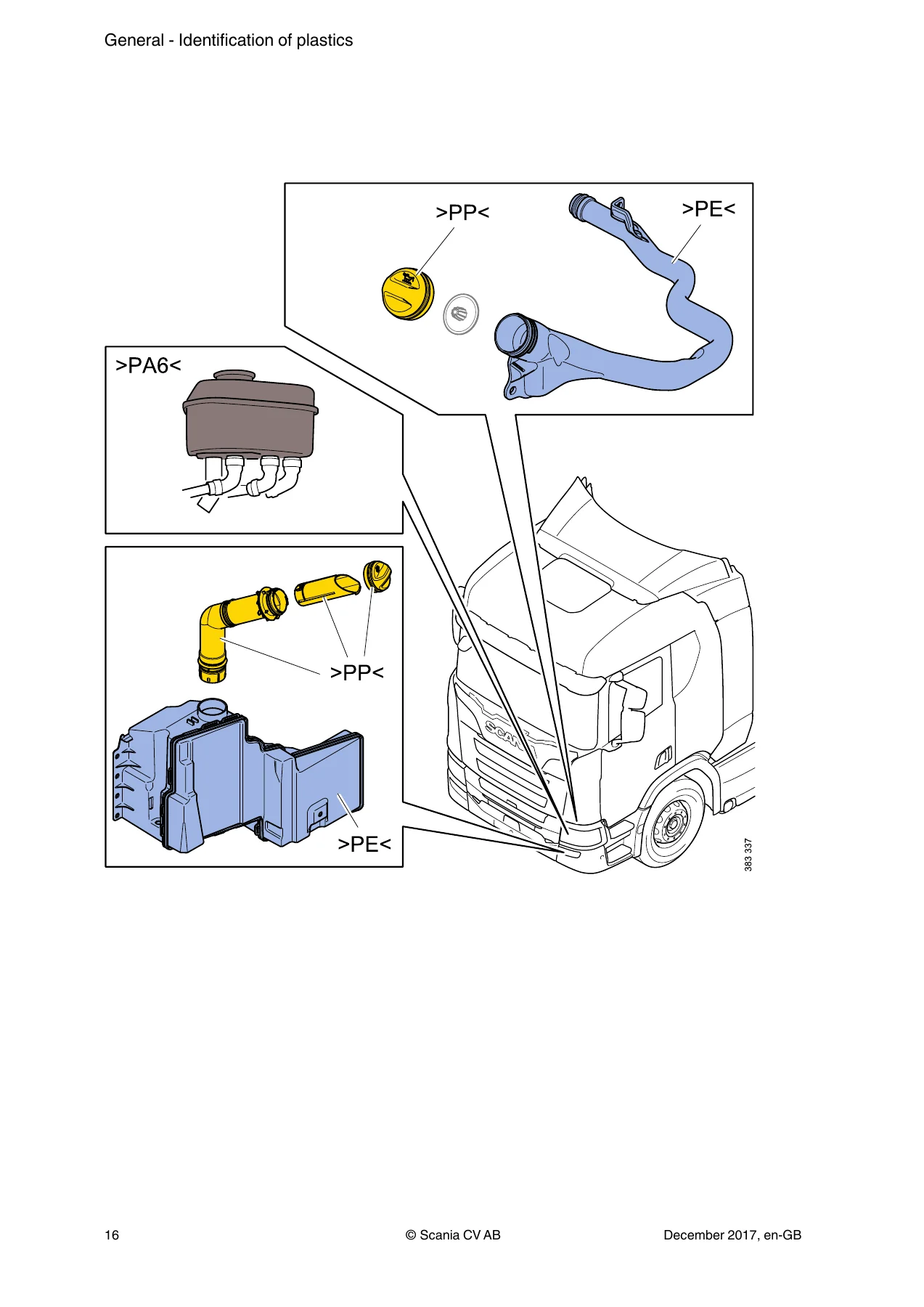

A large illustrated section explains how Scania marks polymer parts to Scania Standard STD 387, itself based on ISO 11469, and how to read those marks. Designations covered include ABS, ASA, EPDM, HDPE, NR, PA, PBT, PMMA, PC, PC+PBT, PC+ABS, PE, PP, PUR, PVC, TPE and UP, each with a note on where Scania uses it and how well it recycles. A compatibility matrix shows which base materials can be mixed, which tolerate only trace contamination below 5 percent, and which must never be combined. Filler codes such as T for talcum, M for mineral and G for glass are explained, as is the part numbering and date marking convention. Fourteen pages of colour-coded overview illustrations then show where each material sits on the vehicle, so a dismantler can sort by sight rather than by guesswork.

Lifting, Supporting and Safe Access

Before anything is removed the truck has to be held safely, and the booklet devotes a full chapter to it. It covers raising with a jack and with wheel lifts, chocking and parking brake release, supporting under front and rear axles, supporting vehicles with a heavy-duty front with and without tool 99 363, supporting vehicles fitted with front underrun protection, and positioning stands under the rear frame including the case of rear-mounted batteries with air suspension. Air-suspended vehicles get their own treatment: emptying the bellows, fitting the short 99 678 or long 99 677 safety prop between spring shackle and frame, the 7.5 tonne per prop axle load limit, prop removal, and the inspection routine for screw joints, release button, feet and thread condition.

Special Tools Referenced

Procedures throughout the Scania dismantling information manual are tied to named Scania tool numbers, which makes it easy to check what you already have on the bench. Engine lifting uses yoke 99 063, chain 98 094 and lifting eyes 99 611 for V8 or 99 637 for 9 and 13 litre engines, with engine support 99 318, adapter 99 470 and completing kit 2 377 964. Coolant is recovered with trolley 588 540 (or the earlier 588 450 with adapter 99 301), reductant with draining equipment 588 682 and filter 588 684, and fuel with the 630 litre stainless steel suction unit 588 794. Gearbox and instrument panel work calls on base bracket 99 644, bracket kit 99 646, gearbox jack 587 313, machine lift 588 966 and lifting accessory 2 426 173. Refrigerant recovery uses recycling station 587 627, and panel removal uses tool kit 588 390.

IMAGES PREVIEW

Pyrotechnics, Airbags and High-Risk Components

Several items on these trucks are genuinely dangerous to remove without instruction, and the manual treats them accordingly. The steering wheel signal cap airbag (H14) has a step-by-step latch clamp release using a T30 Torx, preceded by cutting power and waiting at least ten seconds, and a first-aid section covering the sodium azide, potassium nitrate, silicon oxide and iron oxide present in an undeployed unit. Curtain airbags H30 and H31 are documented separately for driver and passenger sides, with the preparatory panel and bed removal, connector release, cable duct handling and rivet drilling, plus a clear note that these are classed as pyrotechnic and often as explosive goods once outside the vehicle. The spring brake chamber section carries an explicit instruction that the unit must not be dismantled because of spring tension, and battery removal covers sulphuric acid and lead exposure along with EU producer responsibility for recycling.

Get the Scania P G R S Series Dismantling Information Manual – December 2017

With this manual on the bench you can plan and carry out a complete pre-treatment on a P, G, R or S series truck: drain engine oil, coolant, fuel, reductant, clutch fluid and cab tilt hydraulics into correctly sized containers, recover R134a through a recycling station, lift the cab and secure it, remove the engine, oil filter, centrifugal oil cleaner rotor, gearbox, silencer and catalytic converters, take out batteries and the chassis central electric unit, strip the instrument panel from the cab, and make safe the steering wheel and curtain airbags. It also lets you sort the resulting material properly, because the plastics chapter tells you what each part is made of and what it can be recycled with.

Getting these procedures right matters. Approximate fluid volumes decide whether your containment is adequate; the correct lifting and prop positions decide whether a raised truck stays where you put it; and the pyrotechnic handling rules decide whether an airbag leaves the yard legally and safely. Guessing at any of them costs far more than the manual.

Delivery is instant. Pay and the PDF is available to download straight away – no shipping, no waiting, no physical book to lose in the workshop. Keep it on a phone, tablet, laptop or shop PC, or print the pages you need for the job in front of you.
