Schramm T685WS-D Rotadrill Parts Manual 2010 – Serial J125-3223 PDF

Description

Schramm T685WS-D Rotadrill Parts Manual – 2010, Serial J125-3223

This is the illustrated parts book for the Schramm T685WS-D Rotadrill built under Serial J125-3223 in 2010. Because the T685WS-D is a custom-built rig, Schramm produced a machine-specific parts book matched to each unit’s actual build sheet. The manual opens with an important note directing the reader to the Detailed Rig Specifications (page A-1) in the Appendix to confirm exactly which options and assemblies were installed on this particular rig.

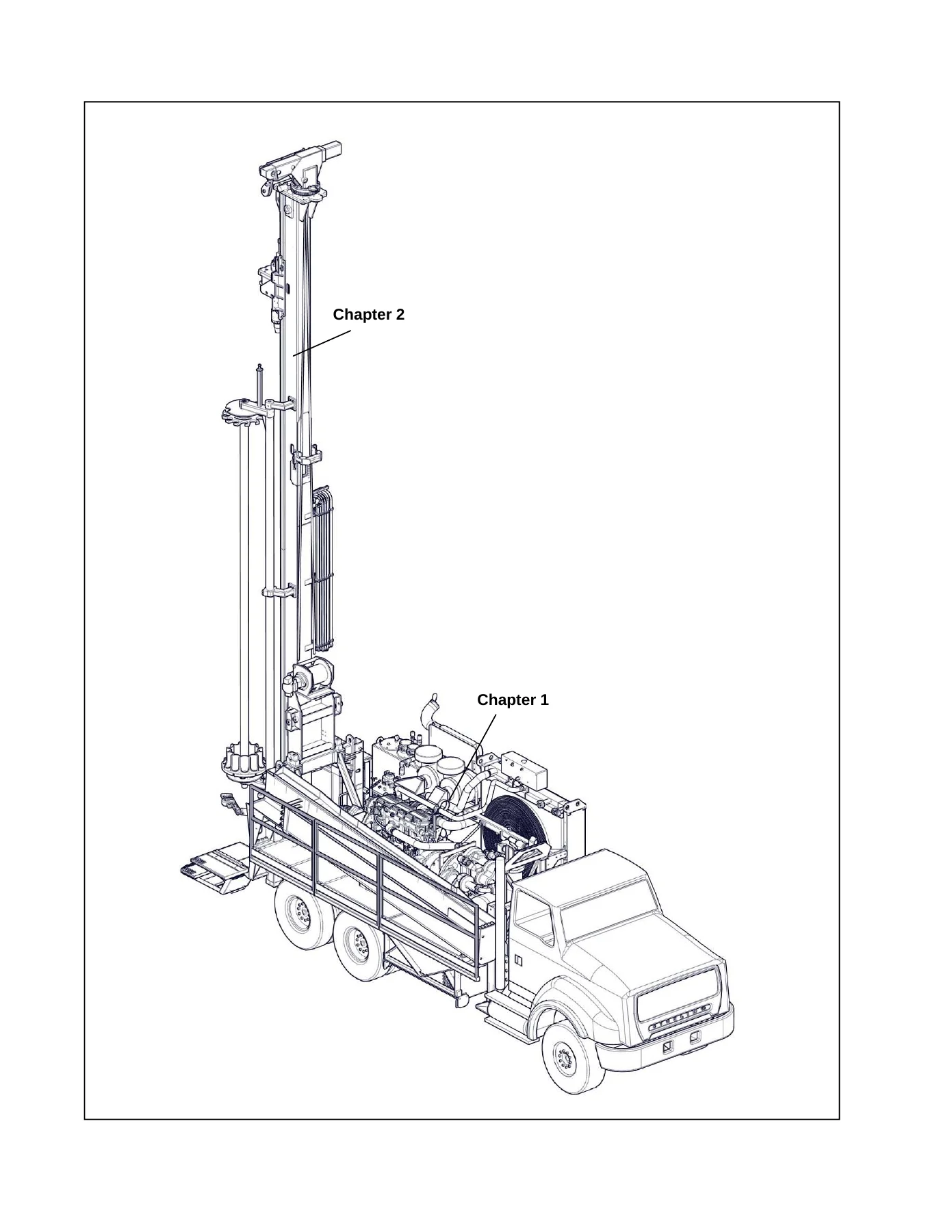

The Schramm T685WS-D Rotadrill Parts Manual follows the same two-chapter structure Schramm used across the T685WS-D range, then closes with an Appendix that gathers the consumable and identification lists in one place. Every major assembly is broken down into exploded illustrations, reference callouts, and a bill of materials showing part numbers, quantities and descriptions.

File Details

• Manual type: Illustrated Parts Manual (Parts Book)
• Brand: Schramm, Inc. – West Chester, PA, USA
• Model: T685WS-D (Rotadrill)
• Serial number: J125-3223
• Year of build: 2010
• Language: English
• File format: PDF
• Page count: 182 pages
• Structure: Chapter 1 Rig, Chapter 2 Mast, Appendix (Rig Specifications, Hoses, Filters, Decals, Nameplates, Track/Carrier OEM Specifications)

Chapters Covered

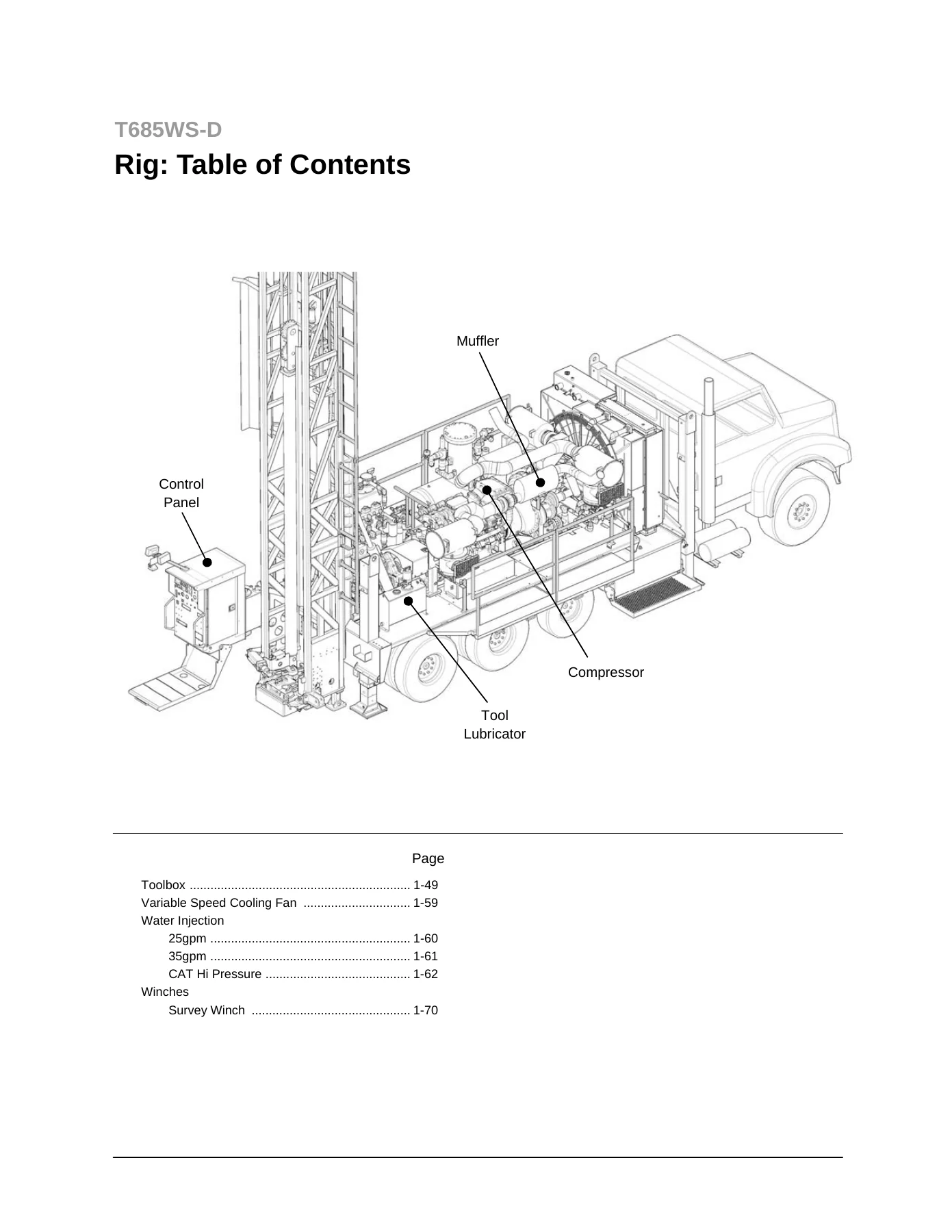

• Chapter 1 – Rig
  • Control Panel, Engine Control Panel, Reference Information
  • Lighting, Dual Front Outboard Outriggers, Rear Outriggers, Front Outriggers Kit
  • Fuel Tanks, Fuel Filters, Air-Oil Tank, Air Cleaner, Heat Exchanger
  • Hydraulic Tank, Toolbox, Battery Box, Muffler
  • Compressor, Clutch Assembly, Engine
  • Variable Speed Cooling Fan, Fan & Mounting
  • Diesel Fired Coolant Heater, Foam Injection
  • Water Injection 25 gpm, 35 gpm, CAT Hi Pressure
  • Tool Lubricator Piston Pump, Cyclone
  • Stand Pipe, Gearboxes & Pumps, Rotary Free Standing Splitter
  • Survey Winch
• Chapter 2 – Mast
  • Mast chains, sprockets, sheaves and idler assemblies
  • Mast slide cylinders and mast tilt cylinders
  • Tophead / rotation gearbox assembly
  • Split Table, slips, slip guide, slipbox
  • Breakout Wrench LH Mount and breakout cylinder assembly
  • Pipe loader, lazy susan, pipe handling controls
  • Jib Boom (Exploration), KL Rod Handling System
  • Winch 9,600 lb and winch 15K underwound
  • Swivel & Floating Shaft for 5″ Head
  • Blowdown Valve, Cyclone LH Mounted
  • Floating sub shaft and sub adaptors
  • Petol Drill Pipe Tong, bit breaker blanks
• Appendix
  • Detailed Rig Specifications (A-1)
  • Hoses – hydraulic, air and oil hose schedules by function (B-1)
  • Filters – compressor, hydraulic, engine and control panel filters (C-1)
  • Decals (D-1)
  • Nameplates (E-1)
  • Track / Carrier OEM Specifications & Book Reference (F-1)
  • Schematic Diagrams

What This Parts Book Gives You

Inside the T685WS-D parts manual, every assembly is presented as an exploded view with numbered callouts, and each callout resolves to a bill of materials table listing the Schramm part number, quantity and description. That format lets a technician or parts department identify the exact component that needs replacing without guessing, and it removes the risk of ordering a visually similar part that fits a different T685WS-D build.

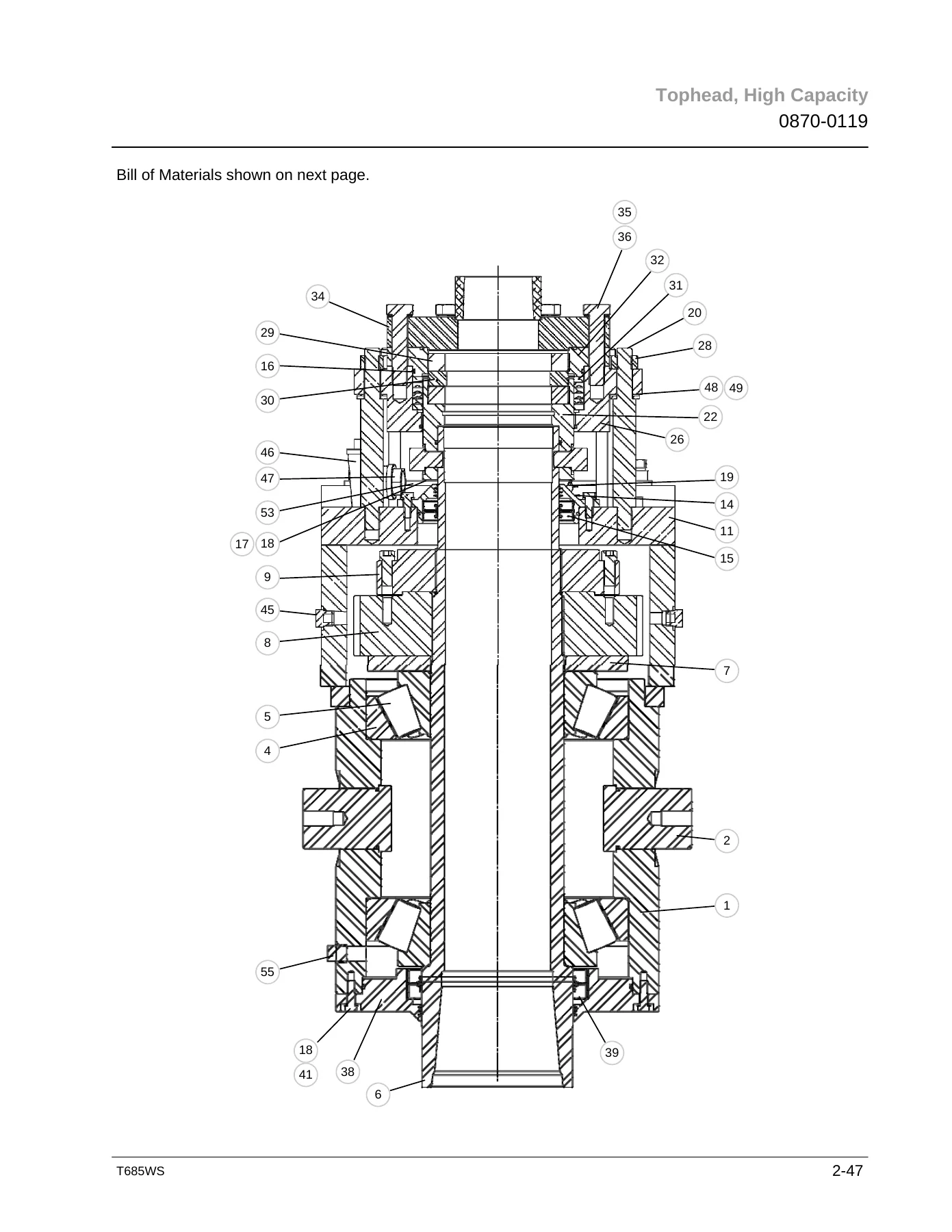

The rig chapter covers the deck-level systems in depth: the control panel valve bank (inlet section, valve sections with pressure cavities, lever kits, tie rod kits and relief valve assemblies), the dual front outboard outriggers with their hydraulic cylinders, check valves and velocity fuses, the fuel and hydraulic tanks with suction strainers and ball valves, the air-oil receiver tank with its regulator, blowdown valve and minimum pressure valve, the Sullair compressor package with clutch and Ringfeder coupling, the heat exchanger package with radiator and oil cooler, and the foam and water injection systems including the CAT high-pressure triplex pump arrangement.

The mast chapter handles the drilling end. It documents the upper and lower roller chains by pitch and strand count for both the 30 ft and 38 ft mast variants, the drive and idler sprockets, sheaves, traverse cylinders, mast slide cylinder, hydraulic holding fork, breakout wrench components, the pipe loader arm, the rotary free-standing splitter, the swivel and floating shaft, the blowdown valve, the survey winch and the larger 15K underwound winch. Rotational components such as the rotation gearbox, the pinion input and the Char-Lynn hydraulic motors are itemized with their shaft seal and seal kits listed separately.

The Appendix pulls the wear items together. The Hoses section lists hydraulic and air hose part numbers by diameter, end configuration, length and the specific connection point they serve. The Filters section covers the compressor, hydraulic, engine and control panel filter elements with their quantities. Decals and nameplates are indexed separately, which is useful when restoring or re-marking a rig that has lost its original placards.

Because the manual is keyed to Serial J125-3223, the specifications listed in the front matter apply directly to this build: the Detroit Diesel / MTU 12V-2000TA DDEC deck engine rated at 760 bhp at 1,800 rpm, the Sullair 1350/500 two-stage oil-flooded rotary screw compressor with Twin Disc SP214 clutch, the 100-gallon hydraulic tank, and the 30 ft 93,700 lb sliding mast with 180-inch stroke feed cylinders and dual 40.6 cu in rotation motors. Checking the Detailed Rig Specifications page will confirm which options are actually installed.

Who This Manual Is For

Owners, fleet mechanics, rebuild shops and parts departments supporting a Schramm T685WS-D Rotadrill will use this book for component identification and ordering. It is equally suited to a field service truck that needs to pull a part number on site, and to a workshop rebuilding an outrigger cylinder, a breakout wrench, a rotation gearbox or the compressor package during an overhaul.

For anyone working on hydraulic valve sections, the reference information page on the pilot-operated relief valve with anti-void gives the pressure setting range, adjustment values per quarter turn, torque figures for the valve housing and jam nut, and the shut-off plug assembly torque — all values a technician needs to set a valve correctly rather than by feel.

Get Your Schramm T685WS-D Parts Manual

This Schramm T685WS-D Rotadrill Parts Manual gives you the exploded illustrations and part numbers required to diagnose a failed assembly, order the right component the first time, and keep a 2010 T685WS-D Rotadrill running without chasing a parts counter for identification. Correct part numbers mean fewer returns, less downtime and a rig that is reassembled with the components Schramm specified for Serial J125-3223.

IMAGES PREVIEW

The manual is delivered as an instant PDF download after payment. No shipping, no waiting on a courier. Open it on a laptop in the shop, a tablet on the deck, or a phone at the well site — and print the pages you need for the job at hand.
