Schwing BPL900 Manual de Despiece

SCHWING BPL900 MANUAL DE DESPIECE – PDF DOWNLOAD:

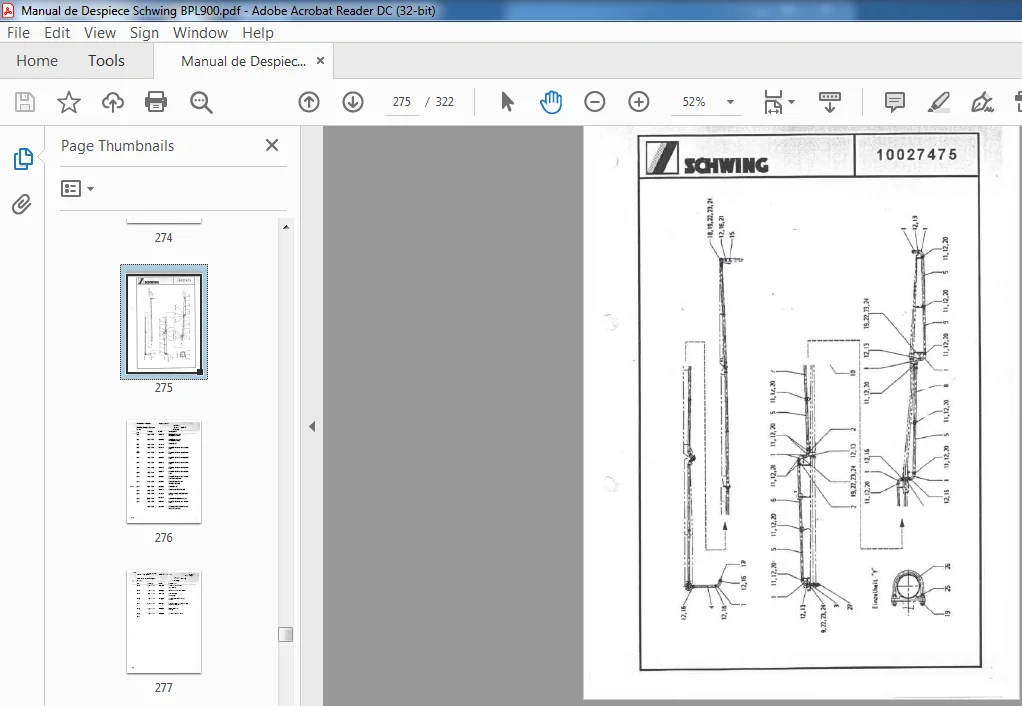

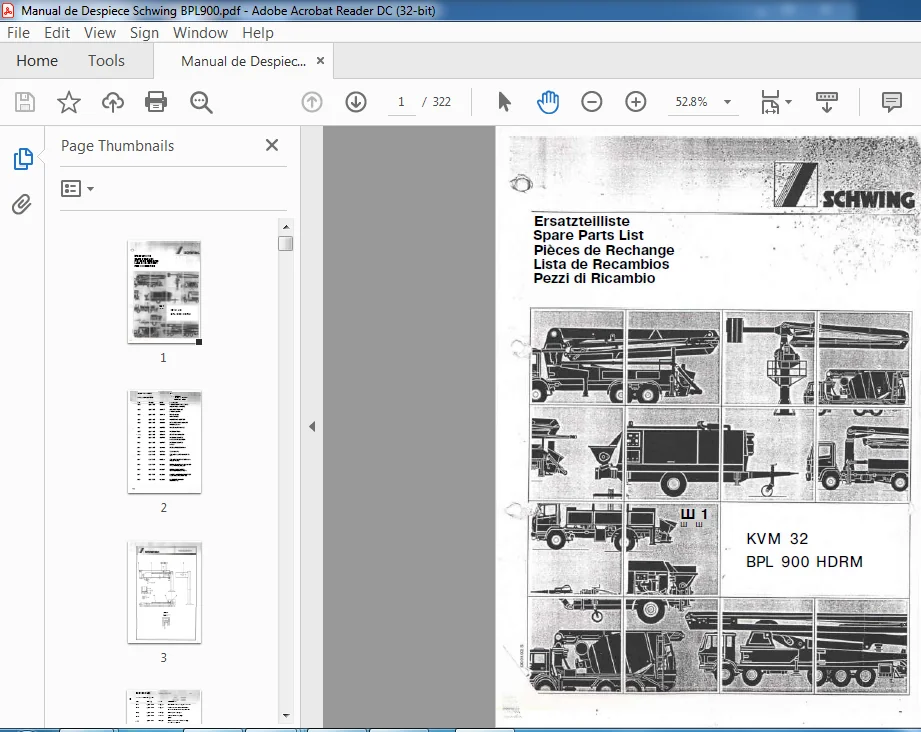

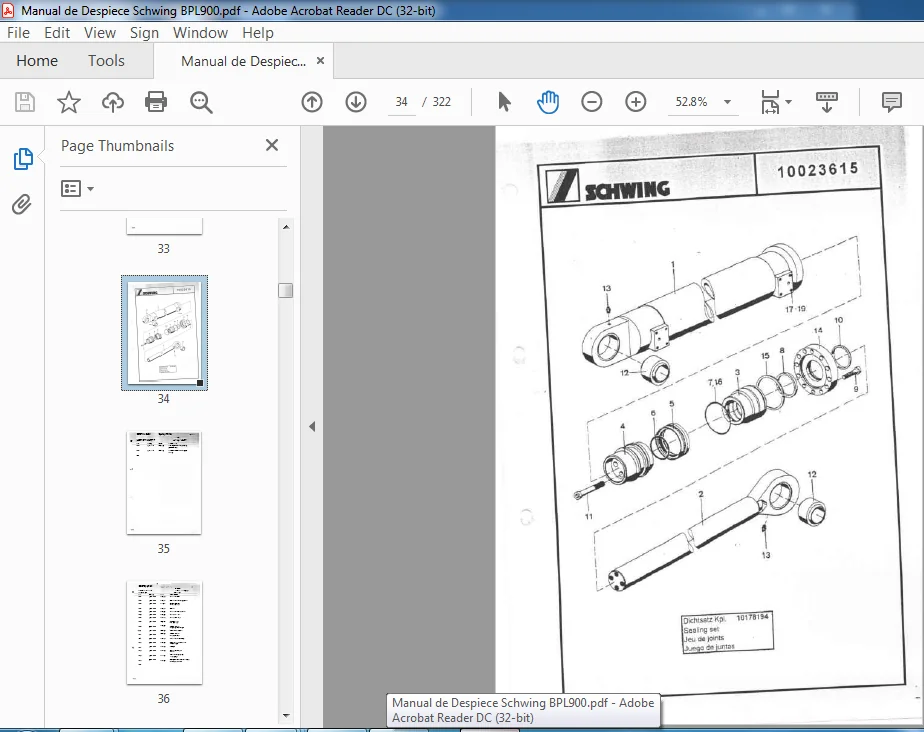

Image Preview:

Table Of Contents:

Schwing BPL900 Manual de Despiece

Pos. Quantity lD-NO. Nomenclature

0001 1,000 PCE 10032511 EXTRACTABLE GIRDER, FRONT LEFT

0002 1,000 PCE 10032540 FRONT EXTRACTABLE BOX LEFT

WITH HYDRAULIC JACKING DEVICE

0009 1,000 PCE 10022268 BOLTT 50 x 110/16- 9

0010 1,000 PCE 10007072 AXLE GUARD DIN 15058

30X8

00” 2,000 PCE 10001508 HEXAGON HEAD SCREW DIN 933

_ M 12×20-8.8-A20

0012 ‘ 2,000 PCE 10129840 SCREW RETAINER SKM 12

DT 320

0013 1,000 PCE 10030025 v LOCKING

– 0014

2,000 PCE 10004917 figIrthg ggARING FG 3572 EE

0016 2,000 PCE 10032507 SOCKET PIN D 35 x 167/ 50-12

0017 4,000 PCE 10007886 HYDRAULIC-TYPE LUBRICATING

NIPPLE DIN 71412 AM 10×1 5.8

0018 2,000 PCE 10001855 HEXAGON HEAD SCREW DIN 933

M 10X20- 8.8-A2C

0019 2,000 PCE 10129841 SCREW RETAINER SKM 10

DT 320

0020 1,000 PCE 10032552 THREADED ROD F 16 x 1080/ 80

(SUMMARY)

0021 2,000 PCE 10002342 ‘ HEXAGON NUT DIN 982

M 16 ~ 8 ~ A20

0022 2,000 PCE 10034817 TUBE
