Shantui SD32 SD32D SD32W Bulldozer Operation and Maintenance Manual

Description

Shantui SD32 SD32D SD32W Bulldozer Operation and Maintenance Manual

This is the complete Operation and Maintenance Manual for the Shantui SD32, SD32D and SD32W series bulldozers. These are hydraulically transmitted bulldozers with a rated power of 257kW. The SD32 is the standard model, the SD32D is configured for desert operation, and the SD32W is built for rock work. The manual provides the full scope of information needed by operators, maintenance personnel, and fleet managers to run these machines safely, efficiently, and economically.

File Details

• Manual Type: Operation and Maintenance Manual
• Brand: Shantui
• Models Covered: SD32, SD32D, SD32W
• Language: English
• Page Count: Approximately 221 pages
• File Format: PDF

Chapters Covered

• Chapter 1: Safety
  • Safety Labels and Pictograms
  • Safety Rules (principles, protective items, lock procedures, fire prevention, burns, asbestos, ROPS, optional attachments)
  • Safety Procedures (before starting, operation, transportation, battery, towing, maintenance)
• Chapter 2: Operation
  • Controls (general view, roles of levers, pedals, switches)
  • Electric System (combination meter, GPS and non-GPS variants, monitor panel, switch panel, fuse box, bond straps)
  • Operation (pre-start checks, starting, moving, turning, parking, stopping, special climates, slopes, water, desert)
  • Dozing Operation (blade and ripper operation, blade adjustment, leveling, side-casting, extending machine life)
  • Towing, Lifting, Transportation and Storage
• Chapter 3: Structure and Principle

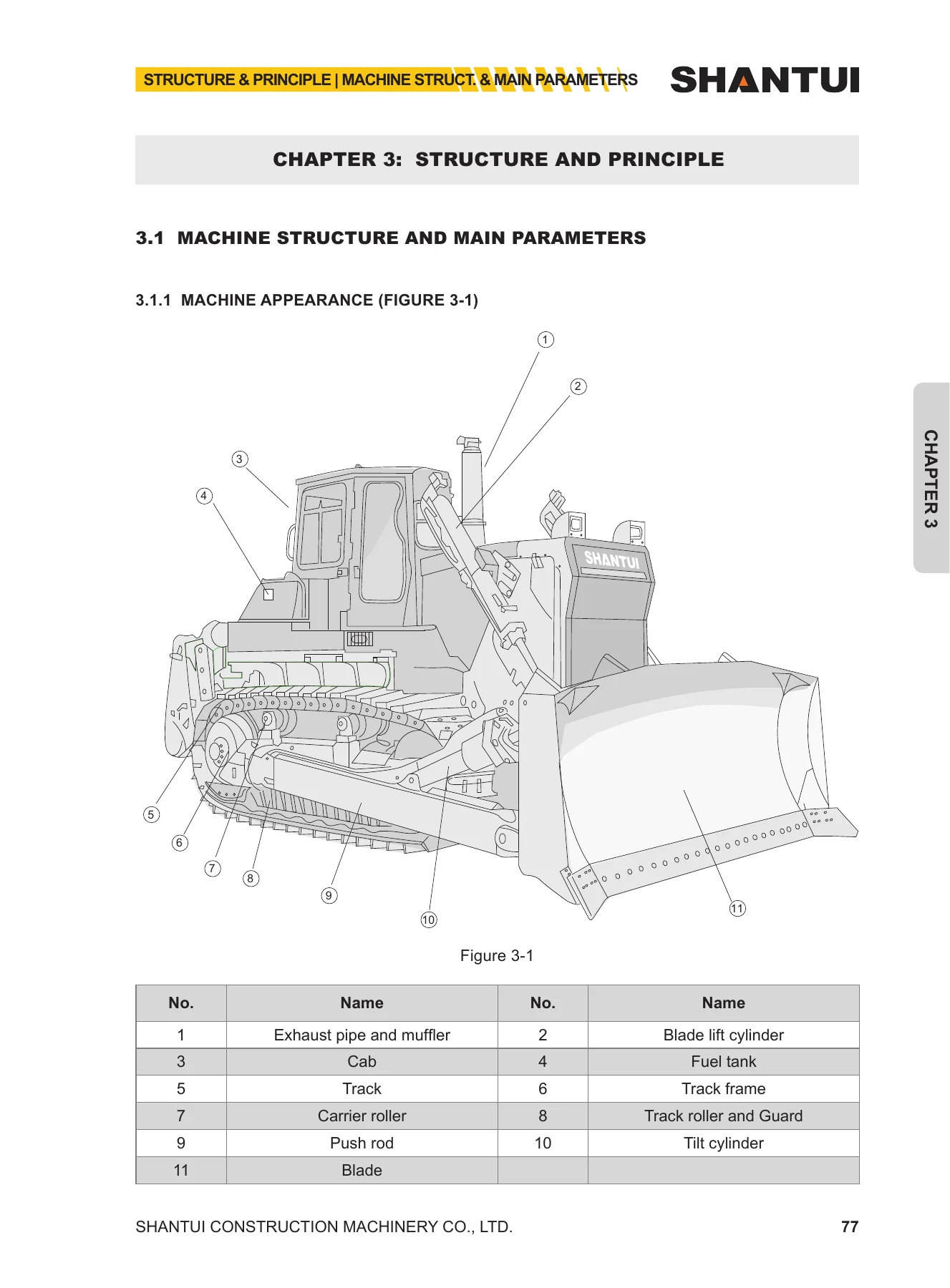

  • Machine Structure and Main Parameters
  • Engine (appearance, performance indicators, power output devices, radiator, oil cooler, fuel piping)
  • Hydraulic Torque Converter
  • Universal Joint
  • Transmission Case (planetary gear, clutches, hydraulic control)
  • Central Drive
  • Steering Clutch and Steering Brake
  • Final Drive
  • Drive System Operation
  • Walking Mechanism (track tension, idler, track roller, carrier roller, track, equalizer bar)

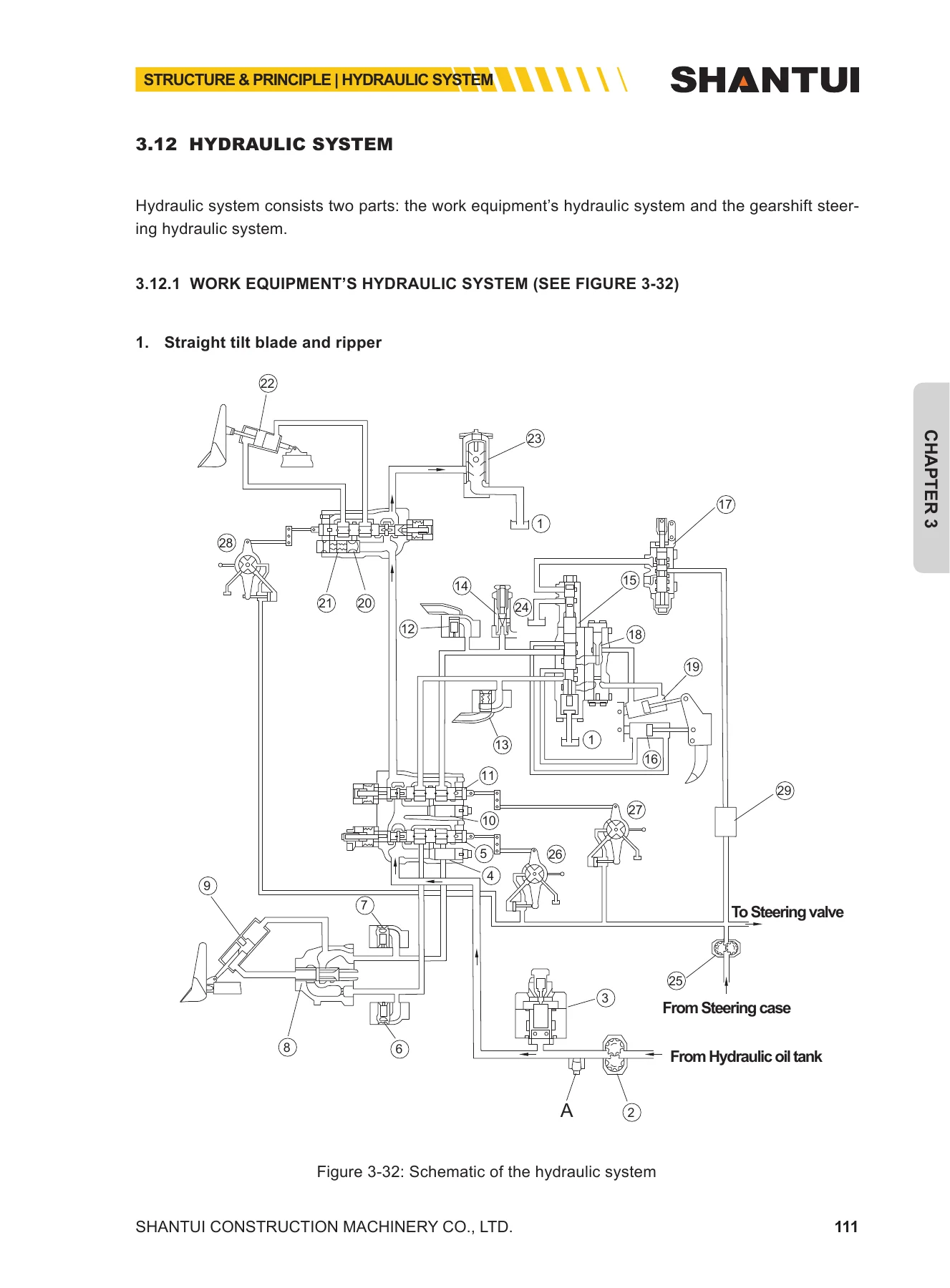

  • Hydraulic System (work equipment, gearshift and steering)
  • Work Equipment (straight tilt blade, angle blade, Semi U-blade, rippers)
  • Electric System (description, wiring chart, wire codes, principle diagram)
• Chapter 4: Maintenance
  • Service Table (initial 250 hours, every 250/500/1000/2000/4000 hours, maintenance when needed)
  • Lubrication Diagram and Table
  • Adjustment of Various Parts (brake pedal, idler, fan belt, walking parts, blade, ripper)
  • Service Standards for Main Parts (torque converter, transmission case, central drive, steering clutch, steering brake, final drive, track frame, tension device, idler, rollers, track, blade, ripper)
  • Standard Tightening Torques for Bolts and Nuts
  • Troubleshooting (engine, electric system, chassis)
  • Precautions for Disassembly and Assembly
  • Additional Table: Use of Fuel, Coolant and Lubricants According to Ambient Temperature

The Shantui SD32 SD32D SD32W Bulldozer Operation and Maintenance Manual is a comprehensive technical document that covers the full lifecycle of these machines. It begins with detailed safety information and labels, then moves into the complete operating procedures for the blade, ripper, and all machine controls. The structure and principle chapter provides a thorough breakdown of the powertrain, from the Cummins NTA855-C360 engine through the hydraulic torque converter, transmission case, central drive, steering clutches and brakes, final drive, and undercarriage. Hydraulic system schematics and electric wiring diagrams are included to support troubleshooting and repair. The maintenance chapter is extensive, providing service intervals from initial 250 hours through 4000 hours, with specific procedures for lubrication, filter replacement, fluid changes, track tension adjustment, and component inspection. Service standards for major components give the wear limits, clearances, and tightening torques needed for accurate repair work. The troubleshooting section addresses common engine, electrical, and chassis faults with diagnostic guidance. This manual is the essential reference for anyone responsible for the operation, maintenance, or repair of SD32 series bulldozers.
