Zoomlion ZLJ5441THBBF 59X-6RZ Truck-Mounted Concrete Pump Spare Parts Manual

Description

Zoomlion ZLJ5441THBBF 59X-6RZ Spare Parts Manual

This is the illustrated spare parts manual for the ZLJ5441THBBF 59X-6RZ truck-mounted concrete pump, issued by ZOOMLION. It is the reference document used to look up original part codes and build a correct parts order for this specific machine, whether you are rebuilding a boom section, chasing a leaking swing cylinder, or simply replacing a worn pipe clamp.

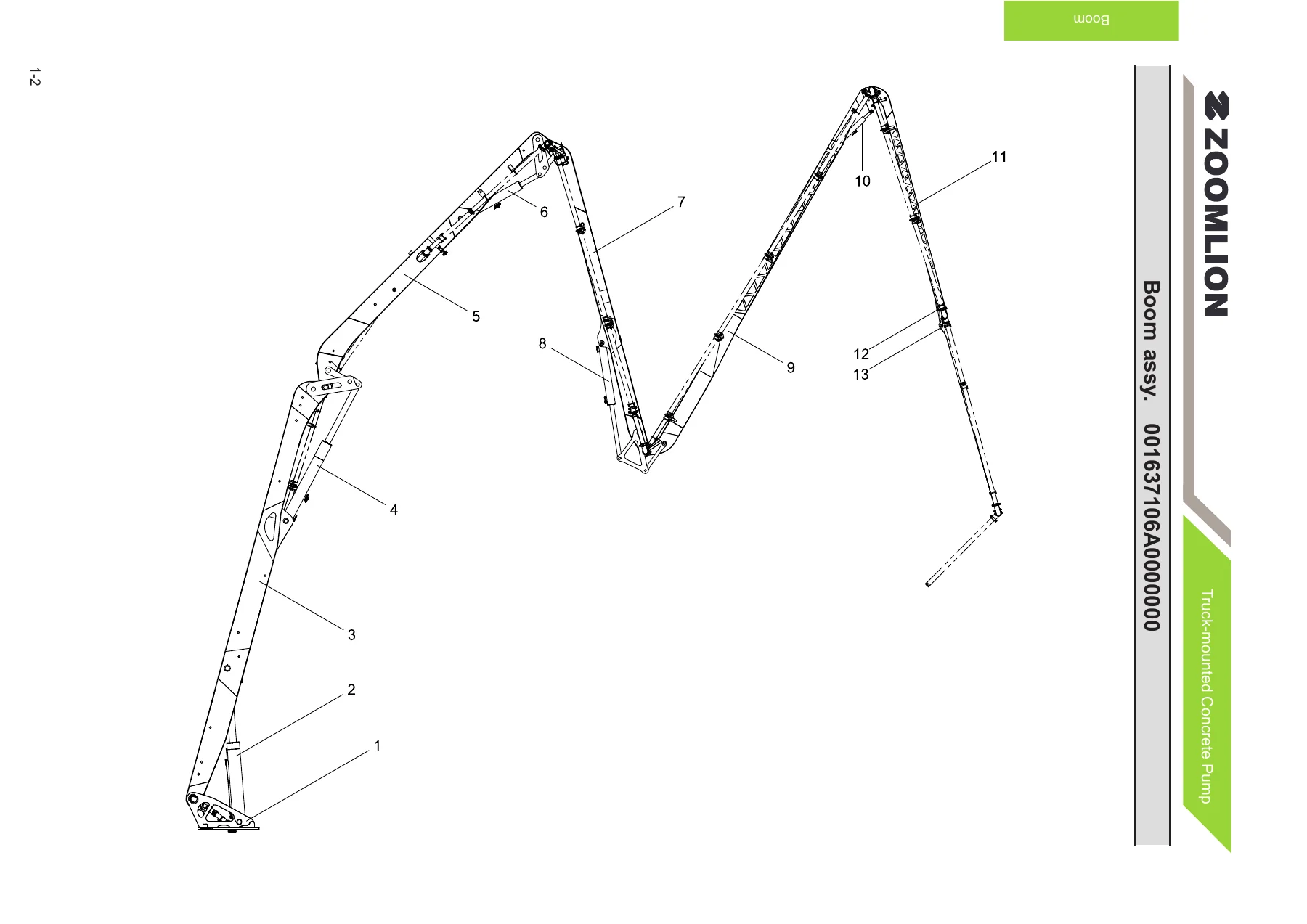

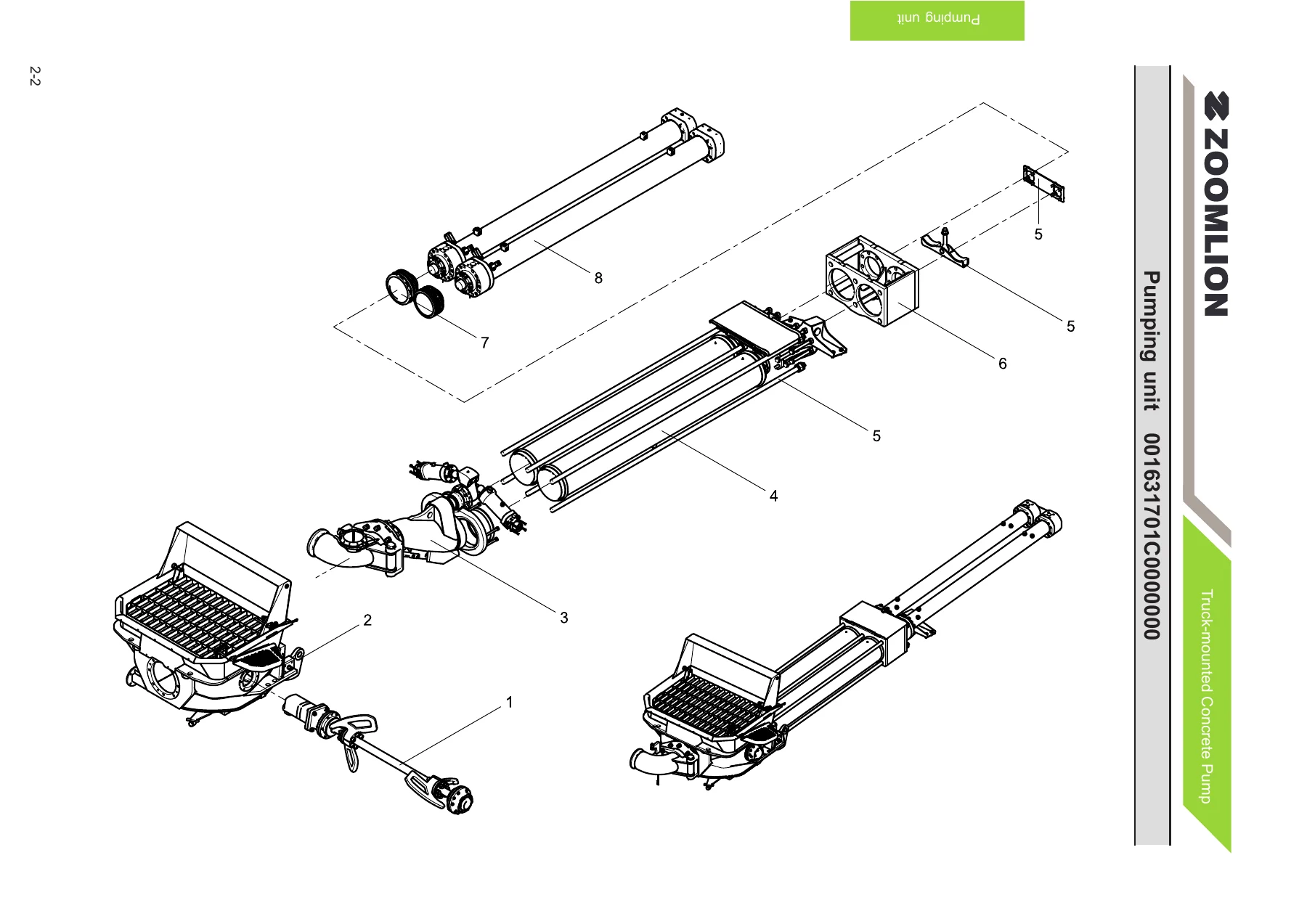

The manual is built in the familiar left-illustration / right-table format: an exploded drawing of the assembly sits beside a table listing every item with its position number, part code, standard number, description, specification and required quantity. That pairing is what makes it usable in practice – you identify the part on the drawing, then read its exact code straight off the facing table.

File Details

• Manual type: Illustrated spare parts manual (parts catalogue)
• Brand: ZOOMLION
• Model: ZLJ5441THBBF 59X-6RZ truck-mounted concrete pump
• Machine no. covered: 001639500A0000000
• Factory no. format: 016395A0
• Language: English, with Chinese assembly descriptions retained alongside
• Page count: 336 pages
• File format: PDF
• Units note: the default unit for cable in the electrical system is metres

Chapters Covered

• 1. Boom – boom ASSY., swivel device, base structure and outriggers
• 2. Boom and outrigger cylinder ASSY. – boom cylinder ASSY. and outrigger cylinder ASSY.
• 3. Pumping unit – hopper, distributing valve system, pumping system, concrete piston, pumping cylinder, mixing mechanism, concrete cylinder, water tank
• 4. Concrete pipe ASSY. – boom concrete pipe and undercarriage concrete pipe
• 5. Chassis and truck frame protective device – chassis refit (PTO system, driven shaft, pneumatic device, spare wheel support ASSY.) and truck/frame protective device ASSY. (auxiliary frame ASSY., frame protective, walk platform and accessories, tool box, backing board support ASSY.)
• 6. Hydraulic system – pumping hydraulic system and pumping pipeline, distributing system, mixing and cleaning pipeline, base structure hydraulic system and pipeline, boom hydraulic system and pipeline, cleaning system, lubrication system
• 7. Electrical system – wiring harness, cab electric, outrigger control box and integrated control box, coder and sensor, proximity switch, limit switch, valve block ASSY., lamp ASSY., remote control and GPS, electric control box
• 8. List of concrete straight pipe – nonstandard concrete straight pipe within the boom and undercarriage concrete pipe ASSY.
• 9. Hose list – superstructure hose and undercarriage hose in the machine

Within those chapters the manual works its way down to individual component level. The boom chapter alone breaks out first, second, third, fourth, fifth and sixth boom assemblies and sections, with the pads, pipe clamps, seal rings, U-bolt assemblies, connecting bases, support weldments, shafts, copper and bimetal bushes, round nuts, backing plates, grease nipples and lift hole seals that go with each one. The cylinder chapters give you the internal stack as well as the externals – cylinder block, piston, piston rod, guide sleeve, pressure cover, guide rings, combined piston seals, rod seal elements, dust rings, O-rings, retainer rings, composite bushings and repair kits. The hydraulic chapter is unusually deep, covering the pumping circuit, distribution circuit, mixing and cleaning circuit, underframe circuit, the boom circuit, each boom cylinder’s piping, the shock absorbing valves for rod and cylinder chambers, the cleaning system and the lubrication system. The electrical chapter runs through the main control cabinet and the individual harnesses – power supply, pumping valve block, hopper zone, outrigger box, slewing table, cab, multiple unit valve, remote controller, main-rear cabinet, boom harness, width light, taillight – plus the exterior assembly of modules, sensors, switches and lamps.

How the Parts Tables Are Built

Every detail page follows the same structure, which makes the manual fast to work with once you are used to it:

• POS. – the position number that keys the line to the exploded drawing
• CODE – the ZOOMLION part code you quote when ordering
• STANDARD NO. – the applicable standard for fasteners, washers, seals and bearings, e.g. GB/T5783-2000, GB/T93-1987, GB/T3452.1-1992
• DESCRIPTION – the component name as used in the assembly
• SPEC – size, thread, material or dimensional detail, e.g. M16x70-8.8, 133×4.5x3000B, 270x250x76
• QTY – how many are fitted to that assembly

Because standard fasteners are called out by their standard number as well as their dimensions, you can source them outside the parts channel where that makes sense, while the ZOOMLION-specific castings, weldments, cylinders, valve blocks and pipe assemblies are identified by their own codes.

What This Manual Lets You Do

The practical value of the Zoomlion ZLJ5441THBBF 59X-6RZ spare parts manual is that it removes guesswork from parts identification. A 59-metre boom machine has a lot of assemblies stacked on top of each other – six boom sections, six boom cylinders, a slewing table, four outriggers with their own cylinders, a full pumping unit and a large hydraulic installation. Identifying a bracket or a pin by eye is slow and error-prone; identifying it by position number and part code is not.

With this manual on hand you can:

• Build an accurate parts order for a scheduled service or a breakdown, quoting exact codes rather than descriptions
• Rebuild a boom cylinder or outrigger cylinder correctly, including the seal stack, guide rings and dust rings
• Identify pipe clamps, seal rings, straight pipes and bent pipes throughout the boom and undercarriage concrete pipe assembly
• Trace the hydraulic routing for the pumping, distribution, mixing, cleaning, underframe and boom circuits and identify the joints, T-joints, bulkhead fittings, pipe clamps and valve blocks on each line
• Locate the shock absorbing valve blocks for the rod and cylinder chambers of the boom cylinders
• Match electrical harnesses and connectors – ITT plugs, cutting sleeves and connectors – to the correct zone of the machine
• Check the correct quantity of each item before ordering, so a repair is not stopped halfway through

Correct part codes and correct quantities matter on equipment of this size. An incorrect seal or an incorrect fitting does not just cost the price of the part – it costs the downtime while the machine sits and waits for the right one to arrive. Working from the illustrated assembly drawings also means the part is identified in its correct position, not simply by a name that may be shared by several similar components across six boom sections.
