Weichai WP4.6N European Stage V Diesel Engine Maintenance and Repair Manual – Construction Machinery PDF

Description

Weichai WP4.6N European Stage V Diesel Engine Maintenance and Repair Manual

This Weichai WP4.6N European Stage V Diesel Engine Maintenance and Repair Manual (document number 1015725702) is the comprehensive workshop guide for the WP4.6N four-cylinder diesel engine fitted to construction machinery, particularly loaders. It covers the complete engine from routine maintenance through to major component disassembly and reassembly, including the electronic control high-pressure common rail fuel system and the DeNOx 2.2 after-treatment system.

Whether you are servicing a loader in the workshop, diagnosing a fault in the field, or rebuilding a WP4.6N engine, this manual provides the procedures, clearances, torque values and inspection criteria needed to carry out the work correctly.

File Details

• Manual type: Maintenance and Repair Manual
• Brand: Weichai Power Co., Ltd.
• Engine model: WP4.6N
• Application: Construction machinery (loader)
• Emission level: European Stage V
• Document number: 1015725702
• Language: English
• File format: PDF
• Page count: 182

Chapters Covered

• Chapter I — Overview

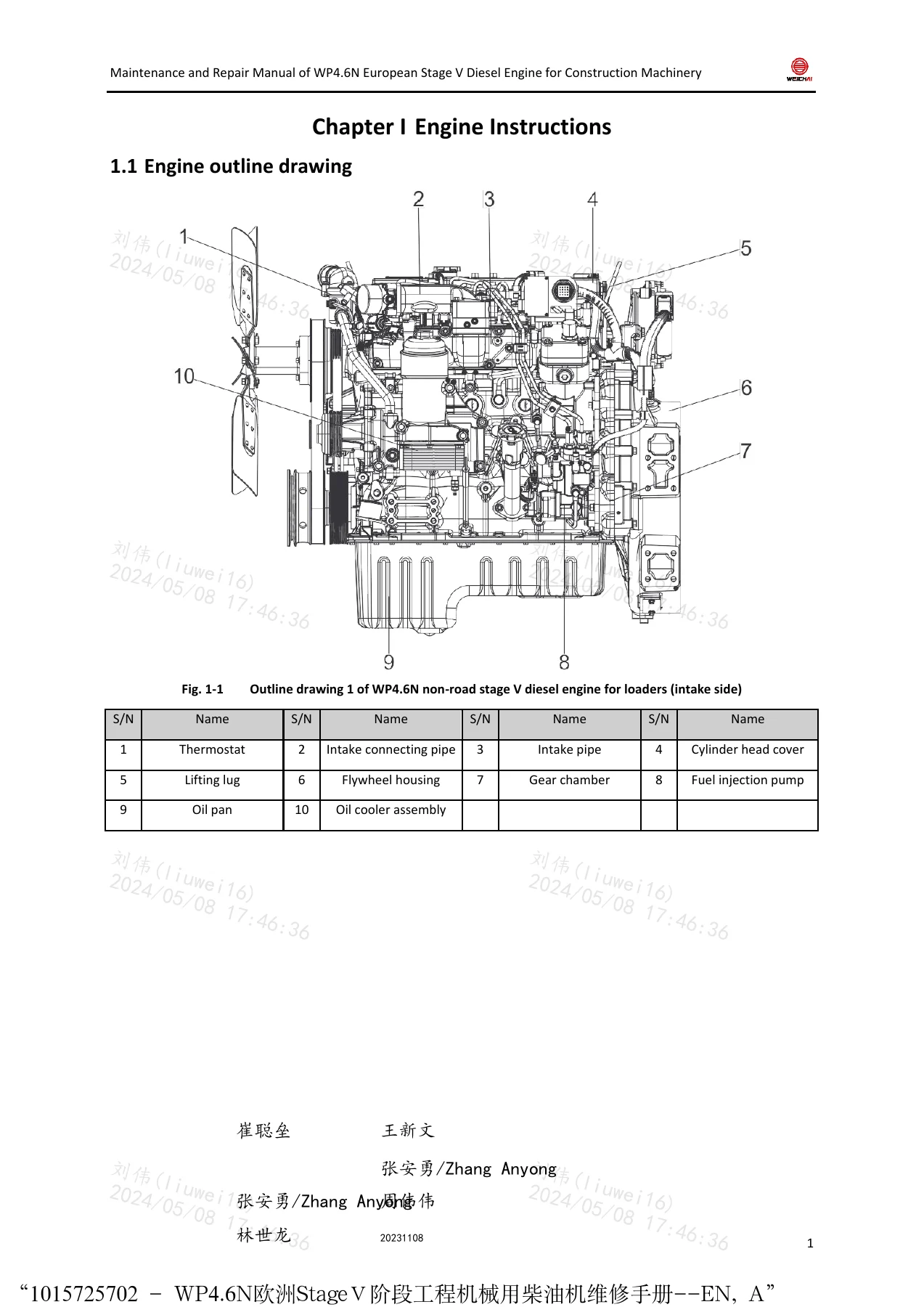

  • Engine outline drawings (intake side, exhaust side, fan end)
  • Meaning of engine model
  • Main technical performance parameters
  • Hoisting
  • Running
• Chapter II — Maintenance
  • Fuel, oil, coolant and auxiliary materials
  • Fuel specifications and selection by ambient temperature
  • Oil selection criteria, viscosity grades and filling amounts
  • Engine coolant selection and filling steps
  • Urea solution quality, composition, storage and shelf life
  • Auxiliary materials and sealant application
  • Daily inspection and daily maintenance
  • Replace oil
  • Replace oil filter or filter element
  • Replace the fuel filter and element
  • Check and adjust the valve clearance
  • Check the belt tension (manual tensioner)
  • Check air seal
  • Check air filter element
  • Maintenance of after-treatment parts
  • Maintenance of DPF system
  • Cleaning, protection and transportation
• Chapter III — Typical Faults and Troubleshooting
  • Engine startup failure
  • Insufficient power
  • High fuel consumption
  • High oil consumption
  • Starter does not work
  • Alternator does not work
  • Air compressor fault
  • High urea consumption
  • Too little or no urea consumption
  • Failure in urea pressure building-up
  • Urea heating without release
  • Low NOx conversion efficiency
  • Urea crystallization
• Chapter IV — Introduction to Engine System
  • Cooling system
  • Lubrication system
  • Fuel system
• Chapter V — Disassembling and Assembling of Engine
  • Intake pipe assembly
  • Fan bracket assembly
  • Tensioner and belt assembly
  • Alternator assembly
  • Low-pressure fuel pipe assembly
  • High-pressure fuel pipe assembly
  • Common rail pipe assembly
  • Fuel injection pump assembly
  • Turbocharger assembly
  • Exhaust pipe assembly
  • Thermostat assembly
  • Water outlet pipe assembly
  • Water pump water inlet pipe assembly
  • Water pump assembly
  • Oil cooling-filtering assembly
  • Oil filler pipe assembly
  • Starter assembly
  • Flywheel assembly
  • Flywheel housing assembly
  • Gear drive assembly
  • Gear chamber assembly
  • Cylinder head cover assembly
  • Valve train assembly
  • Fuel injector assembly
  • Electronic control wire harness and sensor assembly
  • Electronic control unit assembly
  • Cylinder head assembly
  • Lifting ring assembly
  • Crankshaft pulley assembly
  • Oil pan assembly
  • Secondary balance mechanism
  • Oil dipstick assembly
  • Suction filter assembly
  • Oil pump assembly
  • Piston nozzle assembly
  • Piston connecting rod assembly
  • Crankshaft assembly
  • Thrust plate assembly
  • Engine block assembly
  • Urea pump
  • Urea nozzle
  • Urea box
  • Urea pipeline
  • Sensor
  • DeNOx 2.2 system
• Appendix A — Fit Clearance of Main Parts of Engine
• Appendix B — Tightening Torque of Other Main Bolts of Engine

The manual opens with the specifications that define the WP4.6N: a four-stroke, water-cooled, electronic control high-pressure common rail diesel with turbocharging and intercooling, 108 mm bore and 125 mm stroke, 4.58 L displacement and a compression ratio of 18. From there it moves into the fluids and materials the engine needs — the correct diesel grade for the ambient temperature, the CK-4 oil and its viscosity range, the HEC-II coolant, and the urea solution that meets GB 29518. The maintenance chapter then walks through the regular service tasks: oil and filter changes, fuel filter replacement, valve clearance adjustment to 0.3 mm intake and 0.4 mm exhaust, belt tension checks, air filter servicing, and the specific maintenance requirements of the after-treatment components including the DPF ash cleaning procedure with its clamp torques.

The troubleshooting chapter is structured as a step-by-step diagnostic sequence for each common fault, from engine startup failure through to urea crystallization. Each fault has check points and a troubleshooting method, so a technician can work through the possibilities in order rather than guessing. The system introduction chapter explains how the cooling, lubrication and fuel systems are laid out, with schematic diagrams of the coolant circulation, oil passage and fuel circuit.

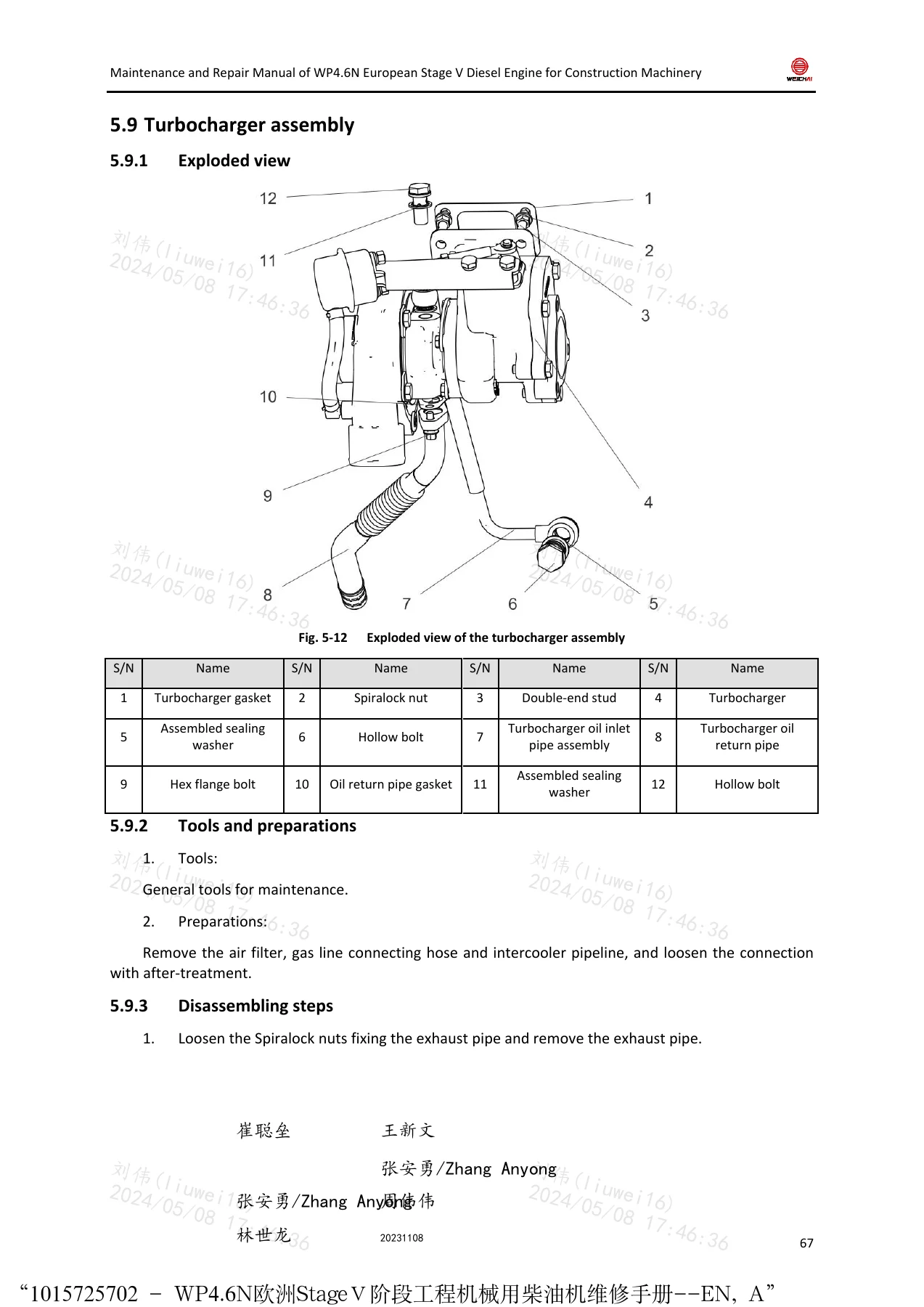

The largest section is the disassembly and assembly chapter. Every major assembly is broken down into an exploded view, the tools and preparations required, the disassembly steps, the inspection and maintenance points, and the assembly steps. Where a torque value or a clearance matters, it is given: the turbocharger rotor axial play must be less than 0.09 mm, the compressor impeller radial clearance falls between 0.183 and 0.57 mm, the high-pressure fuel pipe nuts tighten to 30–40 N·m, the flywheel bolts use a torque-plus-angle sequence, and the cylinder head bolts are tightened in five stages. The urea system section covers the DeNOx 2.2 components separately, including the urea pump filter element replacement, urea nozzle cleaning and installation, urea tank cleaning, and the urea pipeline routing.

The two appendices collect the data that is most often needed during a rebuild: the fit clearances for main and connecting rod bearings, crankshaft axial clearance, piston ring clearances, valve stem to guide clearances, camshaft clearances and gear backlashes; and the tightening torques for the main bolts including main bearing, cylinder head, flywheel, connecting rod, torsional damper and exhaust pipe bolts, along with the allowable number of reuses for each.

What This Manual Enables You to Do

With this Weichai WP4.6N Stage V maintenance and repair manual, you can carry out a full range of work on the engine. Routine servicing — oil and filter changes, fuel filter replacement, valve clearance adjustment, belt tension checks — is covered with the specifications needed to do it correctly. When a fault appears, the troubleshooting chapter gives a structured path to the cause, whether the symptom is hard starting, low power, high fuel or oil consumption, a starter or alternator that will not work, or a urea system fault. For major repairs, the disassembly and assembly chapter covers every major component with exploded views, step-by-step procedures, inspection criteria and the torque values and clearances that determine whether the job is done right.

The value of having the correct procedures and specifications is straightforward: an engine rebuilt with the wrong clearance or an incorrect tightening sequence can fail again quickly, and a fault diagnosed by guesswork can lead to unnecessary parts replacement. This manual gives the technician the information the engine was designed around.

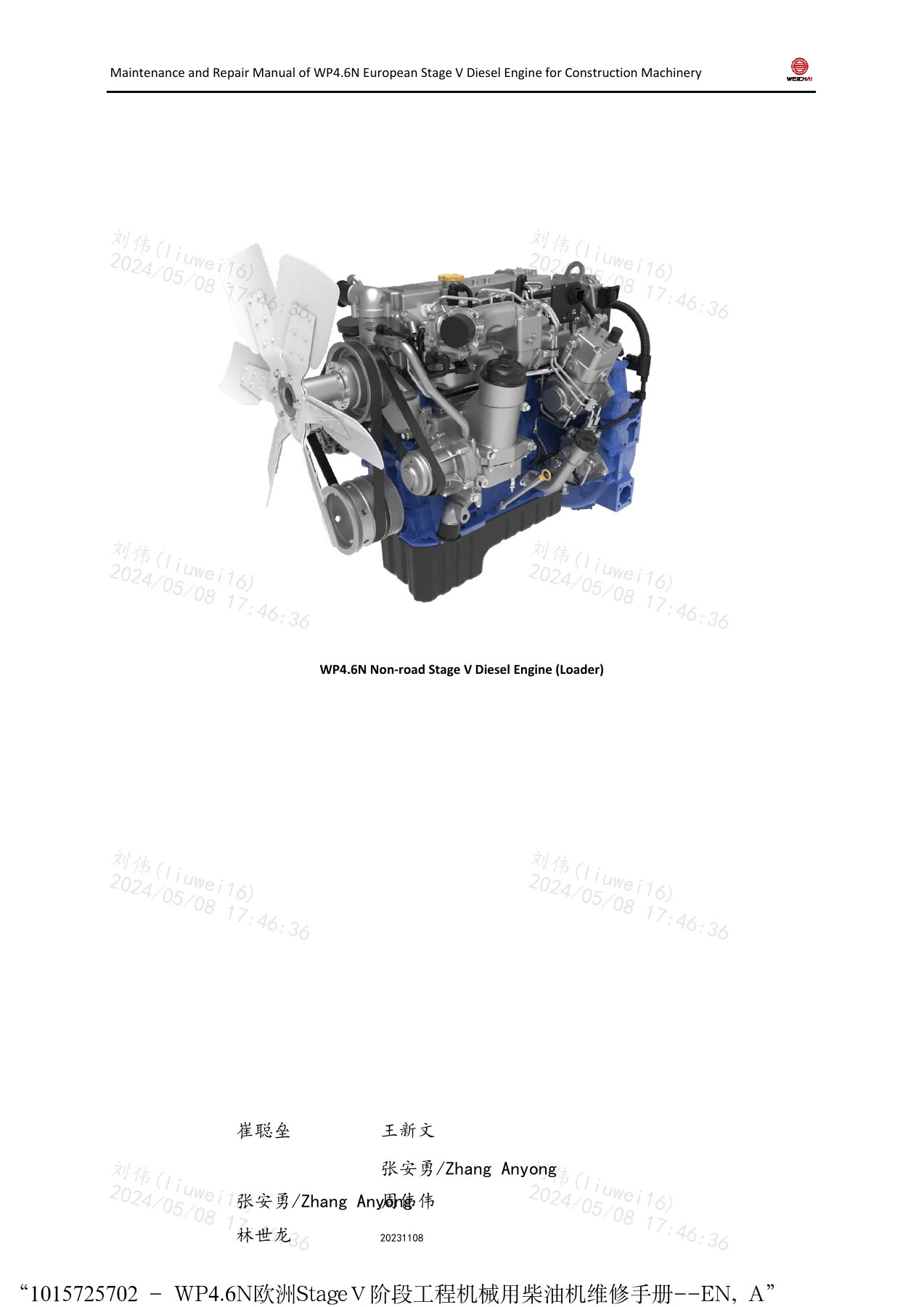

IMAGES PREVIEW

Delivery is instant. The PDF is available for download immediately after payment, with no shipping and no waiting. It can be viewed on any device — computer, tablet or phone — and printed if a paper copy is wanted in the workshop.
