Sharp Rp 107 117 Repair Manual – PDF DOWNLOAD

Description

Sharp Rp 107 117 Repair Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:35
DOWNLOADABLE:YES
FILE TYPE:PDF

SHARP RP 107 117 REPAIR MANUAL – PDF DOWNLOAD:

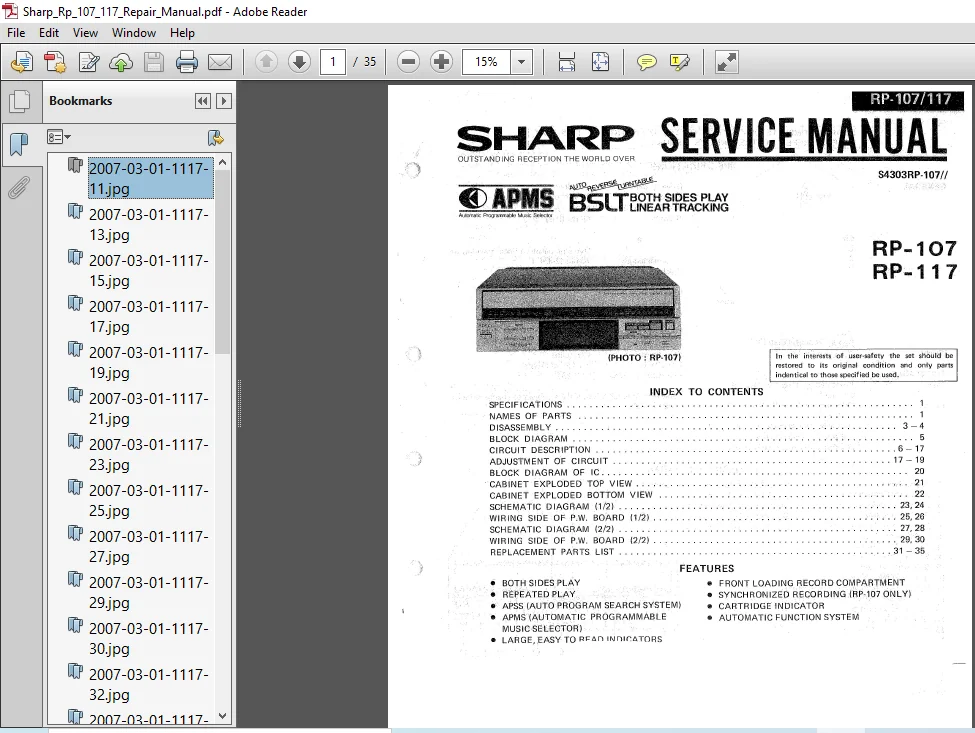

IMAGES PREVIEW OF THE MANUAL:

NAMES OF PARTS:

1. Power Switch
2. Side B Cartridge Indicator
3. Both Sides Indicator
4. Repeat Indicator
5. Side A Cartridge Indicator
6. APMS Set Button
7. APMS Clear Button
8. Side B APMS Indicator
9. Side A/B Indicator
10. Side A APMS Indicator
11. Synchroniie Indicator (RP-107 Only
12. Synchronize Switch (RP-107 Only)
13. Speed (33/45) Button
14. Side A/B Button
15. Both Sides Button
16. Repeat Button
17. Record Loading Button
18. Tonearm Forward Button
19, Tonearm Reverse Button
20. Cue Button
21. Play/Cut Button
22. APSS/APMS Sensor Level Control
23. Turntable Platter
24. Turntable Compartment
25. Output Cord
26. AC Power Supply Cord

TABLE OF CONTENTS:

Sharp Rp 107 117 Repair Manual

SPECIFICATIONS –
NAMES OF PARTS
DISASSEMBLY ‘
BLOCK DIAGRAM
CIRCUIT DESCRIPTION
ADJUSTMENT OF CIRCUIT
BLOCK DIAGRAM 0F )0
CABINET E’XPLODED TOP VIEW
CABINET EXPLODED BOTTOM VIEW
SCHEMATIC DIAGRAM (1/2)
WIRING SIDE OF Pw BOARD (1/2)
SCHEMATIC DIAGRAM (2/2)
WIRING SIDE OF P W BOARD (2/2)
REPLACEMENTPARTS LIST
BOTH SIDES PLAY
REPEATED PLAY
APSS (AUTO PROGRAM SEARCH’ SYSTEM)
APMS (AUTOMATIC PROGRAMMABLE
MUSIC-sELECTOR)
LARGE EASY TO READ INDICATORS
FRONT LOADING RECORD COMPARTMENT
SYNCI-IRONIZED RECORDING (RP-107 ONLY)
CARTRIDGE‘INDICATOR
AUTOMATIC FUNCTION SYSTEM
