The SKYJACK SJ-800 Series Work Platform is designed to transport and raise personnel,
tools and materials to overhead work areas.
The work platform (Figure 1-2) is a highly maneuverable, mobile work
station. Lifting and elevated driving MUST be on a flat, level, compacted surface. The work
platform can be driven over uneven terrain only when the platform is fully lowered.
The operator MUST read and completely understand the safety panel labels (Figure 1-1.) and
ALL other warnings in this manual and on the work platform. Compare the labels on the work
platform with the labels found throughout this manual. If any labels are damaged or
missing, replace them immediately.
The work platform consists of three major assemblies, the platform, lifting mechanism and the
base. An operator’s control box is mounted on the platform railing. Auxiliary and
emergency controls are located at the base.
deck surface, and 43-1/2″ high hinged railings with 6″ toe boards and mid-rails. The platform can
be entered from either side through a spring returned gate. All models can be equipped with a
front or both front and rear
extension platforms.

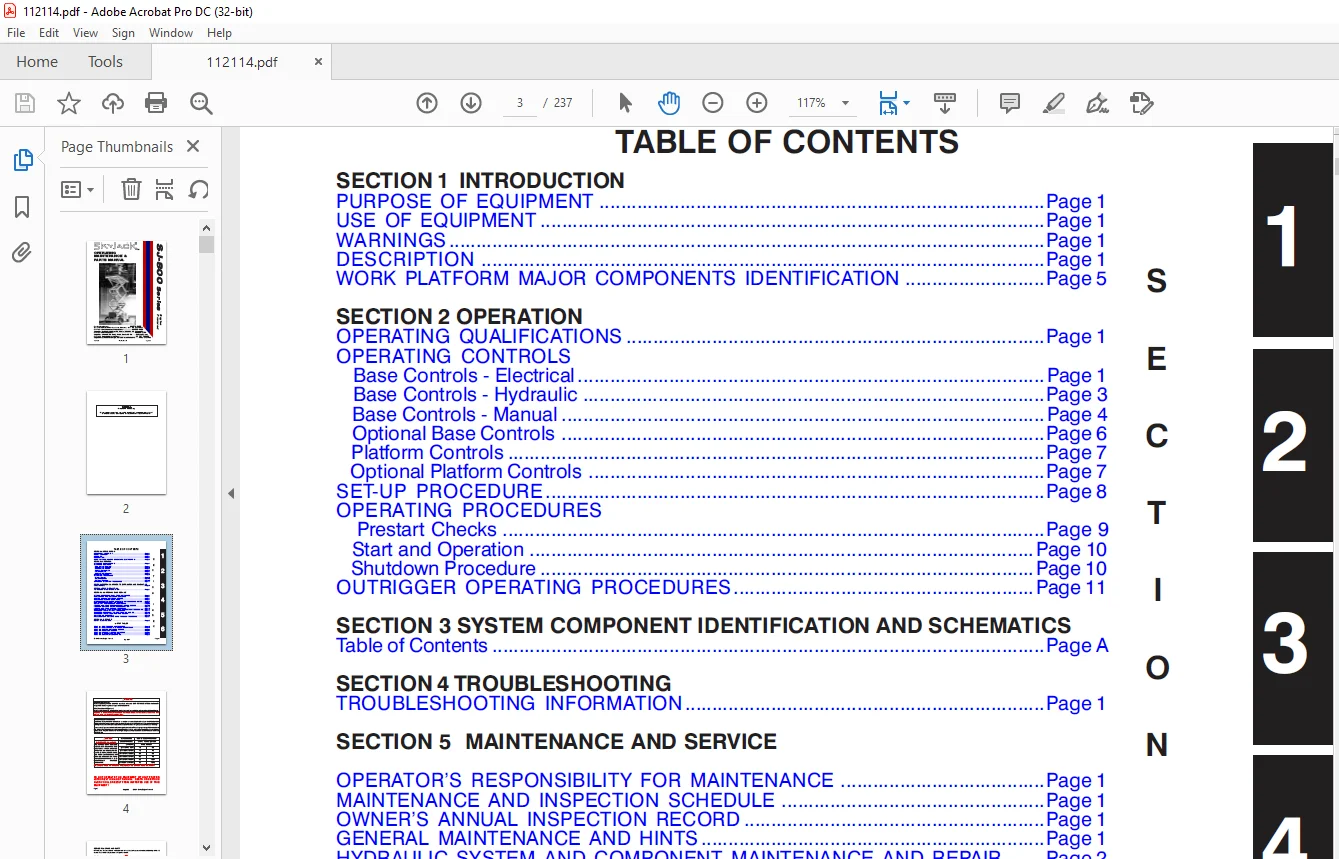

TABLE OF CONTENTS:
Skyjack SJ 800 Series Engine Powered Operating Maintenance & Parts Manual – PDF DOWNLOAD
SJ-800 Series Engine Powered
Aug 2004
Page i
SECTION 1 INTRODUCTION
PURPOSE OF EQUIPMENT Page 1
USE OF EQUIPMENT Page 1
WARNINGS Page 1
DESCRIPTION Page 1
WORK PLATFORM MAJOR COMPONENTS IDENTIFICATION Page 5
SECTION 2 OPERATION
OPERATING QUALIFICATIONS Page 1
OPERATING CONTROLS
Base Controls – Electrical Page 1
Base Controls – Hydraulic Page 3
Base Controls – Manual Page 4
Optional Base Controls Page 6
Platform Controls Page 7
Optional Platform Controls Page 7
SET-UP PROCEDURE Page 8
OPERATING PROCEDURES
Prestart Checks Page 9
Start and Operation Page 10
Shutdown Procedure Page 10
OUTRIGGER OPERATING PROCEDURES Page 11
SECTION 3 SYSTEM COMPONENT IDENTIFICATION AND SCHEMATICS
Table of Contents Page A
SECTION 4 TROUBLESHOOTING
TROUBLESHOOTING INFORMATION Page 1
SECTION 5 MAINTENANCE AND SERVICE
OPERATOR’S RESPONSIBILITY FOR MAINTENANCE Page 1
MAINTENANCE AND INSPECTION SCHEDULE Page 1
OWNER’S ANNUAL INSPECTION RECORD Page 1
GENERAL MAINTENANCE AND HINTS Page 1
HYDRAULIC SYSTEM AND COMPONENT MAINTENANCE AND REPAIR Page 2
DISC BRAKE ADJUSTMENT PROCEDURE Page 7
SYSTEM LIFT AND PRESSURE ADJUSTMENTS Page 9
PRECISION GOVERNOR TROUBLESHOOTING PROCEDURE Page 10
PRECISION GOVERNOR TERMINAL DESCRIPTION Page 12
PRECISION GOVERNOR SETUP PROCEDURE Page 13
KUBOTA GASOLINE ENGINE GOVERNOR ADJUSTMENT PROCEDURE Page 16
OUTRIGGER PROXIMITY TEST PROCEDURE Page 17
OUTRIGGER MECHANICAL LIMIT SWITCH WIRE COLORS Page 18
OUTRIGGER PROXIMITY SWITCH WIRE COLORS Page 19
2 SPEED MOTOR ASSEMBLY Page 20
WHEEL BOLT/NUT INSPECTION AND TORQUING PROCEDURE Page 21

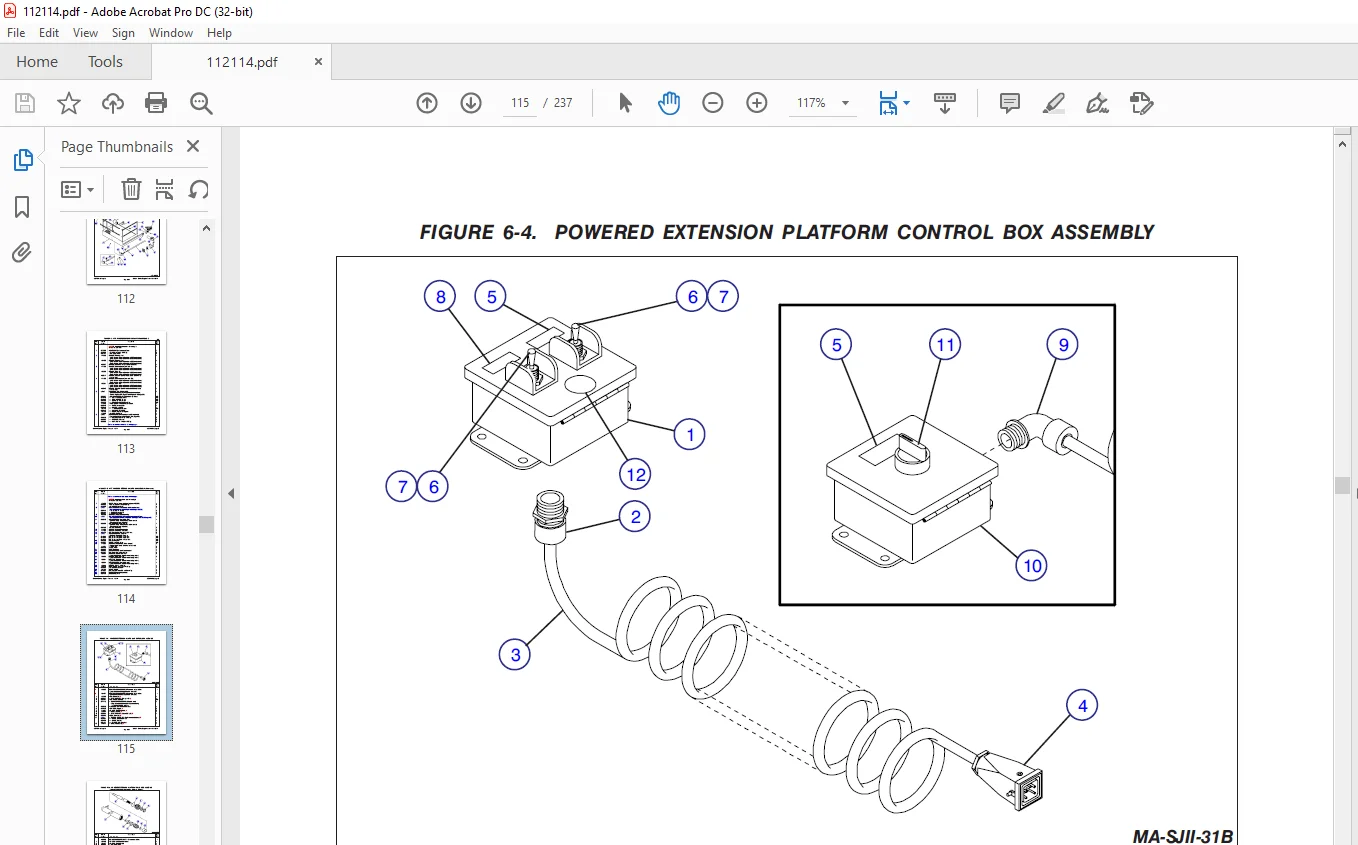

SECTION 6 PARTS LISTS
LI?T OF ILLUSTRATIONS Page 2
