DESCRIPTION:

Skyjack SJ6826 RT SJ6832 RT Rough Terrain Scissors Parts Manual 165935AF – PDF DOWNLOAD

SJ 68XXRT 37004635 & 37006156

General:
The information contained in this section is designed to aid the user in locating and identifying
replacement parts. Component parts of various assemblies and sub-assemblies comprising the
work platform are illustrated and accompanied by a descriptive parts list. Exploded drawings are
used to show relative location of component parts in disassembly order. If a part cannot be found
in this section, order by work platform model number and serial number, giving a complete
description of the part.

Parts Ordering Information:
When ordering replacement parts, the complete part number and description should be used to
ensure proper identification and delivery of the desired item. This complete identification should
also be used when requesting equipment information.

Method of Listing:
Parts are listed in order according to the reference number shown in the illustration,
followed by a full description based upon the “NOUN FIRST” method. That is, the noun name
of the part is listed first, then the modifying description information which serves to
specifically identify the item. For example: PIN, Clevis. Assemblies or groups are shown at the
beginning of a parts list and are identified with the letter references A, B, C, etc. Individual
parts in these lists have corresponding letters after their description to identify which assembly
or group it is used in. Individual parts without identifying letters are used in all the assemblies
or group shown at the beginning of the parts list. Descriptions preceded with an (•) indicates
a serviceable component or attaching hardware for the higher level assembly. If
an index number initially starts with the letter “K”, for
example “K1″, means it’s a kit. Any item(s) included in a kit will not have an index number.

Quantities (Units Per Assembly):
The quantities of each part that are required to complete the assembly. If quantity is
(AR), it is understood that the quantity may vary when machine is equipped with certain options.
Order quantity as needed.

Hardware:
Standard screws, washers, nuts, etc. are not identified by a reference number. These parts
are known as COMMON HARDWARE items and appear indented under the major items with which they are
used. They should be ordered separately as listed, since they are not component parts of the pieces
they attach to.

How to Order Repair Parts:
1. Address all orders to your local SKYJACK dealer.
2. Specify model and serial number of the work platform (found on the serial number
plate).
3. List the quantity needed.
4. List the length needed (if bulk item).
5. List the part number and description as shown in this manual for each item.
6. Show billing and shipping address and name of individual if possible.
7. Suggest best routing.

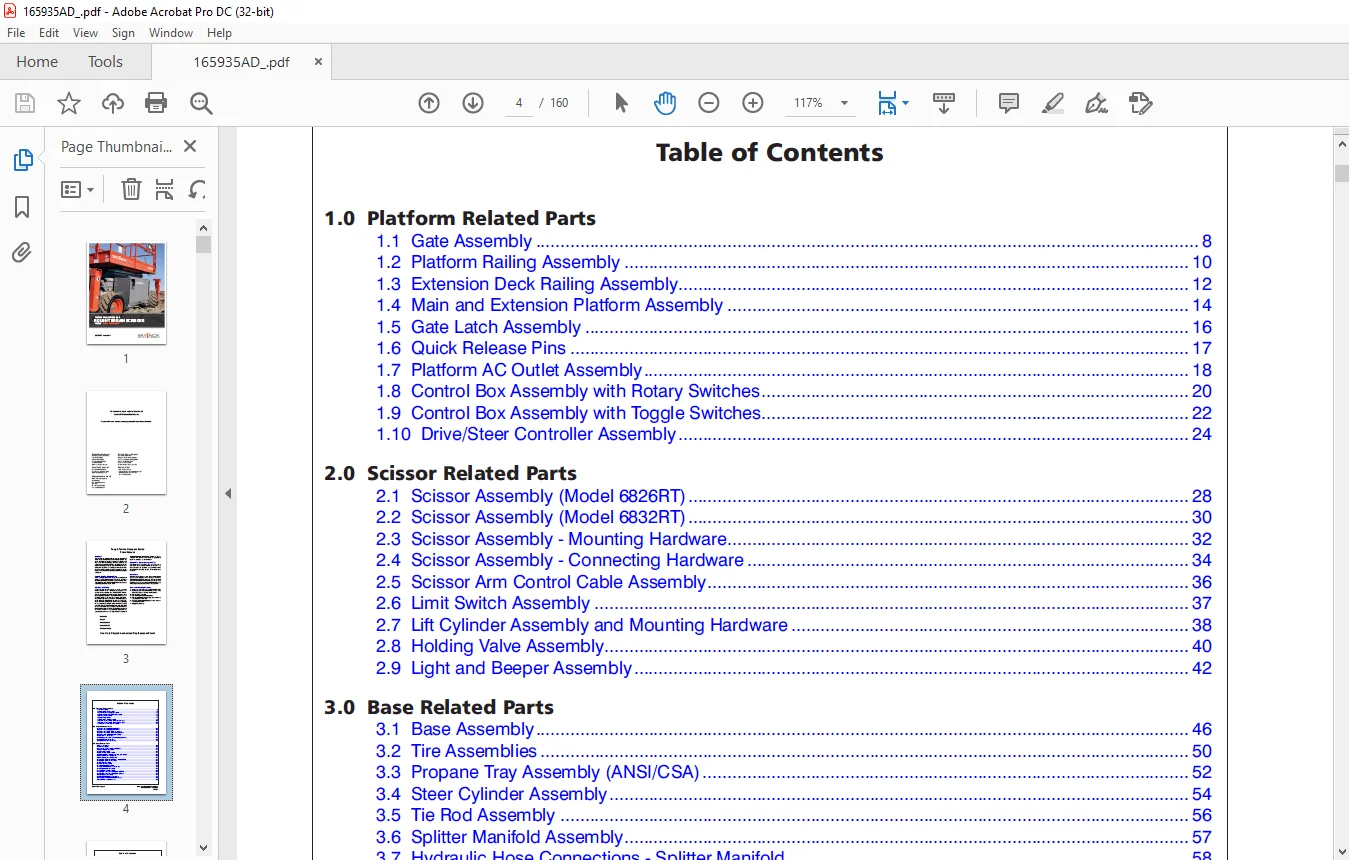

TABLE OF CONTENTS:

Skyjack SJ6826 RT SJ6832 RT Rough Terrain Scissors Parts Manual 165935AF – PDF DOWNLOAD

Table of Contents......................................................  4

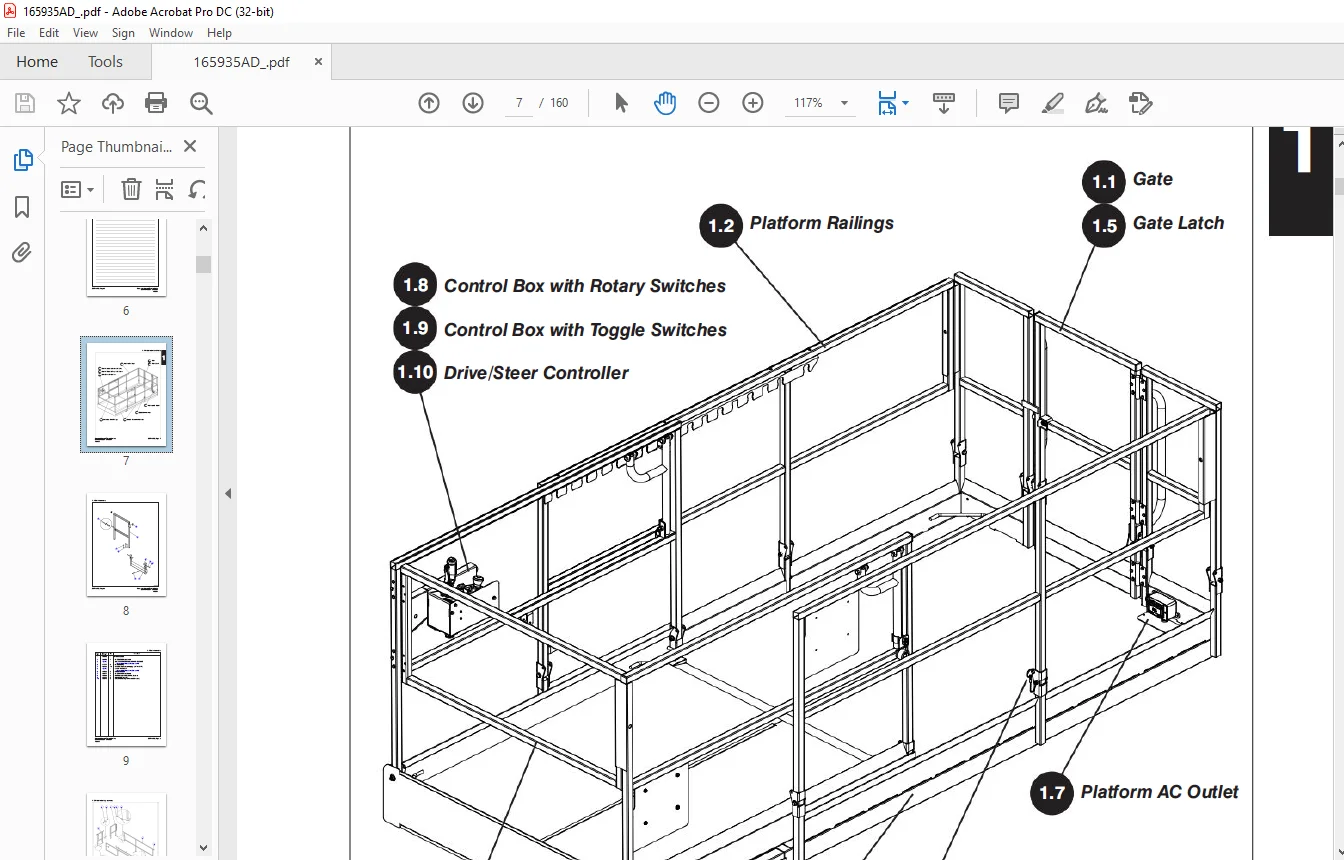

1.0  Platform Related Parts............................................  7
	1.1  Gate Assembly.................................................  8
	1.2  Platform Railing Assembly..................................... 10
	1.3  Extension Deck Railing Assembly............................... 12
	1.4  Main and Extension Platform Assembly.......................... 14
	1.5  Gate Latch Assembly........................................... 16
	1.6  Quick Release Pins............................................ 17
	1.7  Platform AC Outlet Assembly................................... 18
	1.8  Control Box Assembly with Rotary Switches..................... 20
	1.9  Control Box Assembly with Toggle Switches..................... 22
	1.10  Drive/Steer Controller Assembly.............................. 24
2.0  Scissor Related Parts............................................. 27
	2.1  Scissor Assembly (Model 6826RT)............................... 28
	2.2  Scissor Assembly (Model 6832RT)............................... 30
	2.3  Scissor Assembly - Mounting Hardware.......................... 32
	2.4  Scissor Assembly - Connecting Hardware........................ 34
	2.5  Scissor Arm Control Cable Assembly............................ 36
	2.6  Limit Switch Assembly......................................... 37
	2.7  Lift Cylinder Assembly and Mounting Hardware.................. 38
	2.8  Holding Valve Assembly........................................ 40
	2.9  Light and Beeper Assembly..................................... 42
3.0  Base Related Parts................................................ 45
	3.1  Base Assembly................................................. 46
	3.2  Tire Assemblies............................................... 50
	3.3  Propane Tray Assembly (ANSI/CSA).............................. 52
	3.4  Steer Cylinder Assembly....................................... 54
	3.5  Tie Rod Assembly.............................................. 56
	3.6  Splitter Manifold Assembly.................................... 57
	3.7  Hydraulic Hose Connections - Splitter Manifold................ 58
	3.8  Wheel Motor Assembly (Front).................................. 60
	3.9  Wheel Motor Assembly (Rear)................................... 61
	3.10  Hydraulic Hose Connections - Main Manifold................... 62
	3.11  Hydraulic Cabinet Assembly................................... 64
	3.12  Oil Tank Assembly............................................ 70
	3.13  Fuel Tank Assembly........................................... 71
	3.14  Main Manifold Assembly....................................... 72
	3.15 Hydraulic Cabinet Door Assembly............................... 77
	3.16  Engine Cabinet Assembly...................................... 78
	3.17  Electrical Panel Assembly.................................... 80
	3.18  Engine to Tray Assembly (Kubota DF972)....................... 82
	3.19  Engine to Tray Assembly (Kubota D902)........................ 84
	3.20  Engine Tray Assembly......................................... 86
	3.21  Engine Cabinet Door Assembly................................. 87
	3.22  Engine and Main Manifold Harnesses........................... 88
	3.23  Electrical Panel Harnesses................................... 90
4.0  Engine Related Parts.............................................. 93
	4.1  Engine Assembly (Kubota DF972)................................ 94
	4.2  Air Cleaner Assembly (Kubota DF972)...........................100
	4.3  Exhaust Assembly (Kubota DF972)...............................101
	4.4  Fuel Line Connections - Single Propane Tank (Kubota DF972)....102
	4.5  Engine Assembly (Kubota D902).................................104
	4.6  Air Cleaner Assembly Kit (Kubota D902)........................108
	4.7  Exhaust Assembly (Kubota D902)................................109
	4.8  Fuel Line Connections (Kubota D902)...........................110
	4.9  Hydraulic Pump Assembly.......................................112
	4.10  Radiator Kit (Kubota DF972 / D902)...........................114
5.0  Optional Equipment................................................117
	5.1  Outrigger/Generator Control Box Assembly......................118
	5.2  Electrical Harness Connections - Outriggers...................120
	5.3  Front and Rear Outrigger Assembly.............................124
	5.4  Outrigger Assembly............................................126
	5.5  Outrigger Cylinder Assembly...................................128
	5.6  Hydraulic Hose Connections - Outriggers.......................129
	5.7  Outrigger Manifold Assembly...................................130
	5.8  800W Inverter Option..........................................132
	5.9  Hydraulic Generator Option....................................134
	5.10  Hydraulic Hose Connections - Hydraulic Generator.............136
	5.11  Hydraulic Generator Relay Assembly...........................138
	5.12  Air Hose to Platform Assembly................................139
	5.14  Telematics Option Connection.................................141
6.0  Labels............................................................145
	6.1  Label Kit.....................................................147
	6.2  Labels - Left and Rear........................................148
	6.3  Labels - Right and Front......................................150
	6.4  Labels - Top..................................................152
	6.5  Labels - Miscellaneous........................................153
7.0  Tables............................................................155
	7.1  Fluid Tables..................................................156
