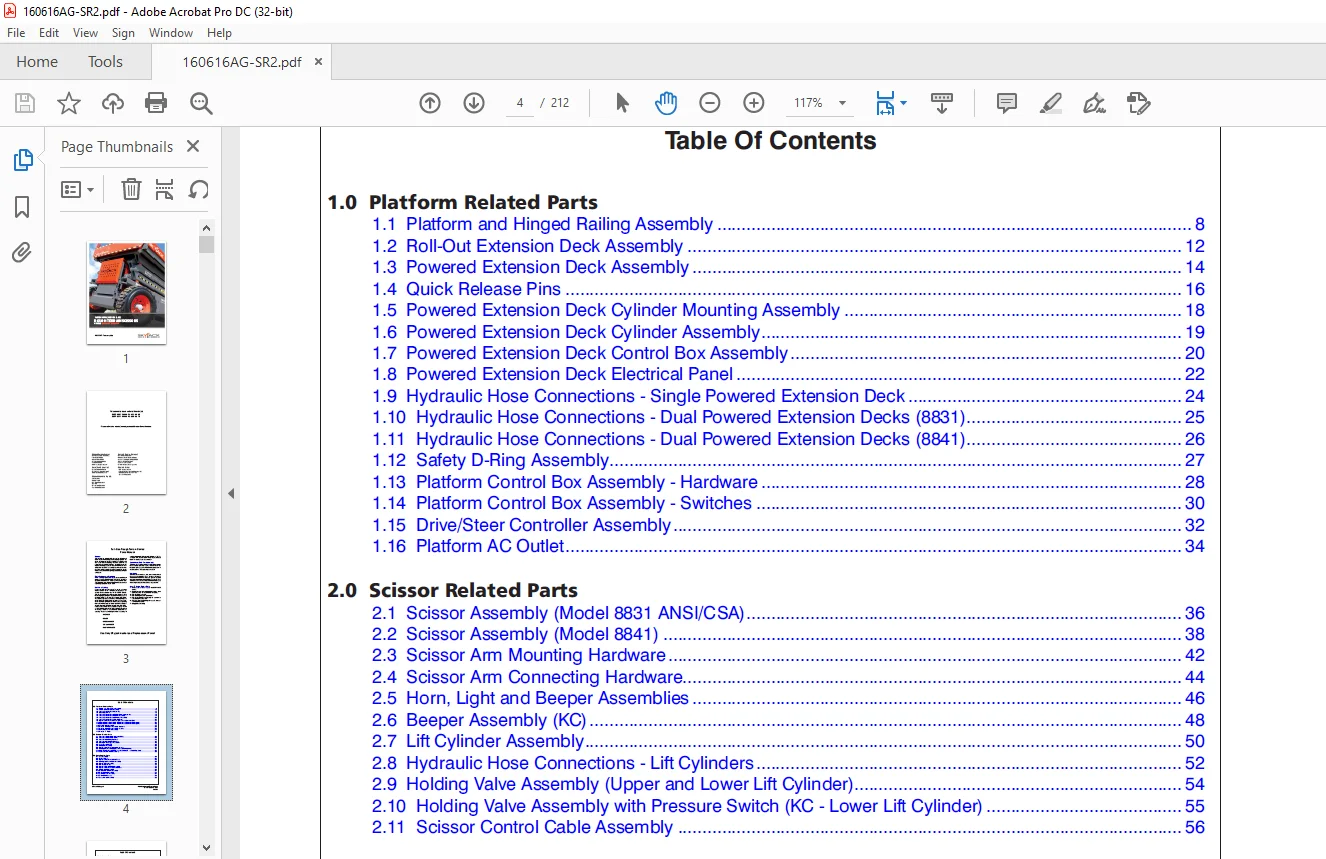

General:
The information contained in this section is designed to aid the user in locating and identifying
replacement parts. Component parts of various assemblies and sub-assemblies comprising the

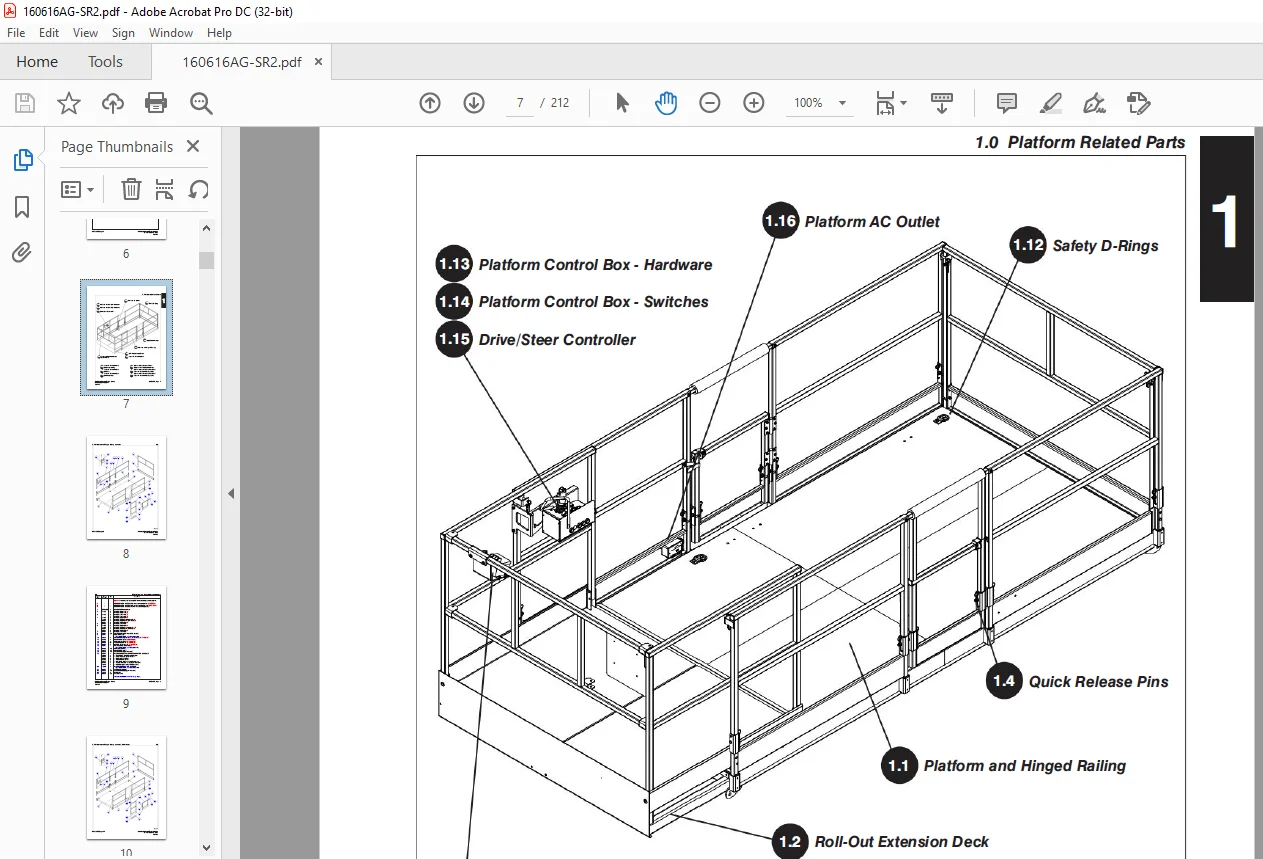

work platform are illustrated and accompanied by a descriptive parts list. Exploded drawings are
used to show relative location of component parts in disassembly order. If a part cannot be found
in this section, order by work platform model number and serial number, giving a complete
description of the part.

Parts Ordering Information:
When ordering replacement parts, the complete part
number and description should be used to ensure proper identification and delivery of the
desired item. This complete identification should also be used when requesting equipment
information.

Method of Listing:
Parts are listed in order according to the reference
number shown in the illustration, followed by a full description based upon the “NOUN
FIRST” method. That is, the noun name of the part is listed first, then the modifying description
information which serves to specifically identify the item. For example: PIN, Clevis. Assemblies or
groups are shown at the beginning of a parts list and are identified with the letter references A,
B, C, etc. Individual parts in these lists have corresponding letters after their description to
identify which assembly or group it is used in. Individual parts without identifying letters are
used in all the assemblies or group shown at the beginning of the parts list. Descriptions preceded
with an (•) indicates a serviceable component or attaching hardware for the higher
level assembly. If
an index number initially starts with the letter “K”, for
example “K1”, means it’s a kit. Any item(s) included
in a kit will not have an index number.

Quantities (Units Per Assembly):
The quantities of each part that are required to complete the assembly. If quantity is (AR), it is understood that the quantity may vary when machine is equipped with certain options. Order quantity as needed.
