Skyjack SJIII 3220 3226 4620 4626 4632 Maintenance and Parts Manual 2022 PDF – 129919AK

Description

Skyjack SJIII 3220 3226 4620 4626 4632 Maintenance and Parts Manual

This is the complete Skyjack SJIII 3220 3226 4620 4626 4632 Maintenance and Parts Manual, publication 129919AK. It is the combined service reference for the SJIII Conventional series scissor lifts, bringing together the maintenance procedures, system schematics, troubleshooting tables and fully illustrated parts lists that a technician or fleet owner needs to keep these machines running. Whether you are servicing a single SJIII 4626 on site or maintaining a mixed fleet of 3220, 3226, 4620, 4626 and 4632 units, this manual covers the platform, scissor stack, chassis, hydraulic tray, battery tray, electrical panel and every supporting subsystem.

File Details

• Manual type: Maintenance and Parts Manual
• Brand: Skyjack
• Series: SJIII (The Conventionals)
• Models covered: SJIII 3220, 3226, 4620, 4626, 4632 (with related coverage of 3215, 3219, 6826 and 6832 in specification tables)
• Document number: 129919AK
• Edition/date: 2022
• Language: English
• Format: PDF
• Page count: Approximately 209 pages

Chapters Covered

• Section 1 — About Your Aerial Platform: Platform definition, purpose and use of equipment, manuals, operator responsibilities, service policy and warranty, optional accessories, scope of the manual, operator safety reminders, electrocution hazard, safety precautions, jobsite inspection.

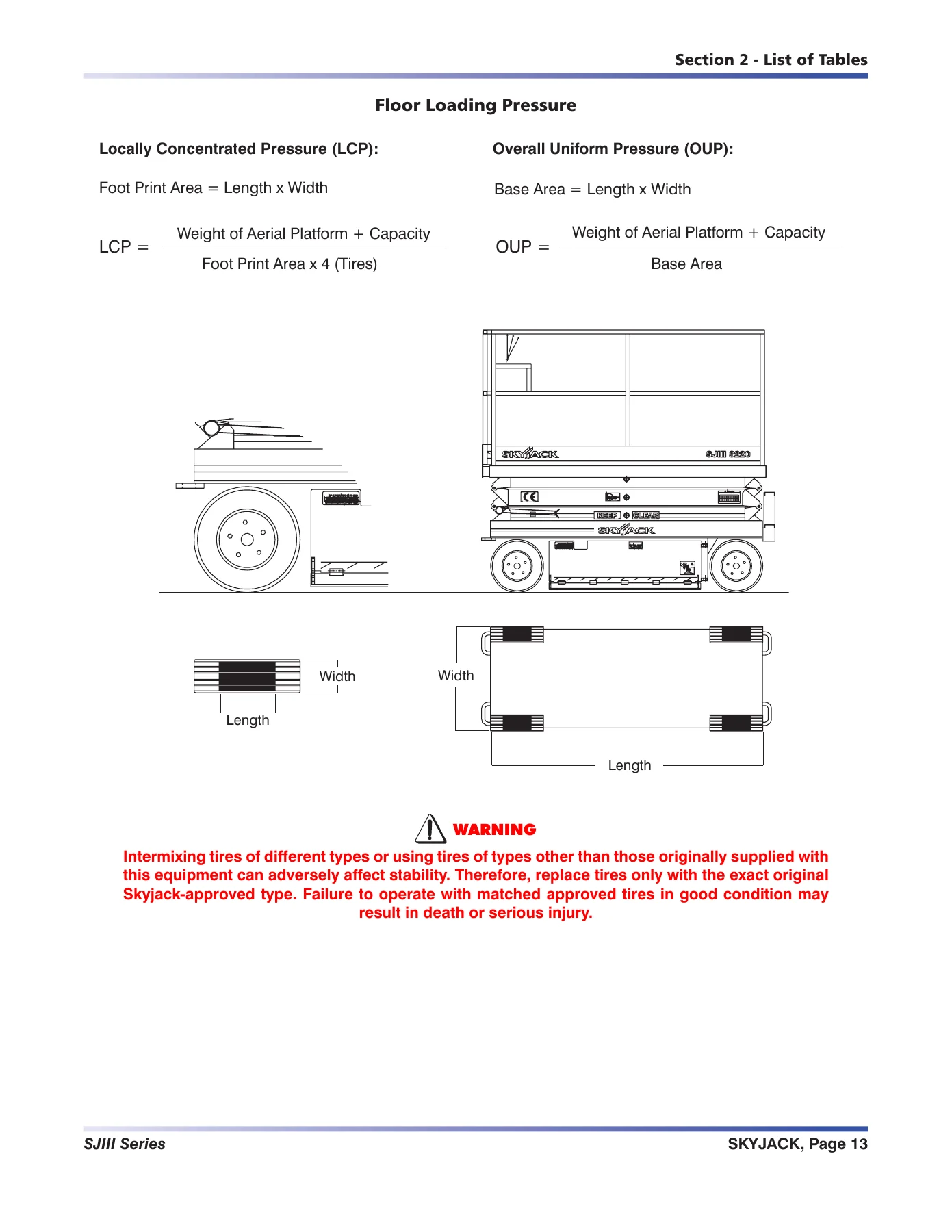

• Section 2 — List of Tables: Specifications and features (ANSI/CSA, AS, CE), Owner’s Annual Inspection Record, maximum platform capacities (manual and powered extension), floor loading pressure (LCP and OUP formulas), general maintenance and inspection schedules, operator’s checklists.
• Section 3 — System Component Identification and Schematics: Relay function chart, tilt switch usage chart, electrical symbol chart, hydraulic symbol chart, hydraulic schematics for 3220/4620, 3226/4626/4632 and 46XX, hydraulic manifold component and port identification, electrical schematic and diagram parts lists, operator control box diagrams (ANSI/CSA, CE, EE-rated), electrical panel diagrams, electrical schematic diagrams.
• Section 4 — Troubleshooting Information: Electrical troubleshooting tables for all controls inoperative, lift and drive faults, down/reverse faults, up/forward faults, steer and drive faults, elevated drive, brake release, powered extension platform, high/low torque; hydraulic troubleshooting for lift, lower, drift, drive, steering, brake release, pressure and sluggish system faults.
• Section 5 — Maintenance and Service: Operator’s responsibility for maintenance, maintenance and inspection schedule, Owner’s Annual Inspection Record, general maintenance hints, hydraulic system and component maintenance, railing maintenance and repair, general specifications, torque specifications, system and lift pressure adjustments, OEM joystick electronics information and troubleshooting, platform mounting hardware procedure.

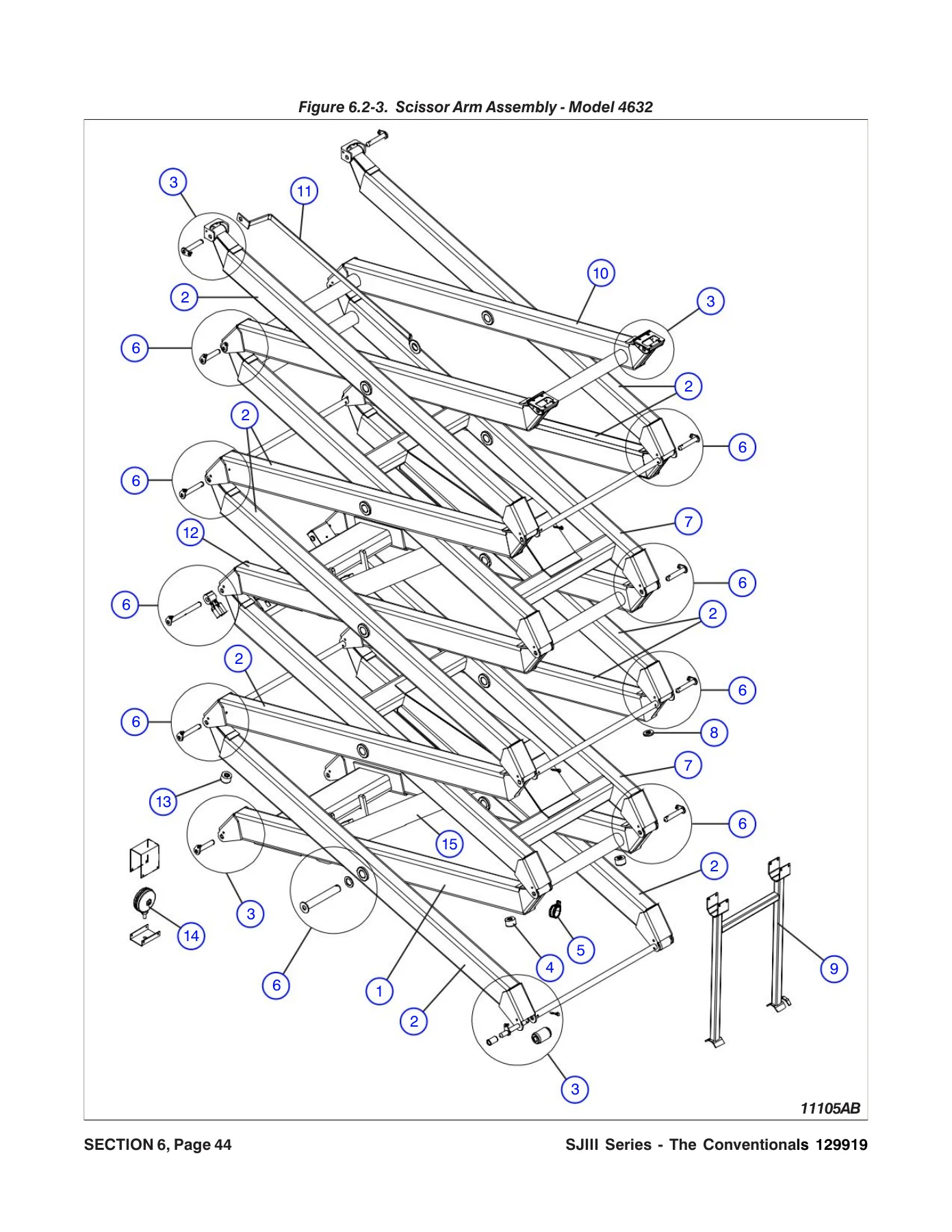

• Section 6 — Parts Lists: Platform and related parts (entrance gates and chains, side railings, platform AC outlet, extension platform railings, slide rails, quick release pins, main platforms, extension platforms, powered extension mounting, cylinder and hose assemblies, control box, gate latch), scissors and related parts (scissor arm assemblies, stack mounting, connecting hardware, flashing amber light, limit switch assemblies, lift cylinder and holding valve assemblies), base and related parts (base/axle/wheels, pothole protection, brake reference, front hub and spindle, tie rod, steer cylinder, brake cylinder, rear drive manifold, hydraulic hose connections), hydraulic tray assembly (pump and motor, proportional control manifold, main manifold, hose connections), battery tray assembly, electrical panel assembly, special options (24VDC inverter, work light), labels and nameplates.

The document is a genuine working reference rather than a marketing brochure. It combines the parts identification you would normally chase separately — exploded views of the scissor stack, the lift cylinder, the brake and steer cylinders, the pothole protection device, the hydraulic tray and the electrical panel — with the diagnostic logic and pressure/torque data needed to actually complete the repair. Troubleshooting is broken into numbered fault conditions with probable cause and remedy tables, so a technician can trace a no-lift, no-drive, no-steer or drift-down complaint from symptom to component. Hydraulic and electrical schematics are provided for the different brake configurations (pin brake and disc brake) and for ANSI/CSA, CE and EE-rated variants, and serial-number breakdown charts tell you which diagram applies to a given machine.

Models Covered in This Manual

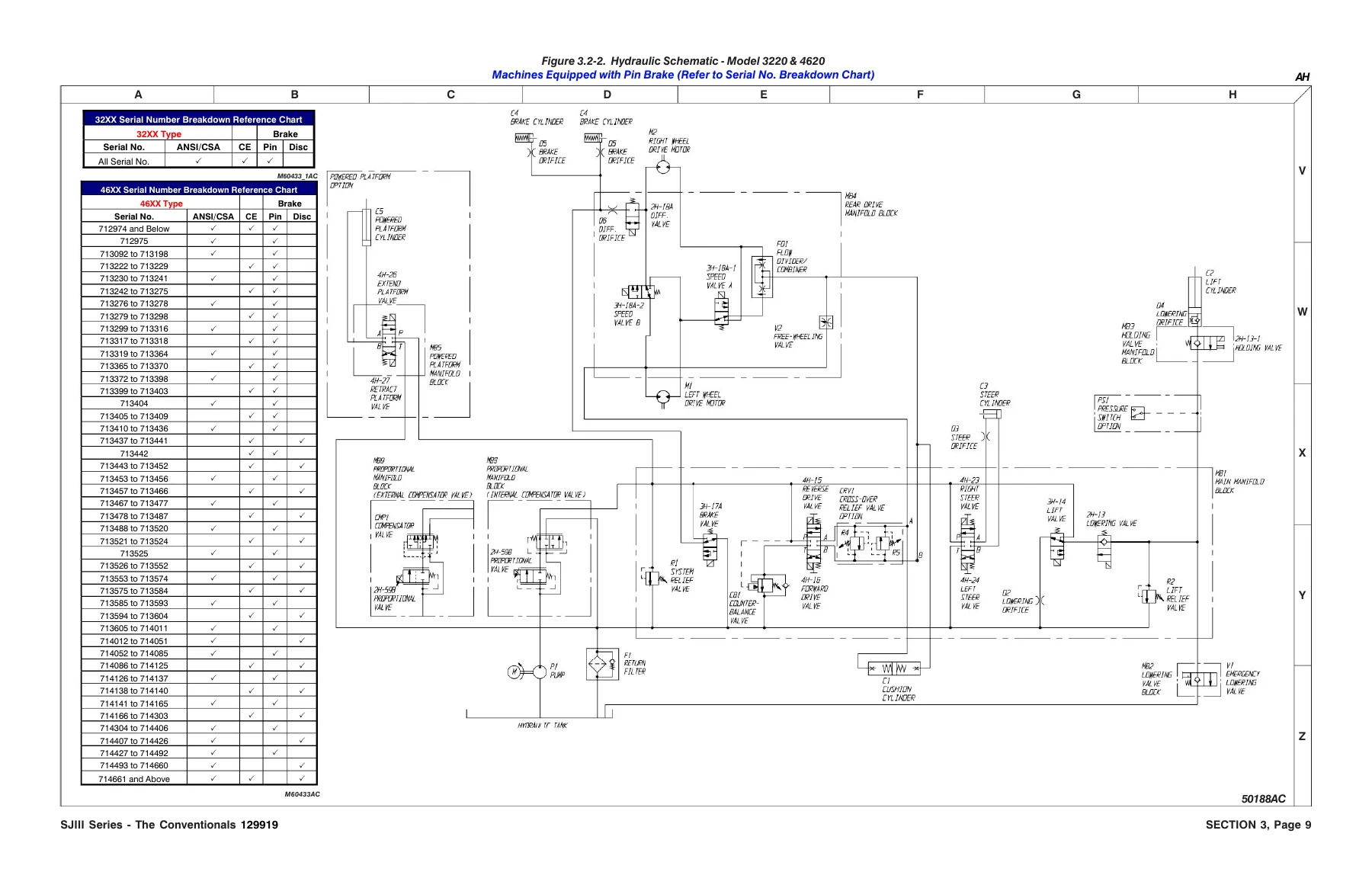

The maintenance and parts content is written around the SJIII Conventional family. The specification tables on the ANSI/CSA, AS and CE pages list 3215, 3219, 3220, 3226, 4620, 4626, 4632, 6826 and 6832, with the 3220/3220M and 3226/3226M variants called out separately in the CE tables. The hydraulic schematics in Section 3 are split between 3220/4620 machines equipped with pin brake, 3226/4626/4632 machines equipped with pin brake, and 46XX machines equipped with disc brake, with serial number breakdown charts supplied so you can match the correct diagram to your machine. Electrical diagrams are separated by market — ANSI/CSA no options, ANSI/CSA all options, ANSI/CSA EE-rated, and CE all options.

Serial Number Reference

Serial number breakdown charts are included throughout the manual so the correct manual, hydraulic schematic, electrical diagram and brake configuration can be identified from the machine’s serial plate. The opening chart lists manual part numbers and release dates against serial ranges for the 3220, 3226, 4620, 4626, 4632, 4830/32, 6826, 6832, 3220M and 3226M. Further breakdown charts identify when the 3220 switched at serial 60000966/60000967, the 3226 at 27002839/27002840, and the 46XX family at 70003077/70003078, as well as the serial ranges where pin brake gave way to disc brake on the 46XX machines.

What This Manual Lets You Do

With the Skyjack SJIII 3220 3226 4620 4626 4632 Maintenance and Parts Manual open, you can diagnose an inoperative control circuit using the electrical troubleshooting tables, follow the hydraulic fault tables to isolate a drifting platform or a brake that will not release, set system relief and lift relief pressures against the values on the serial number plate, torque the platform mounting hardware to 41 Nm (30 ft-lb) using the documented sequence, identify the correct holding valve configuration for a one-cylinder or two-cylinder machine, and order the right replacement part from the illustrated parts lists rather than guessing at a part number from a photograph.

The value here is precision. Scissor lifts are simple machines until they are not — a wrong torque value on platform mounting hardware, an incorrect relief pressure, or a misidentified brake configuration can turn a routine service call into a safety incident. The troubleshooting tables are structured as probable cause and remedy pairs, which means you spend less time guessing and more time testing. The schematics are broken out by serial range and market variant, so you are not trying to read a CE diagram against an ANSI machine or vice versa.

Delivery is instant. After checkout you receive the PDF directly — no shipping, no waiting, no physical binder to lose. The file opens on any device, can be printed page-by-page for the shop floor, and can be kept on a tablet or laptop for reference at the machine. Print the pages you need for a specific job and leave the rest of the manual intact.

Who This Manual Is For

This maintenance and parts manual suits aerial platform technicians, fleet maintenance managers, independent service shops, rental companies and owner-operators running Skyjack SJIII 3220, 3226, 4620, 4626 or 4632 scissor lifts. It is also useful to anyone performing annual inspections, since the Owner’s Annual Inspection Record and the maintenance and inspection schedules are reproduced here alongside the procedures they reference.

IMAGES PREVIEW
