Overview

The SSI-6000 Digital Color Doppler Ultrasound System Service Manual is the official technical guide issued by SonoScape Co., Ltd. (P/N 4720-0026-01A, January 2010). It details servicing, maintenance, testing, and calibration for the SSI-6000 diagnostic ultrasound system used in general imaging, vascular, OB/GYN, and cardiology applications.

Main Sections & Coverage

1. Introduction

• Intended for trained SonoScape service engineers.

• Includes official contact information and update policy.

• Safety and warning conventions explained.

2. Safety Considerations

• Electrical, mechanical, and human safety precautions.

• Compliance with IEC 60601-1 and 60601-2-37 standards.

• Proper grounding, ESD precautions, and transport conditions.

3. System Description

• System overview: Portable color Doppler ultrasound using Linux OS for stability and performance.

• Applications: abdomen, vascular, cardiac, small parts, OB/GYN, musculoskeletal.

• Operating & combined modes:

  • B-mode, M-mode, THI, Color Doppler, Power Doppler, TDI, PW/CW, BFLOW

  • Duplex/Triplex modes (e.g., B+Color+PW).

• Adjustable parameters:

  • 1–15 MHz bandwidth, 32.9 cm depth, 1–9 focal zones.

  • 2D Gain (1–255), Doppler angle correction, sweep speed, persistence, baseline, etc.

• Measurements: distance, area, volume, Doppler velocity, LV calculations (Simpson, Teichholz).

4. Principle of Operation

• System block diagram and signal flow.

• Boards & functions:

  • MPC (probe connection)

  • DBTR (transmit/receive, TGC)

  • DBF (digital beam forming, demodulation)

  • DBHV (high-voltage supply, ECG interface)

  • PC motherboard, SMPS, KEAA hub, monitor, keyboard

• Probe working principle and Doppler imaging physics (CFM, DPI, PW/CW).

5. Disassembly Instructions

• Step-by-step teardown flowchart.

• Procedures for removing covers, panels, boards, HDD, PSU, ultrasound unit, and monitor assembly.

• Part numbers and hardware specs (screw types, panel IDs, bracket references).

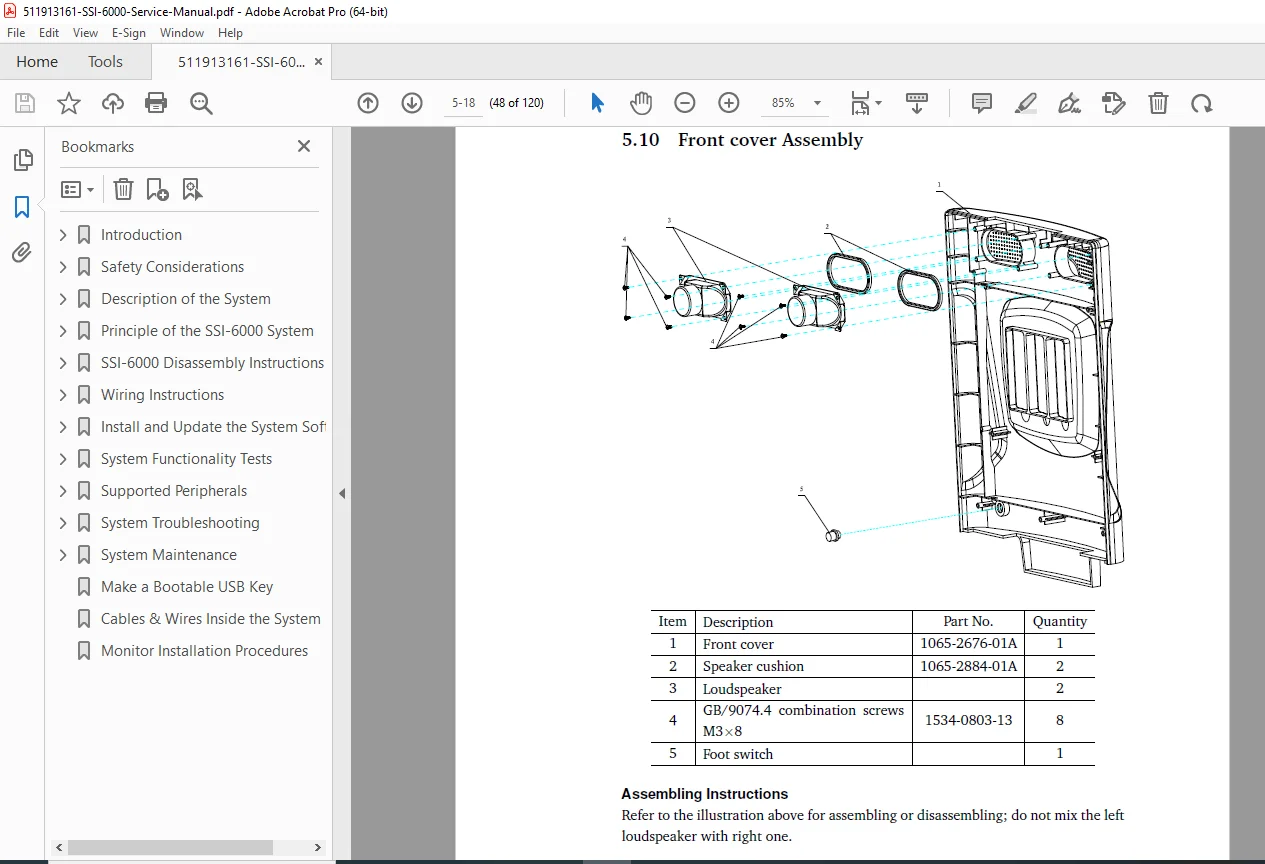

• Includes diagrams for keyboard, LCD monitor, fan/vent assemblies, front/back cover assemblies.

6. Wiring Instructions

• Full wiring routes and labeled cable part numbers (e.g., trackball cable 3520-0300, VGA 3520-0274).

• System-level wiring and detailed interconnections for fans, I/O boards, monitor power, audio, SATA, and USB extensions.

7. Software Installation & Updates

• Kernel and non-kernel update methods via USB boot disk.

• µ-SCAN activation steps.

• Precautions for version compatibility and configuration file management.

8. System Functionality Tests

• Diagnostic test suite including:

  • Memory, ADC, FIFO, TFC, EC↔FIFO, Probe ID/HV/Temp, Speaker tests.

  • Procedures for validating analog/digital circuits and probes.

9. Supported Peripherals

• Video printer and network printer setup (supported models, port configs).

• DICOM network communication with PC.

10. Troubleshooting

• Functional checklists for subsystems.

• Repair procedures for common failures: image artifacts, probe connection errors, PSU faults, and software boot issues.

11. Maintenance

• Host and probe cleaning, disinfection, and backup guidelines.

• Preventive maintenance for SMPS, fans, and connectors.

Appendices

• A: Making bootable USB keys.

• B: Internal cable schematics.

• C: Monitor installation procedures.

Technician Benefits

✅ Precise disassembly flow and board-level diagrams.
✅ Full wiring and part number references for fast replacement.
✅ Step-by-step software update and diagnostic routines.
✅ Safe handling & ALARA compliance for medical environments.
