Sony CCD-TR44 and TR330PK Service Manual – 8mm Handycam Repair Guide

Description

Sony CCD-TR44 and TR330PK Service Manual

The Sony CCD-TR44 and TR330PK Service Manual is a full workshop document for these two Sony 8mm Handycam camcorders, combining operating information with the disassembly, parts, exploded-view and adjustment material needed to strip, service and realign the camcorder. It is organised the way a repair bench actually works: you open the housing, replace or inspect the board or mechanism, then run the camera, mechanism or video adjustment routines to bring the unit back to specification. Every procedure in this Sony CCD-TR44 / TR330PK service manual is laid out section by section.

File Details

• Manual type: Service Manual
• Brand: Sony
• Models covered: CCD-TR44, TR330PK
• Language: English
• Page count: 204 pages
• File format: PDF

Chapters Covered

• Operating Instructions
  • Battery pack installation and removal
  • Cassette loading, ejection and preventing accidental erasure
  • Basic camera recording
  • Standby mode and viewfinder focusing
  • Zoom feature
  • Hints for better shooting
  • Connections for playback and various playback modes
  • Power sources – house current and car battery
  • Recording with the date or time, PROGRAM AE
  • Back light, 5-second recording, titles and mode settings
  • Battery pack tips, charging and precautions
• Disassembly

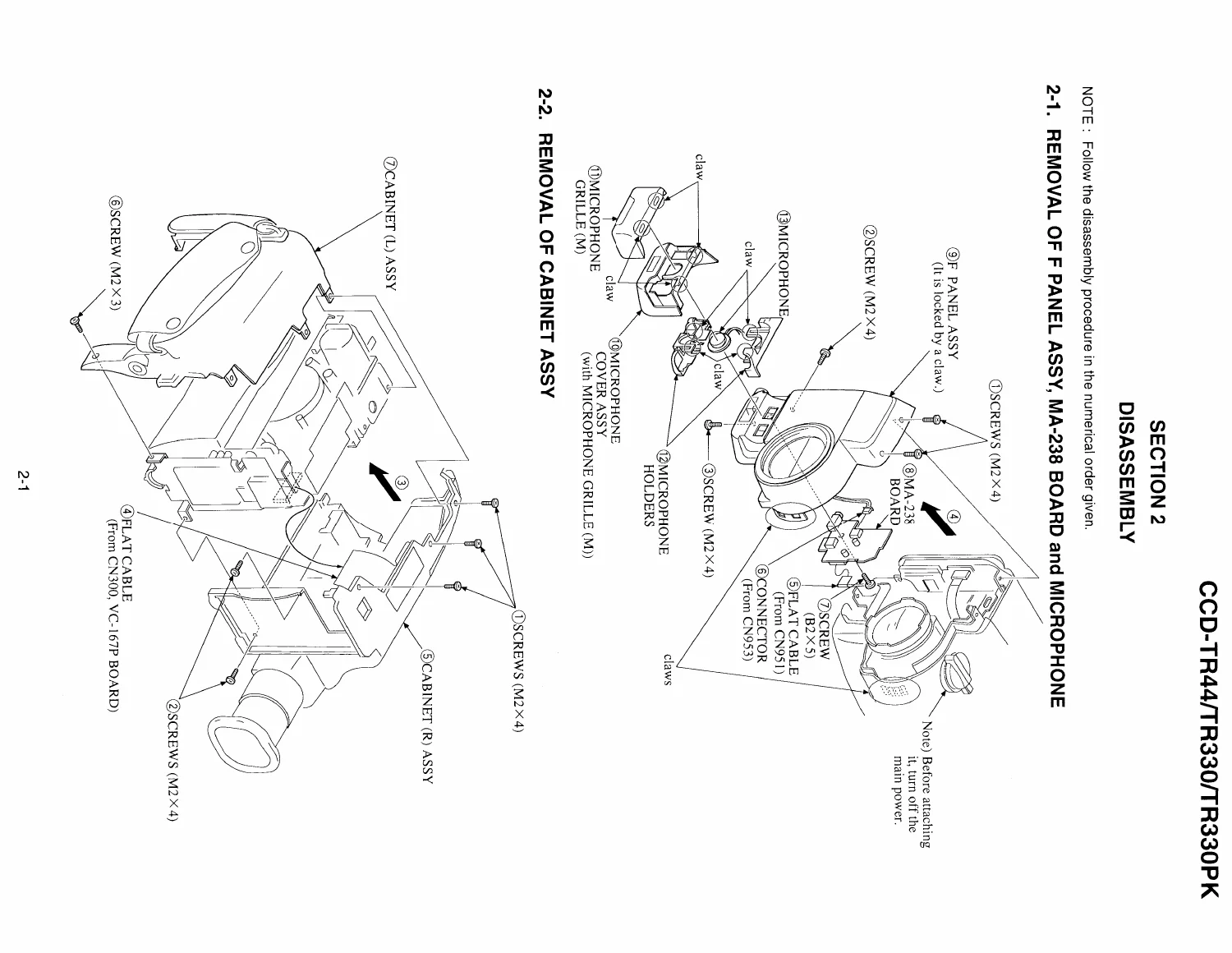

  • Removal of cabinet assy (with microphone grille)
  • Removal of cassette lid assy, LS lid and JK-129 board
  • Removal of D80 board
  • Removal of zoom lens and CD-139 board
  • Removal of CF-40 board and PW-108 board
  • Removal of EVF block assy
  • Removal of CRT assy and VF-87 board
  • Removal of VC-167 board
  • Internal views and circuit boards location
• Electrical Parts List
  • CF-40 board
  • DD-80 / FP-249 / FP-355 boards
  • VC-167 board
  • JK-129 board
  • MA-238 board
  • PW-108 board
  • VF-87 board
• Exploded Views
  • Cabinet (L) F panel section
  • Cabinet (R) section

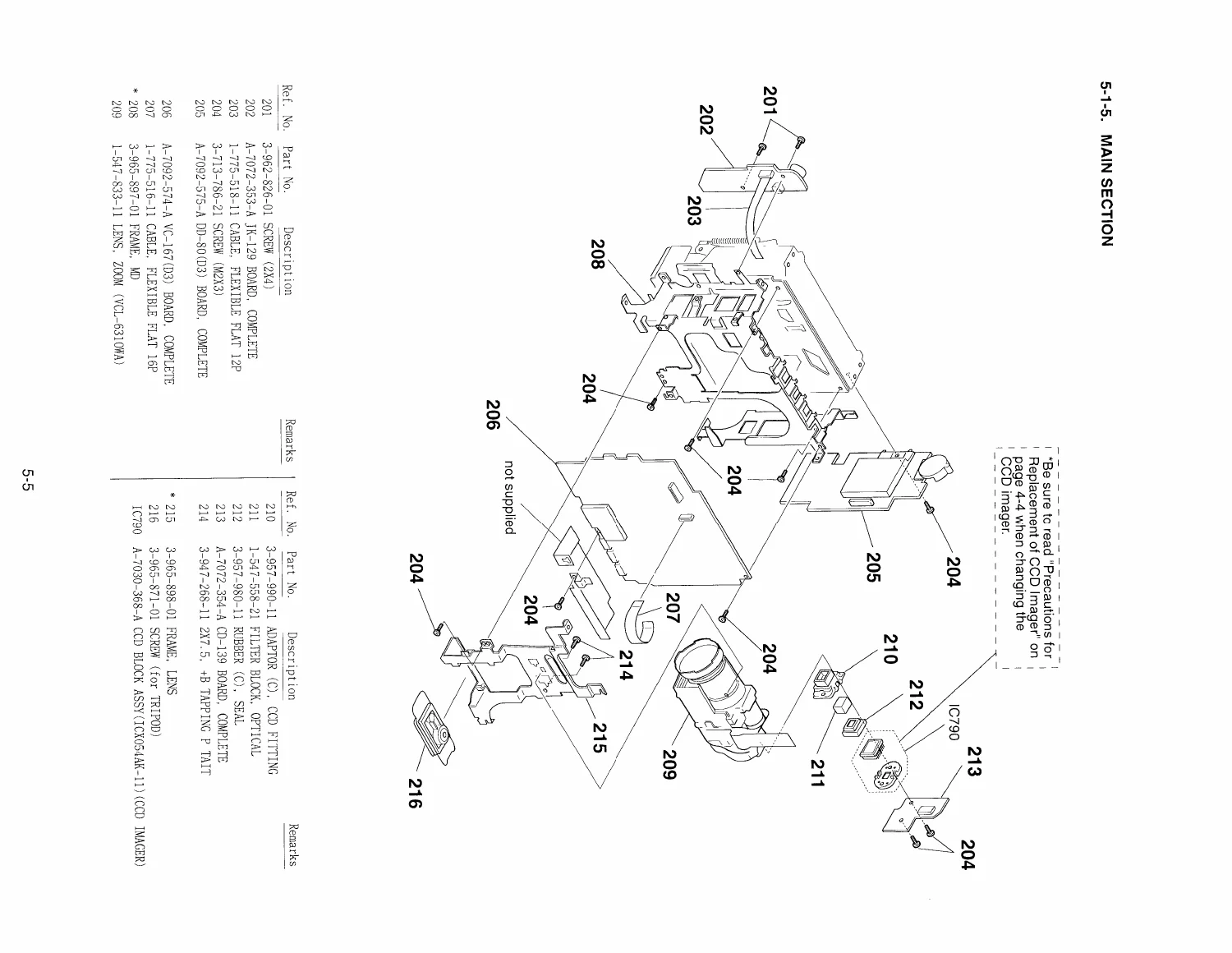

  • Main section
  • Cassette compartment block section

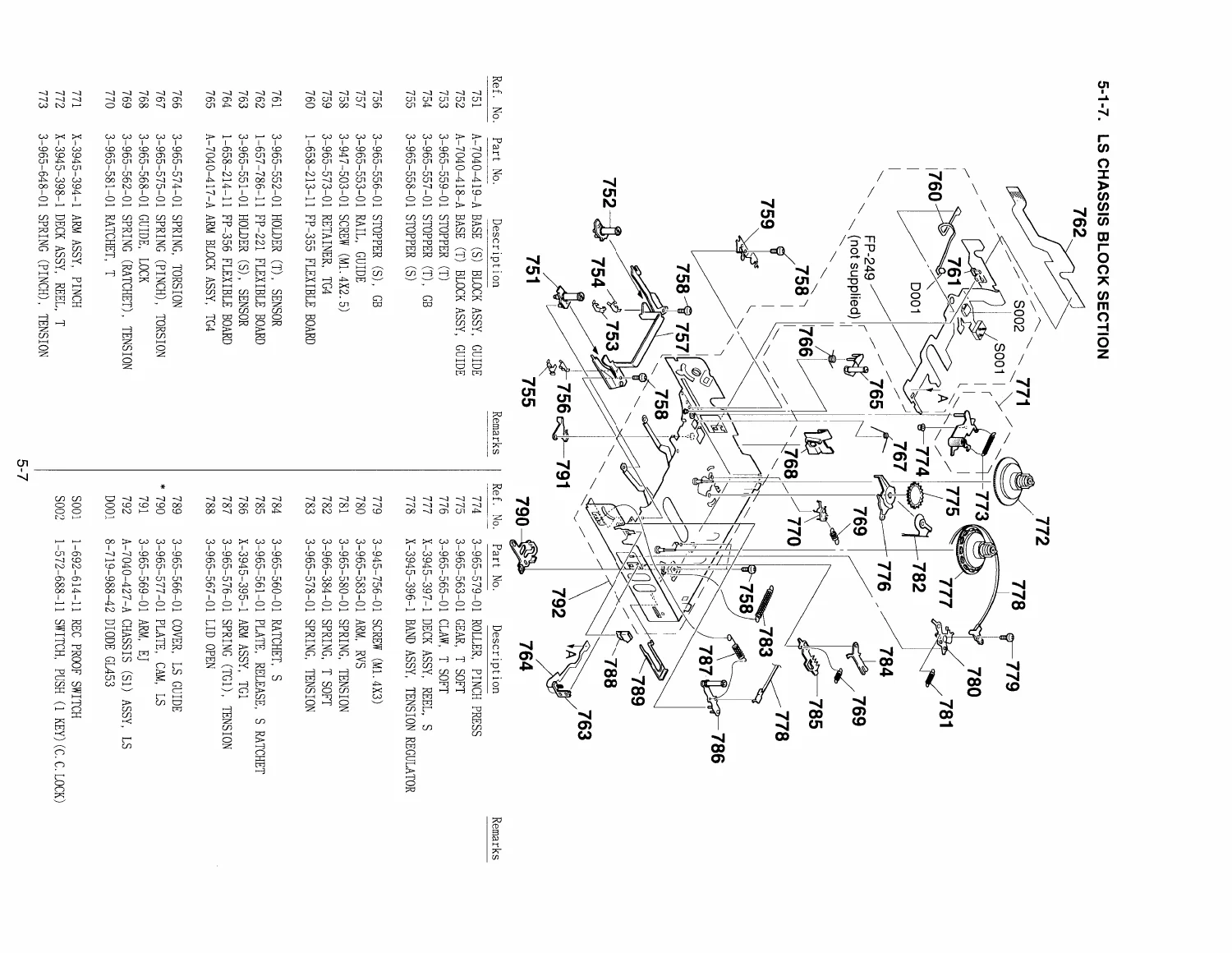

  • LS chassis block section
  • Mechanism chassis block section
• Camera Section Adjustment
  • Adjustment equipment and connections
  • Precautions and switch settings
  • Preparations and using the adjustment remote commander
  • 28 MHz crystal oscillator adjustment
  • Flange back adjustment and flange back check
  • Vertical rate and color reproduction adjustment
  • IRIS IN/OUT, auto white balance and max gain adjustment
  • Centering, focus and diffraction adjustments
  • Emergency code area initialization, LED check and key input check
• Mechanism Section Adjustment
  • How to load a cassette compartment
  • Tape path adjustment
• Video Section Adjustment
  • Equipment connection
  • Alignment tape
  • Output level and impedance
  • Adjustment points when major parts are replaced
  • Servo system adjustments
  • Switching position adjustment
  • Capstan FG preset adjustment
  • Playback frequency response characteristics adjustment
  • Y out level adjustment
  • PB chroma level check and PB Y out level adjustment
  • FE OSC check and emphasis input level adjustment
  • Y FM deviation adjustment
  • Y FM carrier frequency adjustment

Read together, the chapters take the reader from a first-look operating walkthrough all the way through to component-level servicing. The disassembly section names each board and assembly to be removed, the electrical parts list identifies what belongs on each board, and the exploded views show how the plastic cabinet, cassette compartment and chassis blocks come apart and go back together. On the adjustment side the manual supplies the equipment list, the connection diagrams and the order in which the camera, mechanism and video routines should be run, so the technician can work from a single document instead of hunting down individual procedures.

What the Sony CCD-TR44 / TR330PK Service Manual Covers in Practice

The document is broad enough to support a wide range of jobs on the CCD-TR44 and TR330PK. Board-level work is covered by the removal sequences for the JK-129, D80, CD-139, CF-40, PW-108, VC-167 and VF-87 boards, along with the LS chassis and mechanism chassis blocks. Cabinet and viewfinder work is supported by the cabinet (L) F panel, cabinet (R), EVF block and CRT assembly sections, which show the hooks, claws and screws that hold each piece in place. Mechanical servicing is helped by the tape path adjustment and cassette compartment loading procedures, which are the foundation for reliable tape transport on an 8mm Handycam.

Adjustment Routines in the Sony CCD-TR44 / TR330PK Service Manual

Three adjustment chapters sit at the core of the technical content. The camera section adjustment chapter covers the equipment, the precautions, the switch settings and the remote commander routines, then walks through the 28 MHz crystal oscillator, flange back, vertical rate, color reproduction, IRIS IN/OUT, auto white balance, max gain, centering, focus and diffraction adjustments, finishing with the emergency code area initialization and the LED and key input checks. The mechanism section adjustment chapter deals with loading the cassette compartment and the tape path. The video section adjustment chapter supplies the equipment connection, the alignment tape table, the output level and impedance figures and the servo, switching position, capstan FG, playback frequency response, Y out, PB chroma, PB Y out, FE OSC, emphasis input level, Y FM deviation and Y FM carrier frequency routines.

Parts Lists and Exploded Views

The electrical parts list breaks down the CF-40, DD-80 / FP-249 / FP-355, VC-167, JK-129, MA-238, PW-108 and VF-87 boards by reference number, making it straightforward to identify a component before ordering or replacing it. The exploded views sit alongside and show how the cabinet (L), cabinet (R), main section, cassette compartment, LS chassis and mechanism chassis are assembled, which is useful when a fastener or bracket needs to be put back in the right place.

Who This Manual Is For

This Sony CCD-TR44 / TR330PK service manual suits anyone maintaining one of these camcorders – a repair shop working on an 8mm Handycam, a hobbyist restoring a vintage Sony camcorder, or an owner who wants to understand the internal layout before opening the housing. It is not a beginner’s guide to camcorder operation, though the operating instructions section is included and does cover the basic use of the camcorder.

Get the Sony CCD-TR44 / TR330PK Service Manual

IMAGES PREVIEW

With the Sony CCD-TR44 and TR330PK Service Manual on hand, a technician can disassemble the camcorder down to board and mechanism level, identify the correct parts, and run the camera, mechanism and video adjustments in the right order. That is the difference between a repair that works and a repair that comes back. The manual is delivered as an instant-download PDF, so there is no shipping and no waiting – open it on a laptop in the workshop, on a tablet next to the unit, or print the pages you need for the bench. Add it to your library and keep the CCD-TR44 and TR330PK serviceable for years to come.
