Sony Ericsson P1i & P1c Service Repair Manual- PDF DOWNLOAD

Description

Sony Ericsson P1i & P1c Service Repair Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:68
DOWNLOADABLE:YES
FILE TYPE:PDF

SONY ERICSSON P1I & P1C SERVICE REPAIR MANUAL- PDF DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

• The following cautions are considered to be generic for all phone models and will not be repeated in the Disassembly, Replacements and Reassembly sections:
• SWITCH OFF THE PHONE AND REMOVE SIM CARD AND MEMORY STICK BEFORE STARTING DISASSEMBLING THE PHONE!
•  KEEP ALL CONTACT SURFACES CLEAN!
•  BE CAREFUL WHEN USING TOOLS LIKE THE DENTIST HOOK, TWEEZERS, OPENING TOOLS, PLECTRUMK ETC. TO AVOID SCRATCHES OR DAMAGES TO THE EXTERIOR AND INTERIOR PARTS OF THE PHONE!
• BE CAREFUL NOT TO DAMAGE ANY CONTACT SPRINGS!
•  REMEMBER TO REMOVE THE PROTECTION FOILS ON NEW PARTS SUCH AS THE FRONT COVER AND LCD!
•  NEVER TOUCH THE DISPLAY GLASS!
•  USE AIR BLOW EQUIPMENT TO KEEP THE FRONT WINDOW AND DISPLAY MODULE DUST FREE!
• When you are going to replace a part being listed in Replacements, the instruction of that section usually begins by directing you to this Disassembly section with a specification of the instructions you have to carry out in order to disassemble the phone as far as needed before returning to Replacements for the actual replacement.

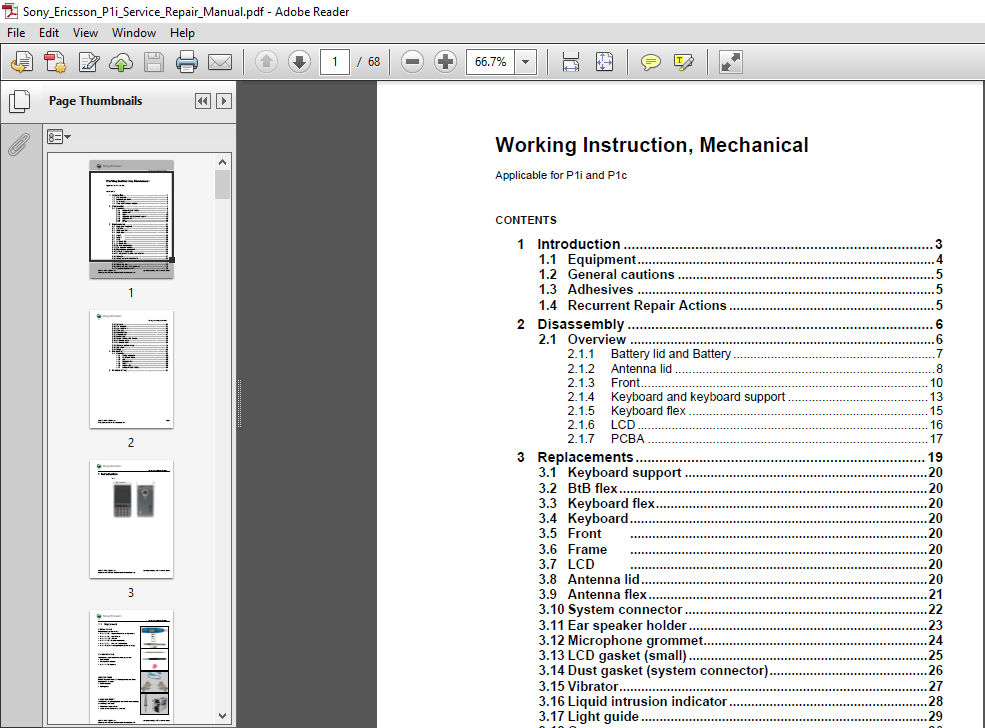

TABLE OF CONTENTS:

Sony Ericsson P1i & P1c Service Repair Manual

CONTENTS
1 Introduction 3
1 1 Equipment 4
1 2 General cautions 5
1 3 Adhesives 5
1 4 Recurrent Repair Actions 5
2 Disassembly6
2 1 Overview 6
2 1 1 Battery lid and Battery 7
2 1 2 Antenna lid 8
2 1 3 Front 10
2 1 4 Keyboard and keyboard support 13
2 1 5 Keyboard flex 15
2 1 6 LCD16
2 1 7 PCBA17
3 Replacements 19
3 1 Keyboard support20
3 2 BtB flex 20
3 3 Keyboard flex20
3 4 Keyboard 20
3 5 Front 20
3 6 Frame20
3 7 LCD 20
3 8 Antenna lid20
3 9 Antenna flex21
3 10 System connector22
3 11 Ear speaker holder 23
3 12 Microphone grommet 24
3 13 LCD gasket (small) 25
3 14 Dust gasket (system connector) 26
3 15 Vibrator 27
3 16 Liquid intrusion indicator 28
3 17 Light guide 29
3 18 Camera30
3 19 Shielding box32
3 20 Shielding box (CIF camera) 34
3 21 Camera module (CIF) 36
Working Instruction Mechanical
3/000 21-1/FEA 209 544/126 A
© Sony Ericsson Mobile Communications AB
2(68)
3 22 Flash flex 38
3 23 Ear speaker41
3 24 Acoustic box 43
3 25 Back key 45
3 26 Operator key46
3 27 Camera key47
3 28 On/Off key 48
3 29 Touch Panel with Frame 49
3 30 Co brand plate 52
3 31 Co brand label 53
3 32 External antenna cap 54
3 33 Sub Pcba 55
3 34 Label56
4 Reassembly 58
4 1 Overview 58
4 1 1 Torque overview 59
4 1 2 PCBA and Frame60
4 1 3 LCD62
4 1 4 Keyboard flex 63
4 1 5 Front 65
4 1 6 Antenna Lid66
4 1 7 Battery lid and Battery 67
5 Revision history
