Sony HCD-GNZ55D Service Manual (MHC-GNZ55D System) PDF

Description

Sony HCD-GNZ55D Service Manual (MHC-GNZ55D System) PDF DOWNLOAD

Description:

Restore Your Sony Mini Hi-Fi System to Factory Performance

This is the official Service Manual for the Sony HCD-GNZ55D, which is the main amplifier, DVD, tuner, and tape deck unit for the MHC-GNZ55D system. Designed for certified Sony technicians, this manual is the ultimate resource for diagnosing complex audio faults, mechanical jams, and logic board errors.

Whether you are troubleshooting a “PUSH POWER” protection error, replacing the DVD laser pickup, or calibrating the cassette deck azimuth, this manual provides the exact factory specifications you need.

Comprehensive Repair Coverage:

The manual is organized into eight detailed technical sections:

• 1. General & Controls

  • Button locations and functions for the Main Unit and Remote Control.

• 2. Disassembly Procedures

  • Step-by-step removal guides for the Cabinet, Loading Panel, and DVD Block.

  • Detailed Mechanism Removal: DVD Mechanism Deck, Tape Mechanism, and Pick-Up Unit (KHM-310CAB).

  • Board Access: Main Board, S-Master Board, and Power Unit removal.

• 3. Test Modes & Diagnostics

  • Cold Reset: Procedure to clear all RAM data and restore factory settings.

  • Panel Test Mode: Check LEDs, fluorescent display segments, and keys.

  • DVD Service Mode: Accessing the Remocon Diagnosis Menu, Laser Hours check, and Error Code history (e.g., Error 01 Communication Error, Error 30 DC Motor Adjustment).

  • VACS ON/OFF: Toggling the Variable Attenuation Control System.

  • TCM Offline Mode: Testing the unit without the Tape Mechanism connected.

• 4. & 5. Adjustments (Mechanical & Electrical)

  • Tape Deck: Torque measurement, Head Azimuth adjustment, and Tape Speed checks.

  • DVD Section: RFMON Level check, Mirror Time adjustment, and IOP Measurement.

  • Video Section: Video Level verification using an oscilloscope.

• 6. Diagrams & Schematics

  • Block Diagrams: RF/Servo, Video, Main Section, and S-Master Audio path.

  • Schematic Diagrams: Detailed circuit diagrams for the DMB15 (DVD Core), Main, S-Master Amp, and Power Supply boards.

  • Printed Wiring Boards (PWB): Layout drawings for component location and trace tracking.

• 7. & 8. Exploded Views & Parts List

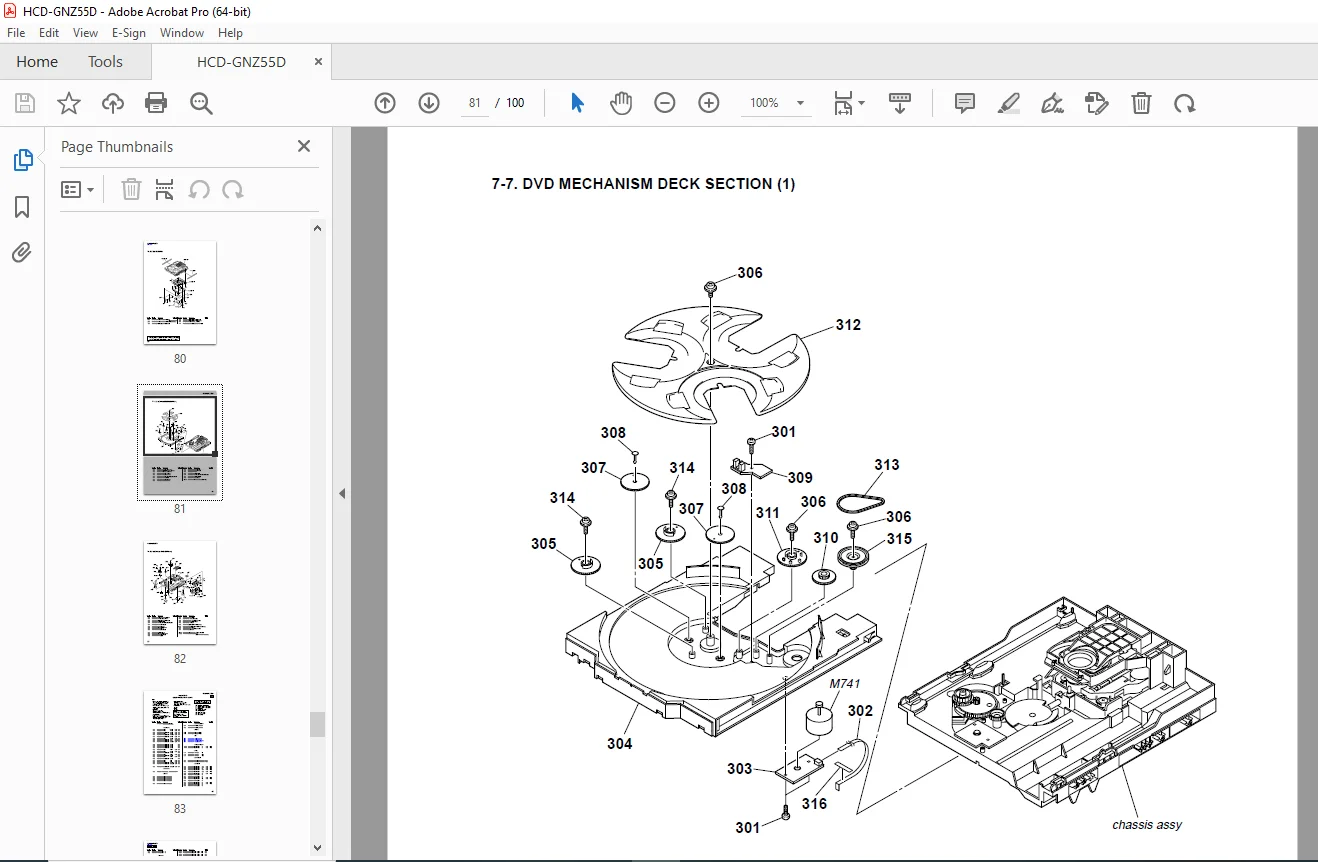

  • Full exploded diagrams of the Chassis, DVD Mechanism, and Front Panel.

  • Electrical Parts List: Comprehensive list of capacitors, resistors, ICs, and transistors with part numbers.

Key Features:

• Error Codes: Complete list of DVD self-diagnostic error codes (01-81) and their meanings.

• Waveforms: Oscilloscope waveform examples for the RFMON signal (DVD/CD) to verify laser health.

• IC Pinouts: Detailed pin descriptions for the System Control IC (M30622MEP) and RF Amp.

Product Details:

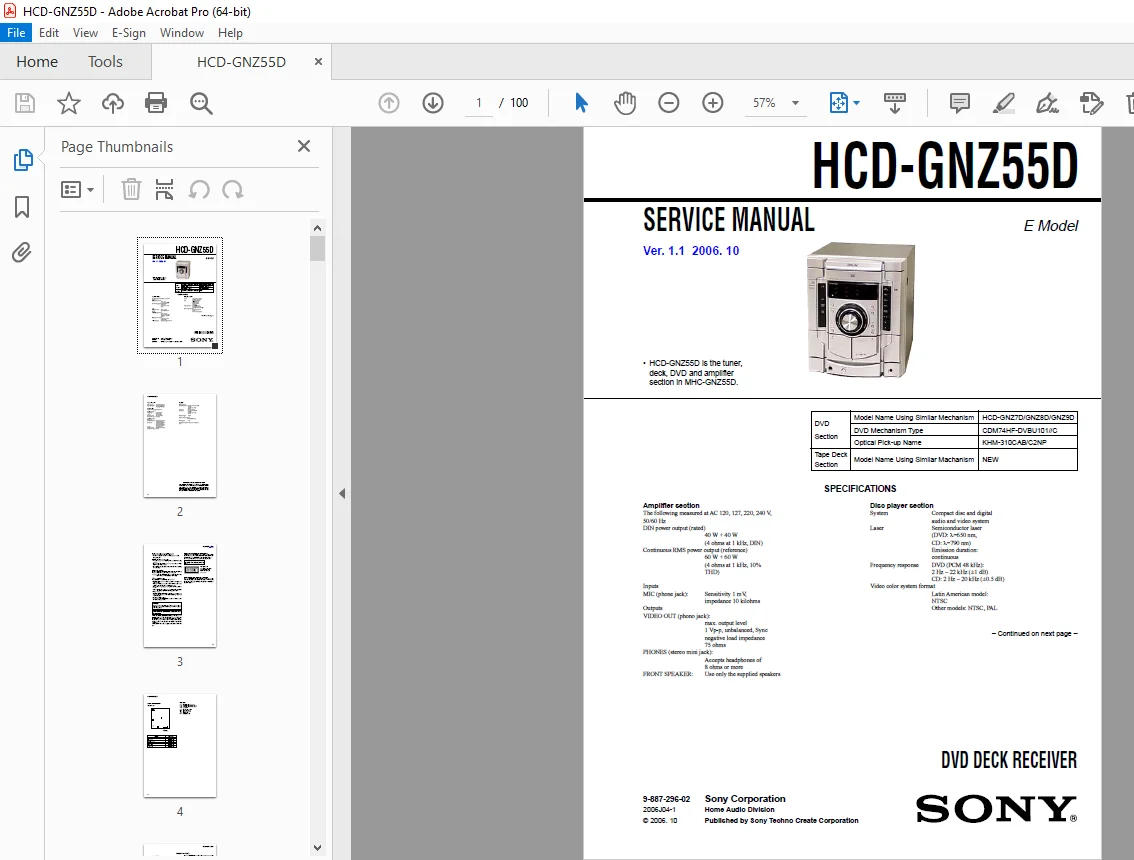

• Manual Name: Sony HCD-GNZ55D Service Manual (Ver 1.1)

• System Covered: Sony MHC-GNZ55D (DVD Deck Receiver)

• Year: 2006 (October)

• File Type: PDF (Portable Document Format)

• File Quality: High-Quality / Searchable Text

• Number of Pages: 100 Pages

Don’t let a “Protect” error silence your music. Download this professional service manual immediately to access the hidden test modes and factory reset procedures that can bring your Sony Hi-Fi system back to life in minutes!
