Sony HDR-HC5 HC7 Service Manual – PDF DOWNLOAD

Description

Sony HDR-HC5 HC7 Service Manual HD Camcorder Repair & Maintenance Guide PDF DOWNLOAD

DESCRIPTION

This comprehensive Sony HDR-HC5/HC7 service manual provides complete technical documentation for electronics technicians servicing Sony’s professional HD camcorder systems. This 112-page professional manual (Document 9-852-176-31, Version 1.0, January 2007) covers the HDR-HC5, HDR-HC5E, HDR-HC7, and HDR-HC7E models with RMT-831 remote control, delivering essential information for repairing and maintaining these advanced HDV digital video camera recorders with 1080i high-definition recording capability.

What This Sony Camcorder Service Manual Contains

Essential documentation for consumer electronics repair technicians, camcorder service specialists, and video equipment service organizations maintaining Sony Handycam HD recording systems in repair facilities, service centers, and electronics workshops.

Complete Section Coverage:

• SPECIFICATIONS – Comprehensive technical specifications:
  • System:
    • Video Recording System (HDV) – 2 rotary heads, helical scanning system with 1080/60i (NTSC) or 1080/50i (PAL) specification
    • Video Recording System (DV) – 2 rotary heads, helical scanning for standard DV format
    • Still Image Recording System – Exif Ver. 2.2 format
    • Audio Recording System (HDV) – Rotary heads, MPEG-1 Audio Layer-2, 16-bit quantization (Fs 48 kHz, stereo), 384 kbps transfer rate
    • Audio Recording System (DV) – PCM system, 12-bit (Fs 32 kHz, stereo 1, stereo 2) or 16-bit (Fs 48 kHz, stereo)
  • Video Signal:
    • HDR-HC5/HC7: NTSC color, EIA standards, 1080/60i specification
    • HDR-HC5E/HC7E: PAL color, CCIR standards, 1080/50i specification
  • Recording Media:
    • Mini DV cassette with HDV mark
    • Tape Speed (HDV): Approx. 18.81 mm/s
    • Tape Speed (DV): SP: 18.81 mm/s, LP: 12.56 mm/s
    • Recording/Playback Time: 60 min (DVM60 cassette)
    • Fast Forward/Rewind: 2 min 40 s (battery), 1 min 45 s (AC adaptor)
  • Viewfinder – Electric viewfinder (color)
  • Image Device:
    • HDR-HC5/HC5E:
      • 5.9 mm (1/3 type) CMOS sensor
      • Recording pixels (still, 4:3): Max. 4.0 megapixels (2304 × 1728)
      • Gross: Approx. 2,100,000 pixels
      • Effective (movie, 16:9): Approx. 1,430,000 pixels
      • Effective (still, 4:3): Approx. 1,990,000 pixels
    • HDR-HC7/HC7E:
      • 6.3 mm (1/2.9 type) CMOS sensor
      • Recording pixels (still, 4:3): Max. 6.1 megapixels (2848 × 2136)
      • Gross: Approx. 3,200,000 pixels
      • Effective (movie, 16:9): Approx. 2,280,000 pixels
      • Effective (still, 4:3): Approx. 3,040,000 pixels
  • Lens:
    • HDR-HC5/HC5E: Carl Zeiss Vario-Sonnar T* – 10× optical, 20×, 80× digital zoom
    • HDR-HC7/HC7E: Carl Zeiss Vario-Sonnar T* – 10× optical, 20× digital zoom
    • F1.8 ~ 2.9 aperture
    • 37mm filter diameter
  • Focal Length:
    • HDR-HC5/HC5E: f=5.1 ~ 51 mm (35mm equivalent: 41.3 ~ 485 mm in 16:9)
    • HDR-HC7/HC7E: f=5.4 ~ 54 mm (35mm equivalent: 40 ~ 400 mm in 16:9)
  • Color Temperature: AUTO, ONE PUSH, INDOOR (3200K), OUTDOOR (5800K)
  • Minimum Illumination:
    • 2 lx (with AUTOSLW SHTR ON)
    • 0 lx (during NightShot function)
  • HDMI OUT Jack: Type A (19-pin) for digital HD output
• MODEL INFORMATION TABLE – Regional variant details:
  • US Model specifications
  • Canadian Model specifications
  • AEP Model specifications
  • UK Model specifications
  • East European Model specifications
  • North European Model specifications
  • E Model specifications
  • Australian Model specifications
  • Chinese Model specifications
  • Hong Kong Model specifications
  • Korea Model specifications
  • Tourist Model specifications
  • Japanese Model specifications
• SERVICE NOTE – Critical service information:
  • Safety precautions for technicians
  • Note for Repair – Special procedures and warnings
  • Discharging of ST-164 Board’s Charging Capacitor (C901) – Critical safety procedure
  • Note for Disconnecting Harness (HN-045/HN-046) – Proper disconnection procedures
  • Critical component identification (marked with ⓪)
  • Safety-critical parts replacement requirements
  • MDX-N110 Mechanism – Tape transport mechanism details
• DISASSEMBLY – Complete teardown procedures:
  • Step-by-step disassembly instructions
  • Component removal sequences
  • Reassembly procedures
  • Torque specifications
  • Cable routing diagrams
  • Screw identification and locations
  • Proper handling of delicate components
  • LCD panel removal procedures
  • Lens assembly disassembly
  • CMOS sensor access procedures
• BLOCK DIAGRAMS – System architecture:
  • Overall Block Diagram (multi-page detailed system overview)
  • Signal flow diagrams
  • Processing pathways
  • Component interconnections
  • Power distribution
  • Video signal processing
  • Audio signal processing
  • Control system architecture
• PRINTED WIRING BOARDS – PCB documentation:
  • US-013 Board – Component layout and connections
  • MS-361 Board – PCB details and schematics
  • VC-500 Board – Video/control board (Side A)
  • LD-221 Board – LCD driver board (Side A)
  • PD-325 Board – LCD drive and control (Side A)
  • ST-164 Board – Power supply board with charging capacitor
  • Component location diagrams
  • Test point identification
  • Voltage measurements
  • Signal test locations
• SCHEMATIC DIAGRAMS – Complete electrical circuits:
  • Detailed electrical schematics for all boards
  • Power supply circuits
  • Video processing circuits
  • Audio circuits
  • Control circuits
  • Sensor circuits
  • Motor drive circuits
  • LCD driver circuits
  • HDMI interface circuits
  • USB interface circuits
  • Component values and ratings
  • Critical safety components marked with ⓪
• FRAME SCHEMATIC DIAGRAMS – Mechanical assembly diagrams:
  • Exploded view illustrations
  • Mechanical component relationships
  • Assembly sequences
  • Mounting details
  • Spring and clip locations

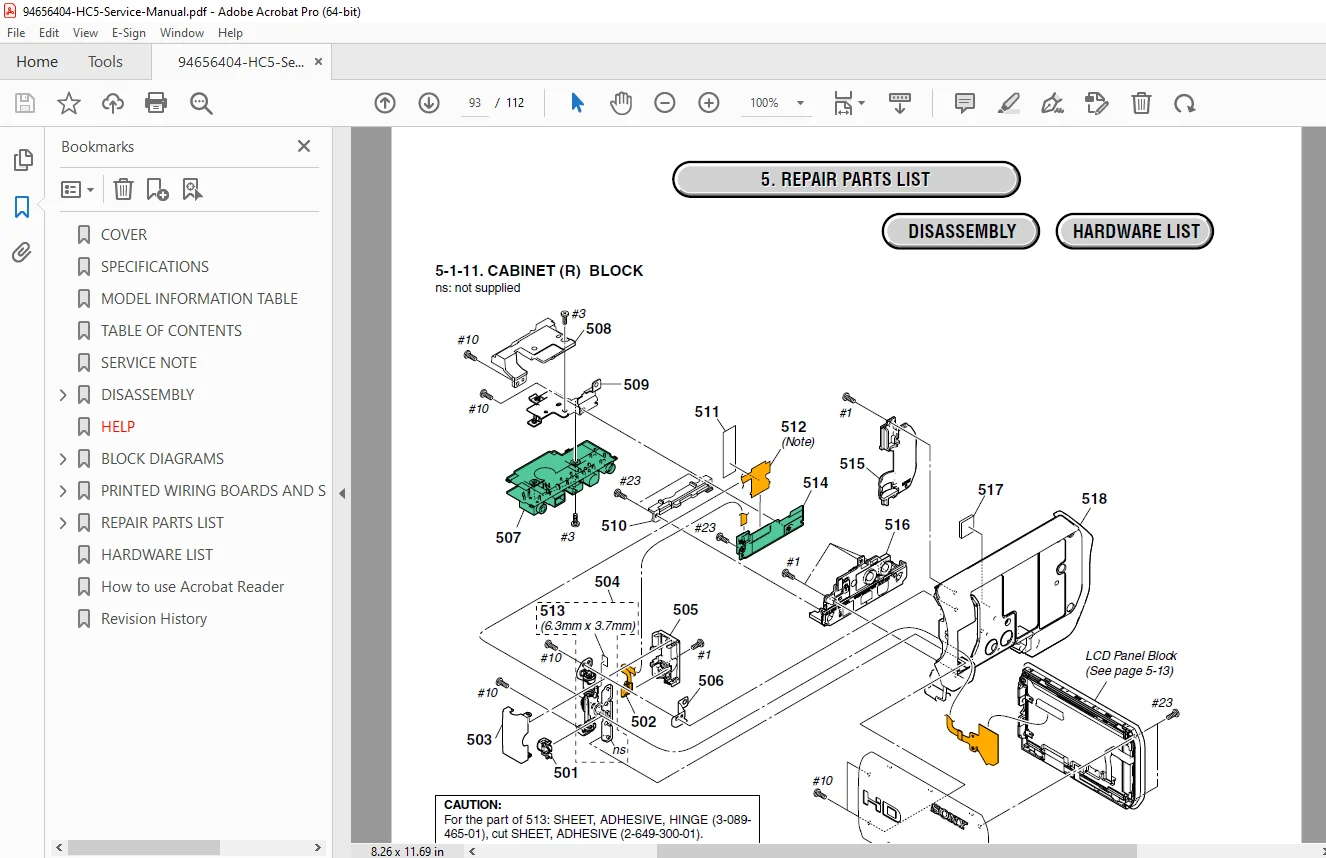

• REPAIR PARTS LIST – Complete parts catalog:
  • Electrical Parts List – All electronic components with part numbers
  • Mechanical parts catalog
  • Sony part numbers for ordering
  • Critical safety parts identification
  • Consumable parts listing
  • Recommended spare parts
  • Parts ordering information

Technical Specifications & Capabilities

HD Recording System:

• HDV Format: 1080i high-definition video recording
• DV Format: Standard-definition DV compatibility
• Recording Medium: Mini DV cassette tape
• Compression: MPEG-2 video compression for HDV

Image Sensor Technology:

• Advanced CMOS sensor design
• High pixel counts for superior image quality
• 16:9 widescreen and 4:3 standard recording modes
• Still image capture capability up to 6.1 megapixels (HC7)

Optical System:

• Legendary Carl Zeiss Vario-Sonnar T* coating
• 10× optical zoom (all models)
• Fast F1.8-2.9 aperture for low-light performance
• 37mm filter thread for accessories

Special Features:

• NightShot infrared recording (0 lux capability)
• Auto slow shutter for enhanced low-light performance
• Multiple white balance presets
• HDMI digital output for HD connectivity
• Memory card slot for still images
• Built-in color viewfinder

Essential for Electronics Service Professionals

This Sony camcorder service manual is specifically designed for:

✓ Consumer electronics repair technicians specializing in video equipment
✓ Camcorder service centers and authorized Sony repair facilities
✓ Independent electronics repair shops
✓ Video production equipment maintenance personnel
✓ Technical training programs for consumer electronics repair
✓ Professional video equipment rental companies

Applications & Service Environments

Sony HDR-HC5/HC7 camcorders serve professional and prosumer needs in:

Professional Video Production:

• Independent filmmakers
• Wedding and event videographers
• Documentary production
• Corporate video departments

Consumer/Prosumer:

• High-end home video recording
• Family video documentation
• Travel and vacation recording
• Serious amateur videography

Service Applications:

• Warranty repair services
• Out-of-warranty customer repairs
• Preventive maintenance
• Component-level troubleshooting

Professional Service Documentation Features

This manual includes:

• 112 Pages of comprehensive technical content
• Complete Electrical Schematics for all circuit boards
• Detailed Block Diagrams showing system architecture
• Exploded View Diagrams for mechanical assemblies
• Component Location Maps on all PCBs
• Step-by-Step Disassembly Procedures with photographs
• Safety-Critical Component Identification (⓪ marks)
• Voltage Test Points for diagnostic testing
• Parts Lists with Sony part numbers
• Multi-Language Support (English and Japanese)
• Regional Variant Documentation for worldwide models
• High-Resolution Diagrams for clarity

Critical Safety Information

Comprehensive safety documentation including:

• High Voltage Warnings – Charging capacitor discharge procedures
• ESD Precautions – Electrostatic discharge protection requirements
• Safety-Critical Components – Parts marked with ⓪ must be replaced with exact part numbers only
• Proper Grounding – Service procedures and requirements
• Laser Diode Safety – (if applicable to optical components)
• Harness Disconnection – Proper procedures to prevent damage

Regional Model Coverage

Complete documentation for all international variants:

• NTSC models (HDR-HC5, HDR-HC7) for North America, Japan
• PAL models (HDR-HC5E, HDR-HC7E) for Europe, Asia, Australia
• Voltage specifications for each region
• Language and menu variations
• Region-specific features and compliance

Manufacturer Information

Sony Corporation
Sony EMCS Co.
Published by Kohda TEC
Document Number: 9-852-176-31
Version: 1.0
Date: January 2007
Copyright © 2007

MDX-N110 Mechanism

Detailed coverage of Sony’s precision tape transport:

• Drum assembly
• Capstan motor system
• Loading mechanism
• Tape path diagrams
• Mechanical timing
• Adjustment procedures

Advanced Features Covered

Complete service information for:

• HDMI high-definition output interface
• Memory Stick/SD card slot systems
• USB connectivity
• Component video outputs
• Audio input/output systems
• Remote control interface (RMT-831)
• LCD panel systems
• Electronic viewfinder
• Battery charging circuits
• AC power adapter interface

Diagnostic and Adjustment Procedures

Essential service procedures:

• Power supply voltage verification
• Video signal alignment
• Audio level calibration
• Focus and zoom adjustments
• White balance calibration
• Color reproduction verification
• Mechanical alignment procedures
• Tape transport timing adjustments

FILE DETAILS

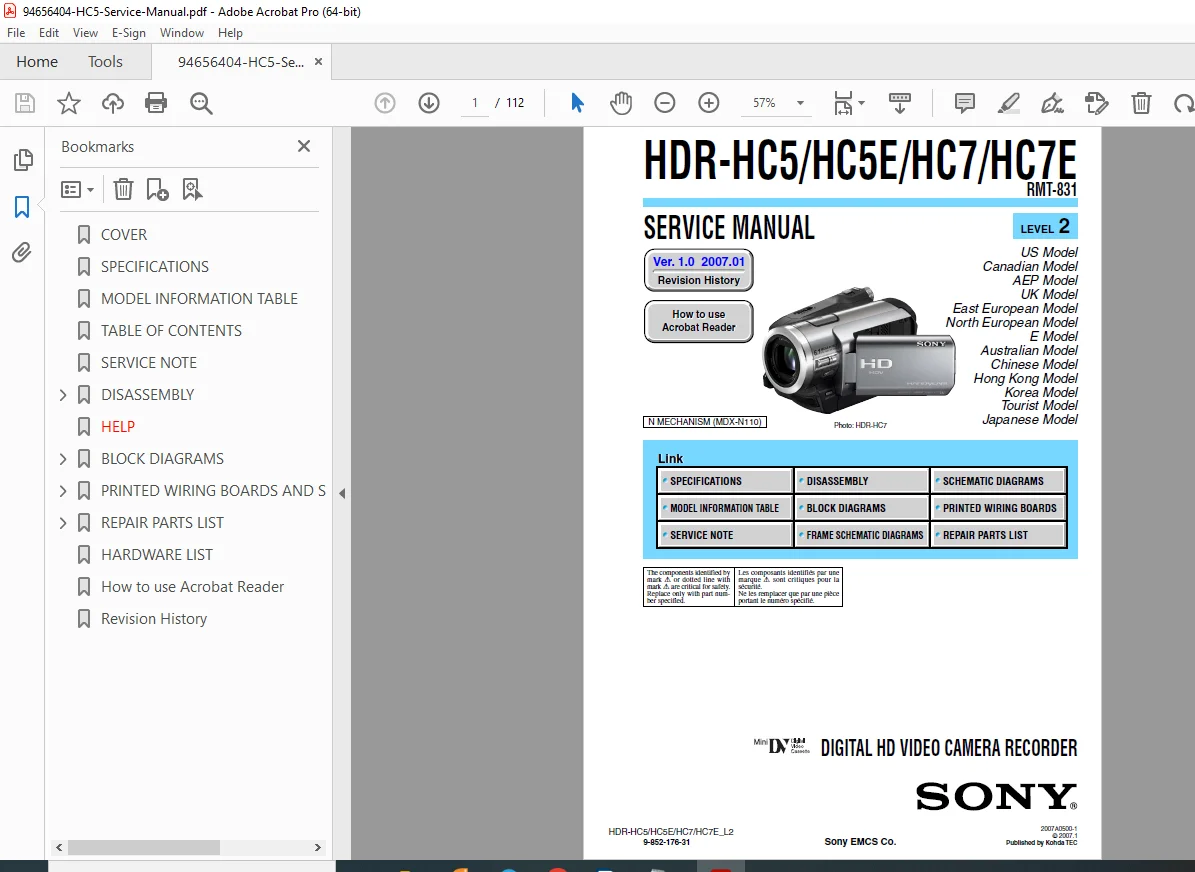

Manual Name: Sony HDR-HC5/HC5E/HC7/HC7E Service Manual
Models Covered: Sony HDR-HC5, HDR-HC5E, HDR-HC7, HDR-HC7E HD Camcorders with RMT-831 Remote Control
Year: January 2007
Manual Quality: Excellent – Professional OEM documentation with clear schematics, detailed block diagrams, comprehensive PCB layouts, and systematic disassembly procedures
Total Pages: 112

Pricing Rationale:

• Professional consumer electronics service documentation (specialized camcorder segment)
• 112 pages of comprehensive technical content
• Essential for camcorder repair specialists and electronics technicians
• Original Sony manufacturer documentation
• Covers four HD camcorder models (HC5/HC5E/HC7/HC7E) plus remote
• Complete schematics for complex video processing systems
• Detailed HDV/DV recording system documentation
• Critical for servicing popular Sony Handycam models
• High value for independent repair shops and service centers
• Includes safety-critical component identification
• Multi-language support (English/Japanese)
• Comprehensive regional variant coverage (13 models)
• Essential for component-level camcorder repair

Perfect for Sony Handycam repair, HDV camcorder troubleshooting, and digital video camera maintenance, this technical manual provides critical documentation for servicing Sony’s popular HD consumer camcorder line used by videographers, families, and content creators worldwide. Master the complete repair process—from basic troubleshooting to complex board-level repairs—with this official Sony service documentation trusted by authorized technicians globally!
