Still FM-X Reach Mast Stacker Spare Parts Catalogue PDF – Complete Illustrated Parts List

Description

The Still FM-X Reach Mast Stacker Spare Parts Catalogue is the complete illustrated parts list for the FM-X reach truck series, issued under document number 511903F00131 and source reference 730478089. This 531-page PDF breaks down every major assembly into its individual components, each with its part number, required quantity, description and fitting remarks. Whether you are rebuilding a drive axle, replacing a hydraulic hose, ordering a new load wheel or identifying a sensor, this Still FM-X parts catalogue gives you the exact reference you need before you place an order.

File Details

• Manual type: Spare Parts Catalogue (Ersatzteilliste)
• Brand: Still
• Model: FM-X
• Document number: 511903F00131
• Source reference: 730478089
• Date: 02.02.2015
• Language: German, English, French, Italian, Spanish
• Page count: 531
• File format: PDF

Chapters Covered

• Mechanical Drive Axle
• Chassis, Driver’s Places, Steering System
• Mechanical Guidance
• Braking System
• Wheels and Tyres
• Operating Elements
• Electronic Control Unit
• Electrics/Electronics
• Battery and Accessories
• Hydraulics
• Upright, Cylinder, Load Support
• Special Equipments
• Documentation

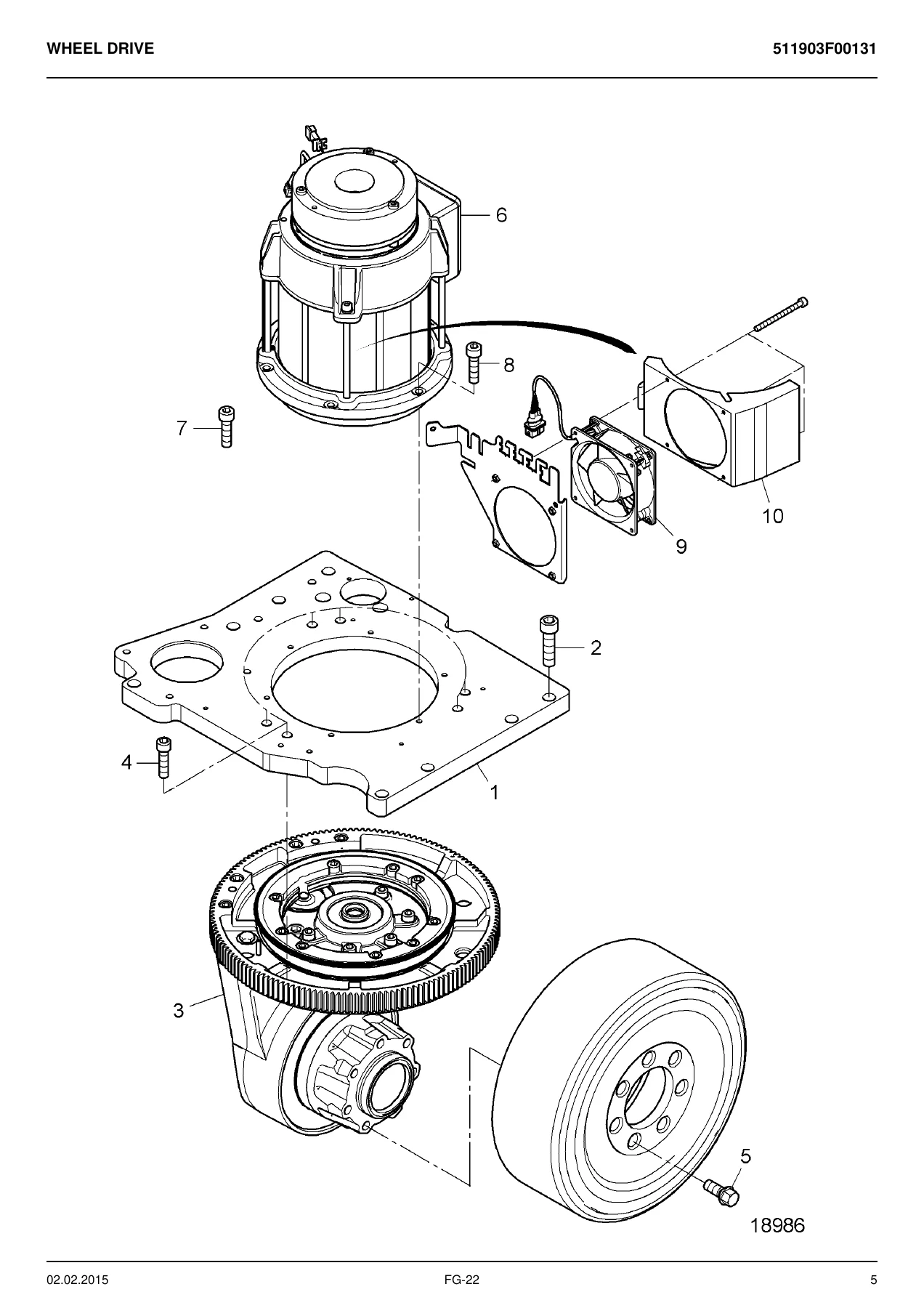

Mechanical Drive Axle and Wheel Drive

The opening sections cover the complete mechanical drive axle assembly, including the drive motor, traction motor, fan, air cooling duct and all associated mounting hardware. Part numbers are listed for the plate, socket head screws, wheel screw and drive motor, with cold store fan variants identified separately. The traction motor section includes the sensor, transmitter impulse, temperature sensor, parallel key, insulating plate, O-ring, retaining ring, oval head screw and seal, along with the parking brake assembly, armature, plate and gear. A rev sensor for the Still system is also listed. This section is where you will find the components that keep the FM-X moving — from the motor itself down to the smallest retaining ring.

Chassis, Covers and Driver’s Area

The chassis section covers the bottom plate assembly, floor mat, travel sender (double track potentiometer), cable harness assembly, connector housings, contacts and all fasteners. The cover and load wheel area includes the floor plate, battery cover, door, reach carriage, reach carriage covers, support and battery lock. The dashboard, panelling, support, hood, driver’s cabin, interior mirror, seat, overhead guard mounting parts, head protection pad and document tray are all covered. Part numbers for armrest assemblies, rear windows, cable guides, captive nuts and button head screws are included. The driver’s seat assembly (MSG65/522 with textile cover) and its mounting hardware are also present.

Steering System

The steering system chapter covers the steering wheel, lid, hexagon head screw, washer and disc tightening. The steering column assembly includes the tension spring, lever, socket head screw, shim ring, washer, locking ring, sensor, steering box, shaft, grooved ball bearing, wiper ring, clamping piece, guide, plate, sleeve and bolts. The steering unit section lists the pinion gear, parallel key, washer, hexagon bolt, socket head screw and sensor assembly.

Braking System, Wheels and Tyres

The footbrake section covers the brake pedal assembly, grooved ball bearing, pedal pad, brake cylinder, bearing block assembly and all springs, screws, nuts and washers. The brake pipe chapter includes left, right and crosswise brake pipe assemblies, banjo bolts, union banjos, seals, seal rings, junction, pressure switch and pipe union. The drive wheel section lists the drive wheel (92 Shore, D=360/130-VUKO) and wheel screw. The load wheel assembly is detailed with its mechanical service brake, cheese-head screw, washer, tapered roller bearing, retaining ring, slotted nut and hubcap. The driving brake assembly section covers the brake support plate, plug, brake cylinder, spring washer, hexagon head screw, brake shoe, springs and bleeder valves.

Operating Elements and Controls

This section covers the multifunction lever, joystick, indicator unit (standard and with keyboard), cover assembly, console assembly, upholstery assembly, joystick assembly (including Joystick 4Plus variant), emergency off switch, cutting screw, button head screw and adhesive labels. The control chapter includes the control board mounting, control board, wiring, power cables, plate assembly, appliance plug assembly, support, radio module, fan, contactor, terminal board, connecting bridge, fuse, fuse link, fuse base, shunt, converter assembly and all associated screws, washers and nuts. Cable harness assemblies (W213 through W226) and the control current harness are listed with their connection codes.

Electrics, Electronics and Battery

The electrics and electronics chapter covers warning light, switching devices, socket (12V/5A), cable harness — control current, sensor assembly, support, plate and all connectors and contacts. The battery carrier section includes the floorplate assembly, bush, cylindrical pin, lubricant, hexagon nut, hexagon head screw, wear strip, socket head screw, washer, lever assembly, roller, star-grip handle assembly, countersunk screw, spring element, tension spring, disc spring, shim ring and grease. The oil tank assembly, return flow filter, O-rings, filter cartridge, breather filter, seal, screws, washer, tab, support and hexagon nut are also covered.

Hydraulics — Motor-Pump Unit, Hoses and Conduits

The hydraulics chapter begins with the gear pump (16cm³/U), O-ring, coupling, socket head screw, support, spring element, bush, flanged branch, adaptor, flexible formed hose, clips and hose clips. The hose line section lists SVL, SVR, ZS and ZB hose lines with clips and socket head screws. The cable conduit section covers the energy chain, button head screws, hose lines, hose clip, support, socket head screws, washers, clamping clip, electrical tape, cheese-head screw, control valve and all mounting hardware for both without and with auxiliary hydraulics configurations.

Upright, Lift Cylinders, Reach Cylinder and Load Support

The upright mounting section includes the wear strip assembly, threaded pin, nut, pipe union, hexagon head screw, clip, cap screw, pipe assembly, guard plate, chain roller, hose pulley, shim rings, clamp, screw cap, washer, button head screw, clip, sheet metal holder, countersunk screw, support roller and socket head screw. Lift cylinder coverage spans multiple piston diameters: 52 mm centre cylinders for mast lengths from 1880 mm to 2830 mm, 60 mm centre cylinders for mast lengths from 1880 mm to 4630 mm, 63 mm centre cylinders from 2930 mm to 5280 mm, 37 mm right/left cylinders for 1.0-1.7t, 43 mm right/left cylinders for 2.0-2.5t and 1.4-1.7t, and 46 mm right/left cylinders. Each lift cylinder section lists the cylinder barrel or pipe, piston rod, cylinder head assembly, hexagon bolt, seal ring, piston cover assembly, guide ring, sealing ring, piston, compression spring, snap ring, ring, guide strip, O-ring, wiper ring, grooved ring, piston seal, rod end bearing assembly, ball socket, cap and pourable plastics. The reach cylinder assembly is also covered with its cylinder pipe, piston rod, hexagon nut, cylinder head, wiper ring, grooved ring, O-ring, piston, guide ring, piston seal, rod end bearing, ball socket, caps, snap ring and hose lines. The fork carriage mounting parts, load carrier (MQ and GN/SS variants), load guard and load backrest assemblies (H=800/1000/1200, B=790) are listed with roller guides, bolts, retaining rings, cheese-head screws, washers, plates, shim rings, support rollers, countersunk screws and socket head screws.

Leaf Chains and Labels

The leaf chain section lists complete leaf chain assemblies with their part numbers. The documentation and labelling chapter covers product identification, labelling customized, identification plate, label text Optispeed, adhesive label sets (chassis, main 1270, cab), warning signs and various RAL colour labels. The final section of the PDF is a comprehensive parts index that maps every part number to its page location, making it fast to locate a specific component within the catalogue.

Why This Still FM-X Parts Catalogue Matters

Ordering the wrong part for a reach truck is expensive — not just in the cost of the part itself, but in the downtime while the machine sits idle waiting for a replacement. This Still FM-X spare parts catalogue removes that risk. Every assembly is exploded into its constituent parts with the exact part number, quantity and description, so you can confirm the correct component before you order. The catalogue covers the full FM-X range across multiple load capacities and mast lengths, and includes cold store variants where applicable.

IMAGES PREVIEW

Instant PDF Delivery

This Still FM-X reach truck spare parts catalogue is delivered as an instant PDF download — no shipping, no waiting. Open it on any device, search for the assembly or part number you need, and order with confidence. Print the pages you need for the workshop or keep the whole catalogue on your phone or tablet for quick reference on the shop floor. The PDF format makes it easy to share with your parts department, maintenance team or supplier.
