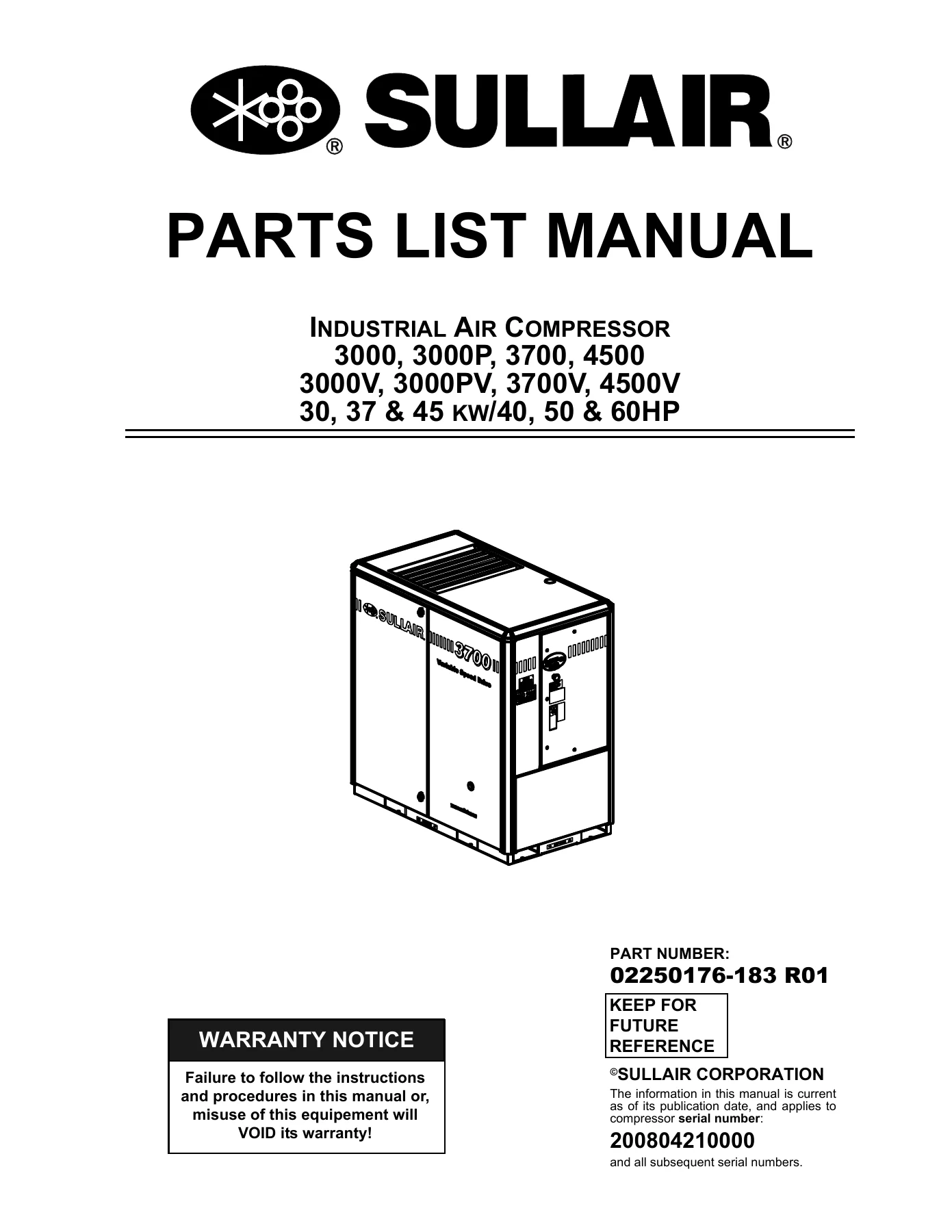

Sullair 3000 3700 4500 Series Industrial Air Compressor Parts List Manual 02250176-183 R01

Description

Sullair 3000 3700 4500 Series Parts List Manual

This is the complete illustrated parts list manual for Sullair 3000, 3000P, 3700, 4500, 3000V, 3000PV, 3700V, and 4500V industrial air compressors rated at 30, 37, and 45 kW (40, 50, and 60 HP). Whether you are ordering a replacement air filter element, tracking down a coupling hub, or identifying a decal for the enclosure, this manual provides the exact part numbers and exploded-view illustrations you need. It applies to compressor serial number 200804210000 and all subsequent serial numbers.

File Details

• Manual Type: Illustrated Parts List Manual
• Brand: Sullair
• Models Covered: 3000, 3000P, 3700, 4500, 3000V, 3000PV, 3700V, 4500V
• Power Range: 30, 37 & 45 kW / 40, 50 & 60 HP
• Language: English
• Page Count: 102
• File Format: PDF
• Part Number: 02250176-183 R01
• Serial Number Coverage: 200804210000 and all subsequent serial numbers

Chapters Covered

The manual is organized into 38 sections covering every major system and component group on these compressors. Each section pairs an exploded-view illustration with a detailed parts table listing key number, part number, quantity, description, and notes.

• 1.1 Procedure for Ordering Parts
• 1.2 Recommended Service Parts List (elements, kits, fluids, lubricants)

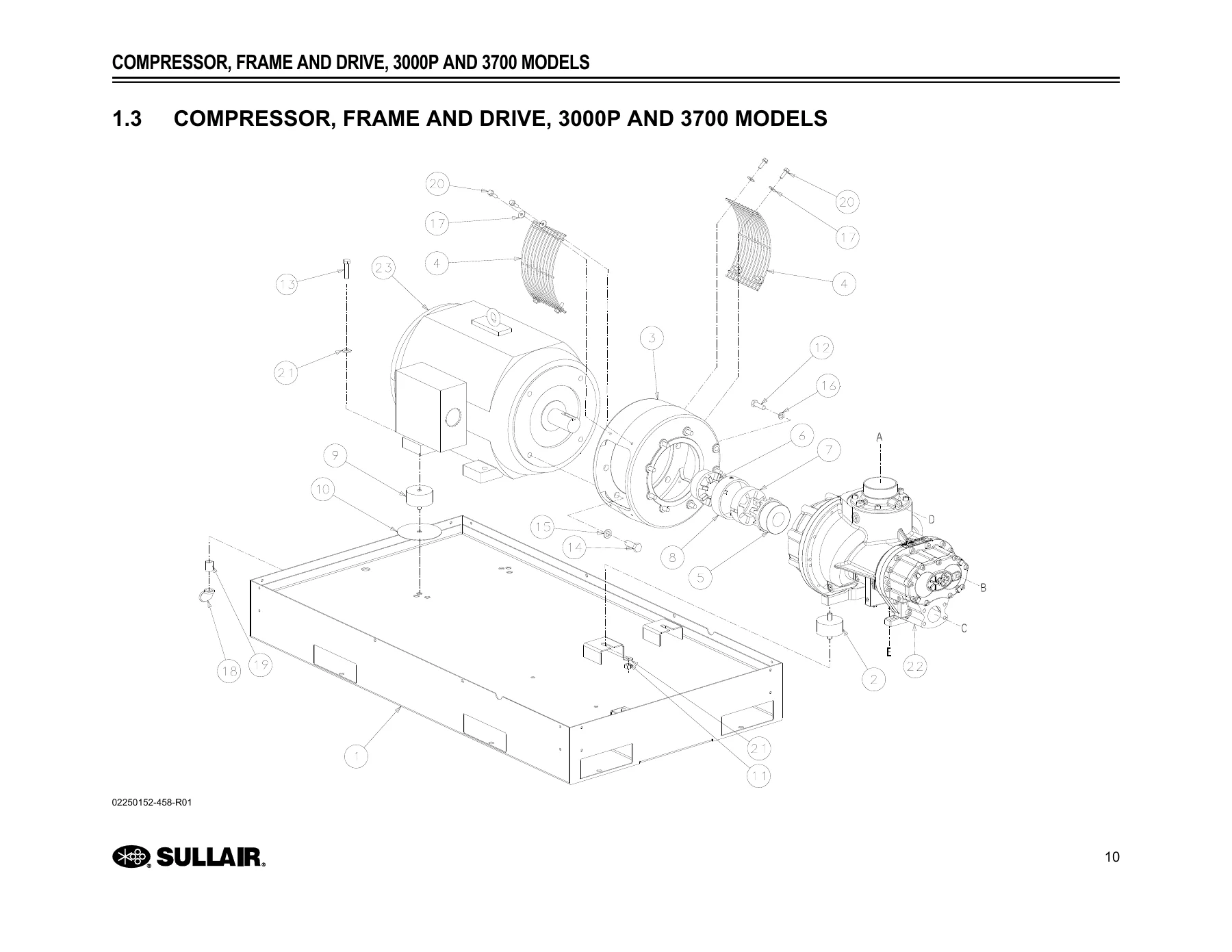

• 1.3 Compressor, Frame and Drive, 3000P and 3700 Models
• 1.4 Compressor, Frame and Drive, 3000 Model with 10 Series Unit
• 1.5 Compressor, Frame and Drive, 4500 Model
• 1.6 Air Inlet System, Standard 3000P, 3700 and 4500 Series
• 1.7 Air Inlet System, 10 Series 3000
• 1.8 Air Piping, Air-Cooled
• 1.9 Air Piping, Water-Cooled
• 1.10 Air Piping with Integral Dryer
• 1.11 Fluid Piping, Air-Cooled
• 1.12 Fluid Piping, Water-Cooled

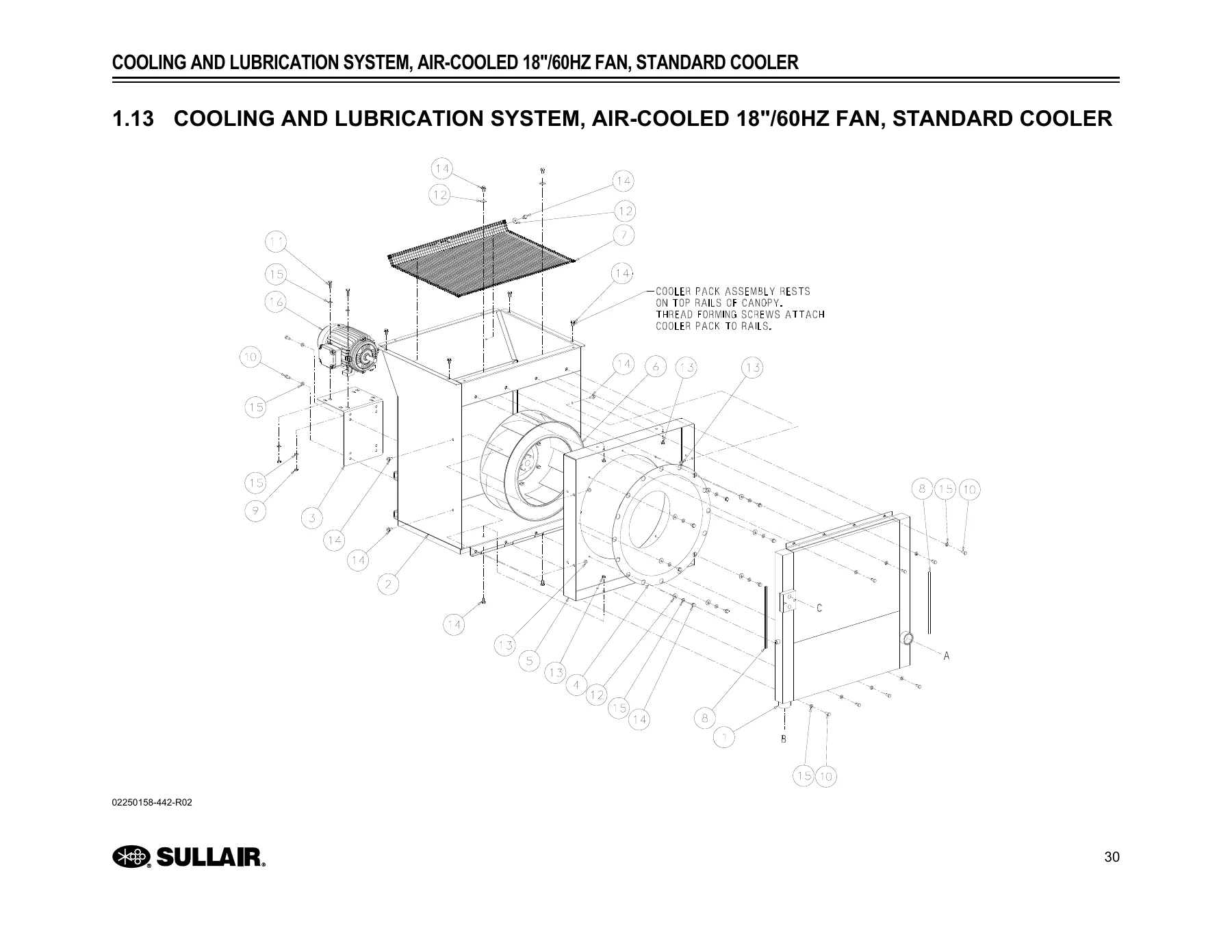

• 1.13 Cooling and Lubrication System, Air-Cooled 18″/60HZ Fan, Standard Cooler
• 1.14 Fluid Cooling System, Water-Cooled
• 1.15 Discharge, Separator/Sump and Piping System, 3000P, 3700 and 4500
• 1.16 Discharge, Separator/Sump and Piping, 3000 with 10 Series Unit
• 1.17 Moisture Drain
• 1.18 Moisture Drain with Integral Dryer
• 1.19 Moisture Drain, Water-Cooled
• 1.20 Pneumatic Control System, with Standard Sequencing
• 1.21 Pneumatic Control System, SSTL with Sequencing
• 1.22 Control System and Electric Parts, MFV
• 1.23 Control System and Electric Parts, MFV (continued)
• 1.24 Control System and Electric Parts, Wye-Delta
• 1.25 Control System and Electric Parts, VSD
• 1.26 Control Starter — MFV
• 1.27 Control Starter — Wye-Delta
• 1.28 Control Starter — VSD N12
• 1.29 Enclosure, Air-Cooled
• 1.30 Enclosure, Water-Cooled
• 1.31 Enclosure, Air-Cooled with Integral Dryer
• 1.32 Dryer Option Assembly
• 1.33 Assy Clean Air Inlet Air-Cooled
• 1.34 Assy Clean Air Inlet Water-Cooled
• 1.35 Assy Clean Air Inlet Air-Cooled with Integral Dryer
• 1.36 Decal Locations, Air-Cooled and Water-Cooled
• 1.37 Decal Locations, Air-Cooled with Integral Dryer
• 1.38 Decal Group

Beyond the section list, this Sullair parts list manual gives you the full exploded-view parts breakdown for the compressor airend, coupling assembly, motor mounting, inlet valve, thermal valve, minimum pressure/check valve, separator tank, fluid cooler, aftercooler, moisture drain assemblies, pneumatic control system, microprocessor control starters, enclosures, and decal sets. The recommended service parts list at the front identifies the most commonly ordered maintenance items — fluid filter elements, air filter elements, separator elements, and repair kits for valves and solenoids — so you can quickly find the parts that keep these machines running. Torque values for contactor lugs and terminal connections are provided where applicable.

What This Parts Manual Enables You to Do

With this Sullair 3000 3700 4500 Series parts list manual, you can identify and order the correct replacement parts for your specific air compressor without guesswork. The exploded-view illustrations show exactly how components fit together, which is invaluable when you are disassembling a coupling guard, replacing a shaft seal, rebuilding an inlet valve, or tracing a fluid leak back to a specific hose or fitting. Every part number listed has been pulled directly from the manufacturer’s documentation, so you can cross-reference with your local Sullair representative or parts supplier confidently.

For maintenance technicians and service personnel, this manual streamlines the ordering process. Instead of describing a part over the phone or trying to match a worn component by sight, you can point to the exact key number on the illustration and order the corresponding part number. The service parts list at the beginning of the manual is especially useful for stocking common wear items — air filters, fluid filters, separator elements, and valve repair kits — so you can minimize downtime when a machine needs attention. The torque tables in the control starter sections give you the values needed to properly tighten contactor lugs and terminal connections.

This manual is also a practical reference for understanding how the different systems on these compressors are assembled. The air piping sections cover both air-cooled and water-cooled configurations, as well as machines with the integral dryer option. The fluid piping sections detail the routing from the separator/sump tank through the thermal valve, fluid filter, and cooler. The pneumatic control system sections show the sequencing valves, solenoid valves, regulators, and tubing connections for both standard and SSTL configurations. The control system and electric parts sections break down the microprocessor starters for MFV, Wye-Delta, and VSD machines, including fuses, relays, transformers, terminal blocks, and push buttons.

Why This Manual Matters

Using the correct part numbers and following proper assembly procedures is critical on industrial air compressors. A wrong separator element, an incorrect minimum pressure valve spring, or a mismatched coupling element can lead to poor performance, increased oil carryover, vibration, or even compressor failure. The Sullair 3000 3700 4500 Series parts list manual removes that risk by giving you the exact part numbers for every component in these machines, organized by system and accompanied by clear exploded views that show the correct assembly order and orientation.

The manual also includes notes and cautions that matter for long-term reliability. For example, the fluid section warns that mixing different lubricants within the compressor unit will void all warranties, and the manual specifies the correct fluid fill amounts by referencing the User Manual. The recommended service parts list identifies which repair kits are available for the minimum pressure/check valve, thermal valve, pressure regulator, blowdown valve, control solenoid valve, inlet valve, and shaft seal — so you know exactly what to order when a specific component needs attention.
