Sumitomo SH250-6 and SH250-6LR Hydraulic Excavator Parts Catalog Manual

Description

Sumitomo SH250-6 and SH250-6LR Hydraulic Excavator Parts Catalog Manual

The Sumitomo SH250-6 and SH250-6LR Hydraulic Excavator Parts Catalog Manual (Publication No. WCL2506D-0T) is the comprehensive, definitive parts reference for servicing, rebuilding, and maintaining Sumitomo 6-series hydraulic excavators. Whether managing fleet maintenance, operating on job sites, or sourcing replacement parts in a repair facility, this genuine parts manual delivers exhaustive visual schematics and verified part numbers across both standard backhoe (BH) and factory Super Long Reach (LR) configurations beginning with serial number 250N6-1101.

File Details

• Manual Type: Hydraulic Excavator Parts Catalog Manual
• Brand: Sumitomo
• Machine Models: SH250-6 (Standard Backhoe) and SH250-6 LR (Super Long Reach)
• Applicable Serial Numbers: 250N6-1101 and up (Product Identification Number ISO 10261 positions 14 through 17)
• Document Publication Number: WCL2506D-0T
• Individual Book Numbers: WCLAKBBH1LALBH 001 (SH250-6 Backhoe) and WCLAKBBH1LALLR 000 (SH250-6 Super Long Reach)
• Language: English (with dual Japanese technical nomenclature)
• File Format: Digital PDF

Machine Coverage & Configuration Breakdown

This parts catalog provides full structural coverage for the Sumitomo SH250-6 and its extended-front counterpart, the Sumitomo SH250-6LR. Operating conditions demand exact component matching, and this manual catalogs all variations between standard excavators and super long reach platforms, including counterweight mass variations, dedicated long-reach revolving frames, boom and arm cylinder hydraulic dampening lines, reinforced undercarriage guarding, and extended-reach front-end work equipment. Additionally, serial-number cutoff points are precisely detailed throughout each section (such as parts transitions at 250N6-1105, 1106, 1108, 1109, and 1111), guaranteeing that mechanics and parts specialists obtain the exact revision of every bracket, seal kit, valve, or hydraulic line required for their specific machine build.

Major Systems & Component Coverage

Every major assembly of the excavator is illustrated with detailed exploded-view drawings and accompanied by comprehensive part schedules showing item reference numbers, subassembly composition levels, official part numbers, technical descriptions, required quantities, serial applicability, and interchangeability symbols:

• Undercarriage & Track System (Area DA): Detailed exploded diagrams of track link assemblies, track pins, master pins, bushings, and dust seals; track shoe options including 600 mm triple grouser, 700 mm sealed grouser, and 800 mm heavy-duty sealed grouser shoes with high-strength shoe bolts and nuts; heavy-duty recoil spring tensioner assemblies with grease cylinders and check valves; forged upper carrier rollers; sealed take-up front idlers; heavy-duty lower track rollers (JS type); lower frame weldments; central rotary joints (center swivel joint manifold); and track motor protective guards (standard and triple guards).
• Swing Frames, Platforms & Slewing Gear (Areas DB & DC): Heavy cast counterweights tailored for standard backhoe and long-reach superstructures; reinforced upper underbody protection covers; heavy-duty precision turntable slewing ring bearing assembly with internal gearing, grease lines, seals, and high-tensile mounting bolts; revolving frame structures; and complete swing drive equipment including hydraulic swing motors, integrated mechanical brake packages, and multi-stage planetary reduction gearboxes.
• Isuzu Diesel Engine & Supporting Power Systems (Area DH): Powertrain mounting incorporating heavy-duty front and rear engine supports, flexible vibration-isolation rubber cushions, and securing hardware; exhaust system complete with silencer muffler, exhaust connecting pipes, flexible U-bolts, and thermal brackets; standard engine cooling package featuring high-efficiency radiator, charge air cooler (intercooler), reserve expansion tanks, and molded coolant hoses; dual-element dry air cleaner system with restriction vacuum sensors, intake piping, auto-discharge pre-cleaners, and rain caps; and complete diesel fuel storage and delivery systems including main fuel tank, fluid level float gauges, suction strainers, drainage valves, and multi-stage fuel lines with electric fuel feed pump integration.
• Hydraulic Controls, Distribution & Circuit Plumbing (Area DJ): Comprehensive schematics and hardware lists for the main hydraulic control valves (standard backhoe, second auxiliary spool, and long-reach LR configurations); pilot control lines; operator joystick remote control pilot valves; foot pedal service control valves (left and right consoles); hydraulic pump groups comprising primary variable displacement piston pumps and auxiliary secondary gear pumps; main pressure supply piping; pump suction lines; oil return manifolds; oil cooler circuits; boom holding valves (HBCV); cushion valves; and single-acting and double-acting auxiliary attachment control circuits.
• Operator Cab, Body House & Structure (Area DN): Complete operator cab assemblies featuring FOPS Level 2 top head guards and front window mesh protection screens; operator cab shell options including polycarbonate and steel roof hatch designs; fully adjustable suspension seat and console box arrangements (covering both Shigeru and KAB suspension systems); handrails; safety lock levers; emergency exit hammers; exterior house cowling panels; engine hood bonnets with gas damper lift cylinders; side maintenance access doors; and sound-dampening acoustic insulation sets.
• Accessories, Name Plates & Field Kits (Area DP): Exterior cosmetic and warning paint decals; machine safety nameplates in English and multilingual formats; wide-angle rear-view and side-view mirror assemblies compliant with EN 2016 safety visibility standards; dedicated field toolkits; and consumable maintenance spare parts kits.
• Electrical System & Electronic Management (Area DR): Central Tier 4 / Stage IV electronic engine and hydraulic pump controllers (Controller Type 6); 24V to 12V DC-DC converters; cab interior climate control air conditioning unit with blower motor, evaporator core, and micro-filter; frame-mounted A/C compressor with magnetic clutch and receiver drier; high-intensity halogen working lamps (boom, cab roof, and frame mounts); travel motion alarms; electric horns; dual heavy-duty 130E41 batteries; starter switches; rear-view CCD camera monitor systems with harness routing; and integrated GPS satellite communication controllers.
• Front-End Working Attachments (Area DV): Standard backhoe booms (5.85 m) and super long reach booms (10.3 m); standard, short, and long excavator arms (2.5 m, 3.0 m, 3.5 m, and 8.0 m super long reach); bucket linkages with integrated lifting hooks; bucket options ranging from 0.37 m³ to 1.40 m³ capacities; boom, arm, and bucket hydraulic cylinder fluid lines; auxiliary line bar bases; and high-pressure hose clamping systems.

Chapters Covered

The Sumitomo SH250-6 and SH250-6LR Hydraulic Excavator Parts Catalog Manual is divided into standardized functional areas following Sumitomo parts indexing protocols:

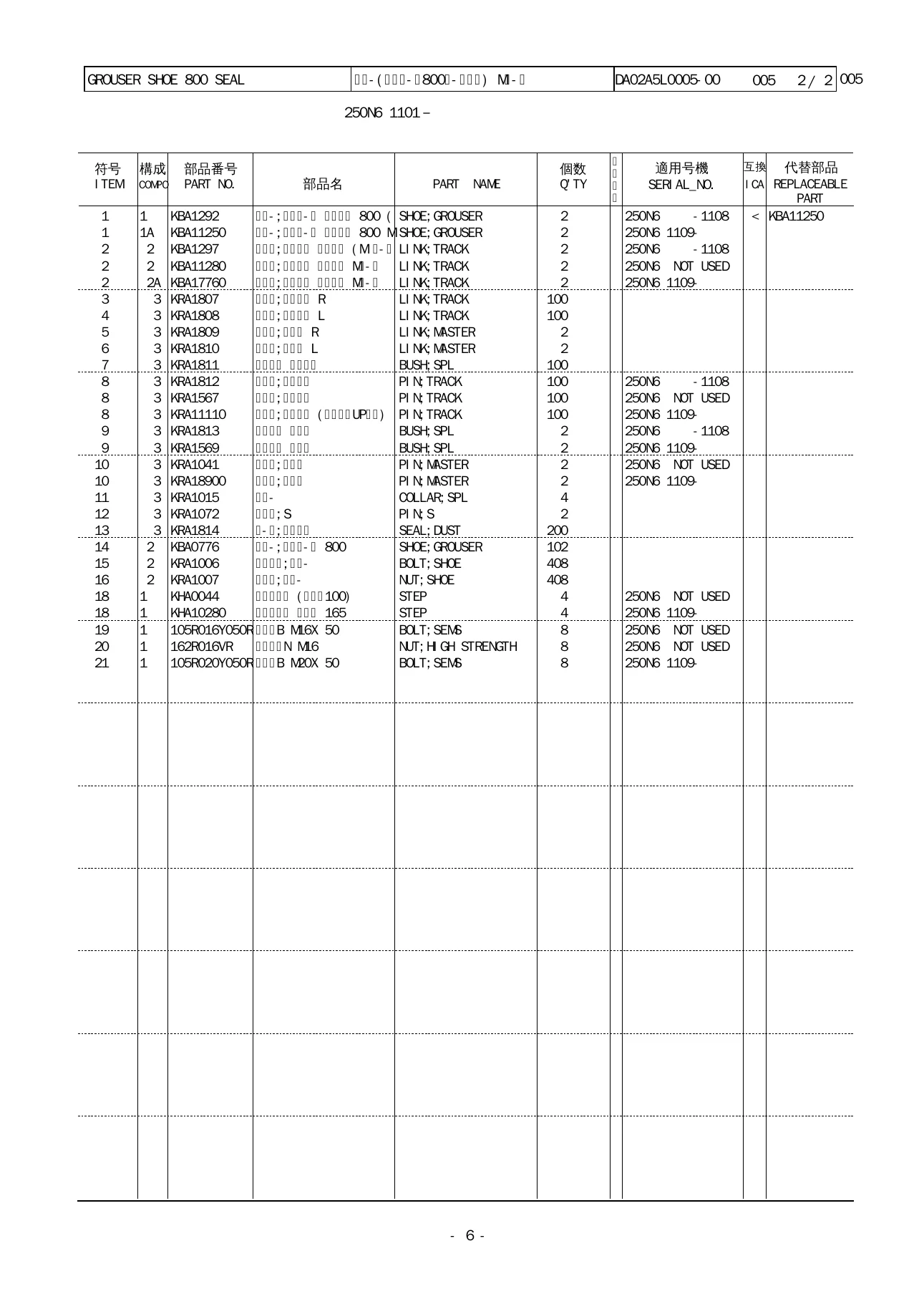

• Area DA — Lowers: Grouser Shoes (600 mm, 700 mm Seal, 800 mm Seal); Lower Under Cover; Center Guard; Track Guard (Triple); Center Joint; Recoil Spring; Traction Equipment; Lower Frame; Traction Motor Line; Upper Roller; Take-Up Roller; Lower Roller JS

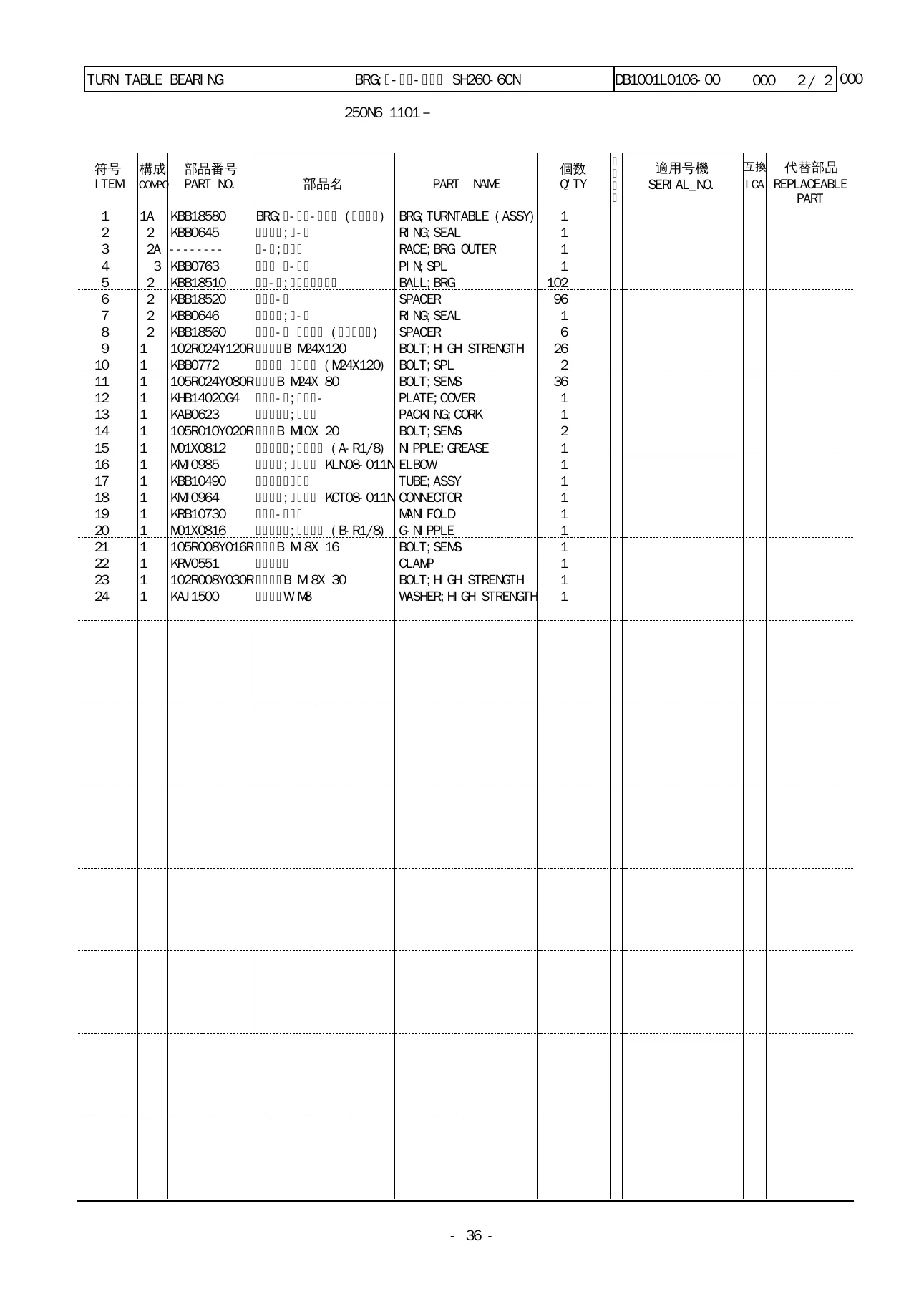

• Area DB — Swing Frames & Platforms: Counterweight (Standard BH & Long Reach LR); Upper Under Cover; Turn Table Bearing; Revolving Frame (LR & Standard)
• Area DC — Rev. Shafts & Clutch: Revolving Equipment (Swing Motor, Reduction Gears & Hardware)
• Area DH — Engines & Power Units: Engine (Isuzu Diesel & Engine Mounts); Muffler (Standard); Radiator (Standard & Intercooler Lines); Air Cleaner (With Dual Elements & Pre-Cleaner); Fuel Tank; Fuel Line
• Area DJ — Controls & Hyd Lines: Service Valve Control (Right & Left); Joystick Control (KPM CSM); Drain Line; Bucket & Arm Line; Pilot Pressure & Return Line; Boom Line; Sump Tank; Return & Oil Cooler Line; Control Valve (Standard, 2nd Option, and LR); Hydraulic Pump (Main & 2nd PTO Gear Pump); Second Option Lines; Floor Mats; Pressure Lines; Suction Lines; Swing Lines; Traction Lines; Single Acting Circuit (Breaker); Double Acting Circuit
• Area DN — Operator’s Cab & House: Cab Guard (FOPS Level 2); Cab Front Guard Mesh (Upper & Lower); Operator’s Cab (Polycarbonate & Steel Hatch); House & Exterior Cowling; Console Box & Seat (Shigeru & KAB Units); Hand Rails; Rain Reflector; Dog Chain
• Area DP — Accessories & Name Plates: Painting & Decal Groups; Name Plates (English, ISO, Case BR, Japanese); Rear View Mirrors (EN 2016 Compliant & LR); Spare Parts Kit; Service Tools; Blind Plugs; Operation Decals
• Area DR — Electric Parts: Air Conditioner (Cab Unit & Frame Compressor); Working Lights (Cab, Boom, Additional Lamps); Traction Alarm; Window Washer; Controllers (Type 6); DC-DC Converter; Indicator Sensors; Wire Harnesses (HBCV, CCD Back & Side Cameras, GPS Satellite, Cab Main, Frame Main); Batteries (130E41); Electric Horn; Fuel Feed Pump
• Area DV — Attachments (Backhoe & Super Long Reach): Buckets (0.37 m³, 0.45 m³, 1.10 m³, 1.20 m³, 1.30 m³, 1.40 m³); Arms (Standard, Short 2.5 m, Long 3.5 m, Super Long Reach 8.0 m); Booms (Standard 5.85 m, Long Reach 10.3 m); Bucket Linkages (Standard, Build-Up, With Hook); Hydraulic Cylinder Lines (Boom, Arm, Bucket, HBCV); Auxiliary Option Piping Lines; Tube Clamps

As a whole, this document provides mechanics, parts interpreters, and repair technicians with an unambiguous blueprint of every structural, mechanical, hydraulic, and electrical assembly on the excavator. It completely removes guesswork from ordering replacement items, tracing hydraulic hose routings, and rebuilding complex multi-part components.

Part Number Structure & Interchangeability Coding

To ensure total ordering accuracy, this catalog utilizes Sumitomo’s standardized composition and interchangeability system:

IMAGES PREVIEW

• Composition Hierarchy (COMPO): Denotes the structural relationship between parent assemblies and child parts. Items marked 1 or 1A represent complete parent assemblies (such as a complete track roller, main control valve, or swing motor), while items marked 2, 2A, 3, and 4 identify the internal replacement components, seals, shafts, and hardware nested within that assembly.
• Interchangeability Symbols (ICA): Guides parts staff when updating or substituting part numbers across serial production breaks:
  • = (Equal): The listed replacement part is fully interchangeable in both directions with the prior part number.
  • < (Substitute): The new replacement part number can substitute for the earlier part, but the older part cannot be substituted into newer machines.
  • X (Non-interchangeable): Parts are distinct and cannot be substituted for one another under any circumstances.
• Service Quantities: Accurate part counts (Q’TY) are specified for each subassembly, with bulk or adjustable items marked as AR (As Required), such as leveling shims and harness bands.

Essential Capability, Maintenance Value & Instant Delivery

The Sumitomo SH250-6 and SH250-6LR Hydraulic Excavator Parts Catalog Manual is an indispensable asset for heavy equipment owners, independent repair contractors, and authorized dealerships. Having access to genuine exploded diagrams and factory part numbers allows technicians to disassemble complex units with confidence, verify the correct orientation of thrust washers and internal seals, identify missing or worn hardware, and ensure replacement parts fit on the first attempt.

Misidentifying a hydraulic seal, ordering the incorrect track link pitch, or confusing standard backhoe lines with long-reach hydraulic plumbing leads to costly machine downtime, unnecessary restocking fees, and delayed job completions. This catalog guarantees that you reference the exact factory part numbers assigned to your excavator’s specific serial range.

Delivered as an instant PDF download immediately upon checkout, this manual requires no waiting for physical shipping and no risk of shop grease ruining an expensive paper book. Store the file securely on your desktop, laptop, tablet, or smartphone for immediate lookup in the workshop or out in the trench, or print out crisp, high-resolution pages for greasy hands on the job site.
