Suzuki DR650R DR650S Service Manual 1990-1993 PDF Download

Description

Suzuki DR650R/S Service Manual — 1990 to 1993 Model Coverage

This is the factory-produced technical service manual for the Suzuki DR650R and DR650S series single-cylinder dual-sport motorcycles, published by Suzuki Motor Corporation’s Motorcycle Technical Service Department. The manual spans 283 pages and covers the full range of model variants produced from 1990 through 1993, delivering complete workshop-level guidance for inspection, adjustment, repair, and overhaul of all major systems.

Models This Manual Applies To

The following model designations are explicitly covered in this document:

• DR650RS (base model)
• DR650RM/SM (’91-MODEL)
• DR650RSM (’91-MODEL)
• DR650RSEM (’91-MODEL)
• DR650RSEN (’92-MODEL)
• DR650RSEP (’93-MODEL)

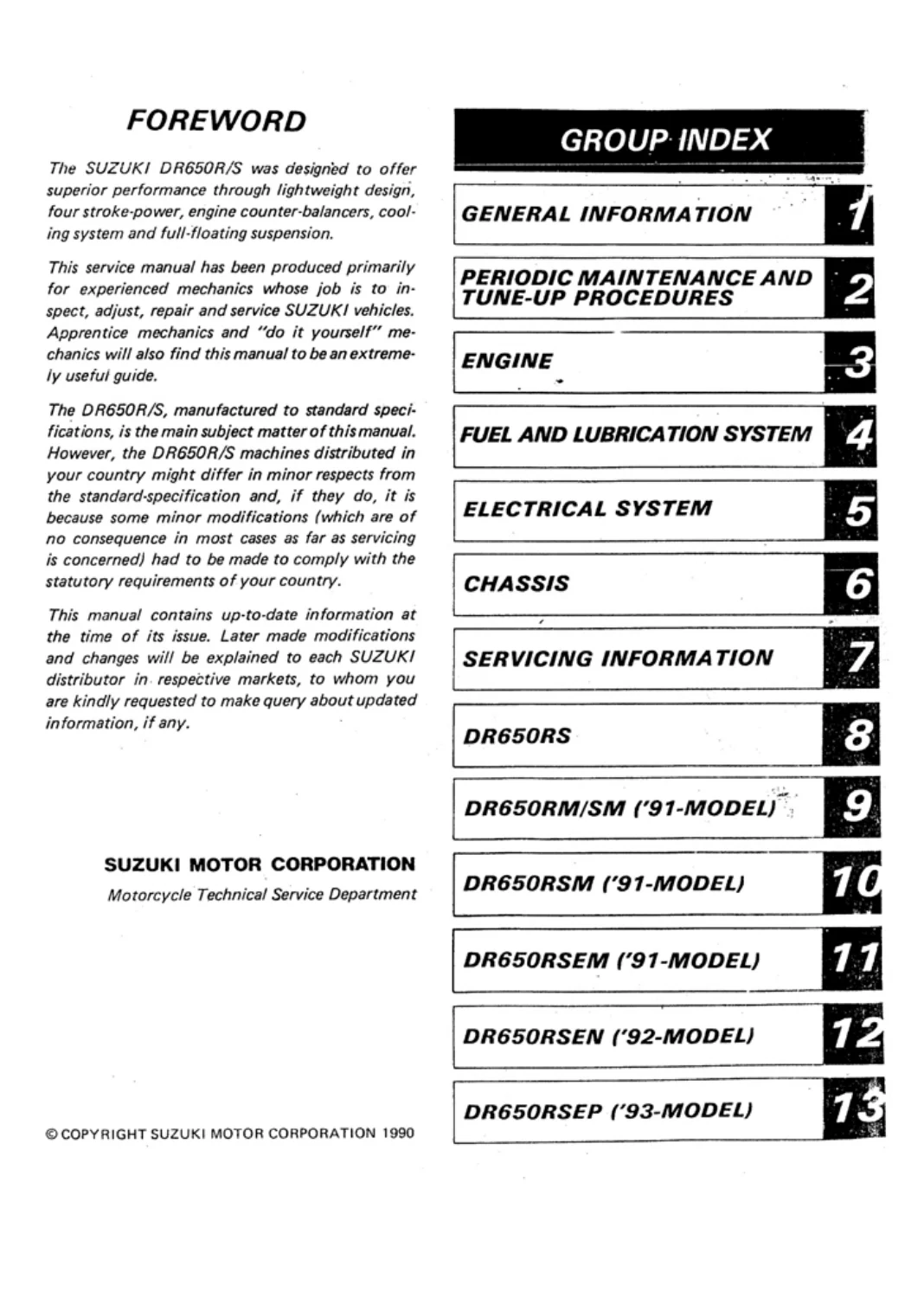

The foreword notes that DR650R/S machines distributed in different countries may differ in minor respects from standard specification due to local statutory requirements.

Systems & Subjects Covered

• General Information — serial number locations, fuel and oil recommendations, break-in procedures, special materials, precautions, full specifications

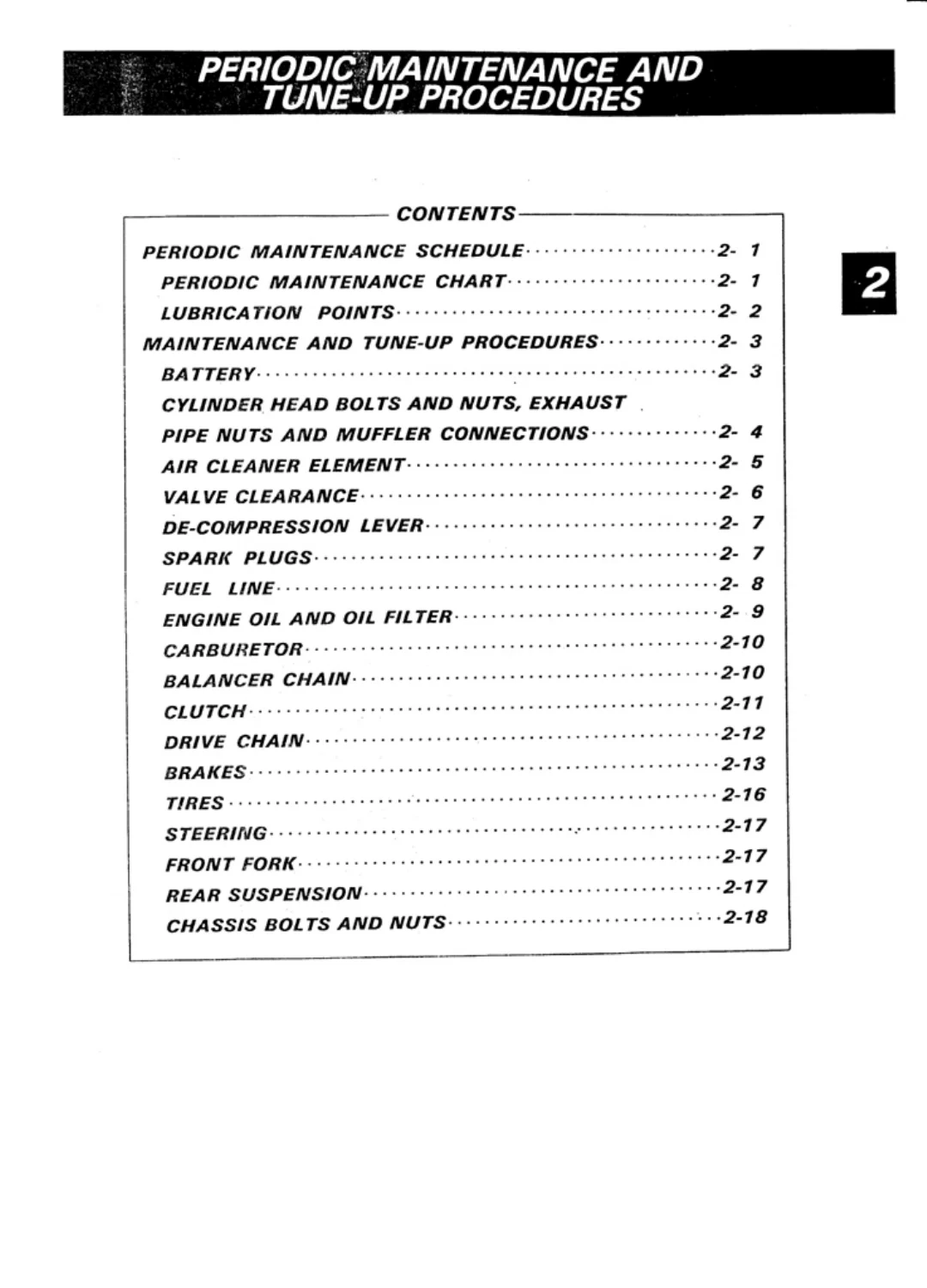

• Periodic Maintenance & Tune-Up Procedures — maintenance schedule, lubrication points, valve clearance, spark plugs, air cleaner, carburetor, balancer chain, clutch, drive chain, brakes, tires, steering, front fork, rear suspension, chassis bolts
• Engine — complete engine teardown and assembly
• Fuel and Lubrication System
• Electrical System
• Chassis
• Servicing Information
• Model-specific supplement sections for each variant (’91, ’92, ’93 models)

Technical Specifications Documented

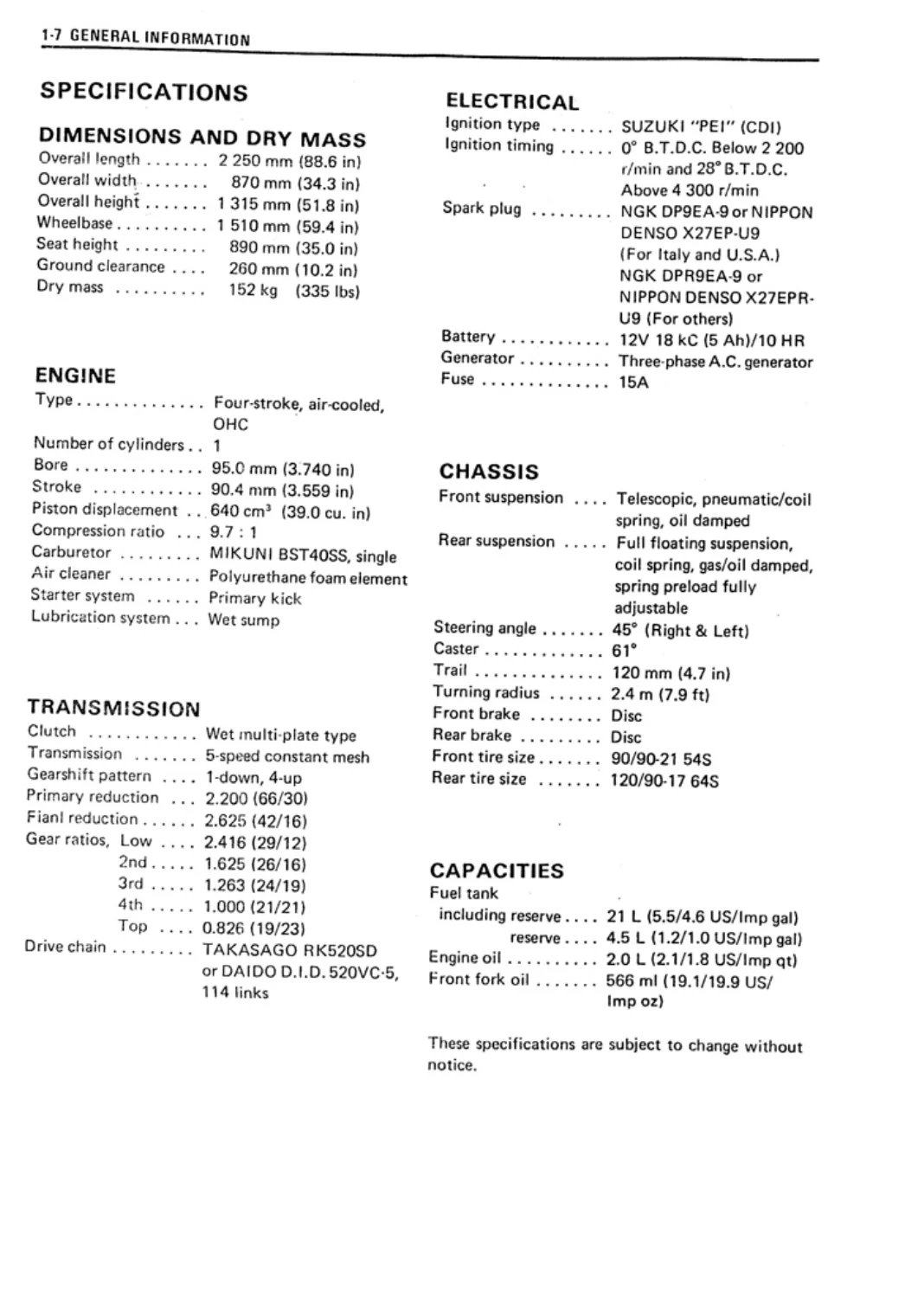

The specifications chapter records the complete technical data for the DR650R/S platform, including:

• Engine: Four-stroke, air-cooled, OHC, single cylinder — 95.0 mm bore × 90.4 mm stroke, 640 cm³ displacement, 9.7:1 compression ratio
• Carburetor: MIKUNI BST40SS, single
• Transmission: 5-speed constant mesh, 1-down 4-up pattern
• Drive chain: TAKASAGO RK520SD or DAIDO D.I.D. 520VC-5, 114 links
• Ignition: SUZUKI "PEI" (CDI), 0° B.T.D.C. below 2,200 r/min and 28° B.T.D.C. above 4,300 r/min
• Battery: 12V 18 kC (5 Ah)/10 HR
• Front suspension: Telescopic, pneumatic/coil spring, oil damped
• Rear suspension: Full floating, coil spring, gas/oil damped, fully adjustable spring preload
• Fuel tank: 21 L including reserve (4.5 L reserve)
• Engine oil: 2.0 L; Front fork oil: 566 ml
• Dry mass: 152 kg (335 lbs)

Repair, Maintenance & Diagnostic Coverage

• Complete engine disassembly and reassembly procedures with service limits and standard measurements
• Camshaft, cylinder head, piston and ring service data tables with standard and limit values
• Periodic maintenance schedule with inspection intervals
• Valve clearance adjustment, de-compression lever service
• Carburetor tuning and balancer chain adjustment
• Brake system inspection and adjustment (disc brakes front and rear)
• Electrical system diagnostics including CDI ignition, charging system, spark plug specifications
• Model-by-model supplement chapters isolating differences for ’91, ’92, and ’93 variants

Why This Manual Pays for Itself

The DR650R/S is a capable but technically specific machine — its OHC single with counter-balancers, full-floating rear suspension, and CDI ignition require precise adjustment data that generic guides cannot provide. This manual delivers exact service limits, standard measurements, and step-by-step procedures straight from Suzuki’s Technical Service Department, enabling accurate valve clearance checks, clutch adjustments, and electrical diagnosis without workshop rates. For owners and independent mechanics working across the 1990–1993 production run — including the many market-specific variants — having the correct model-specific supplement chapter for each year is essential and included here.

Instant PDF Download

This manual is delivered as an instant PDF download the moment your payment is complete. It is fully readable on any device — phone, tablet, laptop, or desktop — and can be saved for permanent offline access in your garage or workshop.
