TCM FRB-9 Series Electric Reach Truck Workshop Manual — Mitsubishi Logisnext Sit-On Reach Type Service & Repair

This is the full workshop manual for the TCM Mitsubishi Logisnext FRB-9 Series electric forklift truck (sit-on reach type), issued in October 2017 under document number SMBBE-R9SMC170. It is the service document a technician actually works from — disassembly, reassembly, inspection, adjustment and troubleshooting for the drive unit, brake, steering, hydraulics, mast, motors and electrical control system of the FRB-9 / FRSB-9 reach truck. Nothing here is summarised or paraphrased; it is the working-level content used to keep these machines running.

Inside the TCM FRB-9 Series workshop manual you will find exploded assembly views, tightening torque tables, component inspection limits, oil capacities, hydraulic circuit diagrams, electrical connector layouts and fault-by-fault troubleshooting charts. The manual covers the FRB, FRBH, FRBL and FRSB variants of the 9-Series, and the 1.4, 1.6 and 2.0 ton capacity models in detail.

File Details

• Manual type: Workshop Manual (removal, disassembly, reassembly, inspection, adjustment and troubleshooting)
• Brand: TCM — Mitsubishi Logisnext Co., Ltd.
• Model: FRB-9 Series electric forklift truck (sit-on reach type)
• Language: English
• Format: PDF
• Document No.: SMBBE-R9SMC170
• Issued: October 2017

Chapters Covered

• 1. GENERAL
• 2. DRIVE UNIT
• 3. LOAD WHEEL
• 4. STEERING UNIT
• 5. BRAKE
• 6. SUPPORT
• 7. HYDRAULIC SYSTEM
• 8. MAST
• 9. MOTOR
• 10. ELECTRIC PARTS
• 11. SERVICE DATA

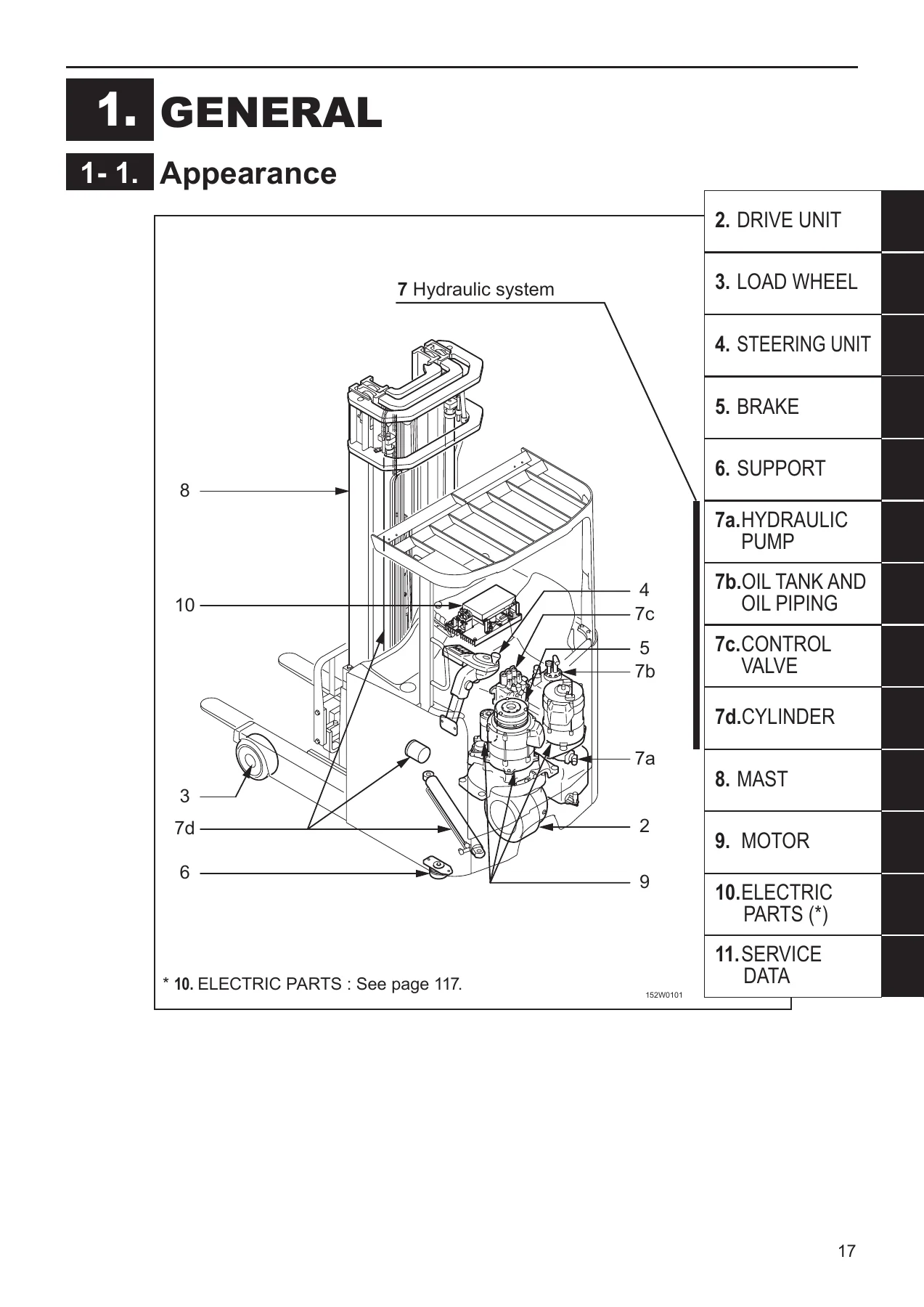

General Information, Safety and Identification (Chapter 1)

The opening chapter sets out the workshop conditions, safe inspection and maintenance practices, and the safety labels applied to the FRB-9 reach truck. It includes the model name and serial number breakdown — production plant, model, capacity code, model number, battery slide type and body type — so you can identify exactly which FRB-9 you are working on. This chapter also carries the bolt tightening torque tables, the list of required maintenance tools and inspection devices, and the LOCTITE and THREEBOND product data used throughout the rest of the manual.

Drive Unit (Chapter 2)

Complete removal and installation of the drive unit, drive wheel and traction motor, followed by disassembly and reassembly of the EPS gearbox, drive support, gear case and spiral bevel gear set. Gear inspection, drive wheel wear limits, and the adjustment of the drive unit position detector microswitch are all covered. A troubleshooting chart addresses continuous travel noise, gear case overheating, vibration, gear oil leakage and drive wheel slip on the FRB-9.

Load Wheel, Steering Unit and Support (Chapters 3, 4 and 6)

The load wheel chapter gives removal, bearing pack, wear limit measurement and inspection. The steering unit chapter covers removal and installation of the complete steering assembly, disassembly of the linkage, handle assembly and control panel, plus troubleshooting for steering failure and display faults. The support chapter covers the stabilising support assembly, including its spacer adjustment.

Brake (Chapter 5)

The electromagnetic brake is covered from installation through disassembly, including how to set the air gap with the adjusting sleeves, how to read and adjust brake torque with the torque adjusting ring, and the brake torque percentage curves for 1.4/1.6 ton and 2.0 ton models. Troubleshooting covers brake release failure, insufficient release, ineffective braking and abnormal brake noise.

Hydraulic System (Chapter 7)

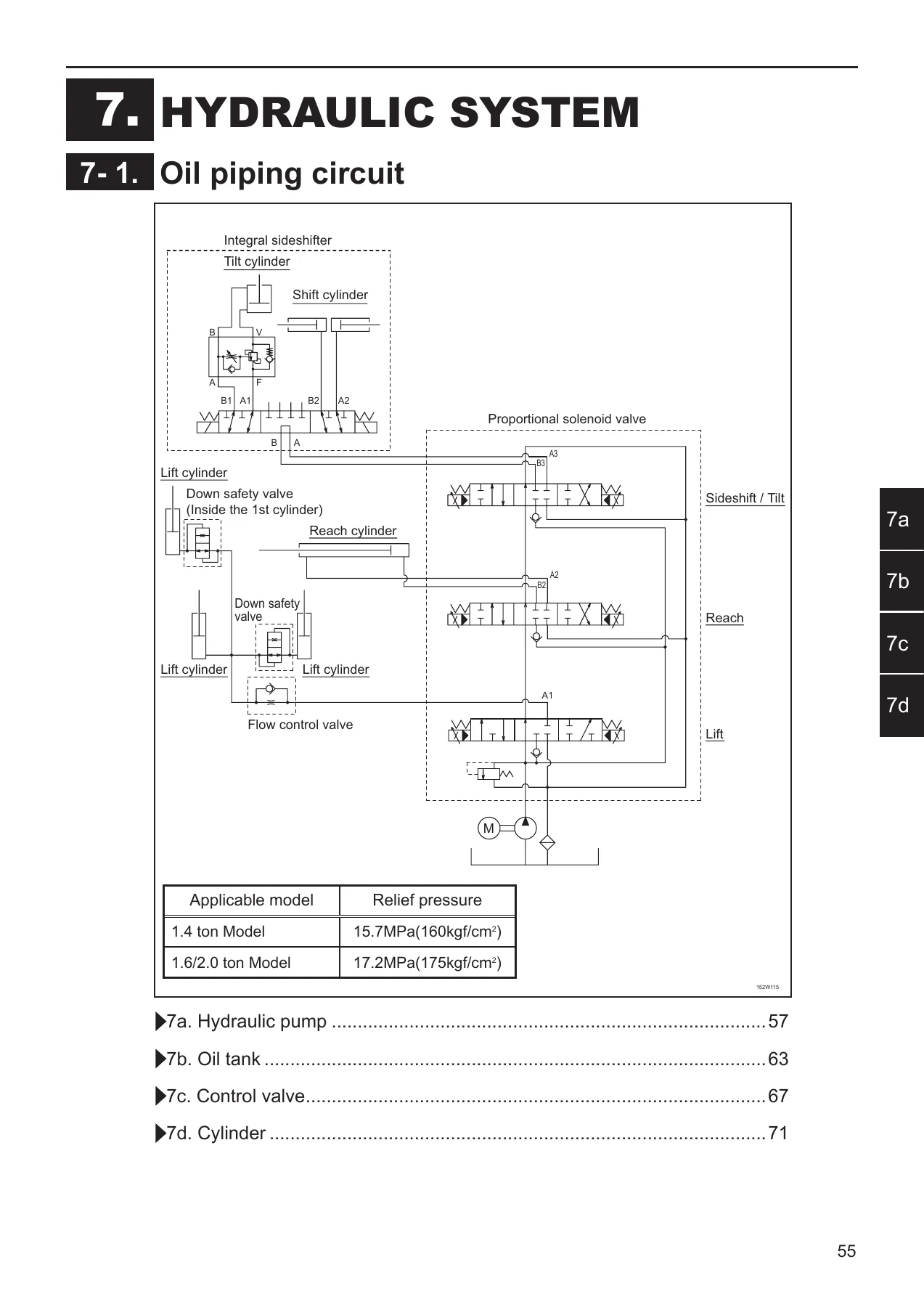

One of the largest sections. The hydraulic circuit schematic and relief pressure table open the chapter, followed by full removal and installation of the hydraulic pump and gear pump, oil tank, control valve, lift cylinders (1st and 2nd) and reach cylinder. There are hydraulic lever (joystick) adjustment notes, proportional solenoid valve current adjustment, oil inspection and recommended oil data, plus drift of tilt and drift of lift lowering measurement procedures with their specification limits.

Mast, Motors and Electric Parts (Chapters 8, 9 and 10)

The mast chapter covers 3-stage full free mast disassembly, lift chain adjustment and elongation limits, mast inclination adjustment, reach and side roller adjustment, back shoe wear limits, hose pulley inspection, and fork inspection with leveling and opening tolerances. The motor chapter covers the traction motor, hydraulic motor and EPS motor, including rotor, armature, brush, brush holder and spring inspection, bearing fit and insulation testing. The electric parts chapter covers the main controller (FET modules, capacitors, main contactor, EPS controller), accelerator linkage and potentiometer adjustment, brake linkage, fans, lever panel and battery lock assembly.

Service Data (Chapter 11)

The final chapter is the standard work hours table — a job-by-job breakdown of removal, replacement, installation, adjustment and check times across the FRB-9 range (FRSB14-9, FRSB16-9 and FRSB20-9). It is the reference for quoting and planning FRB-9 service work.

What This FRB-9 Workshop Manual Lets You Do

With this TCM FRB-9 Series workshop manual in hand you can safely remove and reinstall the drive unit, rebuild the drive gear case, set the electromagnetic brake air gap and torque, disassemble and reseal the lift and reach cylinders, adjust the mast tilt and lift chains, inspect the traction, hydraulic and EPS motors, and diagnose the main controller and FET modules — all using the manufacturer’s own torque figures, wear limits and troubleshooting flow. Instead of guessing at pre-load values, air gaps or hydraulic relief pressures, you work from the same numbers the Mitsubishi Logisnext service technicians use.
