Techzone SK-TCU-1000D-TWS600S Twin Cementing Unit Maintenance and Operation Manual

Description

The Techzone SK-TCU-1000D-TWS600S Twin Cementing Unit Maintenance and Operation Manual is the combined operating and service reference for the compact twin cementing skid built by Techzone Oilfield Engineering (S) Pte Ltd. It takes an operator or mechanic from the first pre-operation check through automatic density-controlled slurry mixing, and from routine 90-day servicing through symptom-based engine troubleshooting. Everything in this Techzone twin cementing unit manual is written around the actual equipment package: the ACSMS automatic cement slurry mixing system, the Caterpillar C-15 diesel engines, the SPM-TWS600S triplex pumps and the hydraulic power pack that drives the mixing and recirculating circuits.

File Details

• Manual type: Maintenance and Operation Manual
• Brand: Techzone Oilfield Engineering (S) Pte Ltd
• Model: SK-TCU-1000D-TWS600S
• Unit type: Compact twin cementing unit, 7 BBL mixing tub configuration with 20 BBL averaging tank option
• Language: English
• File format: PDF
• Page count: 117 pages

Chapters Covered

• General Information – Introduction, Model Number Configuration, Features and Benefits
• Automatic Cement Slurry Mixing System (ACSMS) – mixer, diffuser, mixing tank, agitator, recirculating and mix water pumps

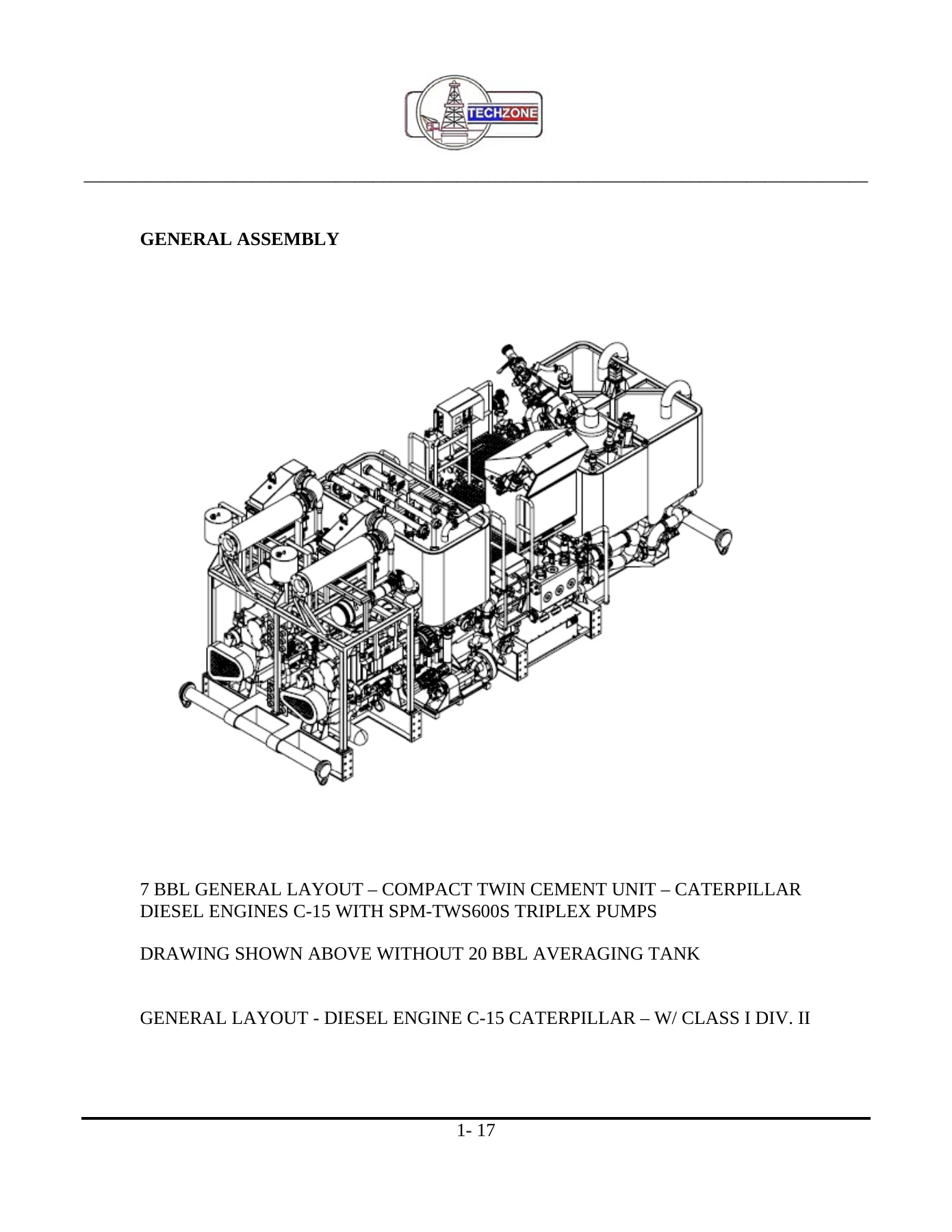

• General Arrangement Drawings and Process and Instrument Diagram
• Safety Precautions – general safety guidelines for engine-driven cementing equipment
• Installation Requirements – skid base, power pack, electrical power, surge tank
• Installation and Maintenance Checklist – engine, ZONE II engine, DC electric motors, triplex pumps, hydraulic power pack, mixing system
• Pre-Operation Notes and Post Operation Notes
• Engine Troubleshooting – 28 symptom charts covering starting faults, misfiring, stalling, vibration, combustion knock, oil pressure, coolant temperature, starter motor and alternator
• Fuel System, Fuel Filter and Diesel Fuel Recommendations
• Cooling System – radiators, heat exchangers, expansion tanks, thermostats, water pump, fan belts, aftercooler, antifreeze mixtures
• Air Cleaner and Filters / Air Induction System
• Engine Starting System – air starting system, air starter lubrication, cold weather starting, warm-up period
• Engine Lubrication – oil pump circuit and lubricant viscosity recommendations
• Hydraulic System Maintenance – planned maintenance, flushing, plumbing and fittings
• Hydraulic Start-Up Procedure – charge pressure, ADC pressure adjustment, system pressure checks
• Axial Flow Mixer – water metering valve, recirculating slurry jets, diffuser plate, tub agitation
• Starting the Driver-Side and Passenger-Side Deck Engines, engine shutdown, operator familiarization and pump priming

Read end to end, the Techzone SK-TCU-1000D-TWS600S Twin Cementing Unit Maintenance and Operation Manual works as both a training document and a bench reference. The early sections explain how the unit is configured and how the automatic density control loop behaves; the middle sections lay out installation clearances and the maintenance checklist that should be run after installation and at every planned service interval; the later sections break the machine down into its subsystems – fuel, cooling, air induction, starting, lubrication, hydraulics and the mixing system – and finish with a large troubleshooting chapter that maps each symptom to a probable cause and a remedy.

Automatic Cement Slurry Mixing System Coverage

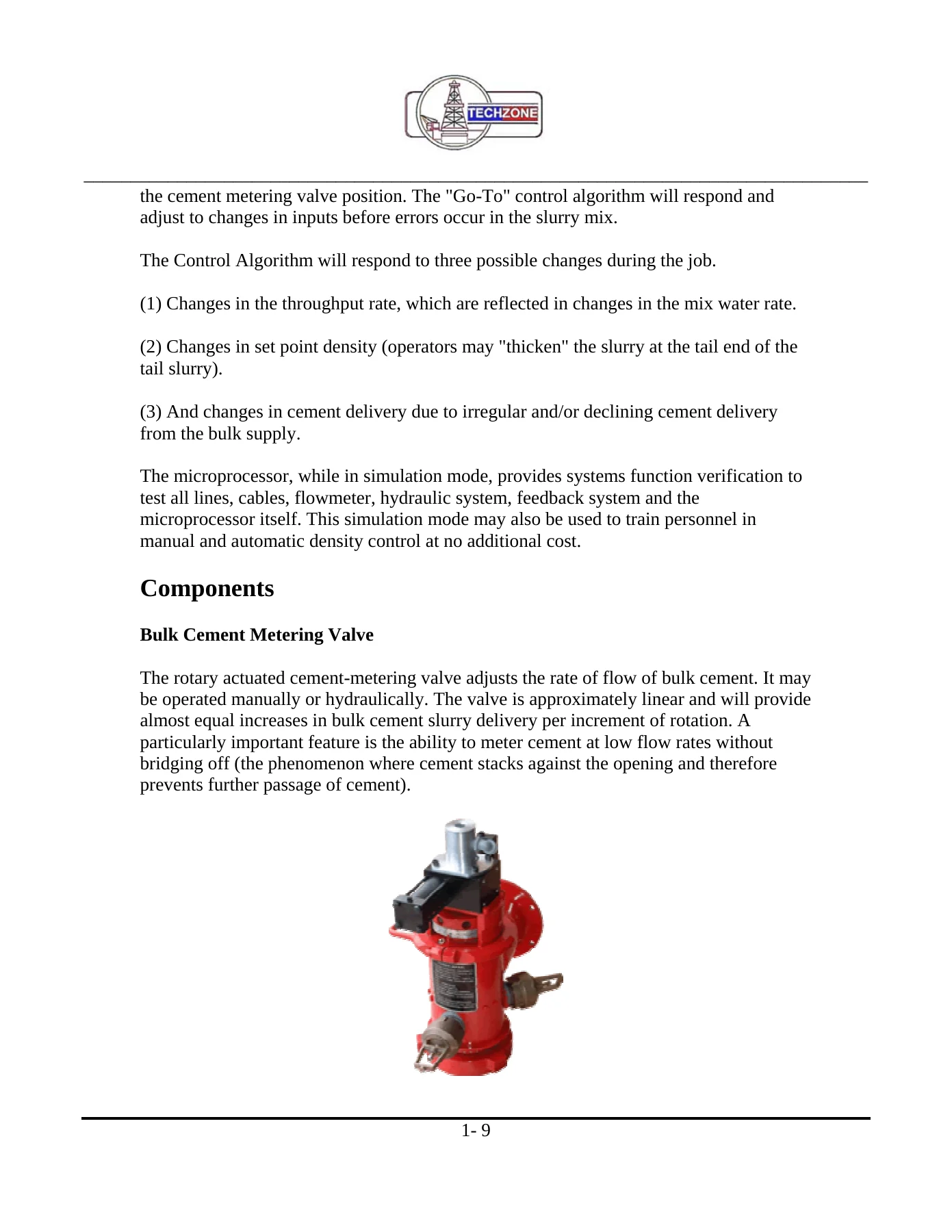

A large share of this twin cementing unit manual is devoted to the ACSMS mixing package, because that is where job quality is won or lost. The manual explains the high energy recirculating eductor mixer, the diffuser that strips air entrainment out of bulk cement, the 7 BBL mixing tank, the averaging tank, the hydraulic-driven paddle agitator, and the mix water and recirculating centrifugal pumps. It documents the density control system in detail: the rotary actuated bulk cement metering valve, the non-radioactive densitometer in the recirculating line, the turbine flow meter on the mix water, the operator interface panel and the microprocessor that drives the valve to a calculated ‘Go-To’ position before a density error develops, then trims it with proportional, integral and derivative feedback.

The manual also covers setting a slurry design – density in lb/gal, water specific gravity, design yield in ft3/SK, mix water requirement in gal/SK and job rate in bbl/min – along with the three stored slurry design slots, the one-second interval density data logging with download through the RS-232 port, and the simulation mode used for operator training and system functional verification. Axial flow mixer components are described individually, including the orifice plate with 18 holes of approximately 0.375 in diameter, the sequential opening valve plate, the water jet adapter and the two diametrically opposed recirculating slurry jets.

Engines, Pumps and Hydraulics

The power side of the SK-TCU-1000D-TWS600S is covered in the same practical depth. Caterpillar C-15 diesel engines and SPM-TWS600S triplex pumps are the reference configuration, with the hydraulic power pack driven from the transmission PTO. The hydraulic chapter sets out the planned maintenance programme, reservoir and plumbing cleanliness requirements, flushing procedure with solvent-compatible fluid at approximately 150 degrees F for 10 to 50 hours, and the 500-hour filter element interval. The start-up procedure gives the actual pressure targets a technician needs: charge pressure rising to the 300 to 450 psi range, adjustment to 350 psi with the pumps in neutral, 325 psi on the mixing and recirculation circuits, 350 psi on the downhole agitator circuit, and the ADC relief and compensator settings of 2,000 psi and 1,500 psi respectively.

Routine Service, Safety and Installation

Anyone maintaining this unit will get the most use from the installation and maintenance checklist, which steps through engine oil and coolant levels, air filter inspection, transmission oil and filters, U-joint lubrication, ZONE II flame arrestor cleaning, triplex pump power end oil, packing lubricator, hydraulic filters, coupling inspection, tank cleaning and the oscillation test of the cement and water valves in auto mode. Installation requirements for the skid base, power pack, 460 VAC three-phase supply, 120-volt instrument power and surge tank placement are also documented. The safety chapter covers fire extinguisher readiness, guarding of rotating parts, exhaust venting, battery and fuel handling, jumper cable practice and emergency shutdown.

Why This Manual Matters for Your Unit

Slurry density outside tolerance is expensive and sometimes dangerous; a badly maintained triplex pump or a contaminated hydraulic circuit can end a job early. The Techzone SK-TCU-1000D-TWS600S Twin Cementing Unit Maintenance and Operation Manual gives you the density control logic, the pressure settings, the service intervals and the troubleshooting trees in one place, so a technician can diagnose a misfiring C-15, a creeping charge pressure or a bridged cement metering valve without guessing. It supports pre-operation checks, planned maintenance, hydraulic start-up, pump priming, engine starting and shutdown, cold weather preparation and post-job reporting.

IMAGES PREVIEW

Delivered as an instant PDF download with no shipping and no waiting, this twin cementing unit operation manual opens on any laptop, tablet or phone and can be printed for the control cabin or the workshop bench. Keep a copy with the unit and the next service interval, engine fault or density control question gets answered from the document instead of from memory.
