Tektronix TDS 620A 640A 644A Oscilloscope Service Manual PDF

Description

Tektronix TDS 620A 640A 644A Oscilloscope Service Manual PDF DOWNLOAD

Description

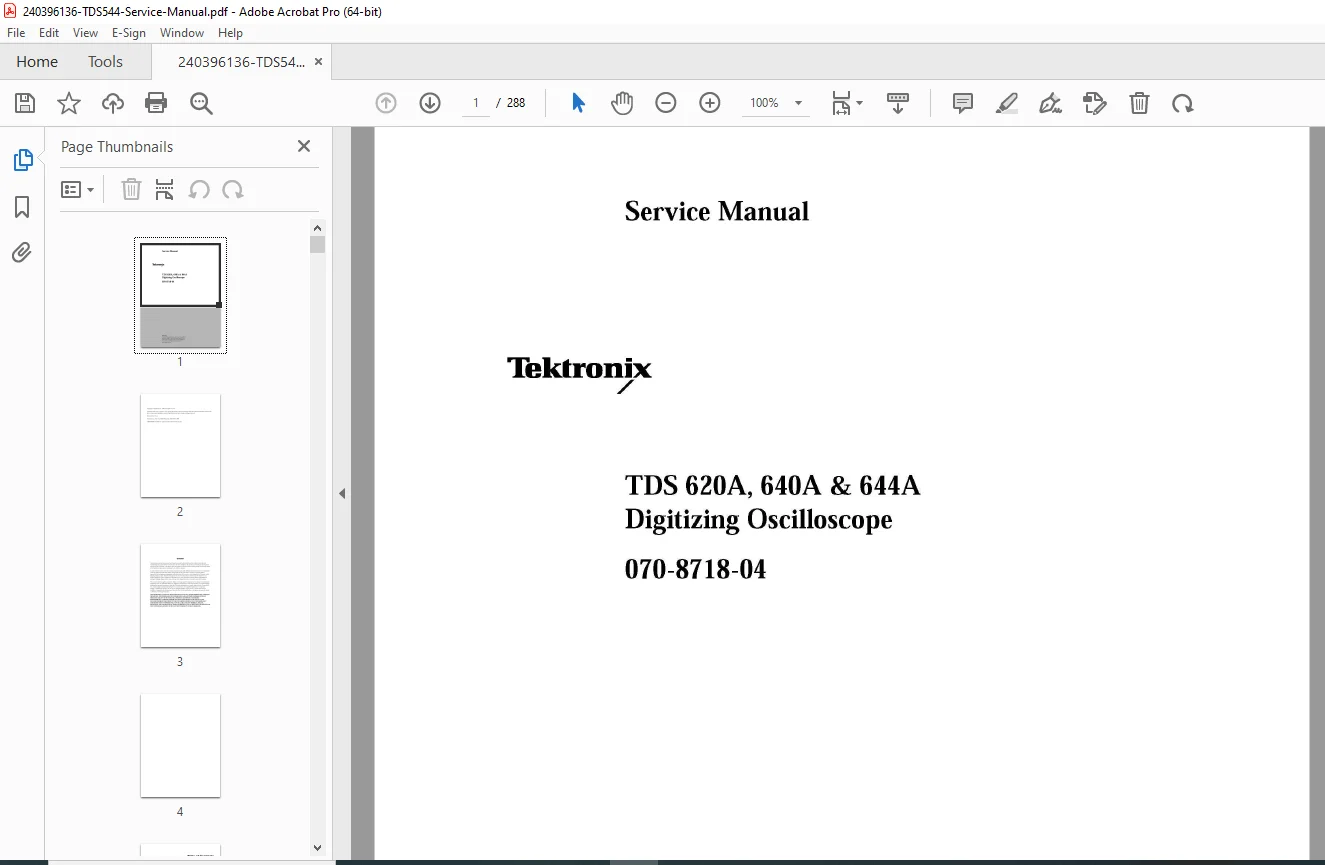

This is the original Tektronix factory Service Manual for the TDS 620A, TDS 640A, and TDS 644A Digitizing Oscilloscopes, document number 070-8718-04, published by Tektronix, Inc..

The manual is intended strictly for qualified service personnel and provides complete service-level documentation covering high-speed signal acquisition, triggering systems, time base accuracy, DSP processing, calibration, repair, and component-level troubleshooting.

These oscilloscopes are 500 MHz, up to 2 GS/s, multi-channel laboratory instruments widely used in R&D, manufacturing, telecom, and electronics service environments.

⚠️ This is not an operator or user manual — it is a full professional service and repair manual.

🔬 Models Covered

• Tektronix TDS 620A

• Tektronix TDS 640A

• Tektronix TDS 644A (Color display model)

🔧 What This Service Manual Covers

🔹 Specifications & System Overview

• Signal acquisition system (up to 2 GS/s, 500 MHz bandwidth)

• Horizontal time base system

• Trigger system (edge, logic, pulse, glitch, video – Option 05)

• Display system (monochrome & color)

• Storage, I/O, GPIB, RS-232, Centronics

• Nominal traits, warranted characteristics, typical characteristics

• Environmental & mechanical specifications

🔹 Operating & Service Information

• Manual structure and conventions

• Safety symbols & ESD precautions

• Power supply requirements

• Operating environment & ventilation

• Power-on / power-off procedures

• Installed options and peripherals

🔹 Theory of Operation

• Detailed circuit descriptions

• Logic conventions

• Module overview

• Acquisition, trigger, display, processor architecture

• DSP (Digital Signal Processing) operation

🔹 Performance Verification

• Self-tests and diagnostics

• Functional tests

• Channel accuracy & offset checks

• DC gain and voltage accuracy

• Analog bandwidth verification

• Channel-to-channel delay checks

• Time base accuracy tests

• Trigger accuracy tests

• Output signal checks

• Video trigger tests (Option 05)

🔹 Adjustment & Calibration Procedures

• Complete and partial calibration routines

• Adjustment dependencies after repair

• Required test equipment lists

• Software-based adjustments

• Probe calibration (P6139A probe)

• Display adjustments:

  • Brightness & contrast (TDS 620A / 640A)

  • Color display adjustments (TDS 644A)

🔹 Maintenance & ESD Protection

• Preventing electrostatic discharge

• Inspection and cleaning (interior & exterior)

• Lubrication points

• Long-term maintenance practices

🔹 Disassembly & Replacement Procedures

• External modules removal

• Front panel assemblies

• Attenuator assemblies

• Power supply modules

• Processor & acquisition boards

• Display assemblies

• Fan, floppy disk, rear chassis

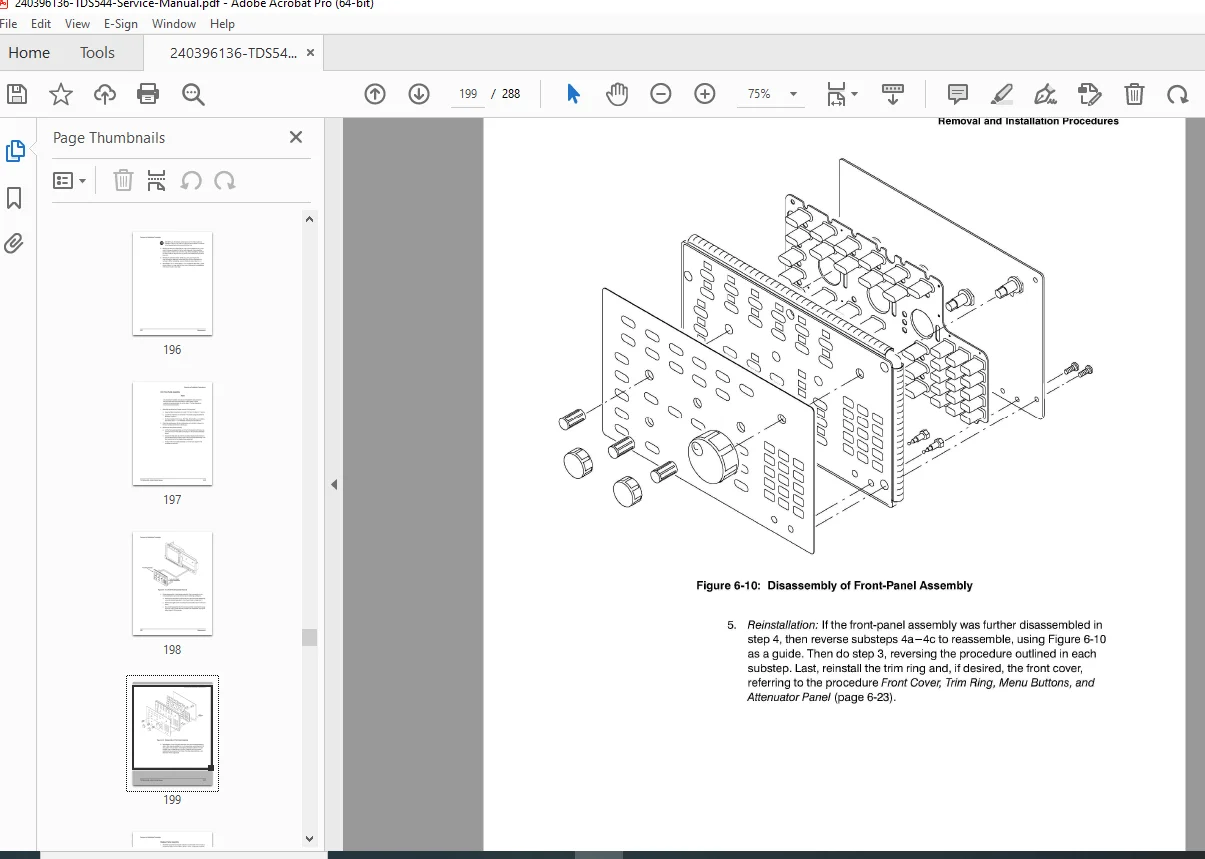

• Detailed access procedures with diagrams

🔹 Troubleshooting & Diagnostics

• Primary troubleshooting flowcharts

• Module-isolation procedures

• Power supply voltage checks

• Display troubleshooting (color & monochrome)

• Processor, acquisition, attenuator fault diagnosis

• Firmware update procedures

🔹 Parts & Schematics

• Electrical parts list

• Mechanical parts list

• Block diagrams

• Interconnection diagrams

• Options & accessories listings

 Table of Contents

• Safety Summary

• Specifications

• Operating & Service Information

• Theory of Operation

• Performance Verification

• Adjustment Procedures

• Maintenance

• Disassembly & Removal Procedures

• Troubleshooting & Diagnostics

• Options

• Electrical Parts List

• Diagrams

• Mechanical Parts List
