Tektronix TDS3000 Series Digital Phosphor Oscilloscopes Service Manual – PDF
$24.95
Official Tektronix Service Manual for the TDS3012, TDS3014, TDS3032, TDS3034, TDS3052, and TDS3054 Digital Phosphor Oscilloscopes.
Includes complete specifications, circuit theory, troubleshooting, performance verification, and mechanical diagrams.
Description
Tektronix TDS3000 Series Digital Phosphor Oscilloscopes Service Manual โ PDF Download
Description
Overview
This Tektronix Service Manual (071-0382-01) supports firmware version 2.00 and above for the TDS3000 Series Digital Phosphor Oscilloscopes, covering models TDS3012, TDS3014, TDS3032, TDS3034, TDS3052, and TDS3054.
It provides servicing instructions, theory of operation, alignment procedures, safety summaries, and detailed part lists for all assemblies, ensuring proper repair and maintenance of the oscilloscope up to the module level
213554704-Tektronix-Service-Man
IMAGES:

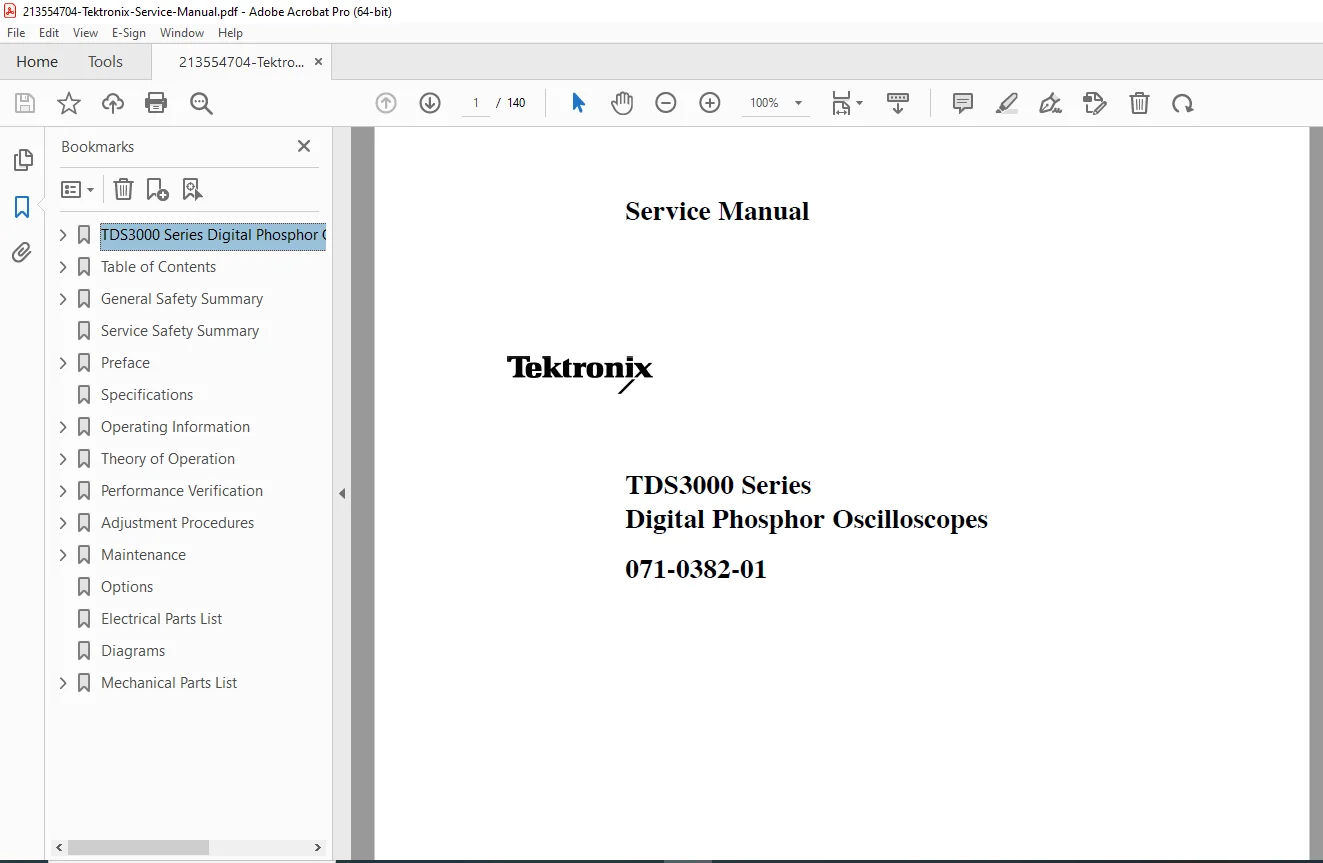

Contents Overview
General & Service Safety Summaries โ Guidelines for qualified personnel, grounding, ESD protection, and NiCd battery disposal procedures
213554704-Tektronix-Service-Manโฆ
Specifications โ Guaranteed performance parameters including bandwidth (100โ500 MHz), sample rate (1โ5 GS/s), vertical accuracy (ยฑ2%), and AC/DC input coupling limits
213554704-Tektronix-Service-Manโฆ
Operating Information โ Describes setup, power connections (90โ250 VAC / 47โ440 Hz), application & communication module installation, probe compensation, and self-calibration routines
213554704-Tektronix-Service-Manโฆ
Theory of Operation โ Block-level diagrams covering power supply, main board acquisition system, trigger circuits, display module, and processor subsystems (PowerPC architecture)
213554704-Tektronix-Service-Manโฆ
Performance Verification โ Step-by-step test record and verification procedures for channel gain, bandwidth, trigger stability, and acquisition accuracy.
Adjustment Procedures โ Equipment setup, signal path compensation, DC gain alignment, timing calibration, and power rail adjustment points.
Maintenance & Troubleshooting โ ESD precautions, fan/power module replacement, main board removal, and detailed troubleshooting flowcharts for power-on and signal faults.
Diagrams & Parts Lists โ Complete electrical schematics, exploded mechanical diagrams (front chassis, display, fan, and rear case), and replaceable parts with Tektronix order codes.
Technical Summary
| Parameter | Specification |
|---|---|
| Bandwidth | 100 MHz (TDS3012/3014) โ 500 MHz (TDS3052/3054) |
| Sample Rate | 1 โ 5 GS/s (depending on model) |
| Channels | 2 or 4 |
| Vertical Resolution | 9-bit digitizer |
| Input Impedance | 1 Mฮฉ ยฑ 1% / 13 pF ยฑ 2 pF or 50 ฮฉ ยฑ 1% |
| Max Input Voltage | 150 VRMS (CAT I) / 100 VRMS (CAT II) |
| Display | 6.5โณ Color LCD (640ร480 pixels) |
| Power Source | 90โ250 VAC or optional TDS3BAT NiCd Battery Pack |
| Dimensions | 375 ร 176 ร 149 mm (WรHรD) |
| Weight | 3.2 kg (7 lb) |
| Operating Temp. | +5 ยฐC โ +50 ยฐC |
| Safety/EMC | EN 61010-1, FCC Part 15 Class A, UL3111-1 |
๐ File Details
| Parameter | Information |
|---|---|
| File Name | 213554704-Tektronix-Service-Manual.pdf |
| Manual Title | TDS3000 Series Digital Phosphor Oscilloscopes Service Manual |
| Part Number | 071-0382-01 |
| Edition / Revision | Rev 1, Supports Firmware โฅ v2.00 |
| File Type | PDF (Digital Download) |
| File Size | โ 2.51 MB |
| Page Count | ~140 pages |
| Language | English |
| Publisher | Tektronix Inc., Wilsonville, Oregon, USA |
| Searchable Text | Yes (OCR Enabled) |
| Models Covered | TDS3012, TDS3014, TDS3032, TDS3034, TDS3052, TDS3054 |
| Compatibility | Windows / macOS / iOS / Android |
| Delivery | Instant Digital Download |
