Thermo King TK270 TK370 TK376 Diesel Engine Overhaul Manual 2008 – PDF Download

Description

Thermo King TK270 TK370 TK376 Diesel Engine Overhaul Manual

This is the complete overhaul manual for the Thermo King TK270, TK370, and TK376 diesel engines. Published by Thermo King Corporation in 2008 under document number TK53163-1-OM, this manual covers complete engine disassembly, component inspection and measurement, reconditioning, and reassembly procedures for all three engine models used in truck refrigeration units, HK units, and TriPac APU systems.

Whether you are rebuilding a worn TK376, refreshing a TK270 in an HK unit, or diagnosing a fuel or cooling problem on a TriPac, this Thermo King overhaul manual provides the procedures, specifications, and diagnostic flow charts needed to do the job correctly. These engines are manufactured by Yanmar Co Ltd in Japan for Thermo King.

File Details

• Manual Type: Overhaul Manual
• Brand: Thermo King
• Models Covered: TK270, TK370, TK376
• Document Number: TK53163-1-OM
• Publication Date: 2008
• Language: English
• Page Count: 130
• File Format: PDF

Chapters Covered

• General Information and Specifications
• Special Tools
• Engine Identification
• Engine Storage
• Engine Disassembly
• Component Inspection and Overhaul
• Engine Assembly
• Lubrication System
• Fuel System
• Glow Plugs and Starter
• Fuel Solenoid
• Run In
• Valve Clearance Adjustment
• Compression Test
• Diagnostic Guide

General Information and Specifications

Covers engine identification by serial number nameplate (including nameplate locations on TK376, TK370, TK270 for HK units, and TK270 for TriPac units), storage procedures for engines taken out of service, complete specifications tables for the TK270, TK370, and TK376 (valve train, camshaft, pistons, piston rings, wrist pins, connecting rods, crankshaft, cylinder block, cylinder head, timing gears, and oil pump), standard torque values for all fasteners, and dimensions for special tools that can be fabricated locally. Fuel type and oil type recommendations are also listed.

Engine Disassembly

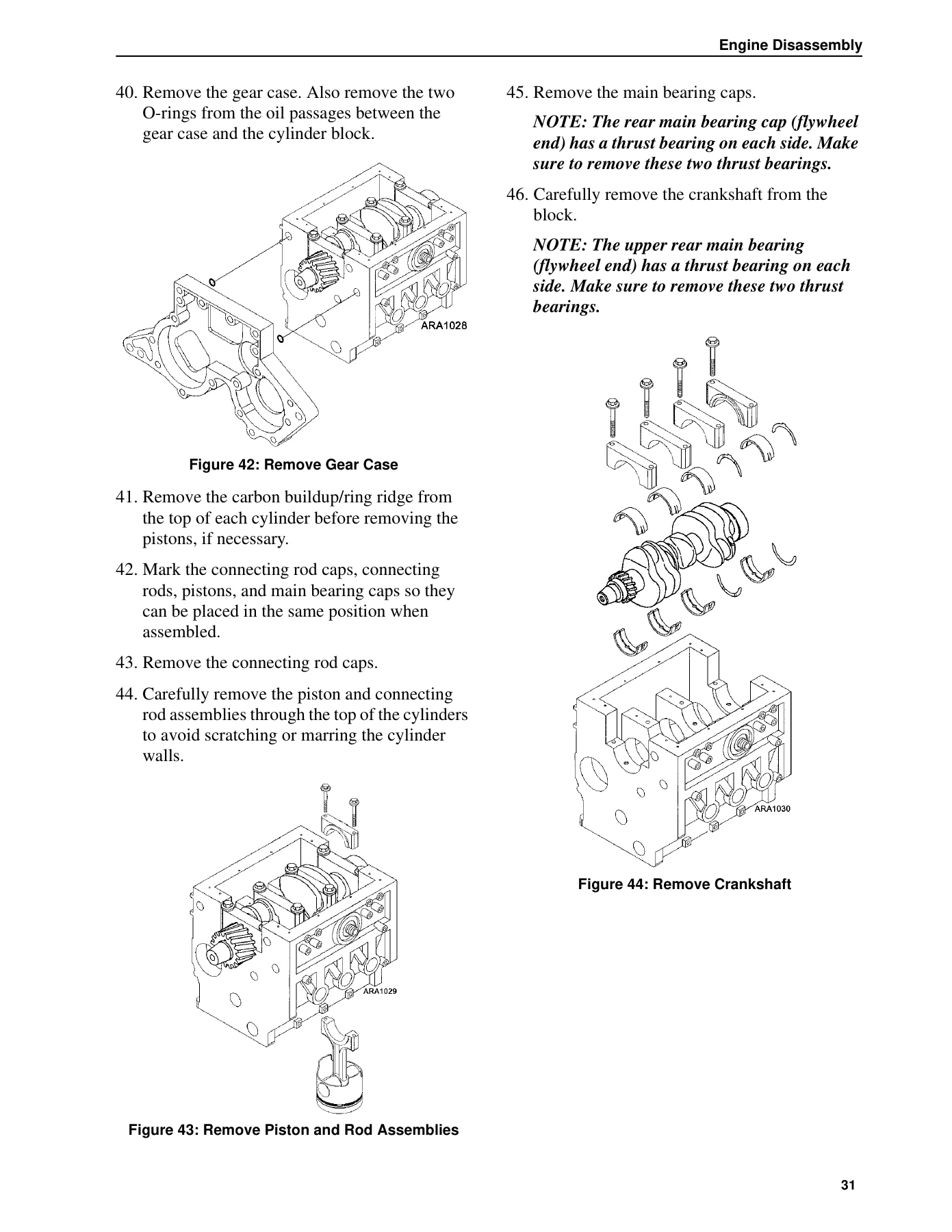

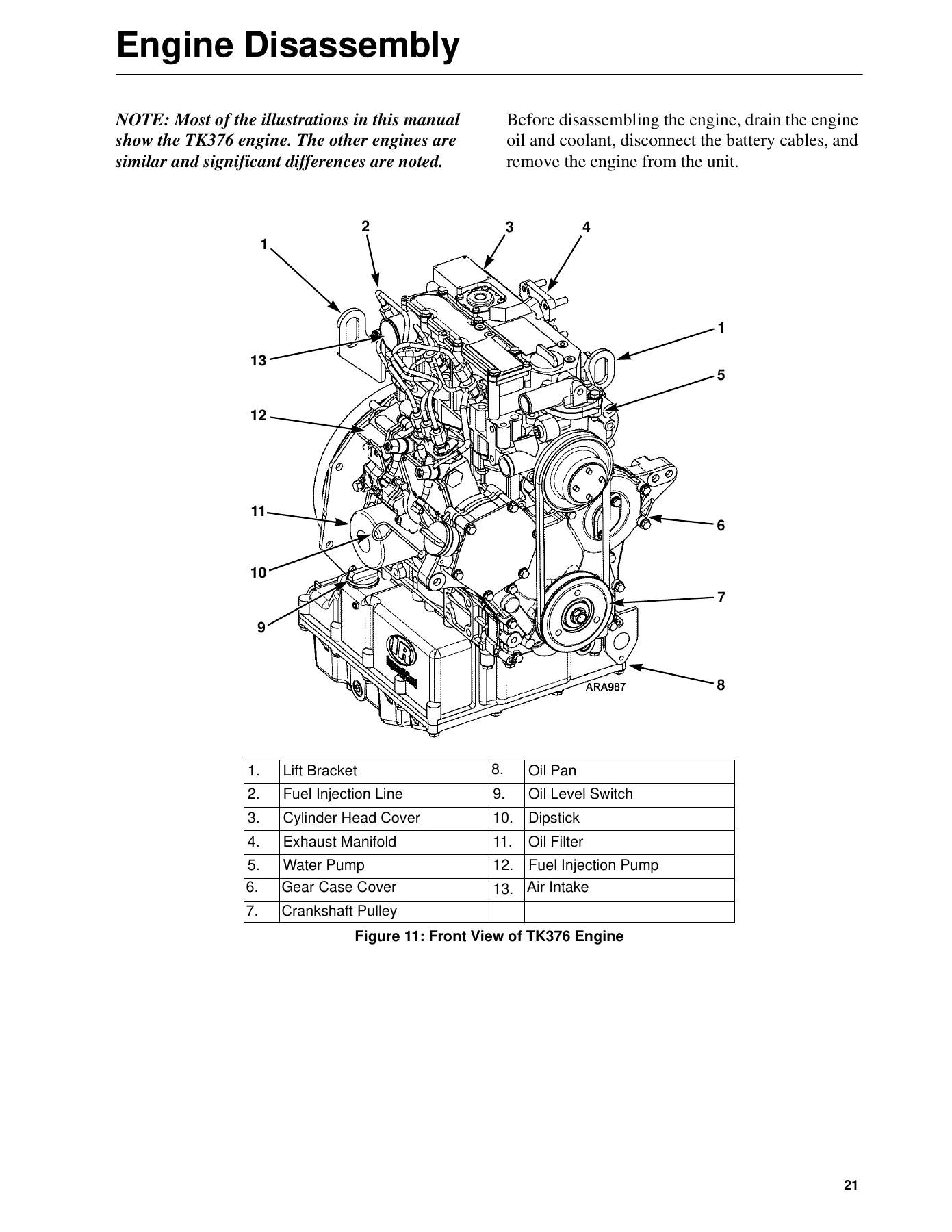

Step-by-step teardown procedures with detailed illustrations for removing the exhaust manifold, water pump pulley and belt, fuel injection lines, fuel return line and tubes, lift brackets, fuel injection nozzles, cylinder head cover, glow plugs, rocker arm assembly, push rods, valve stem caps, water pump, cylinder head, tappets, dipstick, oil filter, crankshaft pulley, injection pump timing cover, gear case cover, oil line, fuel injection pump gear, fuel injection pump, idler gear, starter, flywheel, starter mounting flange, rear seal housing, oil pan, oil pump intake pipe, camshaft, gear case, pistons and rod assemblies, and crankshaft. Notes on marking components for reassembly and handling the two-piece fuel injection pump gear are included.

Component Inspection and Overhaul

Detailed cleaning, inspection, measurement, and reconditioning procedures for every major engine component:

• Cylinder Block — deck distortion check, cylinder bore measurement (out of round, taper, pocketing), main bearing bore measurement and alignment check, tappet bore measurement, core plug replacement
• Crankshaft — main and rod journal measurement, deflection check, timing gear inspection, rear seal surface inspection
• Pistons, Piston Rings, and Wrist Pins — diameter measurement, ring groove clearance, ring end gap, wrist pin bore measurement, wrist pin fit
• Connecting Rods — bearing bore measurement, twist and parallelism check, wrist pin bushing replacement
• Camshaft — journal and lobe measurement, deflection check, thrust plate clearance
• Timing Gears — gear lash, idler gear bushing and shaft measurement
• Cylinder Head — distortion check, valve guide replacement and reaming, valve depth measurement, valve and seat grinding (intake 30 degrees, exhaust 45 degrees), valve spring free length and inclination, valve stem seal installation, valve lapping
• Rocker Arm Assembly — shaft and bushing measurement, valve adjustment screw inspection
• Push Rods — bend check
• Tappets — wear pattern and diameter measurement
• Oil Pump — rotor clearance, oil pressure control valve inspection
• Water Pump — weep hole and bearing check
• Manifolds — distortion check
• Crankcase Breather System — component inspection and crankcase pressure testing with a Magnehelic gauge

Engine Assembly

Complete reassembly sequence with torque values and illustrations — front camshaft bearing insert installation, oil gallery and core plug installation, upper and lower main bearing installation, thrust bearing installation, crankshaft installation, plastigauge checks, crankshaft end play check, piston and rod assembly, ring installation, piston installation, rod cap torquing, gear case installation, camshaft installation, fuel injection pump installation and index mark alignment, fuel injection pump gear installation, idler gear installation and timing mark alignment, oil line installation, tappet installation, cylinder head gasket and cylinder head installation with torque sequence for two-cylinder and three-cylinder engines, valve stem caps, push rods, rocker arm assembly installation and torquing, valve adjustment, oil filter and dipstick, gear case cover, injection pump timing cover, oil pan, crankshaft pulley (aligning flats with oil pump inner rotor), rear seal housing, starter mounting flange, flywheel, starter, water pump, glow plugs, cylinder head cover, fuel injection nozzles, fuel return lines, fuel injection lines, and exhaust manifold.

Lubrication System

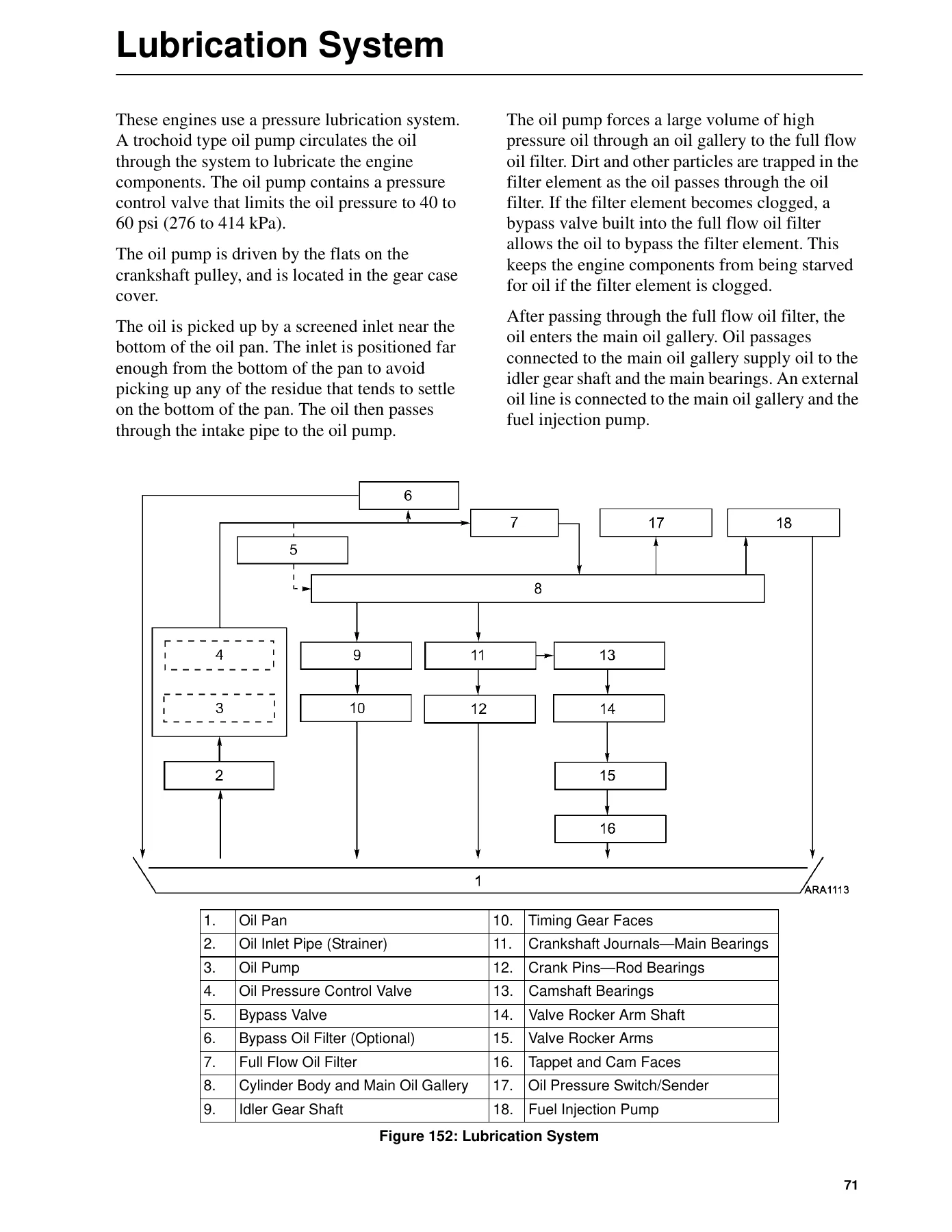

Covers the pressure lubrication system — trochoid oil pump, oil pressure control valve (40 to 60 psi), bypass valve, full flow oil filter, main oil gallery, and the oil flow path to the idler gear shaft, main bearings, crankshaft passages, connecting rod bearings, cylinder walls, wrist pins, camshaft bearings, rocker arm shaft, tappets, cam lobes, and fuel injection pump. Includes a complete lubrication system diagram with numbered component callouts.

Fuel System

Covers the fuel system components and operation — fuel tank, 10 psi electric fuel pump, fuel filter assembly (both truck unit type and HK/TriPac type with water separation and coalescing media), injection pump, and injection nozzles. Includes bleeding air from the fuel system, injection pump timing procedure (16 degrees BTDC), injection pump removal and installation without removing the gear case cover, attaching the injection pump gear to the flange, fuel limit screw information, and fuel injection nozzle testing and repair (opening pressure 1,784 to 1,929 psi).

Glow Plugs, Starter, and Fuel Solenoid

Covers glow plug testing (2.1 to 2.5 ohms), starter description, disassembly, major component inspection (brush ring, brush holders, brushes, stator, armature, commutator, gear and bearings, pinion assembly, starter solenoid), assembly, and no load test (90 amps, 11.5 volts, 3000 rpm). Also covers fuel solenoid testing (pull-in coil 0.2 to 0.3 ohms, hold-in coil 24 to 29 ohms) and replacement.

Run In, Valve Clearance Adjustment, and Compression Test

Includes dynamometer run-in procedure (with specific load and speed steps), run-in procedure without a dynamometer, two-cylinder and three-cylinder valve clearance adjustment procedures (0.006 to 0.010 in. / 0.15 to 0.25 mm), and compression test procedure using Thermo King adapters (P/N 204-672 and 204-675) with compression tester (P/N 204-542). Minimum compression pressure is approximately 375 to 400 psi at cranking speed.

Diagnostic Guide

Eleven diagnostic flow charts (EDP01 through EDP11) covering positive crankcase pressure, high oil consumption (with oil consumption test procedure and maximum drop chart), excessive exhaust smoke (black, white, blue), excessive noise, low oil pressure, low RPM or power, cylinder miss, fuel in oil, coolant in oil or oil in coolant, overheating, and excessive vibration. Each flow chart walks through symptoms, checks, and corrective actions in a logical sequence.

Why This Manual Matters

The TK270, TK370, and TK376 are Yanmar-built diesel engines used in Thermo King truck refrigeration units, HK units, and TriPac APU systems. When one of these engines needs an overhaul, the difference between a rebuild that lasts and one that fails early comes down to correct procedures and accurate specifications. This Thermo King overhaul manual gives you the exact tolerances, torque values, clearances, and measurement procedures that the factory specifies.

You get the complete disassembly sequence so nothing gets broken or lost. You get measurement procedures for every critical component so you know what can be reused and what must be replaced. You get the assembly sequence with torque values and timing mark alignment so the engine goes back together correctly. And you get diagnostic flow charts to troubleshoot problems before tearing into the engine.

Beyond the overhaul itself, the manual covers fuel system diagnosis, injection pump timing, injection nozzle testing and repair, starter rebuilding, fuel solenoid testing, cooling system bleeding, and compression testing. It is the single most comprehensive resource for these engines.
