Tohatsu MFS40A MFS50A Outboard Owner’s Manual – 4-Stroke EFI PDF

Description

Tohatsu MFS40A and MFS50A Owner’s Manual – Full 4-Stroke EFI Reference

This is the complete owner’s manual for the Tohatsu MFS40A and MFS50A four-stroke EFI outboard motors, published under document number OB No. 003-11106-0. It is the same reference that ships with the motor, presented in four languages (English, French, Spanish and German) across 366 pages. Everything a new owner needs to mount the motor, fuel it correctly, break it in, run it safely, and keep it serviced on schedule is gathered here in one document.

File Details

• Manual type: Owner’s Manual
• Brand: Tohatsu
• Models covered: MFS 40A, MFS 50A
• Document number: OB No. 003-11106-0
• Languages: English, French, Spanish, German
• File format: PDF
• Page count: 366 pages

Chapters Covered in the Tohatsu MFS40A MFS50A Manual

• Specifications and model name decoding (MFS 50A ETL example)

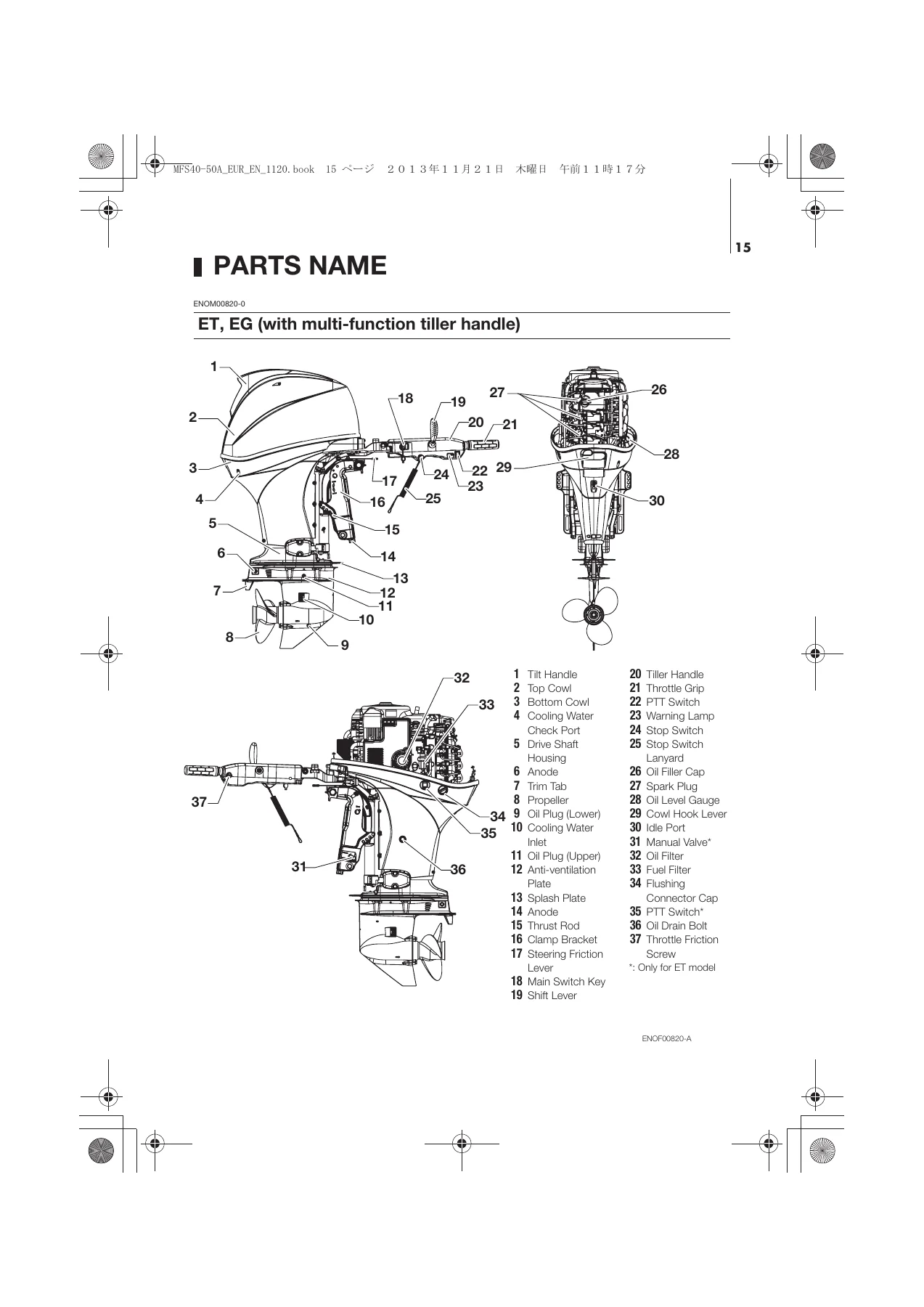

• Parts name – tiller handle ET/EG and remote control ET layouts
• Label locations and warning label meanings
• Installation – mounting on boat, transom matching, remote control device, battery, propeller
• Pre-operating preparations – fuel handling, fuel filling, engine oil recommendation, break-in, warning system
• Engine operation – fuel feeding, starting (tiller and side-mount RC), emergency starting, warming up, forward/reverse/acceleration, stopping, steering
• Trim angle and Power Trim & Tilt operation
• Tilt up, tilt down and shallow water operation
• Removing and carrying the outboard motor
• Storing the outboard motor
• Trailering
• Adjustment – steering friction, throttle grip friction, remote control lever friction, trim tab adjustment
• Inspection and maintenance – daily inspection, periodic inspection, off-season storage, pre-season check, submerged outboard motor, cold weather precautions, striking an underwater object
• Troubleshooting chart
• Tool kit and spare parts list
• Propeller table

Read as a whole, the Tohatsu MFS40A MFS50A owner’s manual walks an owner through the entire ownership cycle. It starts with the physical installation of the motor and its accessories, moves into the fuel and oil requirements unique to these EFI four-strokes, and then covers every normal operating procedure – starting, warming up, shifting, trimming, tilting and shallow water running. From there it hands over to maintenance: what to check before every trip, what to check on a schedule, how to store the motor between seasons, and what to do if it is submerged or strikes something underwater. The troubleshooting chapter closes the loop with a symptom-to-cause chart covering fuel, electrical, compression and cooling systems.

Specifications and Model Coverage

The specification section details the 4-stroke EFI powerhead used across both models – three cylinders, 866 mL displacement, 70 x 75 mm bore and stroke, with the MFS40A rated at 29.4 kW (40 ps) and the MFS50A at 36.8 kW (50 ps). The maximum operating range sits at 5000-6000 rpm with an idle speed of 850 rpm. Both the ET and EG variants are documented, covering the remote control model and the multi-function tiller handle model, with Power Trim & Tilt and gas-assisted tilt listed as available systems. Transom heights for the short and long shaft versions, plus dry weights, are given in the specification tables.

Fluids and consumables are spelled out clearly: unleaded regular gasoline at pump-posted 87 octane minimum, engine oil meeting API SH, SJ or SL in 10W-30 or 10W-40, and gear oil meeting API GL5 SAE #80-90. Recommended capacities are listed for both engine oil and gear oil, and the recommended battery specification is given for standard and cold-weather use.

Why the Tohatsu MFS40A MFS50A Owner’s Manual Matters

The MFS40A and MFS50A are electronically fuel-injected four-strokes, and the manual treats them that way. The break-in schedule is laid out with specific throttle positions and speeds for the first 10 hours. The warning system chapter explains what each buzzer pattern and warning lamp combination means, from high-speed ESG over-revolution protection to low oil pressure, high cooling water temperature, low battery voltage, sensor faults and the engine oil replacement indicator. Owners who follow those pages can tell the difference between a nuisance beep and a genuine fault before it turns into a repair.

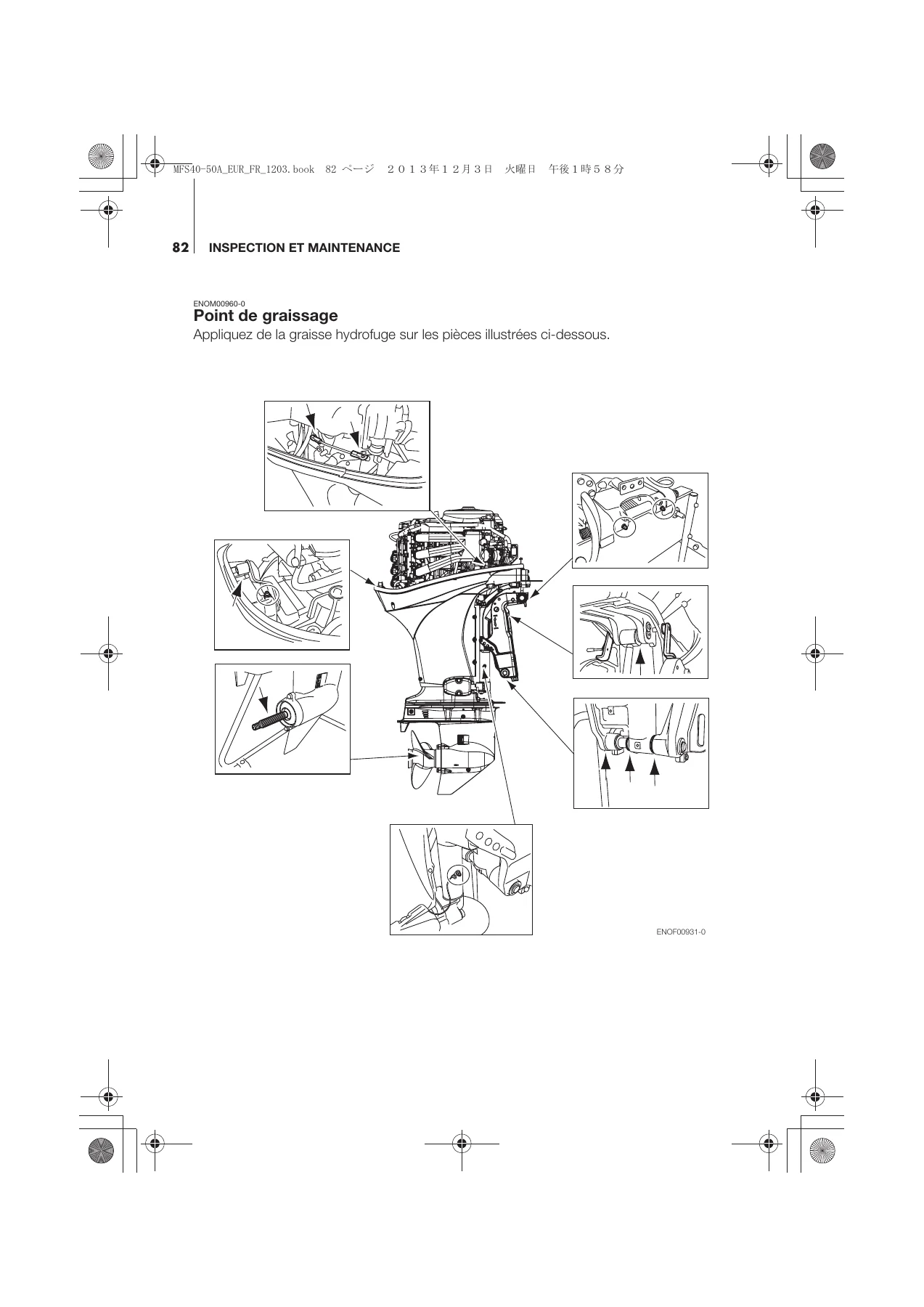

Maintenance is where the manual earns its place on the shelf. Daily inspection covers fuel system, tank cap, engine oil, electrical equipment, clutch and propeller, motor installation, Power Trim & Tilt, cooling water, tools and steering. Periodic inspection adds the service intervals for fuel filters, spark plugs, engine oil and oil filter, valve clearance, timing belt, thermostat, propeller, gear oil, water pump and anodes, with torque values given for the drain screw, oil filter, propeller nut and spark plug. There is also a full greasing point diagram and a fuse layout identifying each circuit.

Practical Procedures You Can Follow Directly

Every procedure in this Tohatsu outboard manual is written for the person holding the tools, not a workshop reference card. Engine oil replacement is shown step by step with the drain screw torque, the fill quantity with and without an oil filter change, and the correct dipstick range. Gear oil replacement shows both the upper and lower plug positions and the fill-until-it-overflows method. Propeller installation covers the thrust holder, stopper, washer, nut torque and the split pin orientation. Spark plug service gives the NGK DCPR6E part number, the 0.8-0.9 mm electrode gap and the correct tightening torque. The flushing attachment procedure and the test tank procedure are both included, along with the minimum water level above the anti-ventilation plate.

Get the Tohatsu MFS40A MFS50A Owner’s Manual Instantly

This Tohatsu MFS40A MFS50A owner’s manual gives you the installation, operating, maintenance and troubleshooting information for your 4-stroke EFI outboard in one PDF. Whether you are commissioning a new motor, planning the 100-hour service, chasing an intermittent warning lamp, or simply want to know the correct fuel, oil and battery specification before your next trip, the answers are in here. Following the documented torque values, fluid capacities and inspection intervals is what keeps these motors running season after season.

Delivery is instant. After checkout the PDF is available immediately – no shipping, no waiting, no physical book to lose. Open it on a laptop, tablet or phone at the dock, at the bench or in the garage, and print the pages you need for the job at hand.

IMAGES PREVIEW
