Towimor CD20A PK87 Mooring Winch Anchor Attachment Unit Operation and Maintenance Manual

Description

Towimor CD20A PK87 Mooring Winch & Anchor Attachment Unit Operation and Maintenance Documentation

The TOWIMOR S.A. CD20A + PK87 Operation and Maintenance Documentation is the definitive technical reference for the CD20A series mooring winches equipped with the PK87 anchor attachment unit. This comprehensive multilingual manual covers mechanical, hydraulic, and electrical systems in complete detail, making it the essential resource for mounting teams, vessel operators, and maintenance personnel responsible for these deck machinery installations on ships with unlimited navigation range. Whether you are commissioning a new installation or maintaining an existing winch system, this Towimor CD20A PK87 manual provides the exact procedures, specifications, and maintenance schedules specified by the manufacturer.

File Details

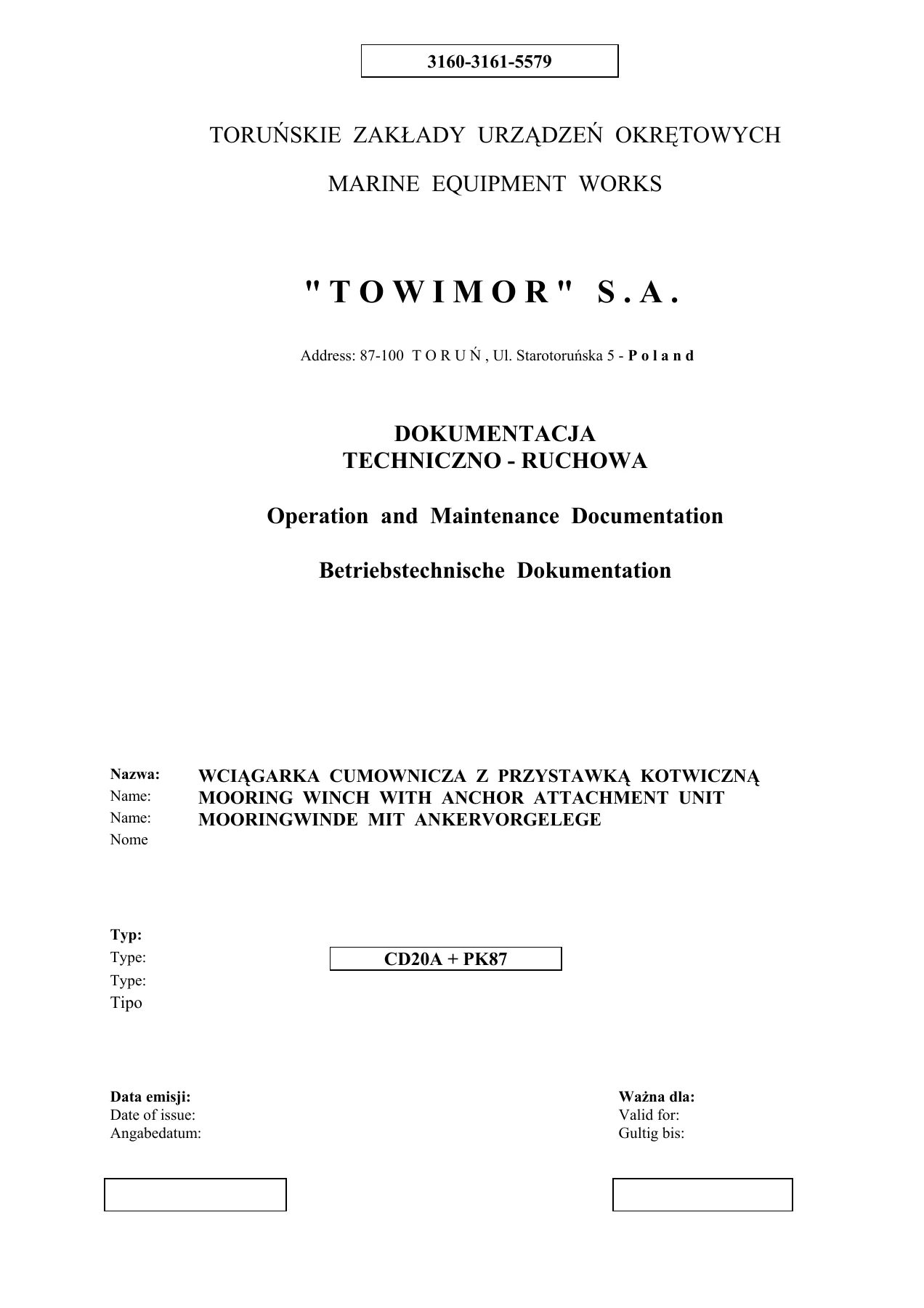

• Manual Type: Operation and Maintenance Documentation (Dokumentacja Techniczno-Ruchowa)
• Brand: TOWIMOR S.A. (Toruńskie Zakłady Urządzeń Okrętowych Marine Equipment Works)
• Model: CD20A Mooring Winch + PK87 Anchor Attachment Unit
• Document Number: 3160-3161-5579
• Languages: English, Polish, German (multilingual)
• File Format: PDF
• Page Count: Approximately 253 pages
• Manufacturer Location: 87-100 Toruń, ul. Starotoruńska 5, Poland

Chapters Covered

The Towimor CD20A PK87 manual is organized into six major sections, each addressing a critical aspect of the equipment:

• 1. General Information — Preface, maintenance instruction for storing, instructions for proper operation of mooring and anchor-mooring winches, range of delivery including winch variants, anchor attachment units, brake fasteners, motor shields, and drive components
• 2. Description and Technical Characteristic — Full technical data for all CD20A variants and PK87 attachment units, technical description of the electric drive, mooring winch subassemblies (three-step transmission gear, drums, brakes), anchor attachment unit components (supporting frame, cable lifter, supporting axle, drive shaft, brake, clutch control, shield, gear pair, chain length counter), and safety operation requirements
• 3. Operation and Servicing — Preparation for operation of both mooring winch and anchor attachment unit, control and operation instructions covering manual control, automatic control with three towing power ranges, head operation, anchor attachment unit operation for hand sinking with band brake, motor-driven sinking, and anchor pulling, operation notes including mechanical malfunction tables and electric drive fault diagnosis
• 4. Checks, Maintenance and Repairs — Routine, periodical, and four-year inspection schedules for mooring equipment and anchor attachment units, electric equipment inspection including motors, routine and periodical inspection/maintenance of control equipment, maintenance of gear transmission, detailed greasing point locations for both mooring winch and anchor attachment unit, painted parts maintenance, equivalent oils and greases table, repairs for mooring equipment and anchor attachment unit, adjustment of the slipping clutch in anchor arrangements
• 5. List of Spare Parts — Complete mechanical spare parts listing for the mooring winch (sealing rings, friction linings, screws) and anchor attachment unit (sealing rings, friction linings, screws), electrical spare parts including main contacts, coils, contactors, auxiliary contacts, relays, rectifiers, varistors, LED indicators, fuses, bearings, sensors, and amplifiers
• 6. Electrical Equipment NEPN016T13F, NEPN016T22F — Comprehensive coverage of the electrical drive system including preface and operation modes, switching on the control system, manual control with three-speed operation, automatic control for towing power maintenance, impulse control for one-man operation, protection and signalling systems (motor temperature control, brake current check, automatic operation control, signalling lamps), towing power measurement with voltage characteristics, chain length measurement system with inductive sensors and programmable controller operation, programmable controller construction and setup, input/output signal lists, starting and operation of the controller PLC with diagnostics, electrical diagrams, catalogue charts of control columns IS3455-01, IS3463-01, IS3464-01, documentation of Emod motors, documentation of control cassette NK502T4A, and instruction manual of the WZMD-TENSOTRONIC amplifier
• 7. Enclosures — Transport and installation procedures including foundation requirements, mooring winch installation, and anchor attachment unit installation

Covered Equipment Variants

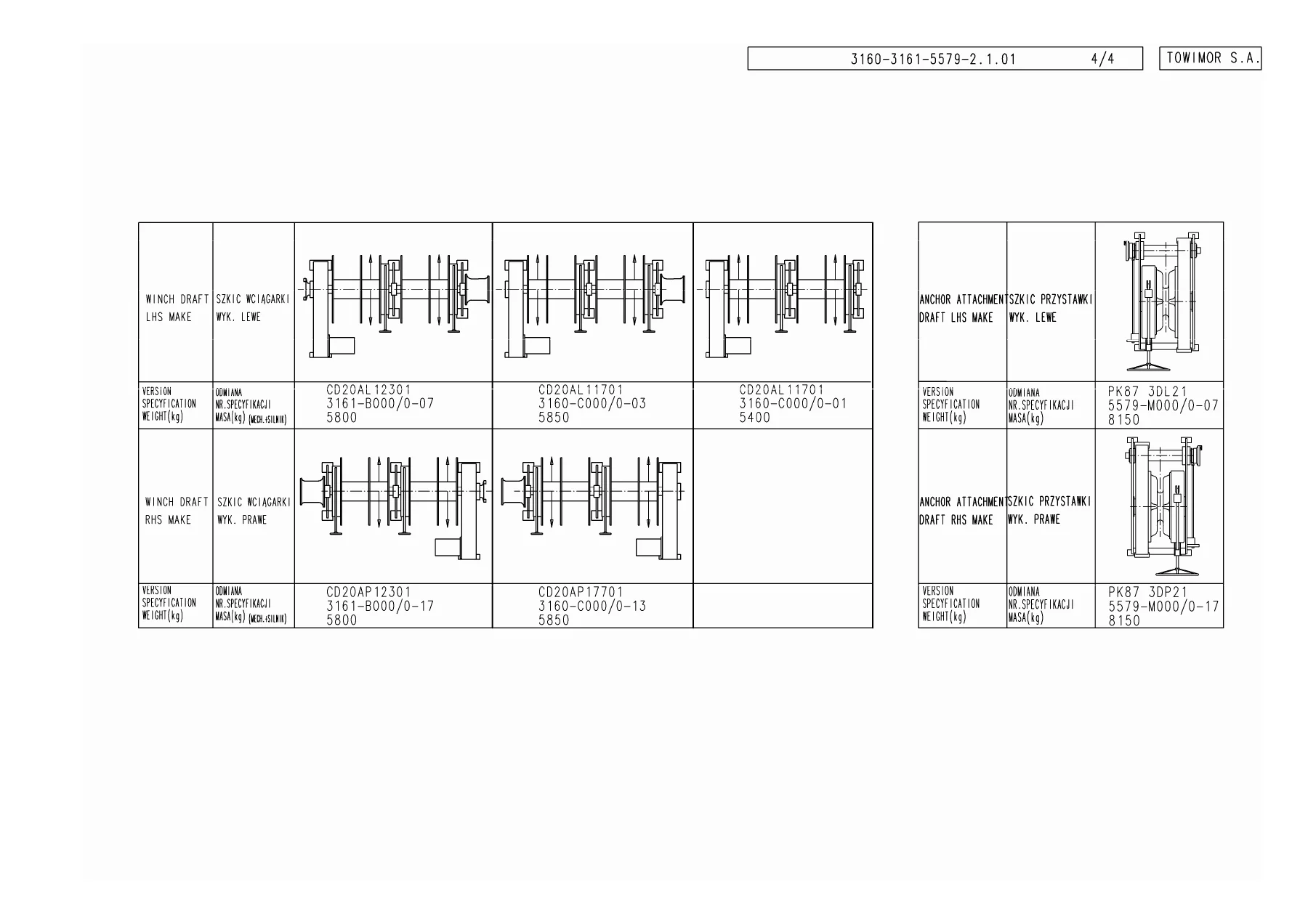

This Towimor CD20A PK87 operation and maintenance manual covers the following primary equipment configurations:

• Mooring winch CD20A-3161-B000/0-07 (LHS and RHS versions)
• Mooring winch CD20A-3161-B000/0-17 (LHS and RHS versions)
• Mooring winch CD20A-3160-C000/0-01, 03, 13 (LHS and RHS versions)
• Anchor attachment unit PK87-5579-M000/0-07 (LHS and RHS versions)
• Anchor attachment unit PK87-5579-M000/0-17 (LHS and RHS versions)

Drive configurations include the NEPN016T13F (70 kW) and NEPN016T22F (60 kW) electrical drive systems. The motors covered are the SMOB250M20 12/4/2 and SMOB250M10 12/4/2 three-phase asynchronous motors with integrated brake systems.

Key Technical Specifications

The CD20A mooring winch offers a nominal towing power of 200 kN on the first layer, with maximum towing power of at least 1.5× nominal. The automatic operation system provides three towing power ranges: 20÷60% QZN (40÷120 kN), 50÷90% QZN (100÷180 kN), and 80÷120% QZN (160÷240 kN). Speed on the mooring drum ranges from 18 m/min nominal to 37 m/min at high speed for B-series, and 15 m/min to 30 m/min for C-series. The mooring line drum capacity accommodates 200 m of synthetic rope with 60 mm diameter.

The PK87 anchor attachment unit handles 87 mm chain caliber with a nominal towing power of 360 kN, maximum towing power of at least 2× nominal, and a braking force of 2476 kN. Chain heave-up speed is at minimum 9.17 m/min, with a cable lifter pitch diameter of 1107 mm.

What This Manual Provides

This Operation and Maintenance Documentation gives technicians and operators everything needed to safely operate, maintain, troubleshoot, and repair the TOWIMOR CD20A mooring winch and PK87 anchor attachment unit. The manual covers the complete mechanical structure from the three-step transmission gear and band brakes to the sliding claw clutch mechanism and cable lifter assembly. The electrical section provides deep coverage of the PLC-controlled drive system, including the Moeller PS4-201-MM1 programmable controller with extension modules, all input/output signal assignments, fault diagnosis through LED status indicators, and full wiring diagrams.

Detailed procedures guide the reader through manual and automatic mooring operations, anchor handling from casting to retrieval, torque adjustment of the slipping clutch, brake wear adjustment, and proper lubrication schedules with specific grease point locations illustrated. The fault tables help diagnose and resolve common mechanical and electrical issues without guesswork. The manual includes separate malfunction tables for the mooring winch and anchor attachment unit, covering issues such as noisy gear transmission operation, excessive bearing overheating, braking difficulties, grease leakage, and creaking slide bearings.

The electrical fault tables address motor operation issues at different speeds, automatic operation failures, and overload conditions. Each fault entry provides the likely cause and the recommended remedy, making this Towimor CD20A PK87 manual an invaluable diagnostic tool for both routine maintenance and emergency troubleshooting.

Maintenance and Inspection Coverage

This Towimor CD20A PK87 manual provides a complete maintenance framework with three tiers of inspection. Routine checks are performed before each operation and after finishing work, covering rope condition, construction mechanisms, brake clearance, and winch operation uniformity. Periodical inspections occur every 40 hours of work or every three months (whichever comes first) for the mooring winch, and every 48 working hours or every three months for the anchor attachment unit. Four-year inspections involve comprehensive examination of rolling bearings, sliding bearings, band brakes, and steel construction.

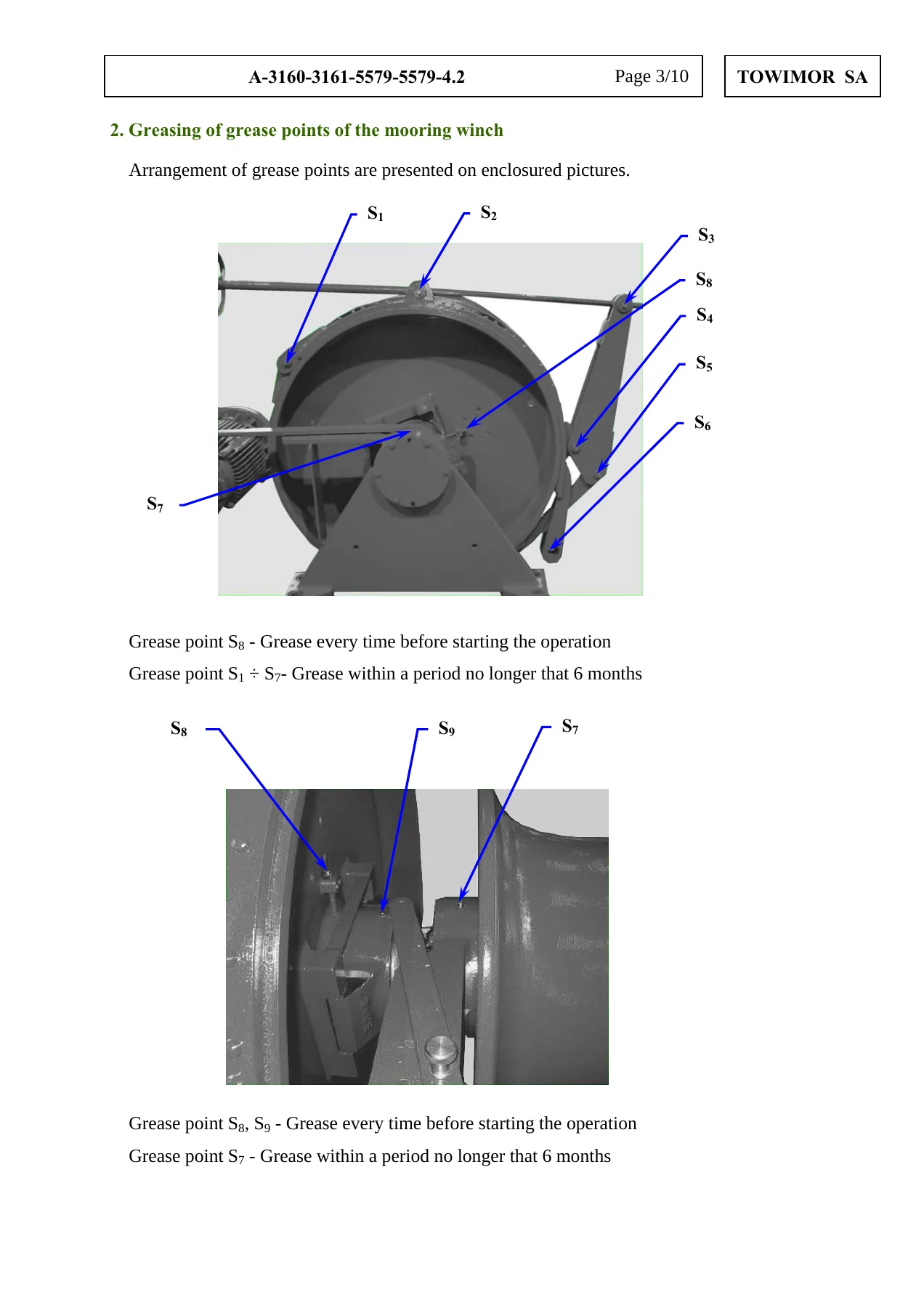

The maintenance section includes detailed greasing instructions with specific grease point locations for both the mooring winch (grease points S1 through S16) and the anchor attachment unit (grease points S1 through S16), each with recommended greasing intervals. The gearbox oil fill and drain procedures are illustrated, with the first oil change due after three months of operation and subsequent changes at least annually.

Electrical System Documentation

The electrical equipment section of this Towimor CD20A PK87 manual covers the NEPN016T13F and NEPN016T22F drive systems in exceptional detail. The manual explains the manual control system with three-step speed operation, automatic control for maintaining constant towing power, and impulse control for one-man operation of clutch engagement. The protection and signalling systems are fully documented, including motor temperature control through thermistor relays, brake current checks, automatic operation monitoring, and the various signalling lamps (H1 through H6) with their meanings and fault indications.

The towing power measurement system using tensometric transducers and the WZMD amplifier is described with calibration procedures. The chain length measurement system with inductive sensors and the A0 programmable controller is explained with input/output assignments and troubleshooting guidance. Complete electrical diagrams, wiring diagrams, and circuit diagrams are included for both three-stand and two-stand control configurations.

Why This Manual Matters

The CD20A mooring winch with PK87 anchor attachment is a critical piece of deck machinery on commercial vessels. Incorrect operation or maintenance can lead to equipment failure, safety hazards, or costly downtime. This documentation provides the exact procedures, specifications, and maintenance schedules that TOWIMOR S.A. specifies for these units. From the correct rope winding pattern that prevents damage to the drum and brake system, to the proper method of adjusting the slipping clutch for safe anchor handling, this manual contains the detailed guidance needed to keep the equipment operating reliably.

The manual also covers safety-critical procedures such as the correct sequence for engaging and disengaging the anchor attachment unit, proper brake operation during anchor casting, and the electrical protection systems that prevent motor overload and brake damage. Understanding these procedures is essential for both operational safety and equipment longevity. The safety operation requirements section outlines the areas of direct hazard, required protective clothing, and the importance of properly trained personnel operating the equipment.

IMAGES PREVIEW

Instant PDF Delivery

This Towimor CD20A PK87 mooring winch operation and maintenance manual is delivered as an instant PDF download after purchase. There is no waiting for shipping and no physical media to handle. The PDF can be viewed on any computer, tablet, or smartphone, and specific pages or sections can be printed as needed for use in the engine room or at the winch control station. Whether you are a ship’s engineer, deck officer, maintenance technician, or vessel operator, having this manual accessible on board ensures you have the reference information when you need it. The comprehensive spare parts lists with drawing numbers and standard references make ordering replacement components straightforward, and the detailed adjustment procedures for the slipping clutch and band brakes enable proper maintenance without relying on outside service personnel.
