Toyota 7FG 7FD 35-45 7FGK 7FDK 40 7FGA 7FDA 50 Forklift Repair Manual CX025-4 PDF

Description

File Details

• Manual type: Repair manual (workshop service procedures)
• Brand / series: Toyota 7FG, 7FD, 7FGK, 7FDK, 7FGA, 7FDA forklifts

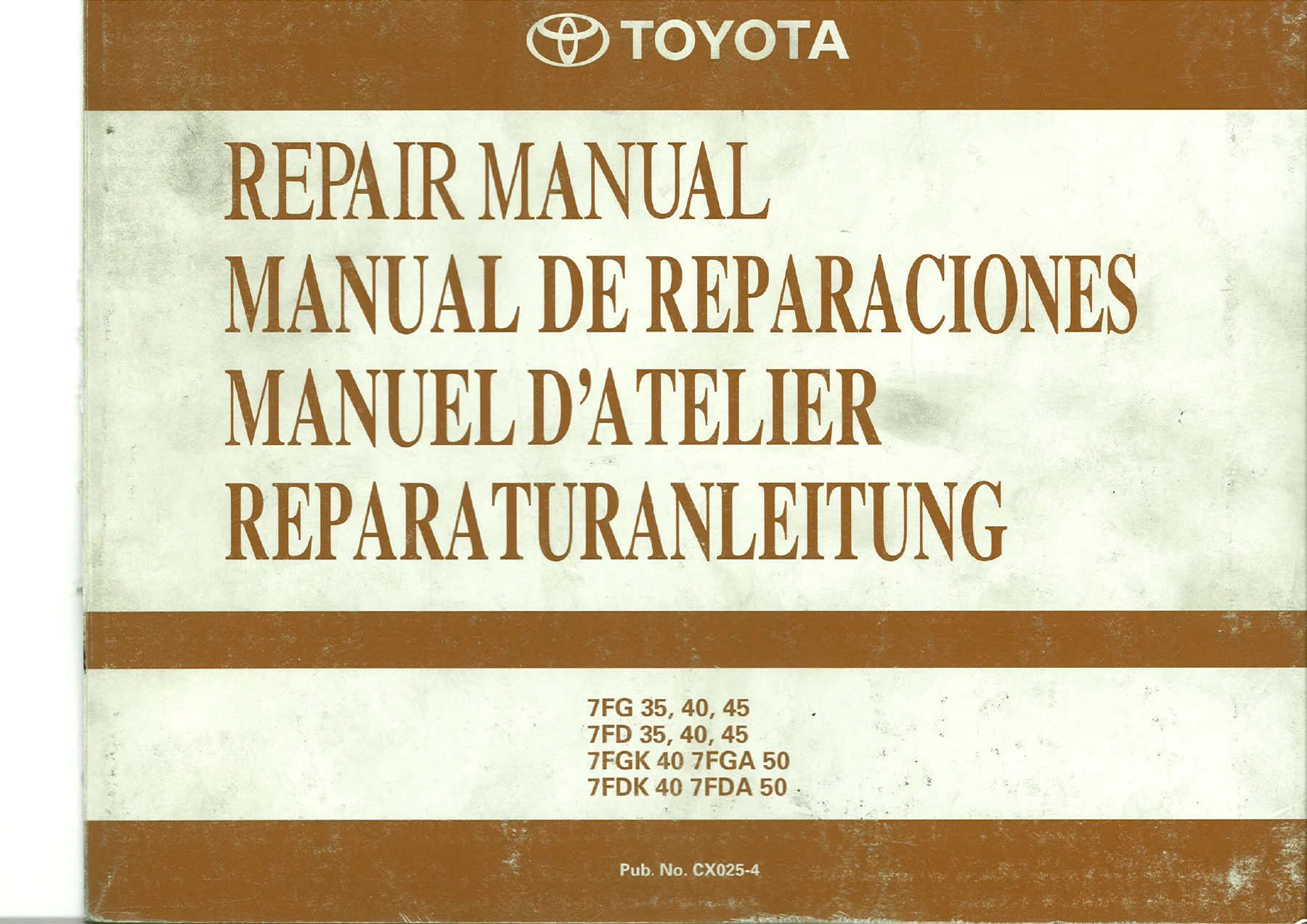

• Publication: Pub. No. CX025-4, Toyota Material Handling Company, a division of Toyota Industries Corporation
• Coverage date in the foreword: models as of January 1999, with vehicle-model tables split at January 2002
• Languages: English, French, Spanish, German in parallel columns
• Page count: 1424
• File format: PDF

Which Trucks This Book Fits

The Toyota 7FG 7FD 35-45 7FGK 7FDK 40 7FGA 7FDA 50 Forklift Repair Manual CX025-4 PDF is written around the 3.5 to 5.0 ton pneumatic-tire trucks in this family. Manual-transmission (M/T) and torque-converter (T/C) trucks are both mapped, including the 02- prefixed T/C variants.

Through January 2002 the gasoline trucks use the G4 (GM6-262) V6; from January 2002 they use the inline-six 1FZ. Diesel trucks across the tables use the 13Z. The G4 is identified in the model chart as the same engine as GM6-262 except for the name. Gasoline, gasoline/LPG and LPG calibrations appear in the engine-speed and specification pages.

Models listed in the vehicle-model tables include 7FG35, 02-7FG35, 7FD35, 02-7FD35, 7FGK40, 02-7FGK40, 7FDK40, 02-7FDK40, 7FG40, 02-7FG40, 7FD40, 02-7FD40, 7FG45, 02-7FG45, 7FD45, 02-7FD45, 02-7FGA50 and 02-7FDA50.

Frame-number stamping is shown on the left-front frame area. Punching formats change at January 2002 and differ between EEC-specification trucks and other markets (examples such as 7FGK40@10011 versus 7FGK40-10011, later A7FGK40@30011). Use the plate on the truck against the table in section 0 rather than guessing the string.

Mounted-engine overhaul is not duplicated here. The foreword points to the G4 (GM6-262) engine repair manual No. C4630, the 1FZ engine repair manual No. CE646-1, the 11Z/12Z/13Z/14Z engine repair manual No. C4615-1, and the 7FG/7FD35-45 repair manual supplement No. CE052. This CX025-4 volume still covers engine removal and installation, idle and no-load speed, relief-down, air cleaner, fan belt, accelerator linkage, and related on-truck checks.

Chapters Covered

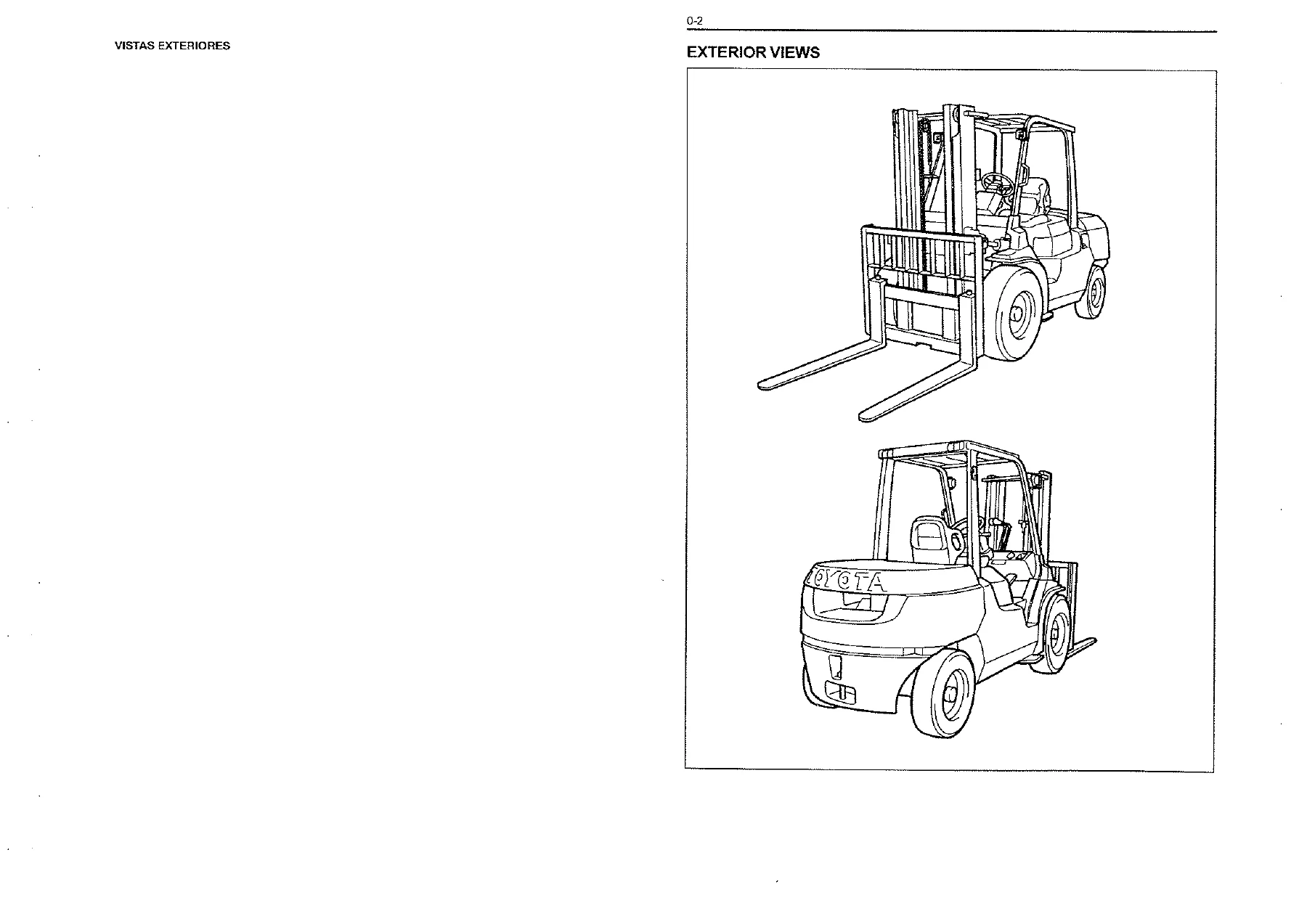

• 0 General — exterior views; vehicle model; frame number; how to use this manual; terminology and abbreviations; operational tips; hoisting the vehicle; circuit tester; standard bolt and nut tightening torque; bolt strength identification; precoat bolts; high-pressure hose fitting torque; wire-rope suspension angles and safe loads; component weights; recommended lubricant quantity and types; lubrication chart; periodic maintenance; periodic replacement of parts and lubricants
• 1 Engine — major specifications for G4 (GM6-262), 1FZ and 13Z; engine ASSY removal and installation (M/T and T/C paths); speed inspection and adjustment; air cleaner; cooling and fan drive; muffler interval; accelerator pedal and wire; electronic-governor self-diagnosis on gasoline trucks; optional DPF items
• 2 Clutch — wet single-plate clutch; cover and disc; oil-clutch device; housing and release fork; release cylinder; booster troubleshooting; air bleeding and pedal/release-bearing adjustment
• 3 Torque Converter and Transmission — 1-speed and 2-speed T/C units; stator shaft and converter oil pump; clutch drums; oil-pressure measurement and stall test
• 4 Manual Transmission — engine-with-transmission removal; geartrain, synchronizers and hubs; shift-rod adjustment
• 5 Propeller Shaft — removal, inspection and joint service
• 6 Differential — assembly R&I with the SAS-controller impact caution
• 7 Front Axle — hub, bearings and related torque values
• 8 Rear Axle — axle ASSY, king pins, swing-lock cylinder pin and tire-angle sensor on SAS trucks
• 9 Steering — tilt column, steering valve, power-steering cylinder and pressure checks
• 10 Brake — wheel cylinders, booster, air bleeding and parking-brake cable
• 11 Body — engine hood, counterweight, seat, fuse and relay box, SAS-ECU fuse assignment
• 12 Material Handling System — tank, natural drop, natural forward tilt and oil-leak tests with separate SAS / non-SAS limits
• 13 Mast — mast ASSY R&I, chain tension, fork-height switch and load-sensor wiring, SAS re-setting after mast replacement
• 14 Cylinder — lift and tilt cylinders, load-sensor cover, tilt-angle sensor link
• 15 Oil Pump — pump ASSY, dual-section gear pump, performance test by lift speed, drive shaft
• 16 Oil Control Valve — separate chapters for vehicles with SAS and without SAS; specifications and relief-pressure adjustment
• 17 SAS — System of Active Stability composition; controller and yaw-rate sensor; functional parts; re-setting and customize; plug-in analyzer; diagnostic memory and symptom troubleshooting
• 18 Appendix — service standards, tightening-torque summaries, wiring identification, combination meter, tachometer and speed-limit alarm with and without SAS, SST list

Taken together, the Toyota 7FG 7FD 35-45 7FGK 7FDK 40 7FGA 7FDA 50 Forklift Repair Manual CX025-4 PDF is the chassis and handling-system shop book for this family: how to lift and support the truck, what fluids and intervals to use, how to split the powertrain, and how to keep the mast, valves and SAS loop inside published limits.

Shop Data in Section 0

Operational tips require stands after jacking, wire rope with spare capacity when hoisting, and battery disconnection before electrical work. Front jacking is under the frame; rear jacking is under the counterweight. Hoisting uses the mast hook holes and the counterweight hook holes.

Recommended fill quantities include gasoline engine oil 4.2 L (1.11 US gal) for G4 (GM6-262) and 9.5 L (2.51 US gal) for 1FZ; 13Z diesel oil 12.5 L (3.30 US gal); manual-transmission hypoid oil 4.7 L before September 2000 and 3.8 L after; torque-converter ATF 14.0 L (GM Dexron II) for both 1-speed and 2-speed cases; differential 9.0 L of SAE85W-90; hydraulic oil for a V mast at 3000 mm lift height 69 L on M/T trucks and 71 L on T/C trucks (ISO VG32); fuel tank 105 L on 3.5 and 4.0 ton series and 120 L on 4.5 and 5.0 ton series; coolant excluding the reservoir 12.0 L plus 0.6 L in the tank at Full.

Lubrication charts exist for manual-transmission and torque-converter trucks, with inspection marks at 8, 40, 250, 1000 and 2000 hours. Periodic maintenance uses I / M / T / C / L codes at 250, 500, 1000 and 2000 hours across engine, clutch or converter, axles, brakes, mast, pump, valve and SAS. Component weights used for hoisting include G4 engine 185 kg (408 lb), 1FZ 250 kg (551 lb) and 13Z 325 kg (717 lb); M/T case 75 kg before September 2000 and 63 kg after; T/C 200 kg (1-speed) or 210 kg (2-speed).

Driveline, Axles, Steering and Brakes

Clutch work is built around a wet, single-plate, coil-spring unit, 304 mm cover, 300 x 175 mm disc, hydraulic release, housing split after engine removal, booster fault charts, bleeding with the engine at idle and the pedal not depressed, pedal height 155-160 mm from the toe board, pedal play 3-7 mm, and release-bearing clearance 1.0-1.5 mm.

Torque-converter service includes main clutch pressure 981-1373 kPa at 1500 rpm and 588 kPa or more at idle, converter outlet 167-441 kPa at 1500 rpm, stall testing with the front wheels raised, and clutch-pack thickness limits in the appendix. Manual boxes get shift-rod length set so knob-to-hood clearance in neutral is 34 mm.

Differential and axle pages warn not to shock the frame on SAS trucks so the controller is not damaged. Hub nut range 294.2-588.4 N·m appears on the front-axle installation. Rear-axle R&I on SAS trucks includes the swing-lock cylinder lower pin and the tire-angle sensor. Steering pages cover the tilt-lock mechanism, valve set bolts, and in-vehicle pressure-gauge checks. Brake bleeding is a two-person job with the engine running.

Hydraulics, Mast and Cylinders

Section 12 gives leak limits that change with SAS. Natural drop in 15 minutes: 45 mm (1.77 in) with SAS, 120 mm (4.72 in) without. Natural forward tilt of the tilt-cylinder rod in 15 minutes: 25 mm with SAS, 50 mm without. Lift-port leak in one minute: 8 cm³ or less with SAS, 22 cm³ without; combined lift-plus-tilt 16 cm³ versus 38 cm³.

Mast replacement instructions require chain-tension reset and a full SAS re-setting pass (section 17) after the mast ASSY goes back in. Lift-cylinder work includes the load-sensor cover and connector on SAS trucks; tilt-cylinder work includes the RH tilt-angle sensor link and another re-setting step. The oil-pump chapter uses gear-pump inspection, a run-in cycle at idle-to-1000 rpm then 1500-2000 rpm, and a lift-speed performance check with engine rpm and relief pressure already on spec. Relief adjustment itself is written twice in section 16 so SAS and non-SAS valves are not mixed.

IMAGES PREVIEW

SAS — System of Active Stability

Section 17 treats SAS as rear-axle swing control plus mast and steering-knob limits driven by the SAS controller from yaw-rate, load, tilt-angle, tire-angle, lifting-height and steering-knob sensors. Controller mounting torque changes at September 2000 (7.0-16.0 N·m before, 10.0-15.0 N·m after). Re-setting uses the orange connector; the hour meter reads SET and the SAS lamp comes on (buzzer dropped from January 2000). Incomplete re-setting after a controller or sensor swap is called out as a cause of a lamp that stays on.

The plug-in analyzer SST reads DIAG MEMORY, IN OUT (SWING DATA, MAST DATA, ST. KNOB DATA, OTHER DATA), ACTIVE TEST, RE-SETTING and CUSTOMIZE. Error codes are stored in the controller (up to ten events with hour-meter time). Symptom charts cover swing lock that will not free, knob that will not center, lamp on or off incorrectly, and hour-meter underscore with no code. A temporary tilt workaround by pulling the 7.5 A SAS-ECU fuse is documented, with the warning that SAS functions including swing lock are then off. After mast, tilt-cylinder or related sensor work, the Toyota 7FG 7FD 35-45 7FGK 7FDK 40 7FGA 7FDA 50 workshop procedures send the technician back to this re-setting path rather than leaving stored voltages stale.

Engine Pages That Stay in This Manual

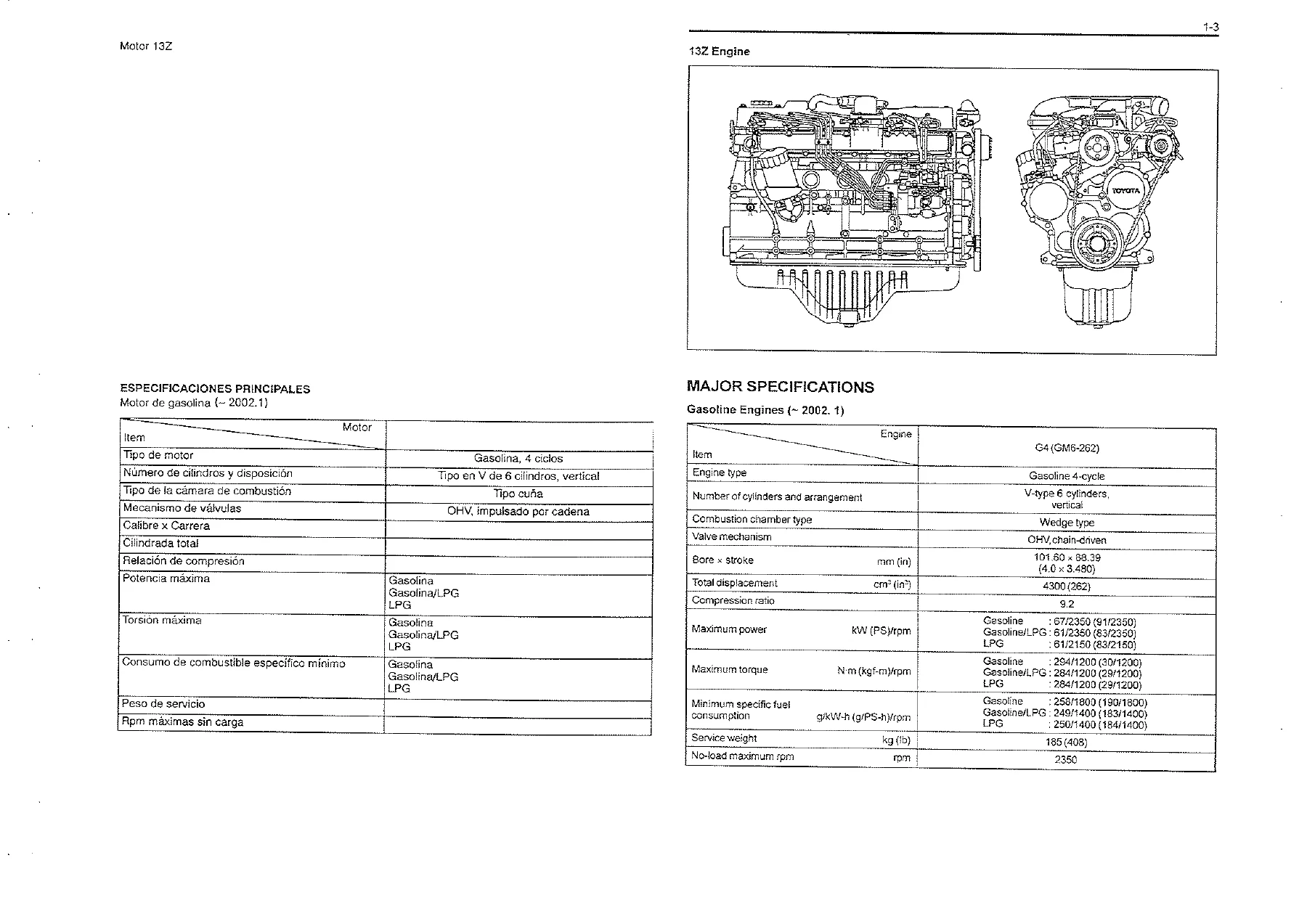

G4 (GM6-262) is a vertical V6, wedge chamber, chain-driven OHV, 101.60 x 88.39 mm, 4300 cm³, compression 9.2, gasoline peak 67 kW / 2350 rpm, service weight 185 kg, no-load maximum 2350 rpm. 1FZ is an inline six, pent-roof, DOHC chain and gear drive, 100.0 x 95.0 mm, 4476 cm³, compression 9.0, gasoline 62 kW / 2100 rpm, weight 250 kg, no-load 2400 rpm. 13Z is an inline-six direct-injection diesel, gear-driven OHV, 98.0 x 102.0 mm, 4616 cm³, compression 18.5, 62 kW / 2200 rpm, 284 N·m / 1600 rpm, weight 325 kg, no-load 2400 rpm.

On-truck speed work covers idle, idle-up, fast idle, no-load maximum and relief-down (200 rpm or less on the 1FZ gasoline path). Gasoline electronic-governor diagnosis uses CHECK-lamp flash codes, including overrun that shuts ignition off. Muffler replacement is listed at 2000 hours or one year for both fuels.

Get the Procedures Onto the Floor

With the Toyota 7FG 7FD 35-45 7FGK 7FDK 40 7FGA 7FDA 50 Forklift Repair Manual CX025-4 PDF a technician can split an engine from a clutch housing or flexible plate, measure converter pressures, set clutch pedal height, bleed brakes, time a relief valve, judge mast leak-down against SAS versus non-SAS limits, and walk SAS faults with the analyzer menus instead of swapping sensors blind. Those published torques, leak limits, fill quantities and re-setting steps are what keep a 3.5-5.0 ton truck from leaving the shop with a loose hub nut or a controller that still holds yesterday’s tilt voltage.

The file is delivered as an instant PDF after payment. There is no printed-book shipment. Open it on a shop PC, tablet or phone and print the section you need for the job on the truck in front of you.
