Toyota 7FGF 7FDF 15-30 7FGJF35 7FDJF35 Forklift Repair Manual

Description

Toyota 7FGF 7FDF 15-30 7FGJF35 7FDJF35 Forklift Repair Manual

This Toyota 7FGF 7FDF 15-30 7FGJF35 7FDJF35 Forklift Repair Manual is a 655-page workshop reference covering the full 1 ton, 2 ton, 3 ton and J3.5 ton forklift series built around the 4Y gasoline engine and the 1DZ-II and 2Z diesel engines. It was written to guide a technician through every system on these trucks, from engine overhaul down to mast and cylinder work, and it forms the technical backbone for anyone servicing this model range day to day.

• Manual type: Repair Manual (Pub. No. CE026-1)
• Brand/Model: Toyota 7FGF15, 18, 20, 25, 30 / 7FDF15, 118, 20, 25, 30 / 7FGJF35 / 7FDJF35 forklifts
• Engines covered: 4Y (gasoline/LPG), 1DZ-II (diesel), 2Z (diesel)
• Language: English
• Page count: 655 pages
• File format: PDF

Chapters Covered

• General – vehicle model identification, frame number punching positions, standard bolt/nut torque, recommended lubricants and capacities, lubrication chart, periodic maintenance and periodic parts replacement
• Engine – sectional views, major specifications, performance curves, engine assembly removal/installation, air bleeding, engine speed inspection, air cleaner, radiator, muffler/exhaust, battery, V-belt, accelerator pedal, vehicle speed control system, DPF-II system, D2 pedal
• Torque Converter & Transmission
• Propeller Shaft
• Differential
• Front Axle
• Rear Axle
• Steering
• Brake
• Body
• Material Handling System
• Mast
• Cylinder
• Oil Pump
• Oil Control Valve
• SAS (System of Active Stability)
• Appendix

Taken as a whole, this Toyota 7FGF 7FDF 15-30 7FGJF35 7FDJF35 Forklift Repair Manual gives a technician the disassembly, inspection, reassembly and adjustment steps for every major system on the truck, laid out in the same point-operation format Toyota uses across its industrial equipment line: numbered disassembly steps paired with called-out point operations, limits and tightening torques.

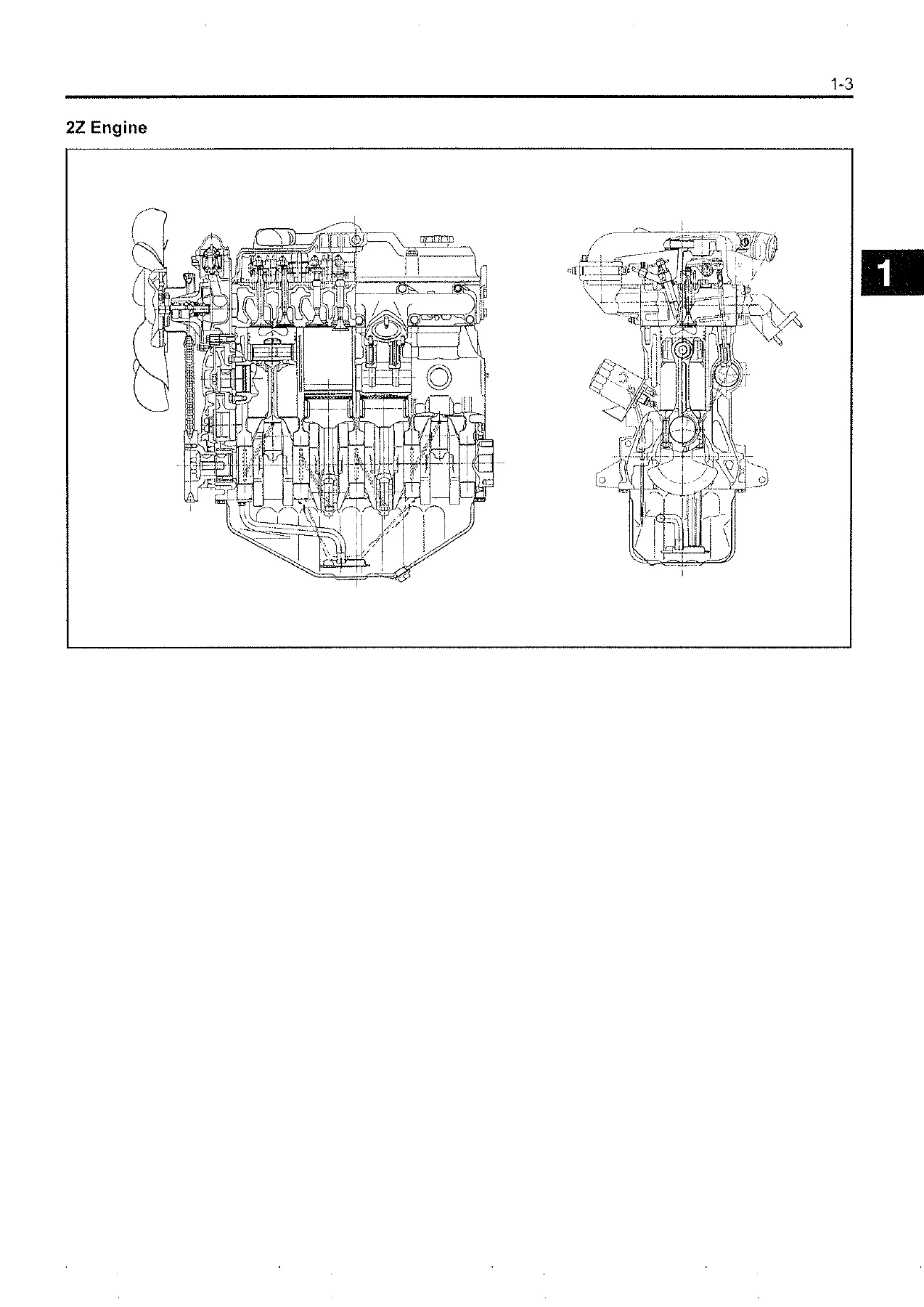

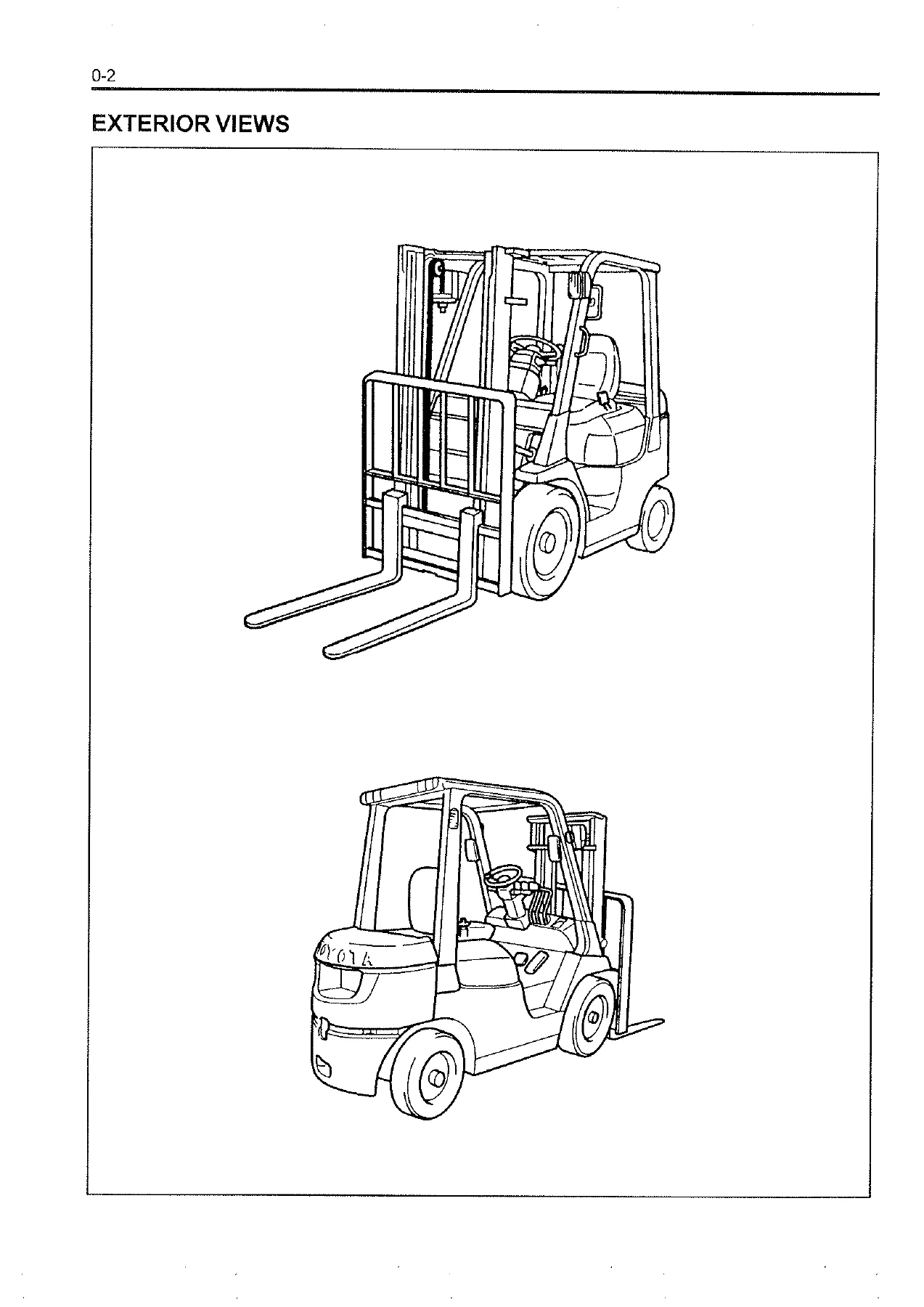

IMAGES PREVIEW

Engine Specifications at a Glance

The manual’s Major Specifications tables spell out bore and stroke, displacement, compression ratio, maximum power and torque, and service weight for each engine option – the 2237 cm³ 4Y gasoline engine, the 2486 cm³ 1DZ-II diesel, and the 3469 cm³ 2Z diesel used on the 3 ton and J3.5 ton trucks – along with the frame number punching format for every model/engine combination, so you can confirm you’re working from the correct section before you start a job.

Why Technicians Rely on This Manual

With this Toyota 7FGF 7FDF 15-30 7FGJF35 7FDJF35 Forklift Repair Manual on hand, a shop can carry out engine overhauls, transmission and differential work, mast and cylinder service, brake and steering repairs, and full periodic maintenance to Toyota’s own inspection intervals, using the exact torque values, clearances and service limits the manual specifies rather than guessing at generic figures. Getting these numbers right protects the truck’s lift capacity, stability and safety systems, which matters more on a forklift than on almost any other machine. The file downloads instantly as a PDF after checkout, needs no shipping or waiting, and can be read on a phone, tablet, laptop or printed out a page at a time for use right at the workbench.
