Toyota 8FG 8FD 10-30, 8FGK/8FDK & 8FGJ/8FDJ Forklift Repair Manual Vol. 1
Original price was: $44.95.$26.95Current price is: $26.95.
616-page Toyota forklift Repair Manual Vol. 1 covering 8FG/8FD10~30, 8FGK/8FDK and 8FGJ/8FDJ models with 4Y, 1DZ-II and 2Z applications. Includes mechanical, transmission, axle, steering, brake, mast, hydraulic, SAS/OPS, electrical troubleshooting and wiring-diagram service coverage.
Description
Toyota 8FG 8FD 10-30, 8FGK/8FDK & 8FGJ/8FDJ Forklift Repair Manual Vol. 1

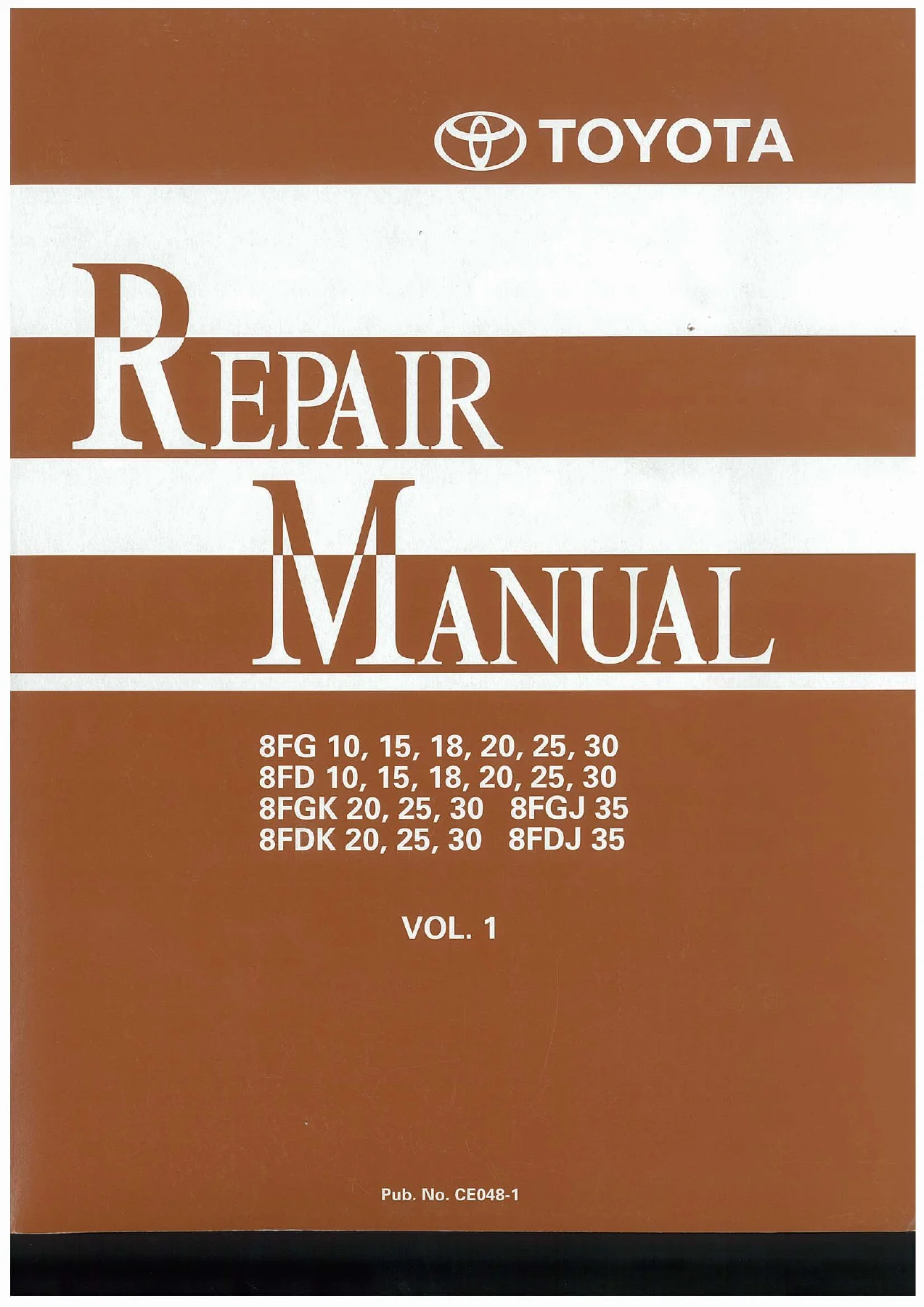

This 616-page Toyota forklift repair manual covers service procedures for the 8FG/8FD10~30 series and the related K2, K3 and J3.5 ton variants shown in the manual. It is a broad mechanical, hydraulic and electrical service reference for gasoline and diesel trucks using 4Y, 1DZ-II and 2Z engines, with both manual-transmission and torque-converter configurations represented. The manual is identified as VOL. 1, Pub. No. CE048-1, and its foreword states that it deals with the covered models as of August 2006.
The Toyota 8FG 8FD 10-30, 8FGK/8FDK & 8FGJ/8FDJ Forklift Repair Manual Vol. 1 is organized around actual service work: removal and installation, disassembly, inspection, reassembly, adjustment, troubleshooting, test procedures, service standards, tightening values and illustrated component layouts. It spans the powertrain, chassis, steering and braking systems, mast and material-handling hydraulics, SAS/OPS controls, multifunction display functions and electrical troubleshooting. The manual also includes wiring-diagram coverage in its final section.
File Details
- Manual type: Repair Manual, Volume 1
- Brand: Toyota
- Models: 8FG10, 8FG15, 8FG18, 8FG20, 8FG25, 8FG30; 8FD10, 8FD15, 8FD18, 8FD20, 8FD25, 8FD30; 8FGK20, 8FGK25, 8FGK30; 8FDK20, 8FDK25, 8FDK30; 8FGJ35; 8FDJ35
- Document number: CE048-1
- Coverage date stated in foreword: August 2006
- Language: English
- Pages: 616
- File format: PDF
Model and Engine Coverage
The vehicle-model tables identify 1.0, 1.5, 1.75, 2.0, 2.5 and 3.0 ton models, plus K2.0, K2.5, K3.0 and J3.5 ton series trucks. Depending on series and transmission, the manual covers Toyota vehicle codes beginning with 30-, 32-, 60-, 62-, 70- and 72-. Gasoline versions use the 4Y engine, while diesel applications shown use 1DZ-II or 2Z engines. The manual further distinguishes the standard 4Y-M carburetor specification and optional 4Y-E electronically controlled specification.
Engine information in Volume 1 includes exterior views, main parameters and performance curves, engine assembly removal and installation, fuel-system air bleeding for diesel models, engine inspection and adjustment, air cleaner, radiator, exhaust, battery, V-belt, accelerator pedal and optional drive-control and DPF-II service. The foreword directs technicians to separate 4Y, 1DZ-II and 2Z engine repair manuals for the mounted engine service procedures that are outside this volume, so this Volume 1 should be treated as the forklift service manual rather than a complete internal-engine overhaul manual.
Service Data, Maintenance and Workshop Reference
The opening section establishes workshop procedures and reference data used throughout the repair manual. It includes vehicle identification, frame-number punching information, operating terminology, safe lifting and hoisting practices, circuit-tester guidance, standard bolt and nut torque tables, high-pressure hose fitting torques, wire-rope suspension data and component weights. Lubricant and fluid charts list engine oil, transmission oil, torque-converter fluid, differential oil, hydraulic oil, fuel-tank capacities, brake/clutch fluid and coolant information by applicable model or engine group.
Periodic maintenance tables cover inspection, measurement, retightening, cleaning and lubrication points across the engine, power transmission, drive system, steering, brakes, material handling, hydraulics, electrical system and safety devices. Replacement schedules cover engine oil and filters, coolant, transmission and differential oils, hydraulic oil and filter, wheel-bearing grease, spark plugs, air-cleaner elements, brake fluid, hoses, chains and other service items. These tables make the manual useful not only for major repairs but also for scheduled workshop maintenance.
Chapters Covered
- General

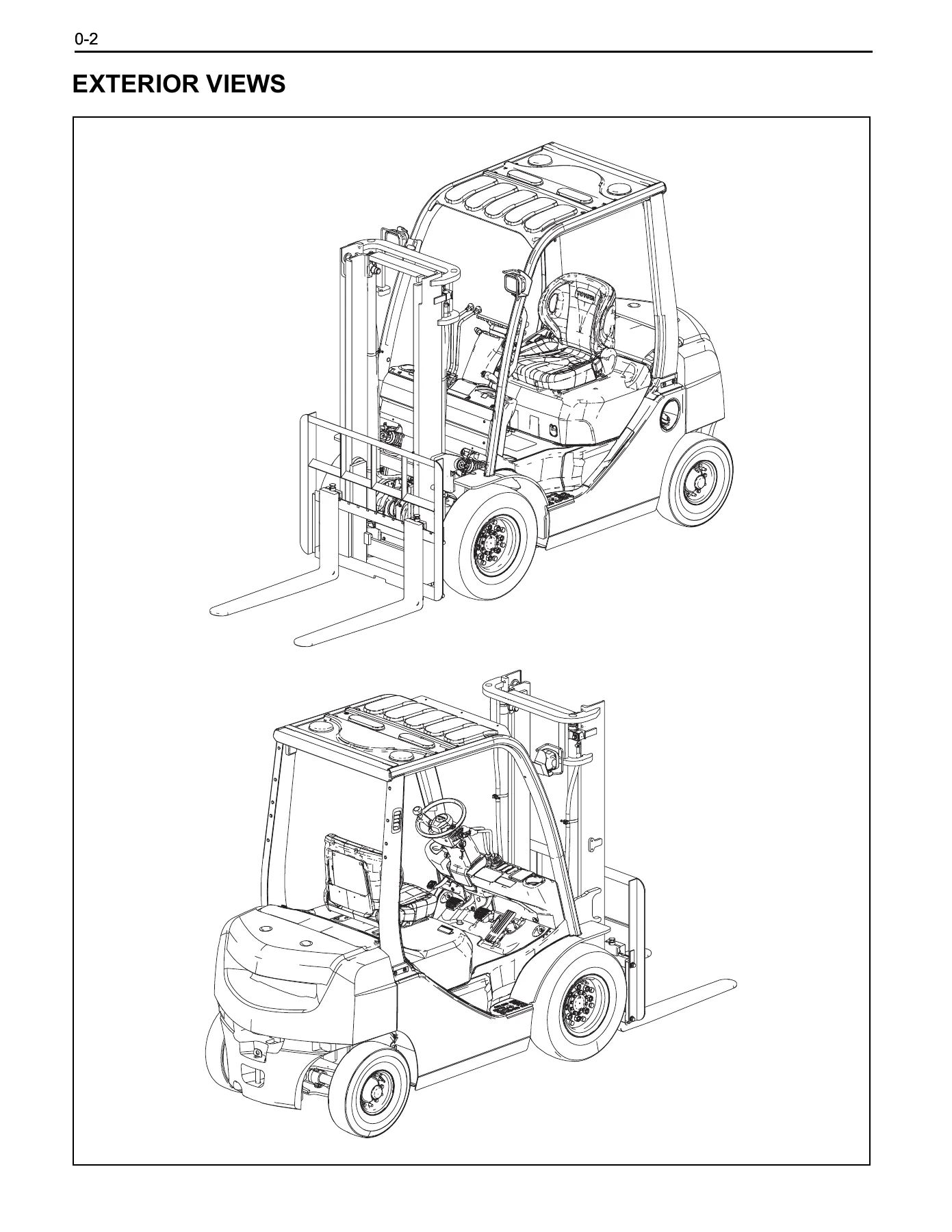

- Exterior views, vehicle models and frame-number identification
- Manual usage, operational tips, hoisting and circuit-tester guidance
- Standard tightening torques, hose-fitting torques and wire-rope safe-load data
- Component weights, lubricant quantities, lubrication charts and periodic maintenance
- Engine
- 4Y-M, 4Y-E, 1DZ-II and 2Z exterior views, parameters and performance data

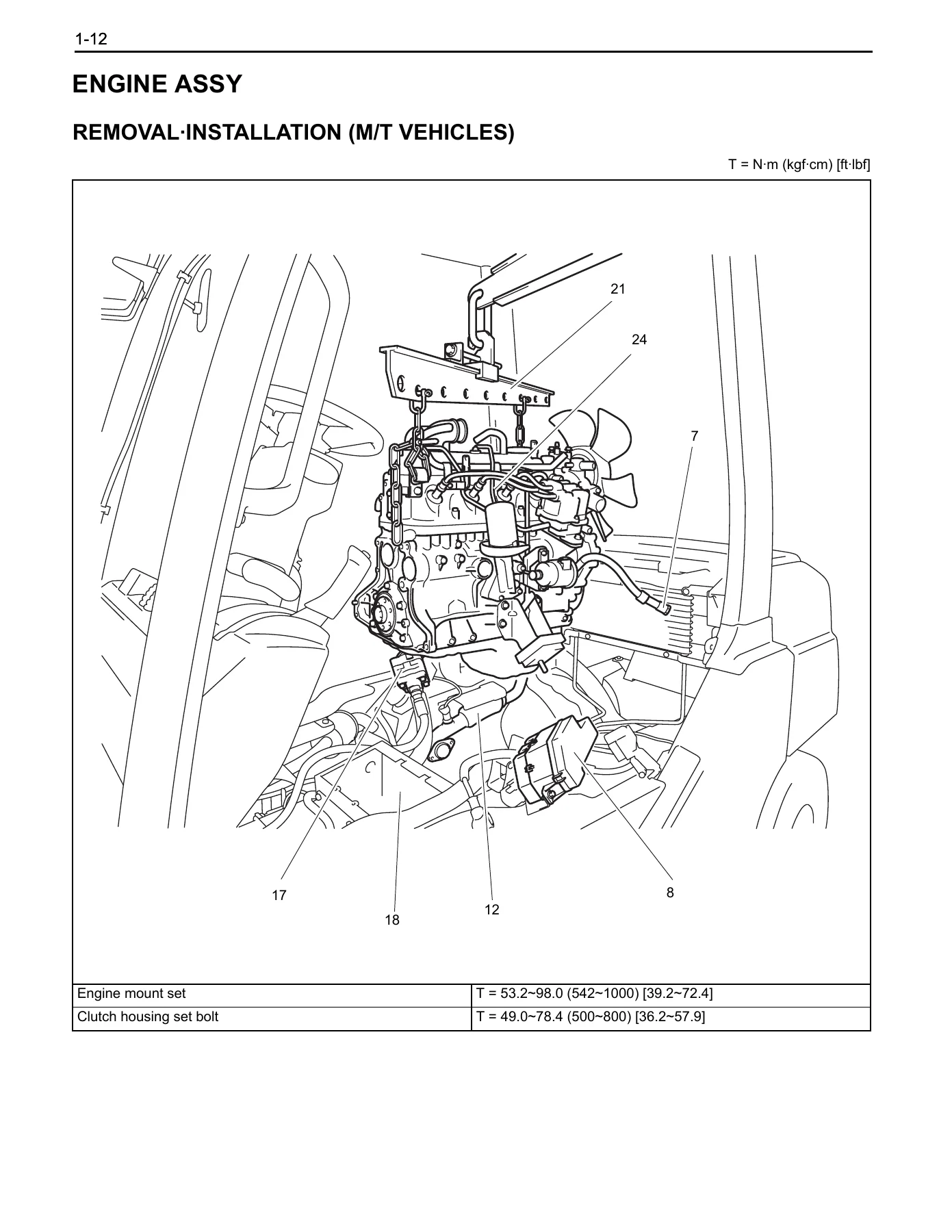

- Engine assembly removal/installation and diesel fuel-system air bleeding
- Engine inspection/adjustment, air cleaner, radiator, exhaust, battery and V-belt
- Accelerator, drive-control device and optional DPF-II system troubleshooting
- Clutch
- Dry clutch specifications, components, cover, master cylinder and release cylinder
- Optional oil clutch, booster and release-cylinder service
- Air bleeding and clutch-pedal/release-cylinder adjustment
- Torque Converter & Transmission
- Hydraulic circuit, specifications and component layouts
- Control valve, torque converter, oil pump and transmission assembly service
- Clutch drum and direction switch service
- Oil-pressure measurement, troubleshooting and stall test
- Manual Transmission
- Transmission specifications and component layouts
- Transmission assembly removal, disassembly, inspection and reassembly
- Speed shaft, countershaft, shift-link bracket, shift lever and wire cable
- Propeller Shaft
- Specifications, components, removal/installation and universal-joint service
- Differential
- Differential assembly service, inspection, adjustment and related drive components
- Front Axle
- Front axle, hub, shaft, bearings, bracket and housing service
- Rear Axle
- Rear axle assembly removal/installation, hub service and clearance checks
- Steering
- Steering system components, inspection, adjustment and service procedures
- Brake
- Brake-system inspection, component service, adjustment and hydraulic procedures
- Body
- Body and frame-related removal, installation and service operations
- Material Handling System
- Forks, mast/lift bracket, chains, attachments and hydraulic-system inspection
- Mast
- Mast assembly service, rollers, chains and lift-cylinder alignment/adjustment
- Cylinder
- Hydraulic cylinder service, inspection and reassembly procedures
- Oil Pump
- Hydraulic oil-pump service, inspection and related specifications
- Oil Control Valve
- Valve construction, hydraulic circuits, specifications and service procedures
- Mini Lever·Joystick
- Optional material-handling control components, hydraulic control and troubleshooting
- SAS/OPS
- System of Active Stability and Operator Presence Sensing functions
- Sensors, controller, matching, checks, diagnosis memory and plug-in analyzer procedures
- SST List·Service Standards List
- Special service tools and consolidated service-standard references
- Multifunction Display (OPT)
- Display functions, analyzer-related service functions and diagnostic operations
- Electrical System Troubleshooting
- Electrical diagnosis by system, connectors, signals and fault checks
- Wiring Diagram
- Electrical wiring-diagram reference for the covered forklift systems
Taken as a whole, these chapters give a technician a single Volume 1 reference for routine maintenance, mechanical strip-down and reassembly, hydraulic service, adjustment, system checks and diagnosis across the covered Toyota 8FG and 8FD forklift families. The repeated use of illustrated component views, step-by-step point operations, standard/limit values and specified tightening torques is especially useful when checking wear, setting clearances or rebuilding assemblies rather than simply replacing parts.
IMAGES PREVIEW
Useful Workshop Specifications Included
The manual contains extensive model-dependent specifications. Examples include 4Y, 1DZ-II and 2Z engine dimensions and performance data; coolant and lubricant capacities; battery specifications; clutch dimensions and adjustment values; torque-converter pressures and stall speeds; manual-transmission ratios and clearances; axle and hub settings; hydraulic relief pressures and flow rates; and numerous torque, wear-limit and adjustment tables. Values are presented in the units used by the manual, often with metric and imperial equivalents.
Its troubleshooting sections cover both conventional mechanical faults and electronically monitored systems. The optional DPF-II section includes component checks, connector diagrams, error-code procedures, regeneration information and diagnostic flow charts. SAS/OPS coverage includes sensor and controller work, matching procedures, operation checks and analyzer functions. That combination makes the Toyota 8FG 8FD 10-30, 8FGK/8FDK & 8FGJ/8FDJ Forklift Repair Manual Vol. 1 useful for workshops handling both basic mechanical repairs and system-level diagnosis.
Repair and Diagnostic Capability
With this manual you can follow the documented procedures for removing and installing major forklift assemblies, dismantling and rebuilding covered components, checking wear against service standards, setting clearances and adjustments, measuring hydraulic and transmission pressures, servicing clutch and transmission systems, maintaining the mast and material-handling hydraulics, and tracing faults through the manual’s troubleshooting sections. Illustrated procedures and specified torque values help reduce guesswork during reassembly, while maintenance charts and fluid data support correct routine service.
For owners, fleet workshops and technicians working on the listed Toyota models, having the correct model-specific procedures and specifications matters when a repair involves safety-critical steering, braking, lifting, hydraulic or stability systems. This is an instant PDF download, so there is no shipping wait. The file can be opened on compatible phones, tablets and computers and pages can be printed as needed for workshop reference.
