Toyota Electric Forklift 8FB10-30 8FBJ35 Electrical Troubleshooting Manual Vol.2 CE210

Description

Toyota Electric Forklift 8FB10-30 & 8FBJ35 – Electrical Troubleshooting Volume 2 (CE210)

This is the complete Volume 2 Troubleshooting manual for Toyota’s 8FB10 through 8FB30 and 8FBJ35 series electric powered forklifts. Published under document number CE210 with content reflecting the January 2017 production specification, this manual is dedicated entirely to the electrical systems – the motor drivers, main controller, display, sensors, solenoids, contactors, wiring, and the complete diagnostic code library that keeps these trucks running.

Where Volume 1 (CE209) handles chassis, body, material handling systems and general maintenance, this volume goes straight into the electrical architecture. It is the manual a technician reaches for when a spanner icon appears on the display, when the truck refuses to travel, when material handling cuts out, or when the steering suddenly becomes heavy. Over 550 pages of diagnostic procedures, wiring diagrams, connector pinouts, and component-level troubleshooting make this the definitive electrical reference for the 8FB series.

File Details

• Manual Type: Electrical Troubleshooting & Wiring Diagrams (Volume 2)
• Brand: Toyota
• Models Covered: 8FB10, 8FB14, 8FB15, 8FB18, 8FB20, 8FB25, 8FB30; 8FBH10, 8FBH14, 8FBH15, 8FBH18, 8FBH20, 8FBH25; 8FBJ35
• Document Number: CE210
• Publication Date: January 2017
• Language: English
• File Format: PDF
• Page Count: 551 pages

Chapters Covered

The manual is organised into two main sections – Electrical Troubleshooting and Appendix – with the troubleshooting content forming the bulk of the volume.

1. Electrical Troubleshooting

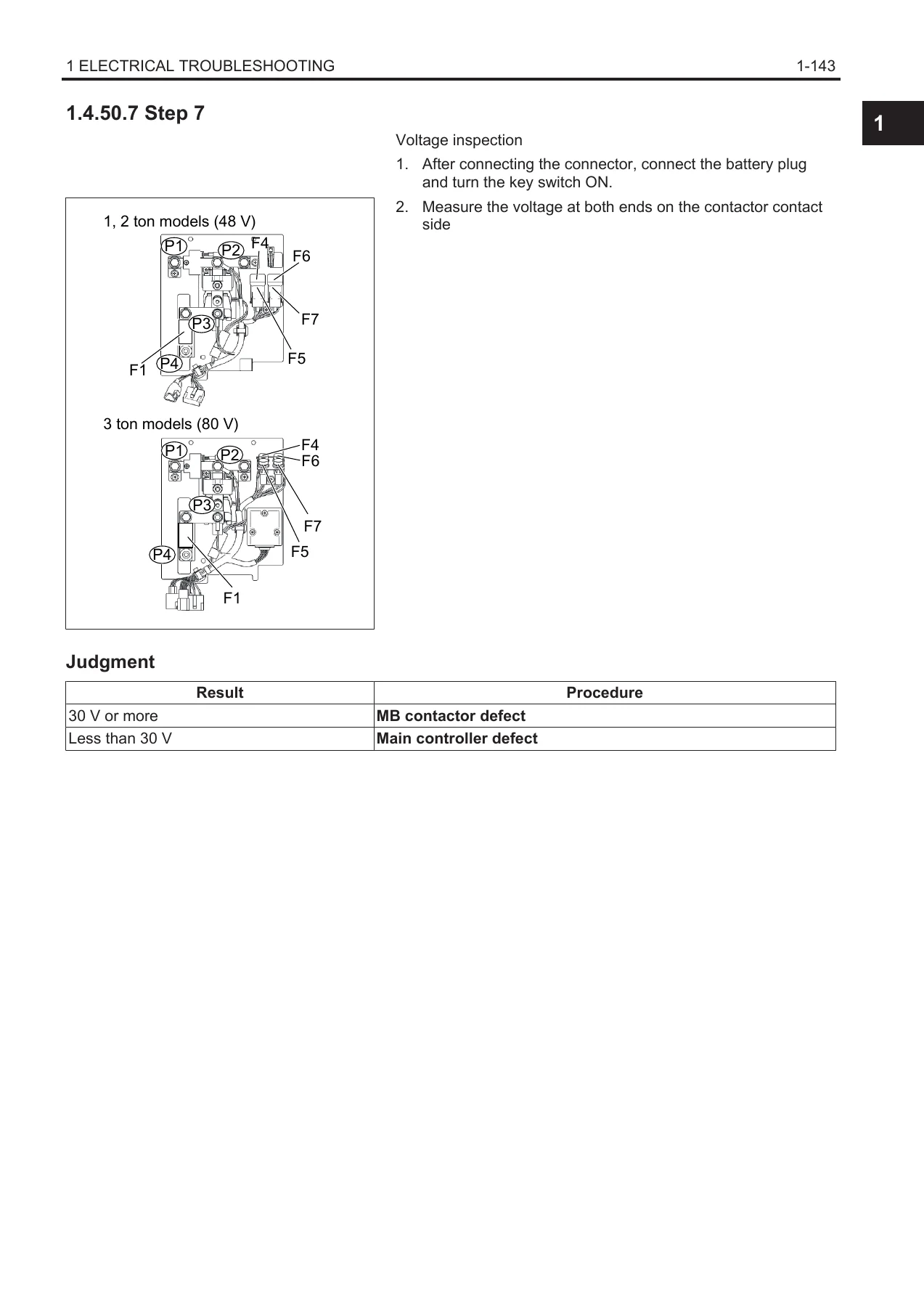

This is the heart of the manual. It opens with the Special Service Tools (SST) required for accurate electrical diagnosis, then walks through the correct procedures for handling connectors, checking wire harnesses, and verifying continuity and insulation resistance before any board or controller is condemned. From there it presents the complete diagnosis code list – every display code, memory code, indicator state, detection ECU, failure mode, and the resulting vehicle behaviour. The rest of the chapter is a massive step-by-step troubleshooting section, with each code given its own procedure: probable causes, related component diagrams, connector references, measurement points, standard values, and clear judgment criteria.

Codes covered include the full A-series (A0-1 through A9-2), C-series (C0-2 through C9-3), CB-series (CB-1 through CB-5), CC-series, E-series (E0-2 through EC-6), ED-series, EE-series, F-series (F1-1 through F8-2), FA-series, FB-series, FC-1, FF-series, and the two-digit codes (32-1 through 74-1). Each procedure tells you what to measure, where to measure it, what the reading should be, and what to replace if it is not. There are cooling fan circuits, motor driver high-voltage checks, battery connection diagnostics, seat switch and tilt switch tests, potentiometer inspections for accelerator, brake, lift, tilt and attachment levers, rpm sensor checks, yaw rate sensor tests, shock sensor diagnostics, and solenoid drive circuit inspections.

2. Appendix

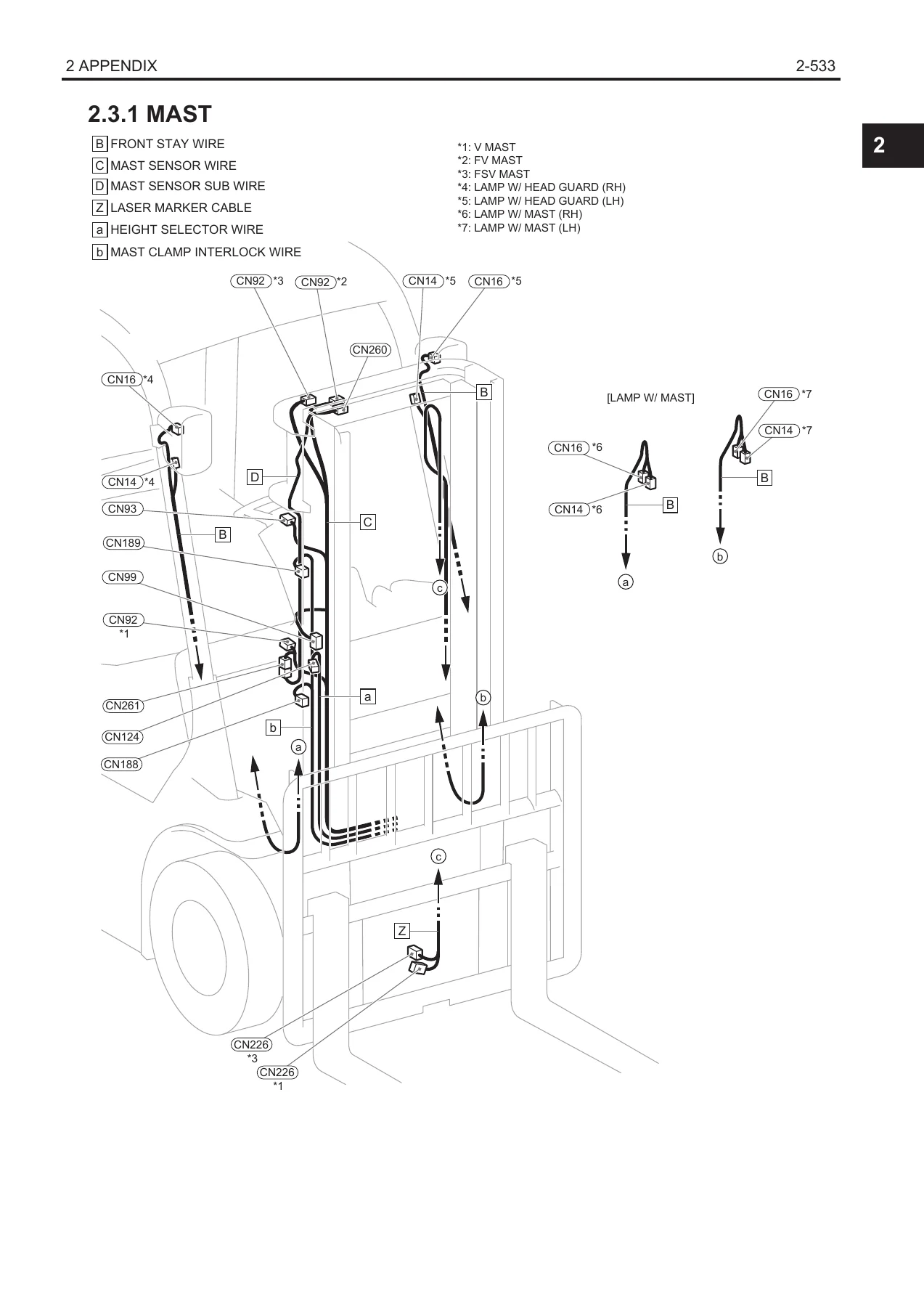

The appendix is a reference goldmine. It includes the complete SST list with part numbers, detailed connector drawings showing every pin position, connector location diagrams for the mast, instrument panel, cables, rear body and rear upper sections, the full connecting diagram, and the sequence diagram. The connector location section alone is worth the price of the manual – it shows exactly where every plug, sensor, solenoid and controller is physically located on the truck.

What This Manual Enables You to Do

With this manual open, you can:

• Read and clear every diagnosis code the 8FB series can display
• Trace electrical faults from the display code back to the faulty component
• Test motor drivers, main controller, sensors, solenoids and contactors with confidence
• Measure the right pins at the right connectors with the right expected values
• Diagnose communication faults between the main controller, motor drivers, display and CAN bridge
• Verify the condition of the battery, cooling fans, power supply circuits and safety interlocks
• Locate every connector on the vehicle using the connector location diagrams
• Understand the electrical architecture through the connecting and sequence diagrams

Why This Manual Matters

Electric forklifts are complex machines. When a Toyota 8FB series truck goes down, the difference between a quick fix and an expensive parts-swapping exercise is diagnostic information. This manual gives you the exact procedures Toyota’s own technicians use – the SST connections, the expected voltage and resistance readings, the step-by-step logic that isolates the faulty component without guesswork. Whether you are dealing with a DCR overheat warning, a pump motor driver communication error, an accelerator potentiometer offset fault, or a lift lock solenoid circuit problem, the troubleshooting path is laid out in full.

For fleet managers, this manual means less downtime and lower repair costs. For independent workshops, it means the ability to service Toyota electric forklifts to the same standard as a dealer. For technicians, it means having the complete electrical reference for the 8FB10 through 8FBJ35 series at your fingertips.

IMAGES PREVIEW

Instant PDF Delivery

This manual is delivered as an instant PDF download. No shipping, no waiting, no physical media. The file works on any device – laptop, desktop, tablet or smartphone – and every page is printable if you prefer a paper copy in the workshop. You get the complete Volume 2 Troubleshooting manual for the Toyota 8FB10-30 and 8FBJ35 series, exactly as published under CE210, ready to use the moment your payment is confirmed.
