Toyota U151E U151F Automatic Transaxle Repair Manual RM1021U

Description

Toyota U151E U151F Automatic Transaxle Repair Manual RM1021U

This Toyota U151E U151F Automatic Transaxle Repair Manual RM1021U is a factory-style workshop manual built entirely around the removal, disassembly, inspection, reassembly and installation of the U151E and U151F automatic transaxle units. Every procedure in this Toyota U151E U151F manual follows the same disassembled-parts drawing format used by Toyota technicians, so a tightening torque, a non-reusable part, or an oil-applying point is never buried in a paragraph — it sits right next to the illustration it belongs to.

File Details

• Manual type: Automatic Transaxle Repair Manual
• Brand / Units covered: Toyota U151E and U151F automatic transaxles
• Document number: RM1021U
• Language: English
• Page count: 155 pages
• File format: PDF, digital download

IMAGES PREVIEW

Chapters Covered

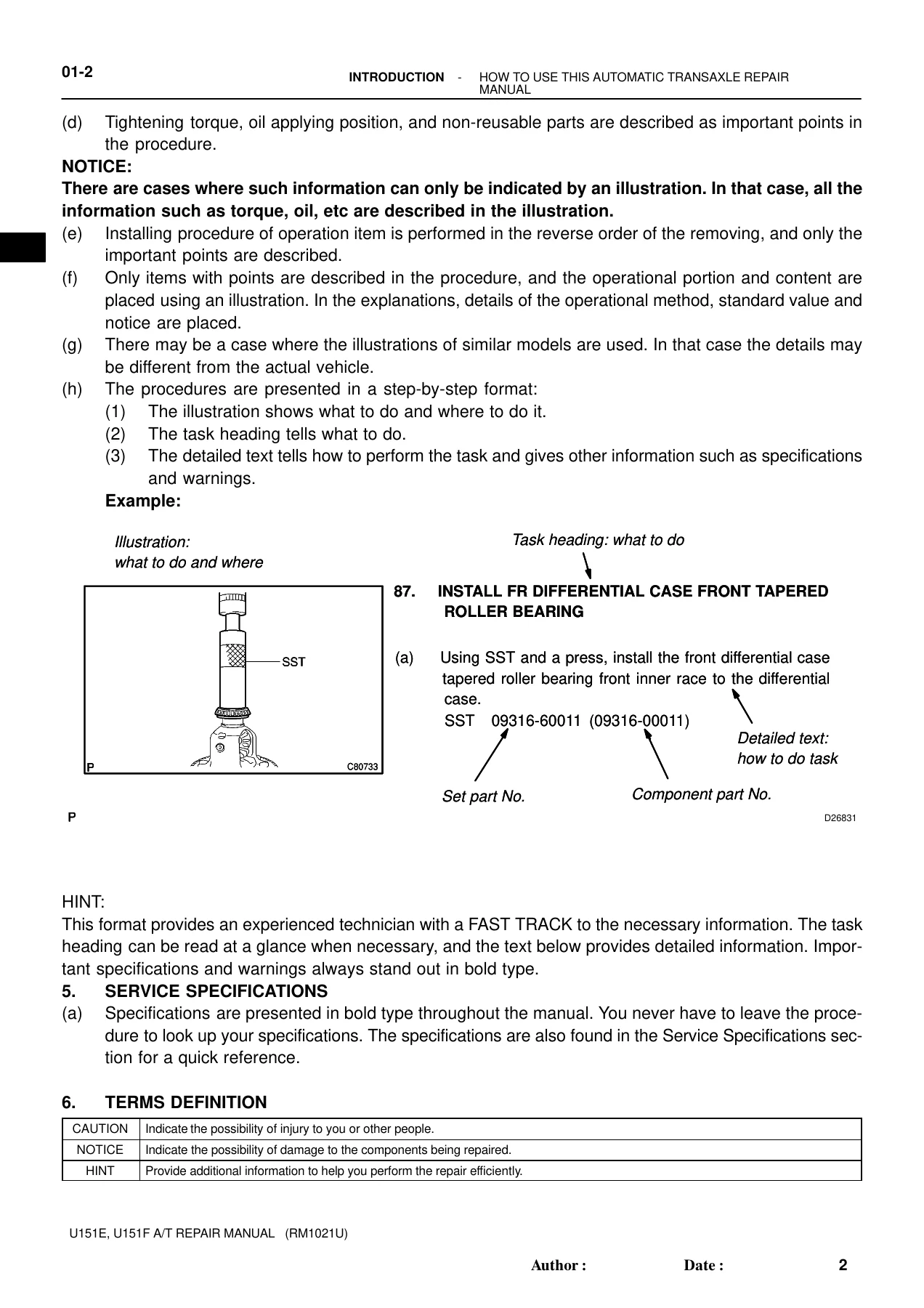

• Introduction – how to use this automatic transaxle repair manual, general description of the 3-stage repair process

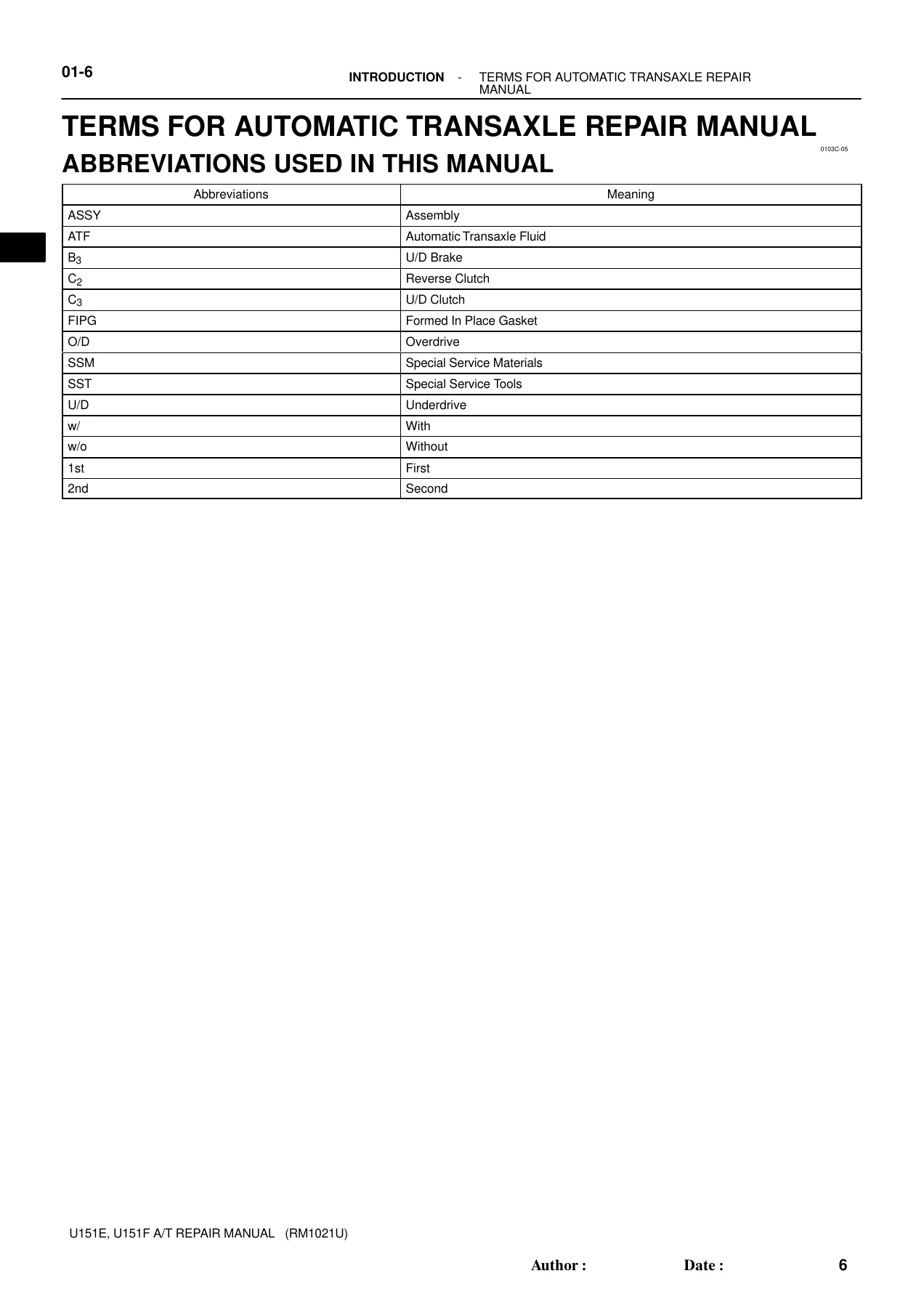

• Introduction – terms for automatic transaxle repair manual, abbreviations, and glossary of SAE and Toyota terms

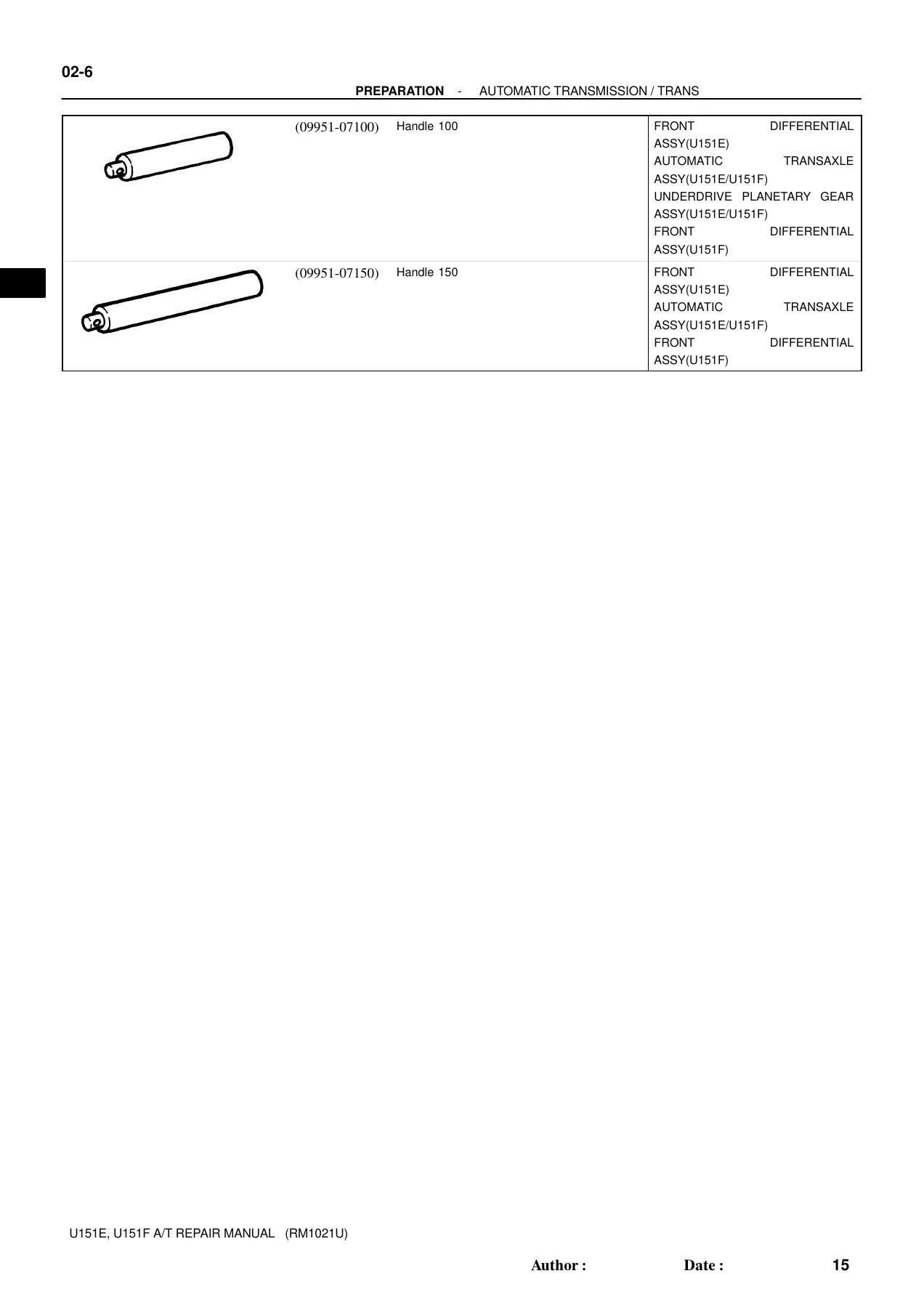

• Preparation – special service tools (SST) and special service materials (SSM) by part number
• Preparation – recommended equipment, ATF type T-IV fill and drain/refill capacities
• Service Specifications – standard bolt strength charts and specified torque for standard bolts
• Service Specifications – automatic transmission/transaxle service data (clearances, spring free lengths, flange thickness marks)
• Service Specifications – torque specification table for the complete transaxle assembly
• Automatic Transmission / Transaxle (U151E/U151F) – components and on-transaxle hardware
• Automatic Transaxle Assembly – full disassembly and reassembly
• Oil Pump Assembly, Forward Clutch, Direct Clutch and Overdrive Clutch overhaul
• Underdrive Planetary Gear Assembly and Front Planetary Gear overhaul
• Front Differential Assembly, separately detailed for U151E and U151F
• Transmission valve body, shift solenoids (SL1, SL2, SL3, S4, DSL) and line pressure control solenoid

Taken together, this Toyota U151E U151F automatic transaxle repair manual gives a technician everything needed to work through a full transaxle overhaul from the outside in: removing the unit’s external hardware, splitting the case, pulling clutch packs and planetary gearsets, rebuilding the valve body, and putting it all back together to factory torque and clearance values.

Service Data You Can Actually Use

Rather than vague ranges, this manual prints exact standard and maximum values — oil pump body, tip and side clearances, drive and driven gear thickness by mark, and pack clearances for the forward clutch, reverse clutch, direct & O/D clutch, 2nd brake, U/D clutch, U/D brake, and 1st & reverse brake. Flange-thickness selection charts are included for each clutch pack so the correct shim can be picked during reassembly instead of guessed at. Accumulator spring free lengths, outer diameters and color codes (B3, C2, C3) are listed alongside front differential backlash, preload, and thrust-washer thickness marks for both the U151E and U151F differentials.

Torque Values for the Full Rebuild

A dedicated torque specification table lists Newton-meter, kgf·cm and ft·lbf values for every major fastener in the U151E/U151F transaxle — front planetary gear lock nut, transaxle housing bolts, oil pump assembly bolts, valve body bolts, shift solenoid bolts, oil pan and drain plug, speed sensor, oil cooler tube union and elbow, and the park/neutral start switch. These values are pulled directly into the disassembly and reassembly steps as well, so the correct torque is always visible at the point it’s needed.

Get This Toyota U151E U151F Repair Manual Instantly

This Toyota U151E U151F Automatic Transaxle Repair Manual RM1021U is built for the technician actually rebuilding the unit: it supports diagnosing worn clutch packs and planetary bearings, disassembling and inspecting the oil pump and valve body, selecting correct clutch-pack shims, and reassembling the transaxle to the exact clearances and torque values Toyota specifies. Working to the printed specifications rather than a guess is what keeps a rebuilt U151E or U151F shifting correctly and holding line pressure afterward. The manual downloads instantly as a PDF after checkout — no shipping wait, no physical copy to lose in the shop. Read it on a phone, tablet, laptop or shop PC, or print out just the pages you’re working from.
