Triumph Speed Triple 1050 Service Manual – 2007 Workshop Repair PDF

Description

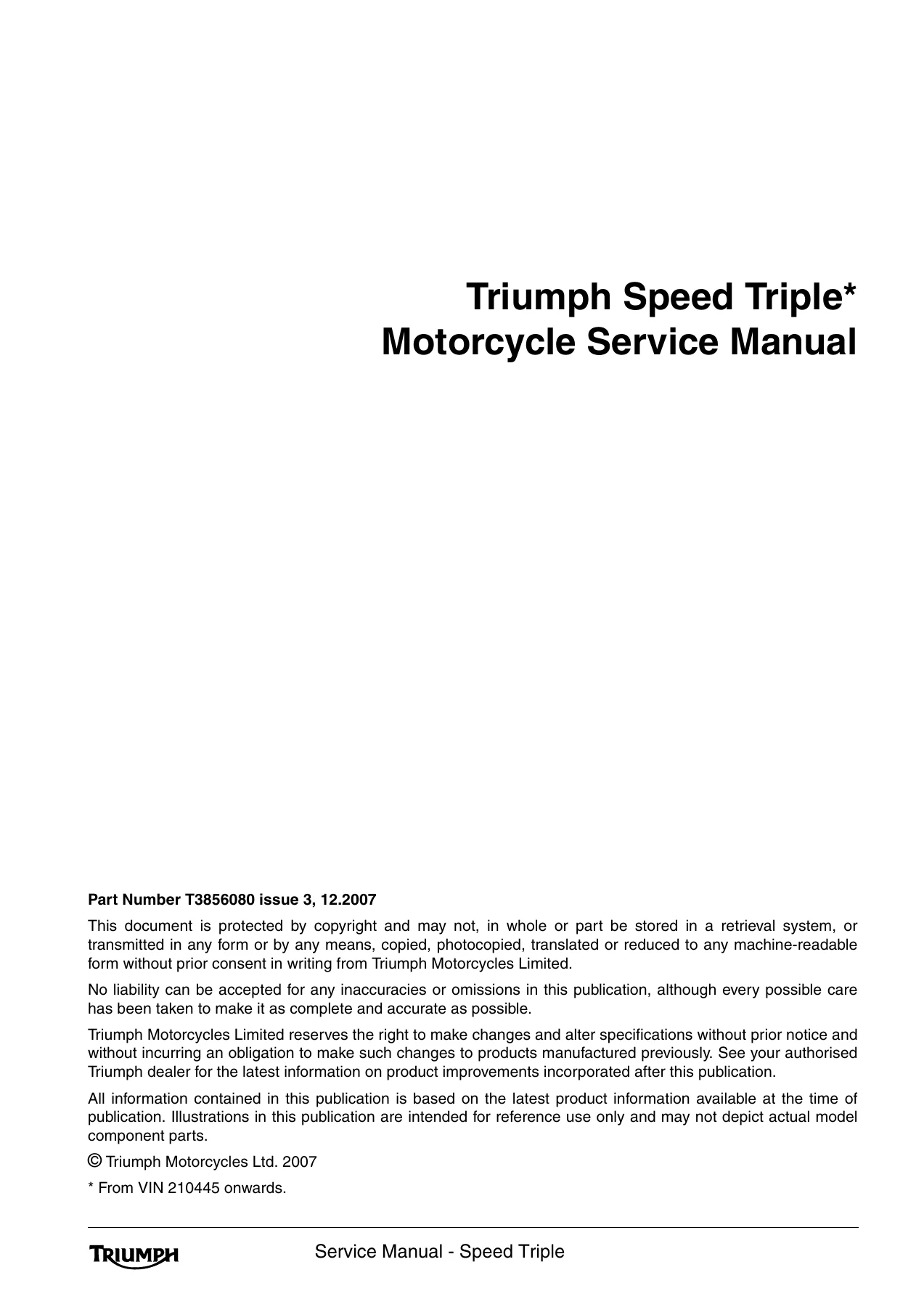

The Triumph Speed Triple 1050 Service Manual is the full workshop repair guide for the 1050cc three-cylinder Speed Triple, published by Triumph Motorcycles Limited under part number T3856080, Issue 3, dated December 2007. This 504-page PDF walks through every major system on the motorcycle, from cylinder head removal and valve clearance adjustment to engine management pinpoint diagnostics, full colour wiring schematics, torque tables, and scheduled maintenance intervals. It is the same reference used by trained technicians in a properly equipped workshop, and it is detailed enough for a competent owner to carry out basic maintenance and repair work at home provided the correct hand and special service tools are on hand.

File Details

• Manual type: Motorcycle Service / Workshop Manual
• Brand: Triumph
• Model: Speed Triple (1050cc)
• Part number: T3856080
• Issue: 3
• Publication date: 12.2007
• Coverage: From VIN 210445 onwards
• Language: English
• Page count: 504
• File format: PDF

Chapters Covered

• 1. General Information – ignition and fuel safety, dangerous substances, fluoroelastomers, health and environmental protection, brake safety, jacking and lifting, coolant, cleaning, lubrication, joints and gaskets, locking devices, split pins and circlips, encapsulated bolts, seals, bearings, fuel handling, electrical precautions, Ohm’s Law, circuit diagram glossary, CAN networking, charging circuit diagnosis, starting circuit diagnosis, specification and service data, torque wrench settings, cable and hose routing
• 2. Scheduled Maintenance – daily checks and the full scheduled maintenance chart with odometer intervals

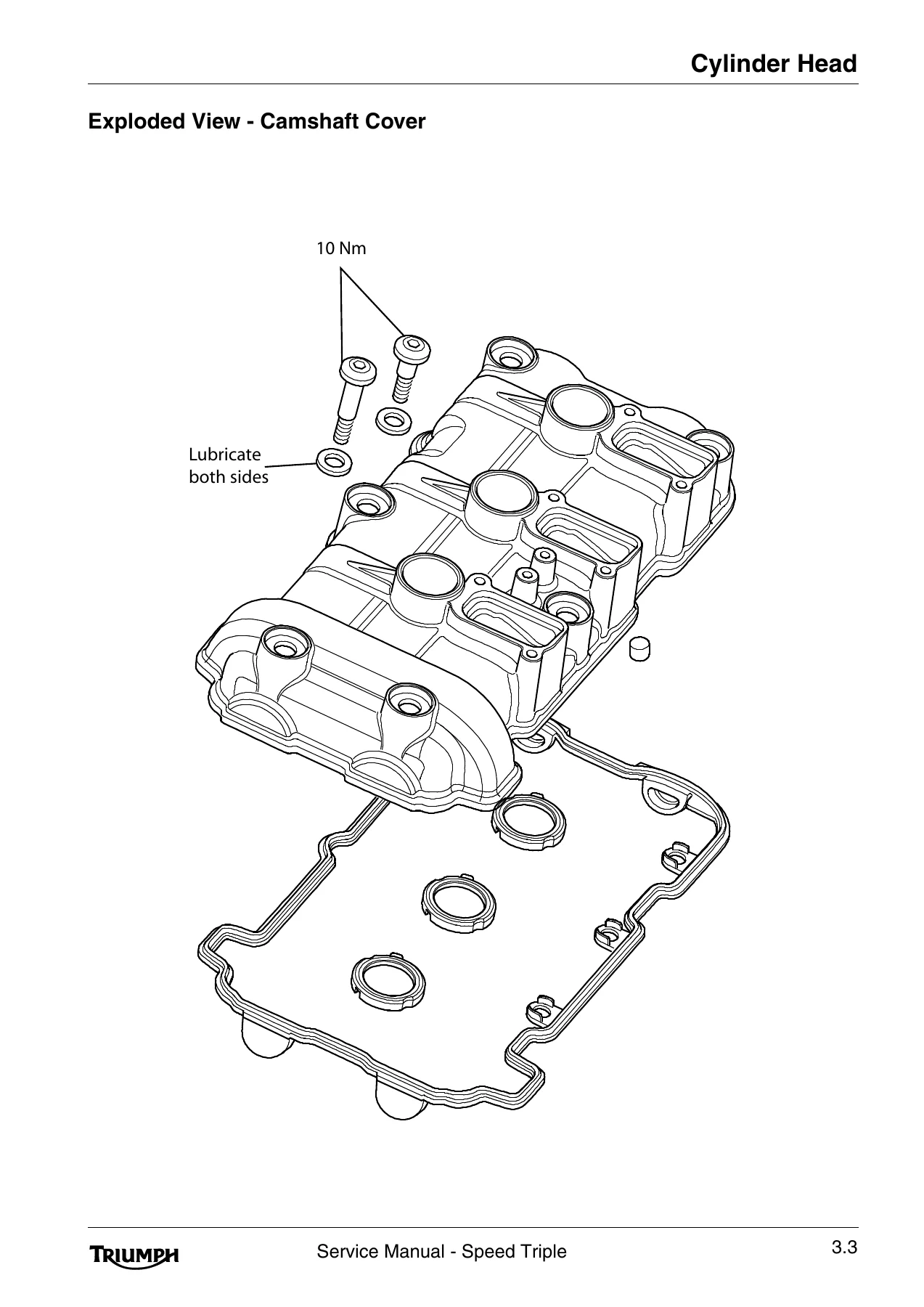

• 3. Cylinder Head – camshaft cover, camshaft drive chain tensioner, camshafts, valve clearances, camshaft chain, cylinder head removal and installation, valves and valve stem seals, valve guide clearance, valve face inspection
• 4. Clutch – clutch cable, clutch disassembly, friction plate inspection, clutch assembly
• 5. Crankshaft, Connecting Rods and Pistons – crankcase disassembly and assembly, crankshaft removal and installation, connecting rods, big end bearing selection, crankpin wear check, pistons, cylinder liners, crankcase breather
• 6. Balancer – balancer shaft removal, inspection and installation
• 7. Transmission – selector shaft, selector forks and drum, input and output shaft assemblies, starter drive gears, sprag clutch
• 8. Lubrication – engine oil circuit description, engine oil specification, oil level inspection, oil and filter change, oil pump, low oil pressure warning light switch, sump, oil cooler
• 9. Engine Removal/Refit – full removal and installation procedure
• 10. Fuel System/Engine Management – fuel requirements, glossary of terms, engine management system description, sensor and actuator locations, engine management circuit diagrams, on-board diagnostics, Triumph diagnostic tool operation, current and freeze frame data, function tests, checks and adjustments, ECM connectors, pinpoint tests for crankshaft sensor, idle speed control, fuel injectors, throttle position sensor, purge valve, ignition coils, coolant temperature sensor, inlet air temperature sensor, fuel pump relay, system voltage, cooling fan relay, lambda sensor and heater, fall detection switch, vehicle speed sensor, CAN communication, fuel level sensor, ambient pressure sensor, MAP sensor, secondary air injection valve, EMS main relay, EEPROM error, ignition voltage input, 5V sensor supply; fuel tank removal and installation, fuel pump and filter, fuel level sender, fuel pressure checking, airbox, air filter, intake air temperature sensor, MAP sensor, barometric pressure sensor, fall detection switch, crankshaft position sensor, throttle cable, throttle bodies and injectors, throttle body balancing, throttle position sensor renewal, idle speed control stepper motor renewal, exhaust system, secondary air injection, evaporative emissions control (California models)
• 11. Cooling – coolant, radiator hoses, radiator and cooling fan, coolant level inspection, coolant replacement, water pump, coolant pressure cap, thermostat, radiator, expansion tank
• 12. Rear Suspension – drive chain lubrication and adjustment, chain free-movement inspection and adjustment, chain wear inspection, rear suspension unit, drop link, drag link, swinging arm and drive chain, final drive and rear hub bearings, drive chain replacement
• 13. Front Suspension – fork inspection, front fork removal and installation, fork oil change, front fork disassembly, inspection and assembly, handlebars removal and installation, headstock bearing check, adjustment, removal and installation
• 14. Brakes – braking system safety precautions, fluid level inspection, changing brake fluid, brake pad wear inspection, bleeding front and rear brakes, front brake pads, front brake caliper, front discs, front brake master cylinder, rear brake pads, rear brake caliper, rear brake disc, rear master cylinder
• 15. Wheels/Tyres – tyre pressures, tyre wear and wheel inspection, front wheel removal and installation, rear wheel removal and installation, front wheel bearing, rear wheel bearing, rear hub bearing lubrication
• 16. Frame and Bodywork – frame and footrest inspection, seat, rear panels, side panels, front mudguard
• 17. Electrical – battery removal and refit, new battery commissioning, battery maintenance, relays, fuses, instrument assembly, headlights, headlight bulb replacement, position lamp bulb, rear light, indicator lights, licence plate light, starter motor, alternator, alternator rectifier, alternator stator pinpoint tests, rectifier/regulator pinpoint tests, lighting circuit, starting and charging circuit, auxiliary and accessory circuit, complete system wiring diagram

Across its seventeen sections this service manual delivers the full factory-level procedure set for the Speed Triple 1050. You get step-by-step disassembly and assembly instructions with torque values, wear limits, and service data printed alongside each job; wiring schematics for every circuit on the bike; exploded views of the major assemblies; and pinpoint diagnostic routines keyed to specific DTCs from the engine management system. The scheduled maintenance chart alone maps every service item from the 500-mile first service through to the 36,000-mile interval, so you always know what to check and when.

Engine, Transmission and Performance Specifications

The manual covers the 1050cc transverse in-line three-cylinder, 12-valve DOHC engine with a 79 x 71.4 mm bore and stroke and a 12.0:1 compression ratio. Maximum power is listed at 130 PS (128 bhp) at 9,100 rpm up to VIN 281465 and 132 PS (131 bhp) at 9,250 rpm from VIN 281466, with 105 Nm (77 ft.lbf) of torque produced at 7,500 rpm up to VIN 281465 and 7,550 rpm from VIN 281466. The transmission is a six-speed constant mesh unit with a chain final drive, and the fuel system is an electronic sequential injection setup running at a nominal 3.0 bar fuel pressure. Coolant capacity is 2.8 litres, oil capacity is 3.50 litres on a dry fill, and the fuel tank holds 18 litres. Full torque wrench settings are laid out at the back of Section 1 covering the cylinder head, clutch, balancer, crankshaft, crankcase, engine covers, transmission, lubrication, final drive, cooling, fuel system, exhaust, airbox, rear and front suspension, wheels, front and rear brakes, frame, footrests, control plates, engine mountings, electrical and bodywork.

What This Workshop Manual Enables You to Do

With this Triumph Speed Triple 1050 service manual on hand you can carry out the same scheduled maintenance and repairs a Triumph dealer would perform, using the manufacturer’s own torque values, service limits and procedures. That includes adjusting valve clearances with the correct shim selection chart, renewing the camshaft drive chain and tensioner, rebuilding the clutch pack, checking crankpin and main bearing clearances with Plastigage, selecting the correct big end and main bearing shells by colour code, replacing pistons and liners, and reassembling the crankcases with the correct silicone sealer application and bolt tightening sequence. On the chassis side it covers fork oil changes with the 120 mm oil level setting, headstock bearing adjustment via the adjuster nut and locknut torque figures, brake caliper and master cylinder overhauls, ABS-free brake bleeding sequences for both early and late VIN ranges, rear hub and swinging arm bearing replacement, and drive chain wear measurement across 20 links with the 321 mm service limit.

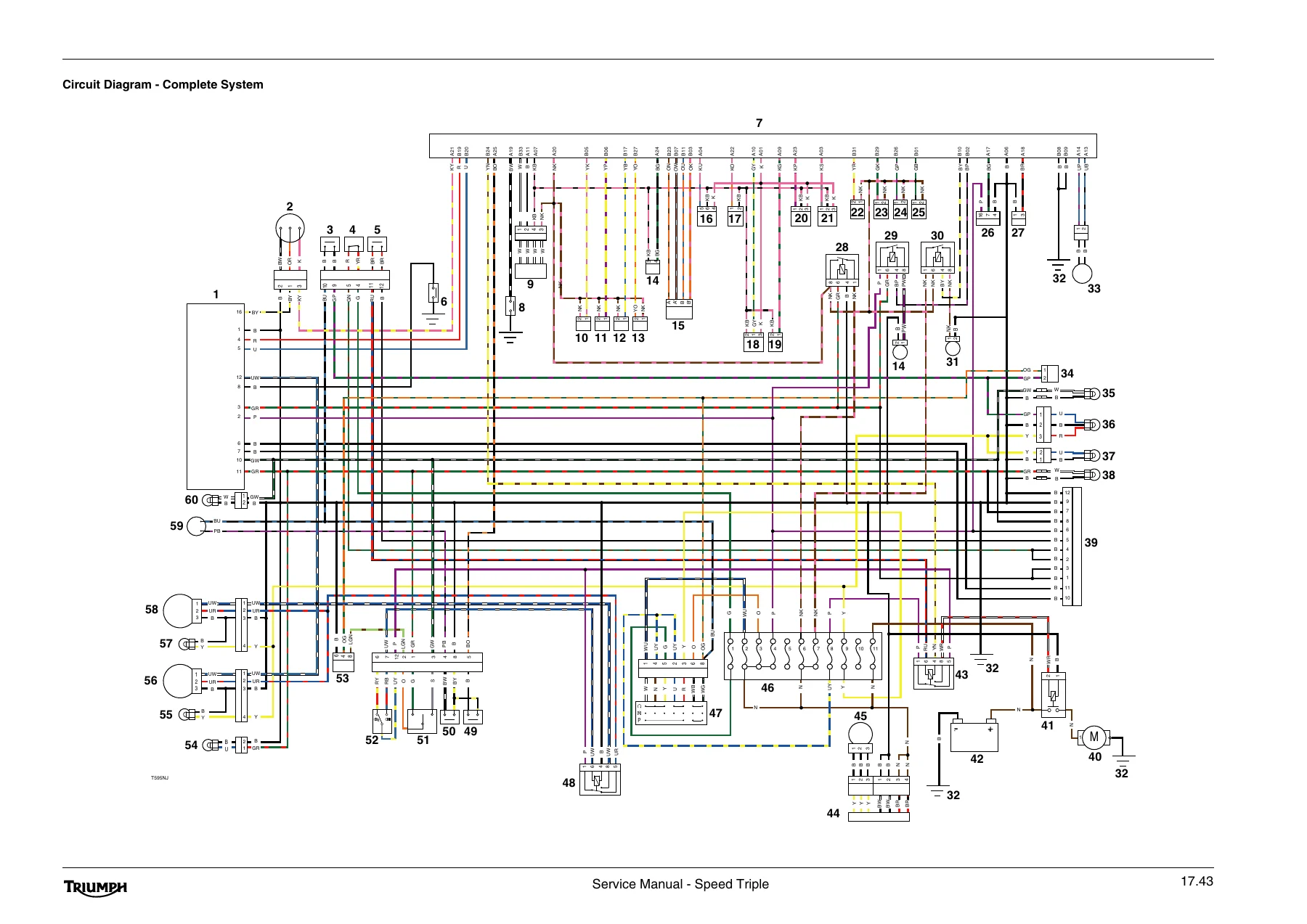

On the electrical side the manual opens up the whole CAN-based engine management system, from the sensor and actuator locations through to step-by-step pinpoint tests for each DTC – so a misfire, a fan that never runs, a lambda fault or a CAN communication problem can be traced to the exact wire, pin or component before any parts are ordered. The complete system circuit diagrams are included in colour, covering the lighting circuit, starting and charging circuit, auxiliary and accessory circuit, and full-bike wiring for both the pre-281465 and post-281466 VIN ranges.

Who This Manual Is For

This PDF is written for trained technicians working in a properly equipped workshop, but it also contains enough basic information to make it useful to the owner who wants to carry out their own maintenance and repairs. A basic knowledge of mechanics, the correct hand tools and the specified special service tools are prerequisites for the more advanced jobs. Where an operation requires a Triumph special service tool – such as the fork spring compressor, sprag clutch holder, clutch anti-rotation tool, swinging arm adjuster wrenches or cylinder liner extractor – the tool number is called out and illustrated in use. Warnings, cautions and notes are clearly marked throughout, and safety-critical procedures such as brake bleeding, fork spring compression and crankshaft bearing selection are flagged so they cannot be overlooked.

IMAGES PREVIEW

Instant PDF Delivery

This Triumph Speed Triple 1050 service manual is delivered as an instant PDF download – no shipping, no waiting for the post. Once payment is complete the file is available immediately and can be viewed on any phone, tablet, laptop or desktop PDF reader. Because it is a digital file it is fully printable, so you can print the specific pages you need for a job, take them into the garage, and keep the full manual on file for the next service. Whether you are servicing one bike or running a small workshop, having the factory procedure and specification set on hand means fewer stripped threads, fewer wrong parts, and a machine that leaves the garage running the way Triumph intended.
