TTS Marine HL6D MOB3200 R Davit User Manual – K5558

This comprehensive user manual covers the HL6D MOB3200 R TTS davit manufactured by TTS Marine Cranes AS for Aker Yards AS Brevik, Hull No. 56. Document number K5558, this manual provides complete operating, maintenance, and spare parts information for the davit system used to launch and recover MOB (Man Overboard) boats.

File Details

• Manual Type: User Manual
• Brand: TTS Marine Cranes AS
• Model: HL6D MOB3200 R TTS
• Equipment Type: Davit (MOB Boat Launching Appliance)
• Language: English
• Page Count: 113
• File Format: PDF
• Document Number: K5558
• Machine Number: K5558
• Customer: Aker Yards AS Brevik
• Hull Number: 56

Chapters Covered

• 1 – Introduction
  • Structure and Contents
  • Operator Information
  • Contact Information
  • Document Identification
  • Location of User Manuals
  • Abbreviations
• 2 – Main Data
  • Technical Specification
  • Hydraulic Pressure
  • Pump Capacity
  • El. Motor Data
  • External Connections
  • Restrictions in Use
  • Restrictions in Guarantee
  • Name Plate
  • Certificates
• 3 – Technical Description
  • General
  • Design and Function
  • Control Stand
  • Winch
  • Jib Cylinder
  • Hydraulic
  • Surface Treatment
• 4 – Preparation Installation
  • General
  • Mounting of TTS Marine Cranes AS Davit
  • Pre-Testing
  • Testing
  • Prior to Starting the Davit
• 5 – Operating Instructions
  • Prestart
  • Normal Operation
  • Normal Launching Procedure
  • Normal Recovery Procedure
  • Emergency Launching Procedure
  • Emergency Recovery Procedure
  • Disturbance of Operation
  • Hazards and Protective Measures
  • Operators Qualification Requirements
• 6 – Maintenance
  • General
  • Maintenance Log
  • Hydraulic System
  • Replenishment and Oil Change
  • Hydraulic Cylinder
  • Inspection of TTS Marine Cranes AS Davit
  • Weekly Inspection
  • Monthly Inspection
  • Years Inspection
  • 5 Years Inspection
  • Lubrication Standard
  • Davit Lubrication Schedule
  • Oil Quantities
  • Lubrication Chart
  • Cylinder Balance Valve
  • Winch Down Counter Balance Valve
  • Wire Rope
  • Method of Examination
  • Summary of Wire Examination
  • Replacing the Wire
  • Brilube Information
  • Appendices
• 7 – Data Sheets Spare Parts
  • General
  • Spare Parts Ordering
  • Index – Data Sheet / Spare Parts
• 8 – Parts List Drawings
  • Drawing List Index
  • Mechanical / Hydraulic Drawings
  • Electric Drawings
  • General Explanation to TTS Marine Cranes AS Parts List
  • Spare Parts Ordering

This TTS Marine HL6D MOB3200 R davit user manual K5558 is the complete documentation package for the MOB boat launching appliance installed on Aker Yards AS Brevik Hull No. 56. The manual opens with the complete technical specification for the davit, including its 3.2 tonne safe working load, 3.2 metre working radius, 20 metre lifting height, and operating limits of 20 degrees list and 10 degrees trim. The hydraulic section details main pressure of 250 bar, winch-up pressure of 190 bar, jib-out pressure of 90 bar, and a pump capacity of 102 litres per minute. The electric motor data covers the 690 V / 60 Hz / 3 phase motor, its 45/50 kW power rating, 1760 rpm rotational speed, IP 56 enclosure, and Class F insulation. The operator will also find the DNV EC type-examination certificate MED-B-3168 and the declaration of conformity included in the documentation.

Beyond the specifications, this HL6D MOB3200 R davit manual provides the full operating instructions that a certified operator needs. The prestart checklist covers oil level checks, hydraulic hose inspection, external damage assessment, motor rotation direction, and filter indicator status. The normal launching procedure walks through the crew entry, securing strap release, jib swing out, winch lowering, and quick release hook operation. The normal recovery procedure covers manoeuvring the MOB boat to the wire end, connecting the lifting ring, inserting the lock pin, and using the mooring lever in conjunction with the winch lever to lift the boat out of the water. The emergency launching procedure describes using the emergency release rope on the outer jib, building hydraulic pressure, swinging the davit out, and lowering the MOB boat without electric power. The emergency recovery procedure explains using the hand pump with the 3-way ball valve in the hand hoist position.

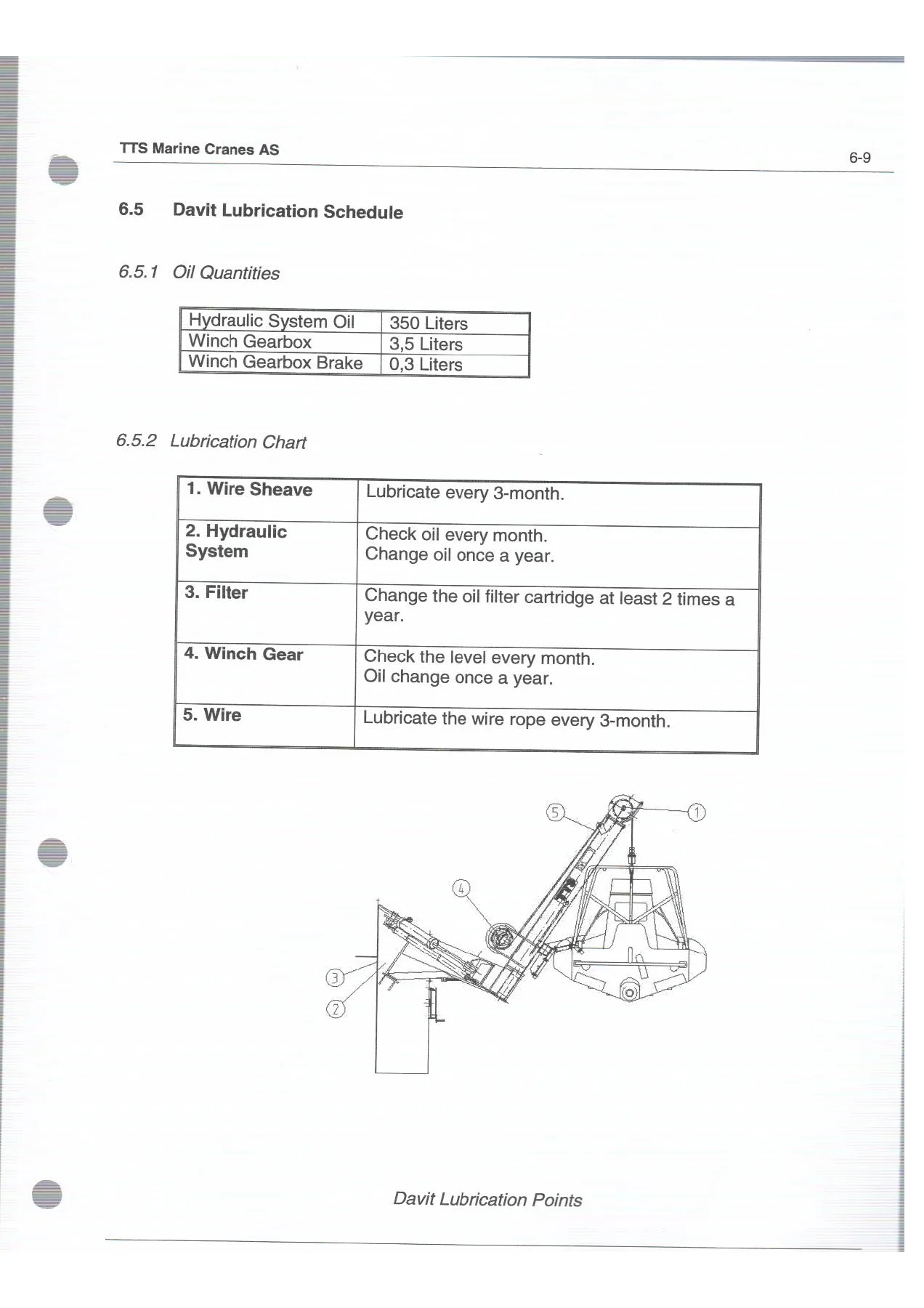

The maintenance chapter of this TTS Marine davit manual K5558 is particularly thorough. It covers the hydraulic system, oil replenishment and change intervals, hydraulic cylinder nitrogen pressure checks, and a complete inspection schedule with weekly, monthly, yearly, and five-year inspection requirements. The lubrication standard table lists the exact lubricants for the hydraulic system, grease nipple points, hydraulic cylinders, telescopic jib, steel wire, and threaded fittings. The davit lubrication schedule provides oil quantities and a chart showing where and when to lubricate the wire sheave, hydraulic system, filter, winch gear, and wire rope. The wire rope section covers examination methods, a summary of wire examination procedures, replacement instructions with back-tension requirements, and detailed Brilube 70 wire rope dressing information. The cylinder balance valve and winch down counter balance valve sections include adjustment procedures with illustrated components.

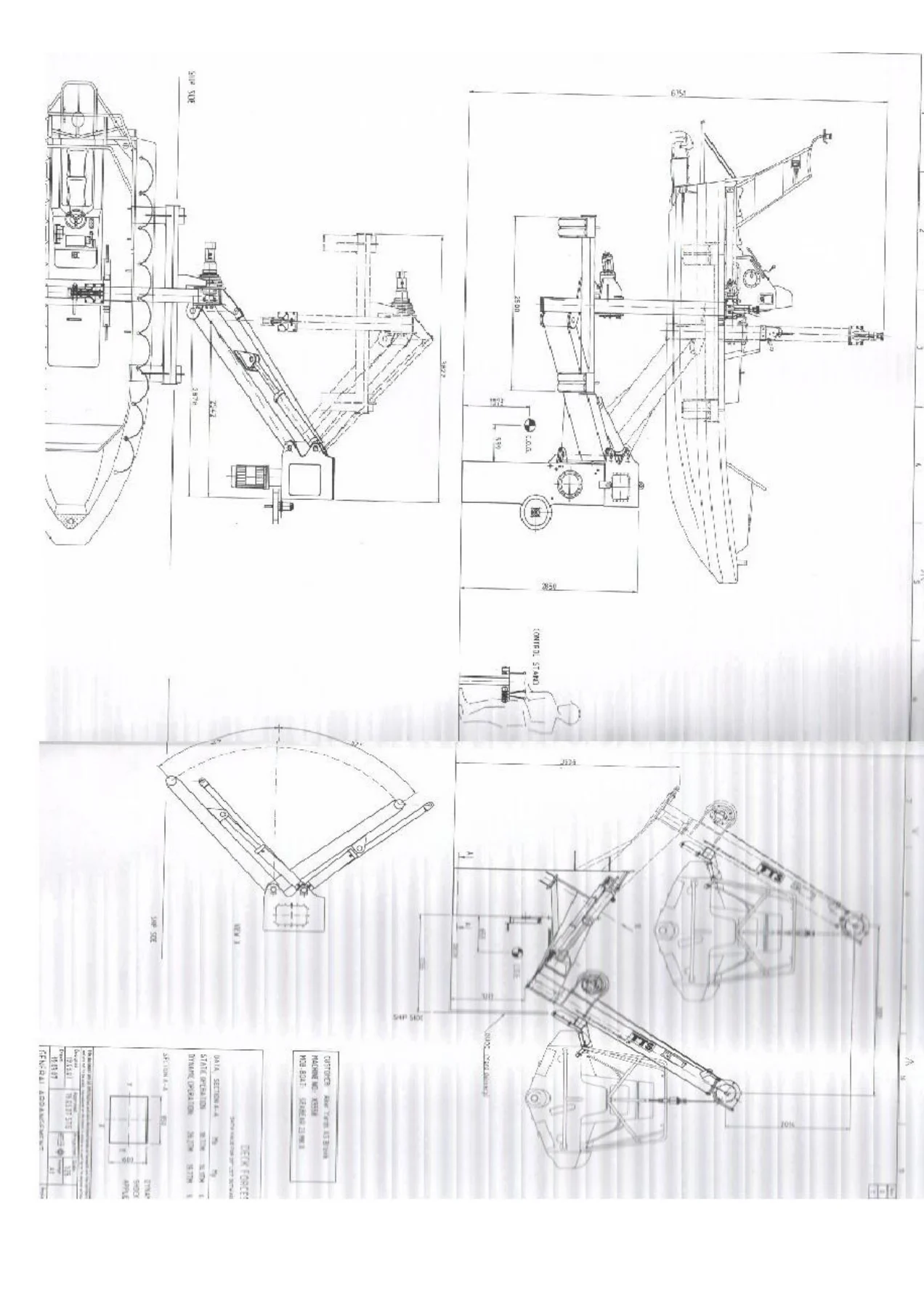

The spare parts and drawings chapters make this HL6D MOB3200 R TTS manual a complete reference for parts identification and ordering. The data sheet and spare parts index lists components including the electric starter, hydraulic cylinder, gear pump, directional control valve, return filter, axial piston motor, two-speed axial piston motor, winch gearbox, and block valve. The mechanical and hydraulic drawings index includes the general arrangement, control stand assembly, dead ship drum, pump and electric motor assembly, inner jib assembly, wire sheave unit, king assembly, outer jib assembly, and hydraulic flow sheet. The electric drawings index covers the el. control system overview, block diagram, main starter circuit diagram, and panel layout. The manual also includes the standard control station panel layout and the customer part lists with item numbers, tag numbers, quantities, and drawing references for every component.

The appendices in this user manual provide practical record-keeping tools for the vessel. The corrective measures report template, major repairs and modifications log, approved statement for years and five-year inspections, and lubrication for davit appendix give the operator a complete maintenance documentation system. The manual also includes the complete parts list for the hydraulic flow sheet, hydraulic hose list, and hydraulic bulk list, ensuring that every hose, fitting, and component can be identified and reordered with the correct item number. The wire rope section provides detailed guidance on the correct method of examining wire rope for internal degradation, including the use of clamps and contra-rotation to open the rope strands for inspection.

Whether you are operating, maintaining, or repairing the TTS Marine HL6D MOB3200 R davit, this user manual gives you the exact procedures and specifications needed to keep the MOB boat launching appliance in survey-ready condition. The manual covers the complete davit system from the electric motor and hydraulic pump through the winch, jib cylinder, wire rope, and control stand. The maintenance intervals, lubrication charts, and inspection requirements are written to satisfy SOLAS regulation III/20 and III/36 operational readiness and maintenance requirements. The emergency procedures are detailed enough to be followed under dead ship conditions when no electric power is available.
