TVS Apache RTR 310 Service Manual – Complete Workshop Repair Guide 2023

Description

TVS Apache RTR 310 Service Manual – Complete Workshop Repair Guide

The TVS Apache RTR 310 Service Manual is a comprehensive 351-page workshop guide published by TVS Motor Company Limited in October 2023 (Revision 0). This manual provides technicians and owners with detailed servicing procedures, component inspection criteria, torque specifications, and diagnostic routines for maintaining and repairing the TVS Apache RTR 310 motorcycle.

File Details

• Manual Type: Service Manual
• Brand: TVS
• Model: Apache RTR 310
• Document Number: SER.MAN/TVS APACHE RTR 310
• Revision: 0
• Publication Date: October 2023
• Language: English
• Page Count: 351
• File Format: PDF

Chapters Covered

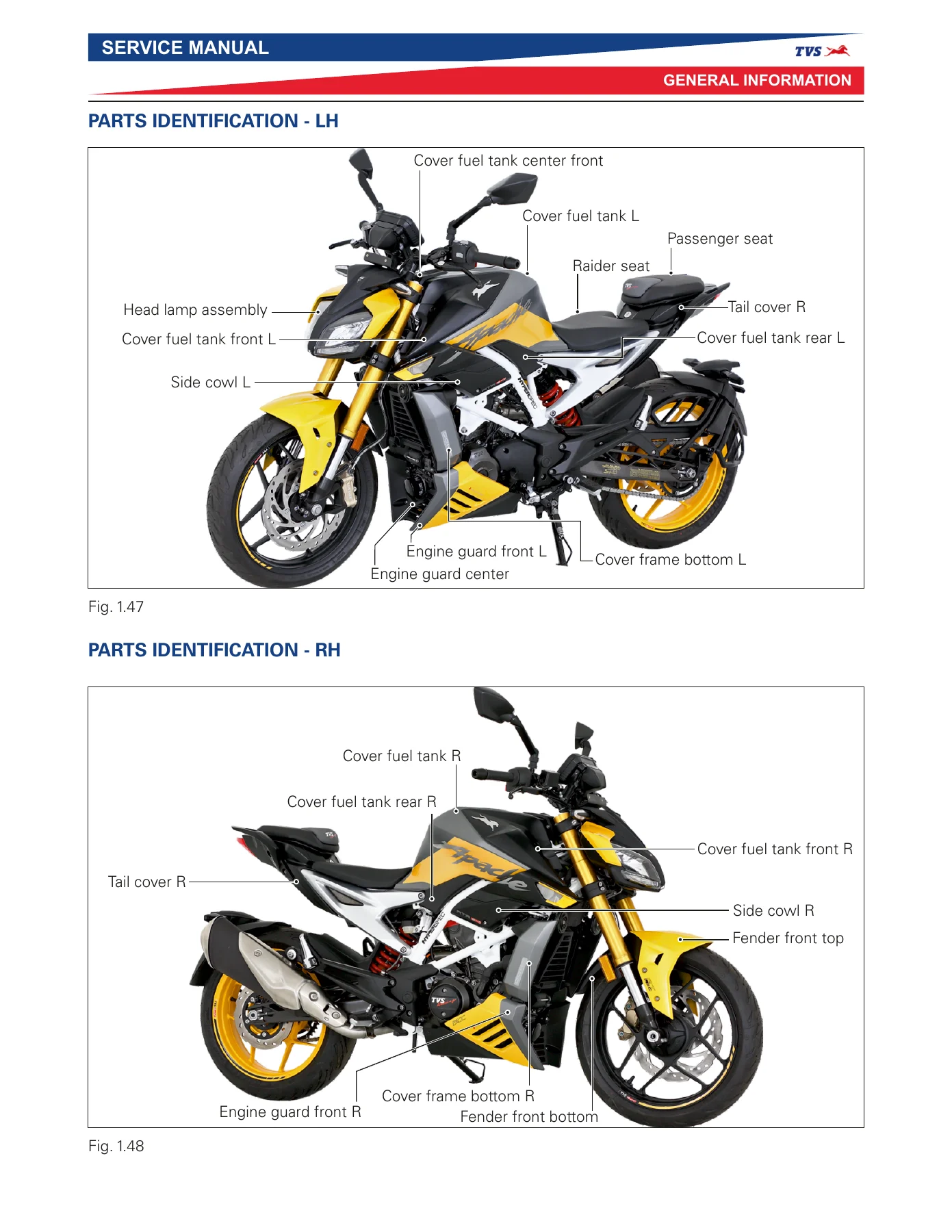

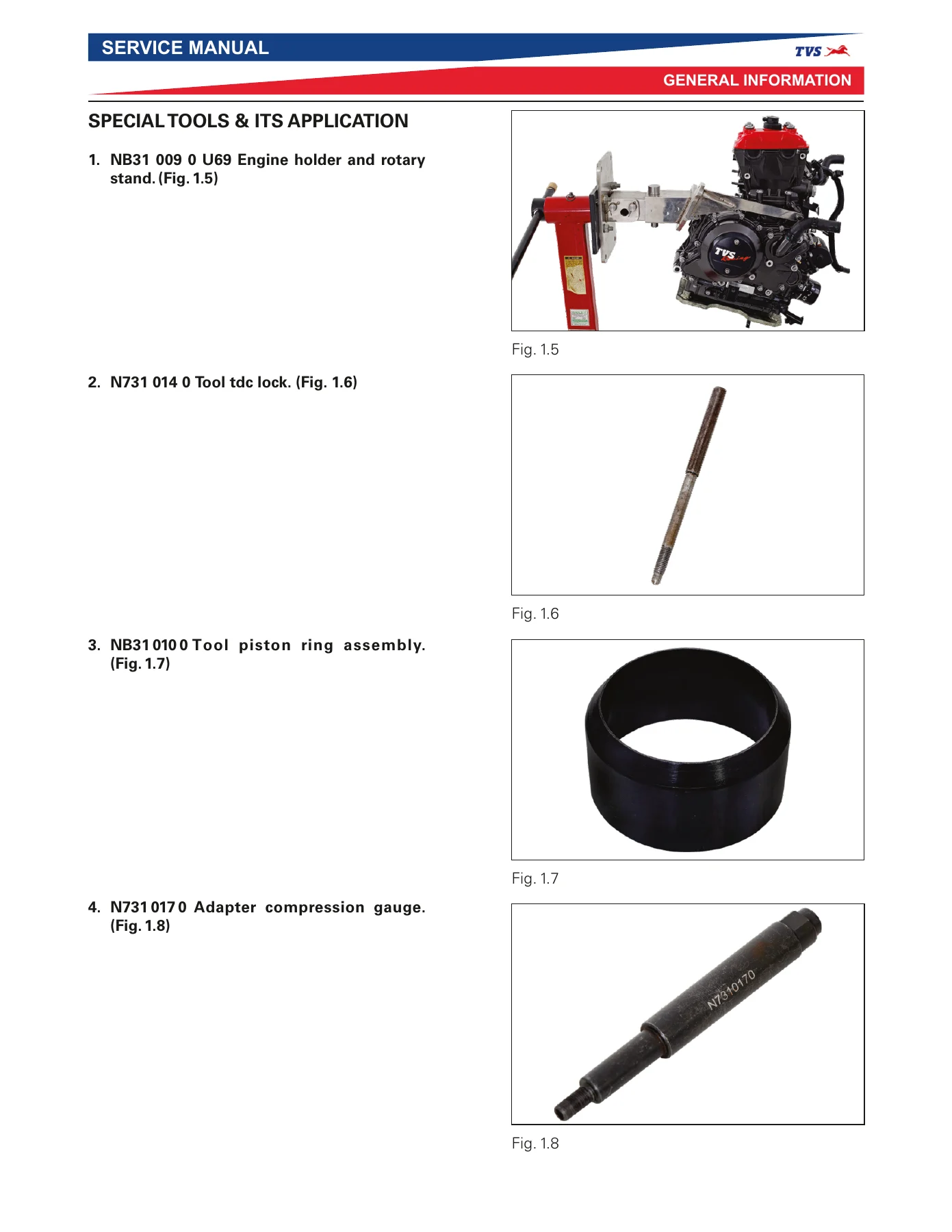

• General Information – Vehicle identification, frame and engine number locations, technical specifications, fuel and oil recommendations, warranty terms, running-in period, precautions, hand tools and special tools lists, parking on paddock stand, ramp operation, parts identification, seat assemblies, fuel tank covers, head lamp assembly, speedometer assembly, cover radiator assembly, engine guard, tail cover assembly, tail lamp assembly, fender front assembly
• Periodic Maintenance – Maintenance schedule, engine cum transmission oil replacement, oil level inspection, filter complete engine oil, spark plug replacement, air cleaner element, air suction system, tappet clearance adjustment, clutch operations, steering system play inspection, wheel freeness, front fork oil, front and rear suspension inspection, bolts and nuts tightening, drive chain assembly adjustment, clutch guide bottom, all bulbs horn and switches, head lamp beam adjustment, battery voltage, brake system inspection, tyres, fuel filter, fuel hoses, coolant level, radiator fins and fan, swing arm bearings, side stand function, fuse and fuse puller, brake pedal and gear shift lever, ignition cum steering lock, malfunction code
• Engine – Cover clutch removal and servicing, oil pump, engine removal, cylinder head assembly servicing, cylinder head disassembly, cylinder head decarbonising, cylinder head inspection, cylinder head re-fixing, crankcase and gear box removal, transmission gears servicing, engine components inspection, piston and connecting rod servicing, crankcase and gear box reassembly, valve timing and valve clearance
• Fuel, Lubrication and Exhaust System – EMS system, EMS system checking procedures, ignition lock, engine kill switch, pulsar coil, ignition coil, spark plug, engine control unit, throttle body, fuel pump module assembly, oxygen sensor, thermal sensor, canister purge valve, main relay, relay fuel pump and radiator relay, relay self starter, gear position sensor, quick gear shifter sensor, side stand switch
• Electrical System – Wiring colour code index, EMS system, lighting system, lighting/DC system checking procedures, switch beam control cum pass-by switch, horn LH and RH, turn signal lamps front and rear, switch assembly stop lamp front and rear, electric starter switch, clutch switch, control switch, cruise control switch, hazard switch, head lamp assembly front, 12V regulation system checking procedure, regulator and rectifier, ABS system checking procedure, sensor wiring coupler front and rear
• Chassis – Wheel assembly front, disc brake system front, brake fluid handling, bundy master cylinder front, bundy tube caliper assembly front, caliper assembly front, front brake master cylinder, suspension system front, fork assembly front, lower bracket, wheel assembly rear, disc brake system rear, bundy tubes replacement rear, caliper assembly rear, master cylinder rear
• Diagnostics Procedure – Diagnostic tool usage, fault code reading and clearing, live data monitoring, actuator tests
• Service Information – Torque specifications, service limits, tightening sequences, exploded views

This TVS Apache RTR 310 service manual covers the complete motorcycle from front to rear. Each chapter provides detailed step-by-step procedures with accompanying illustrations and exploded views. The manual includes service limits for components, tightening torques for fasteners, and inspection criteria to determine replacement needs. Technicians can use this guide to perform everything from routine oil changes to complete engine overhauls. The manual also includes EMS system diagnostics, ABS system checking, and electrical circuit testing procedures. All procedures are written for technicians who already have technical knowledge about motorcycles, as stated in the foreword.

Technical Specifications Covered

The TVS Apache RTR 310 is powered by a 312.12 cc single-cylinder, four-stroke, liquid-cooled engine with a reverse-inclined DOHC layout, 80 mm bore, and 62.1 mm stroke. The engine runs a compression ratio of 12.17 ± 0.35:1 and produces 26.16 kW at 9700 rpm (Sport, Track, and Super Moto modes) or 19.9 kW at 7500 rpm (Urban and Rain modes). Maximum torque is 28.7 Nm at 6650 rpm or 27.3 Nm at 6600 rpm depending on ride mode. The manual documents a 6-speed gearbox with bidirectional quickshifter, throttle-by-wire, slipper clutch, and a 12V 290W three-phase AC generator. Braking uses a 300 mm front disc and 240 mm rear disc with dual-channel ABS. The motorcycle runs on Michelin Road 5 tyres, 110/70 ZR17 front and 150/60 ZR17 rear, with a 1358 mm wheelbase and 180 mm ground clearance.

Maintenance and Service Intervals

The periodic maintenance chapter provides a complete schedule with intervals for free services and paid services. Engine cum transmission oil requires replacement at initial 1,000 km or 2 months, then every 10,000 km or 12 months thereafter. The oil filter is replaced on the same schedule. Air cleaner element replacement is at 10,000 km or 12 months. Spark plug replacement is every 20,000 km or 2 years. Tappet clearance inspection and adjustment follows the service schedule with specific valve clearance values: inlet valve 0.07 + 0.012 mm and exhaust valve 0.23 + 0.28 mm. Drive chain slackness is checked every 500 km with a specified 30-40 mm play. Brake fluid replacement is first at 10,000 km then every 20,000 km. Coolant, hoses, and O-rings must be replaced every 30,000 km or 3 years. The manual also documents clutch free play at 8-12 mm and valve timing marks for correct camshaft alignment.

Diagnostic and Electrical Coverage

The electrical system chapter provides complete testing procedures for all sensors and actuators. The gear position sensor voltage table spans from first gear at 0.568 ± 0.050V through sixth gear at 4.433 ± 0.050V, with neutral at 0.954 ± 0.050V. The manual covers ignition coil primary resistance testing, fuel injector resistance, oxygen sensor testing, thermal sensor resistance values, canister purge valve testing, and relay continuity checks for the main relay, fuel pump relay, radiator relay, and starter relay. The ABS system checking procedure includes wheel speed sensor gap measurement, toner ring inspection, and HECU coupler continuity testing. The charging performance check specifies 14.5 ± 0.3V at 2500 rpm and above with headlamp high beam switched on.

Who This Service Manual Is For

This TVS Apache RTR 310 workshop manual is written for technicians who already possess technical knowledge about motorcycles. It serves as a reference for professional mechanics, service advisors, and experienced DIY owners who need factory procedures and specifications for the Apache RTR 310. The manual includes warnings, cautions, and notes throughout to indicate special procedures or precautions that must be followed during service. Service limits for individual components and subsystems help determine when parts need replacement versus when they remain within specification. The exploded views and special tool references assist with correct assembly and disassembly.

What This Manual Enables You To Do

With this TVS Apache RTR 310 repair guide, you can perform complete engine removal and installation, cylinder head servicing including valve replacement and decarbonising, clutch assembly removal and inspection, oil pump servicing, crankcase and gearbox disassembly and reassembly, transmission gear inspection, piston and connecting rod servicing, and crankshaft inspection. The chassis chapter enables front and rear wheel removal and bearing replacement, fork assembly oil change and seal replacement, lower bracket removal and steering bearing inspection, swing arm disassembly and bearing replacement, rear shock absorber removal and adjustment, drive chain removal and replacement, front and rear brake pad replacement, brake fluid bleeding and replacement, master cylinder and caliper disassembly and inspection, and ABS wheel speed sensor testing and gap adjustment. The electrical chapter enables testing and replacement of all lighting components, switches, relays, sensors, and the regulator rectifier unit.

Get Your TVS Apache RTR 310 Service Manual Today

This complete TVS Apache RTR 310 service manual provides the correct procedures, torque values, service limits, and diagnostic routines needed to maintain and repair your motorcycle to factory standards. Whether you are performing routine periodic maintenance or a full engine overhaul, having the right specifications prevents costly mistakes and ensures safe, reliable operation. The PDF format delivers instant access after payment with no shipping delays. You can view it on any device, print specific pages for workshop use, and keep the complete manual accessible wherever you service your Apache RTR 310. Stop guessing and start servicing with the manual that covers every system on the TVS Apache RTR 310.

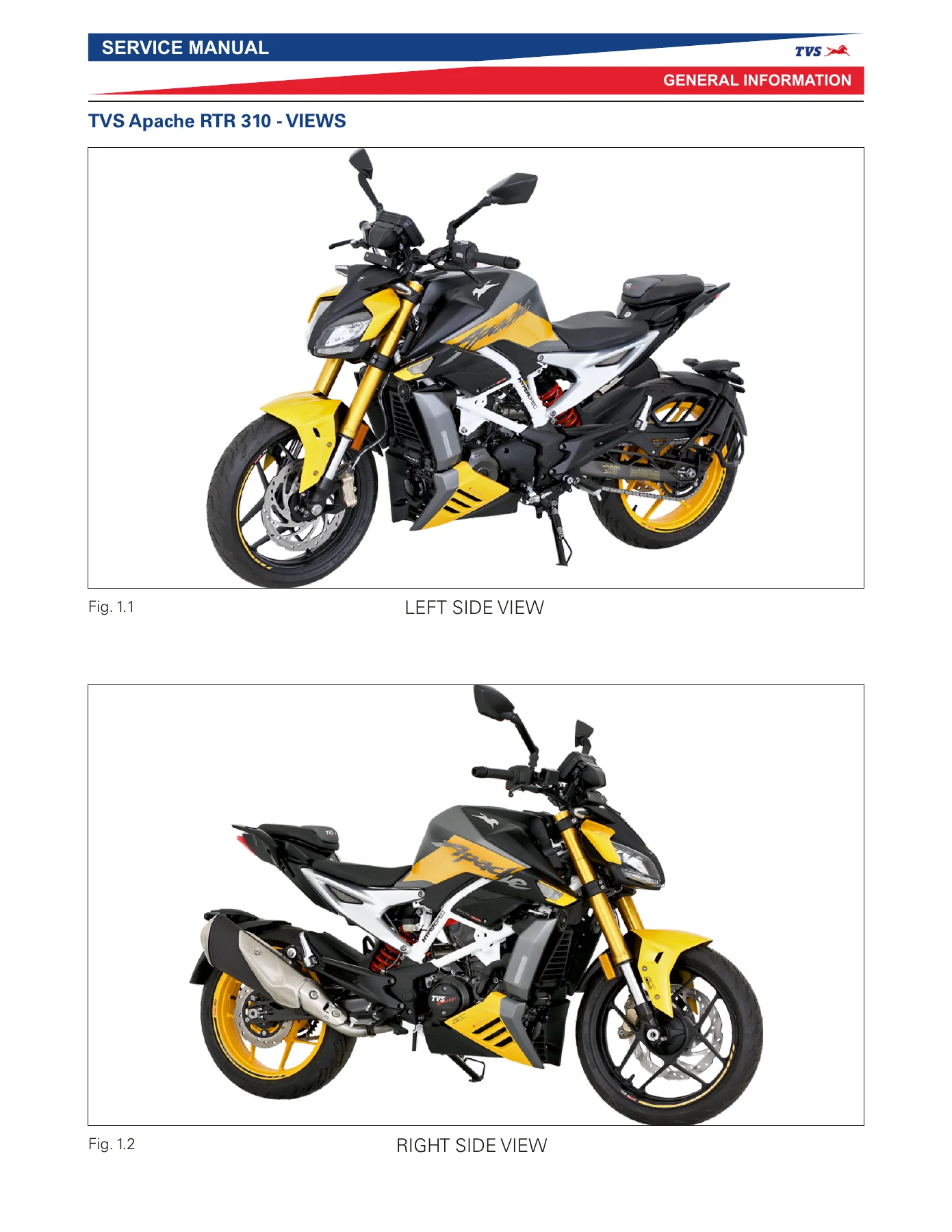

IMAGES PREVIEW
