UniCarriers FG20-FG30 FD20-FD30 Forklift Operation & Maintenance Manual PDF

Description

UniCarriers FG20-FG30 & FD20-FD30 Forklift Operation and Maintenance Manual

This UniCarriers FG20-FG30 FD20-FD30 operation and maintenance manual is the complete guide for operators and technicians working with the 2-ton, 2.5-ton and 3-ton UniCarriers forklift truck range. Document number OMFBE-CK9140, it covers both the gasoline-powered FG models and the diesel-powered FD models, including variants fitted with the K21, V2403 and C240 engines. Every section is written to keep the truck running safely and efficiently, from daily preoperational checks through to major component service and periodic inspection schedules.

File Details

• Manual type: Operation and Maintenance Manual
• Brand: UniCarriers
• Models covered: FG20, FG25, FG30, FD20, FD25, FD30 (including FG20T3C, FG25T3C, FG30T3C, FD20T4C, FD25T4C, FD30T4C, FD20T3CZ, FD25T3CZ, FD30T3CZ)
• Engines: K21, V2403, C240
• Language: English
• Page count: 161
• File format: PDF
• Document number: OMFBE-CK9140

Chapters Covered

• 1. Safety
• 2. Operating Controls
• 3. Operation
• 4. Maintenance
• 5. Specifications & Service Data

1. Safety

The safety chapter lays the groundwork for everything that follows. It covers supervisor responsibilities, qualified operator requirements, planning and working area setup, proper and improper uses of the lift truck, vehicle and load types, pre-use inspection, transporting the truck, traveling on public roads, modifications, how the lift truck works, traveling techniques, load handling, parking, inspection and service, fire prevention, and the caution plates fitted to the truck. This is the section you turn to when you need to understand the stability triangle, rated load and load center, or the correct way to approach a ramp or dockboard.

2. Operating Controls

This chapter explains every control and instrument on the truck. It opens with a pictorial nomenclature and then works through the instruments and controls, switches (starter switch, combination lighting switch, turn signal, horn button), meters and warning lights (fuel gauge, hour meter, cooling water temperature gauge, neutral lamp, glow indicator, fuel level warning light, engine oil pressure warning light, sedimenter warning light, charge warning light), levers and pedals (lift lever, tilt lever, shift lever, parking brake lever, steering wheel, steering column tilt lever, inching pedal, brake pedal, accelerator pedal), the truck body (operator’s seat, seat belt, document pocket, glove box, overhead guard, load backrest, engine hood, side covers, fork stopper, fork lock bolt, drawbar, safety step and hand grip, fuse box, battery, brake and clutch fluid reservoir, fuel tank cap, hydraulic oil tank cap, radiator, radiator reservoir tank, torque converter oil filler, lights and lamps), and optional equipment.

3. Operation

The operation chapter moves from setup to daily work. It covers proper operation, break-in procedure, the relationship between load and truck stability, basic load center and rated load, lift truck stability, using the inching pedal, traveling and starting on a slope, transporting the lift truck, moving the lift truck in an emergency, operating the lift truck, measures against cold or hot weather, load handling (pick-up, stacking, unstacking), and storing procedures for daily and long-term storage. If you operate a UniCarriers FG or FD series truck, this is the chapter that tells you how to do it without putting yourself or the load at risk.

4. Maintenance

This is the largest chapter in the manual and the one technicians will return to most often. It begins with preoperational checks and general inspection rules, then lists the items to be checked. Preventive maintenance follows, covering the engine room, replacing tires and repairing flat tires, replacing lamp bulbs, starting the engine with an auxiliary battery, and adjusting the operating force of the parking brake lever. Periodic inspection is treated in detail, including the periodical replacement of safety parts, monthly (200 hours) checks, 3-month (600 hours) checks, 6-month (1200 hours) checks, annual (2400 hours) checks, and the full preventive maintenance schedule. The engine room sections are specific to the K21, V2403 and C240 engines, and the manual includes the procedures for removing water from the sedimenter and air bleeding the fuel system on diesel models.

5. Specifications & Service Data

The final chapter provides the hard numbers. It includes full specifications for the FG20, FG25, FG30, FD20, FD25 and FD30 trucks, standard and optional equipment, load charts, service data for the K21, V2403 and C240 engines, bolt and nut torque values, after-the-sale service information, truck and major component serial number locations, the name plate, engine serial number, genuine UniCarriers parts and lubricants, and a truck data record section. This is where you find rated load, basic load center, maximum fork height, free lift, fork lifting speed, traveling speed, gradeability, turning radius, overall dimensions, wheelbase, tread, tire sizes and inflation pressures, engine output and torque figures, and the torque values needed to reassemble components correctly.

Why This Manual Matters

Forklift trucks are heavy, powerful machines, and the difference between a safe shift and a serious incident often comes down to following the correct procedure. The UniCarriers FG20-FG30 FD20-FD30 manual gives you the factory procedures and specifications in one place, so you can service the truck correctly, diagnose problems early, and keep it operating within its design limits. Whether you are a fleet supervisor setting up a maintenance schedule, an operator checking a warning light, or a technician rebuilding a mast or replacing a lift chain, the information you need is here.

Because this is a digital PDF, you get instant access after purchase. No shipping, no waiting. Open it on a laptop, tablet or phone, or print the pages you need for the workshop. Keep it on hand as the reference for every UniCarriers FG20, FG25, FG30, FD20, FD25 and FD30 truck in your fleet.

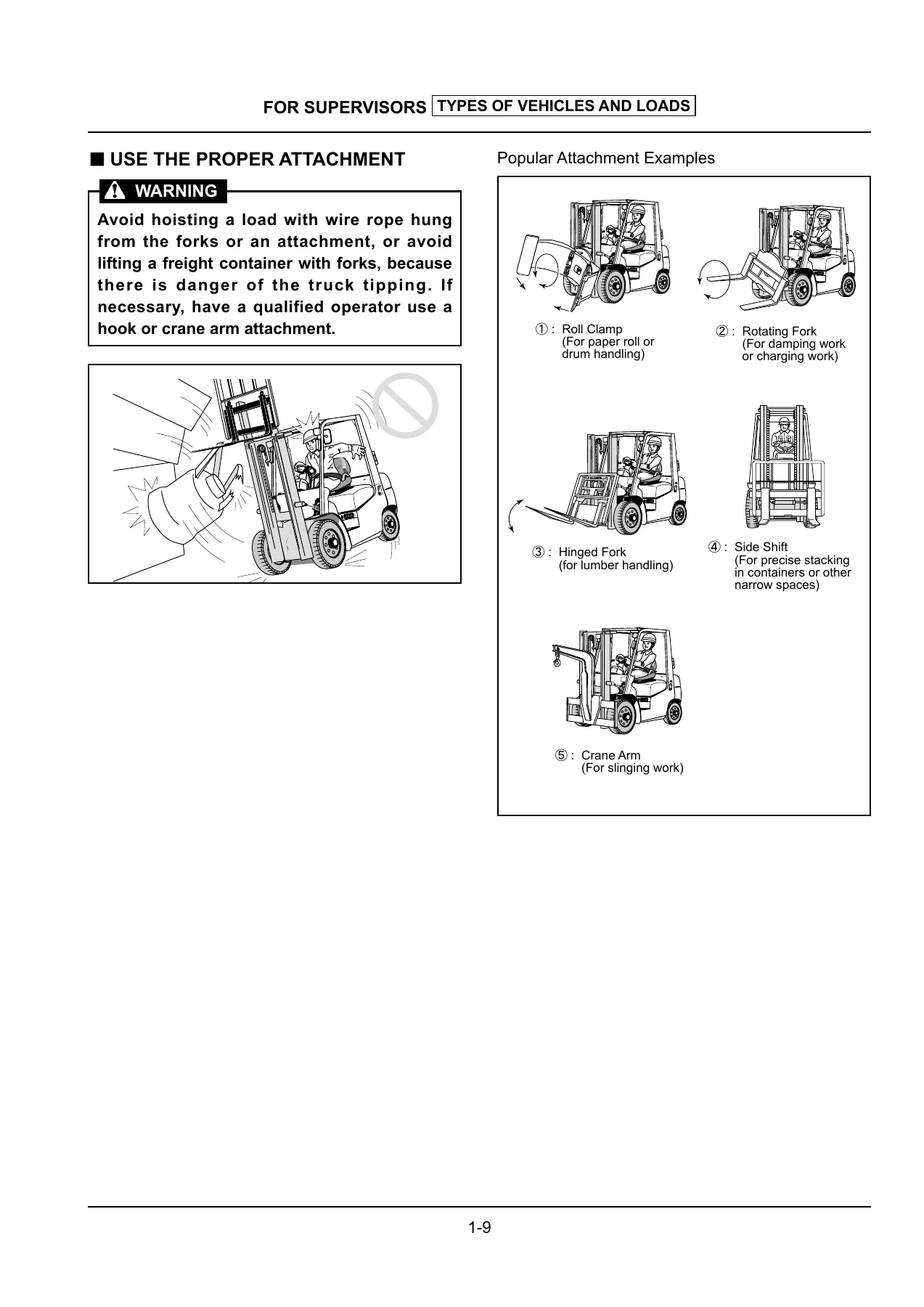

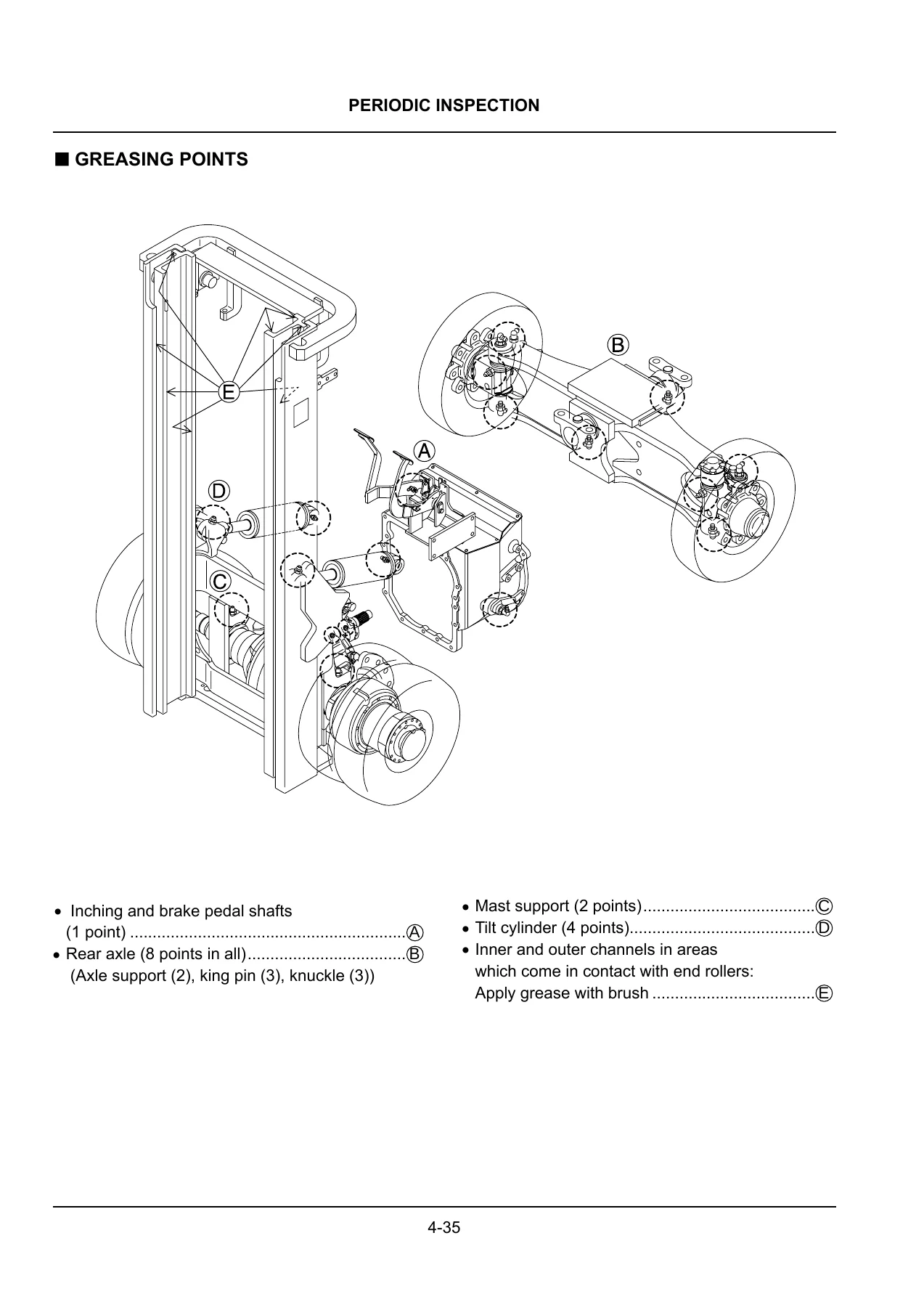

IMAGES PREVIEW
