ZAPI DualAC2 / DualAC2&HP / Power Inverter Programming & Diagnostic User Manual – PDF

Description

ZAPI DualAC2 / DualAC2&HP / Power Inverter Technical Manual

The ZAPI DualAC2 / DualAC2&HP / Power Inverter Programming & Diagnostic User Manual – PDF is an 89-page technical reference for the DualAC2 controller family used in battery-powered traction and hydraulic applications. It covers DualAC2, DualAC2 Power, DualAC2&HP and DualAC2&HP Power controller variants and provides installation, wiring, programming, adjustment and diagnostic information considerably beyond a basic product overview.

Published as ZAPI Publication No. AE9ZP0BD, December 2006 edition, the manual includes controller specifications, input-device requirements, CAN-BUS connections, encoder installation, connector pinouts, power connections, mechanical and electrical drawings, Digital Console programming, parameter regulation, tester functions, traction-inverter setup, pump-chopper setup, alarm history, accelerator calibration and detailed traction and pump fault diagnosis.

Controller Variants Covered

• DualAC2
• DualAC2 Power
• DualAC2&HP
• DualAC2&HP Power

The DualAC2 family is designed for battery-powered applications including electric industrial trucks, utility vehicles and tractors. The standard DualAC2 controls a pair of AC asynchronous three-phase motors, while the DualAC2&HP configuration additionally provides control for a DC-series hydraulic pump motor.

Technical Specifications and Controller Functions

The manual provides detailed technical specifications for the different controller versions together with functional block diagrams. For the DualAC2 configuration, supported nominal battery voltages include 24, 36, 48, 72 and 80 V. Maximum RMS motor current varies according to system voltage, with ratings stated for the individual traction motors. Operating frequency is 8 kHz, and the manual specifies the controller operating-temperature parameters and protection functions.

DualAC2 is intended to control pairs of approximately 3.0 kW to 7.0 kW traction motors. The DualAC2&HP version can additionally control a DC-series pump motor up to 15 kW. Features include regenerative braking, CAN-BUS communication, electronic differential operation, slope holding, speed control, hydraulic-steering support, electromechanical brake control, internal hour meter, battery-discharge indication and diagnostic communication through the ZAPI console.

Installation, Wiring and Safety

The installation chapter explains controller positioning and cooling, power-cable wiring, CAN connections, I/O wiring, encoder installation, main-contactor and key-switch connections, truck-frame insulation, protection features, EMC considerations and other installation recommendations.

The controller includes protection functions relating to reverse battery polarity, incorrect connections, excessive temperature, uncontrolled movement, low battery condition and incorrect start sequences. The manual also explains the importance of cable routing, shielding, CAN-BUS installation and correct electrical isolation when installing the controller in an industrial vehicle.

Encoder and CAN-BUS Connections

The encoder section explains installation of incremental encoders with two phases shifted by 90 degrees. Encoder supply and signal connections are identified, including phase A and phase B inputs and supported encoder supply arrangements.

CAN-BUS coverage includes connector pin assignments, built-in termination resistance and examples for stand-alone, termination-module and repetition-module configurations. This information is particularly useful when diagnosing communication problems between the DualAC2 master/slave controllers and other modules on the vehicle network.

Connector Pinouts and Power Connections

A major section of the manual provides complete connector descriptions for both the DualAC2 and DualAC2&HP configurations. Individual connector terminals are identified for functions including:

• CAN-H and CAN-L
• CAN termination
• Digital Console serial communication
• Encoder power and phase signals
• Key input
• Seat switch
• Forward and reverse requests
• Traction enable and backing
• Brake input
• Handbrake / speed reduction / hydraulic input
• Steering potentiometer
• Brake potentiometer
• Accelerator potentiometer
• Traction-motor temperature sensors
• Main-contactor coil
• Electromechanical brake
• Auxiliary output
• Hydraulic-speed inputs
• Proportional lift potentiometer

Separate sections describe the controller power terminals and power connections for DualAC2, DualAC2 Power, DualAC2&HP and DualAC2&HP Power variants.

Mechanical and Electrical Connection Drawings

The drawings chapter contains dimensional drawings for each controller version followed by complete connection drawings. Separate stand-alone connection diagrams are provided for DualAC2 / DualAC2 Power and DualAC2&HP / DualAC2&HP Power installations.

These diagrams complement the connector tables and allow the technician to relate individual signal names and terminals to the complete controller installation.

Digital Console Programming and Adjustments

The manual contains an extensive chapter devoted to Programming & Adjustments Using Digital Console. It explains the console connection and menu structure for Master and Slave controllers and details the configurable options and adjustment parameters available for each controller version.

Configuration and adjustment coverage includes battery selection, battery-voltage calibration, input configuration, hydraulic functions, steering settings, speed and acceleration parameters, braking behavior, traction setup and lift-control parameters.

The DualAC2&HP sections additionally cover proportional lifting and hydraulic-speed inputs, including minimum and maximum lift-potentiometer acquisition and lift-throttle curve adjustment.

Traction Inverter and Pump Chopper Setup

A dedicated procedure explains the sequence used to configure an AC traction inverter. This includes selecting controller options, setting battery voltage, checking wiring with the TESTER function, performing PROGRAM VACC accelerator acquisition, acquiring the steering-potentiometer signal and setting steering limits and other operating parameters.

For DualAC2&HP applications, the manual also provides a separate procedure for setting the DC pump chopper and hydraulic-control parameters.

Tester and Live Diagnostic Functions

The ZAPI Digital Console TESTER function allows technicians to inspect a large number of live controller values. Depending on controller configuration, the available readings include:

• Motor voltage
• Motor frequency
• Encoder frequency
• Slip value
• RMS current
• Controller temperatures
• Accelerator voltage
• Steering angle
• Forward and reverse switch states
• Enable and seat switches
• Brake and handbrake inputs
• Battery voltage and battery charge
• Hour meter
• Lift control
• Hydraulic speed switches
• Pump current
• Pump voltage
• Pump temperature

This makes the manual particularly valuable for technicians diagnosing intermittent electrical or control problems rather than relying solely on stored fault codes.

Save, Restore and Alarm History

The manual describes SAVE and RESTORE functions for transferring controller parameter sets through the PC console. It also explains the controller alarm-history system.

The controller records the last five alarms together with diagnostic information including alarm code, number of occurrences, hour-meter reading and inverter temperature. Instructions explain how to access the ALARMS menu through the Digital Console and review or clear the logbook.

PROGRAM VACC Accelerator Calibration

A dedicated PROGRAM VACC procedure explains how the controller records the minimum and maximum accelerator-potentiometer values over the pedal’s mechanical travel. This function allows the controller to compensate for differences in the accelerator mechanism and establish the usable input range.

DualAC2 Traction Fault Codes and Diagnostics

The diagnostic chapter provides both fault-code tables and detailed analysis of traction-related alarms. Coverage includes:

• WATCHDOG
• LOGIC FAILURE #1 / #2 / #3
• VMN LOW / VMN HIGH
• STBY I HIGH
• CAP CHARGE
• DRIVER SHORTED
• CONTACTOR DRIVER
• COIL SHORTED
• CONTACTOR CLOSED
• CONTACTOR OPEN
• ENCODER ERROR
• STEER SENSOR KO
• PEDAL WIRE KO
• WRONG SET BATTERY
• SLAVE KO / MASTER KO
• INPUT MISMATCH
• AUX OUTPUT KO
• EEPROM KO
• HIGH TEMPERATURE
• MOTOR TEMPERATURE
• BATTERY LOW
• VACC NOT OK
• INCORRECT START
• FORWARD + BACKWARD
• THERMIC SENSOR KO
• WAITING FOR NODE
• NO CAN MESSAGE
• HANDBRAKE
• CHECK UP NEEDED

The analysis section explains probable electrical and electronic causes for these alarms, including motor wiring, controller power stages, current sensors, capacitor charging circuits, contactor coils and contacts, encoder wiring, steering potentiometers, accelerator wiring, temperature sensors and CAN-BUS communication.

Pump Fault Codes and Troubleshooting

The DualAC2&HP diagnostic section also provides pump-related fault codes and detailed explanations. These include PUMP VMN LOW, PUMP STBY I HIGH, PUMP TEMPERATURE, PUMP WARNING, PUMP INC. START, PUMP VACC NOT OK and PUMP TH. SENS. KO.

The troubleshooting text identifies possible problems in the pump-chopper power stage, driver section, voltage-feedback circuit, current sensor, pump-motor insulation and temperature-sensor circuit.

Recommended Spare Parts and Periodic Maintenance

The final chapters provide recommended inverter service parts including high-current strip fuses, control-circuit fuse, contactors and Ampseal connectors. A periodic-maintenance schedule instructs technicians to inspect contactor contacts, microswitches, battery cables, inverter cables, motor cables, pedal or tiller operation and contactor mechanical movement at specified intervals.

File Details

• Manual type: User / Technical Programming & Diagnostic Manual
• Manufacturer: ZAPI S.p.A.
• Controller family: DualAC2 / DualAC2&HP / Power
• Publication No.: AE9ZP0BD
• Edition: December 2006
• Language: English
• Pages: 89
• File format: PDF

Main Chapters Covered

• Introduction
• Specifications
  • DualAC2
  • DualAC2&HP
  • DualAC2 Power
  • DualAC2&HP Power
• Input Devices
• Installation Hints
  • Power wiring
  • CAN connections
  • I/O wiring
  • Encoder installation
  • Main contactor and key connection
  • Protection and safety
  • EMC
• Operational Features and Diagnosis
• Connector Descriptions
• Power Connections
• Mechanical and Connection Drawings
• Programming & Adjustments Using Digital Console
• Function Configuration
• Parameter Regulation
• Programming Console Functions
• AC Traction Inverter Setup
• DC Pump Chopper Setup
• Tester Functions
• Save and Restore
• Alarm History
• PROGRAM VACC
• Traction Fault Codes and Alarm Analysis
• Pump Fault Codes and Alarm Analysis
• Recommended Spare Parts
• Periodic Maintenance

The ZAPI DualAC2 / DualAC2&HP / Power Inverter Programming & Diagnostic User Manual is a comprehensive controller reference for installation, configuration and fault diagnosis. Its combination of wiring information, connector pinouts, complete connection drawings, console programming, live tester data and detailed alarm analysis makes it particularly useful for technicians servicing electric forklifts and other battery-powered machines equipped with this ZAPI controller family.

Download the ZAPI DualAC2 Technical Manual

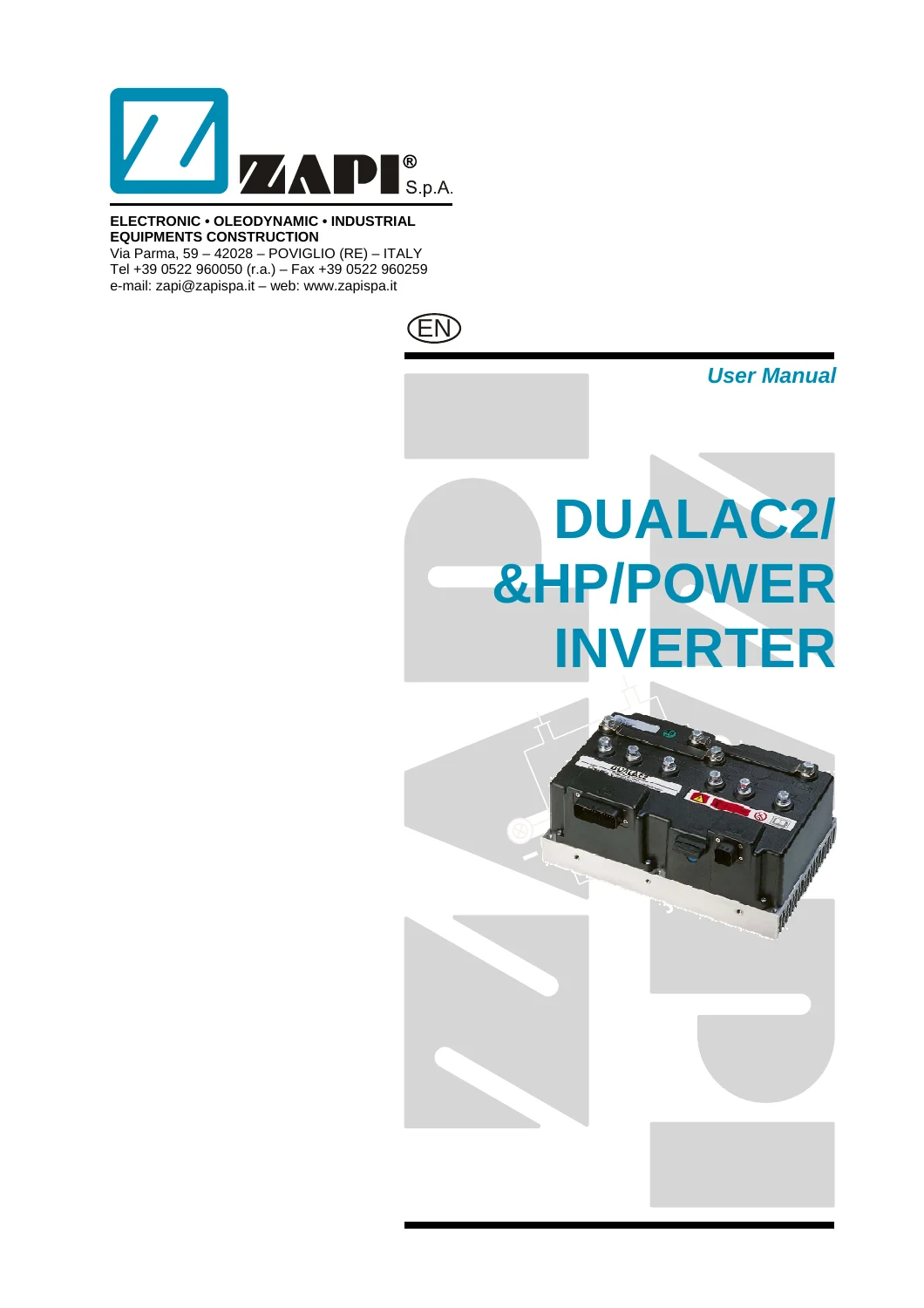

Image Preview

Use this manual when installing, configuring, programming or troubleshooting DualAC2-family controllers. Access to the correct connector information, Digital Console procedures, controller parameters and fault-code explanations can significantly reduce guesswork during electrical diagnosis. The manual is supplied as an instant PDF download after purchase, with no physical shipping required, and can be viewed digitally or printed for workshop reference.
