Venieri VF10.23C Articulated Backhoe Loader Spare Parts Catalogue PDF

Description

Venieri VF10.23C Spare Parts Catalogue — The Illustrated Parts Book for the Terna Articolata

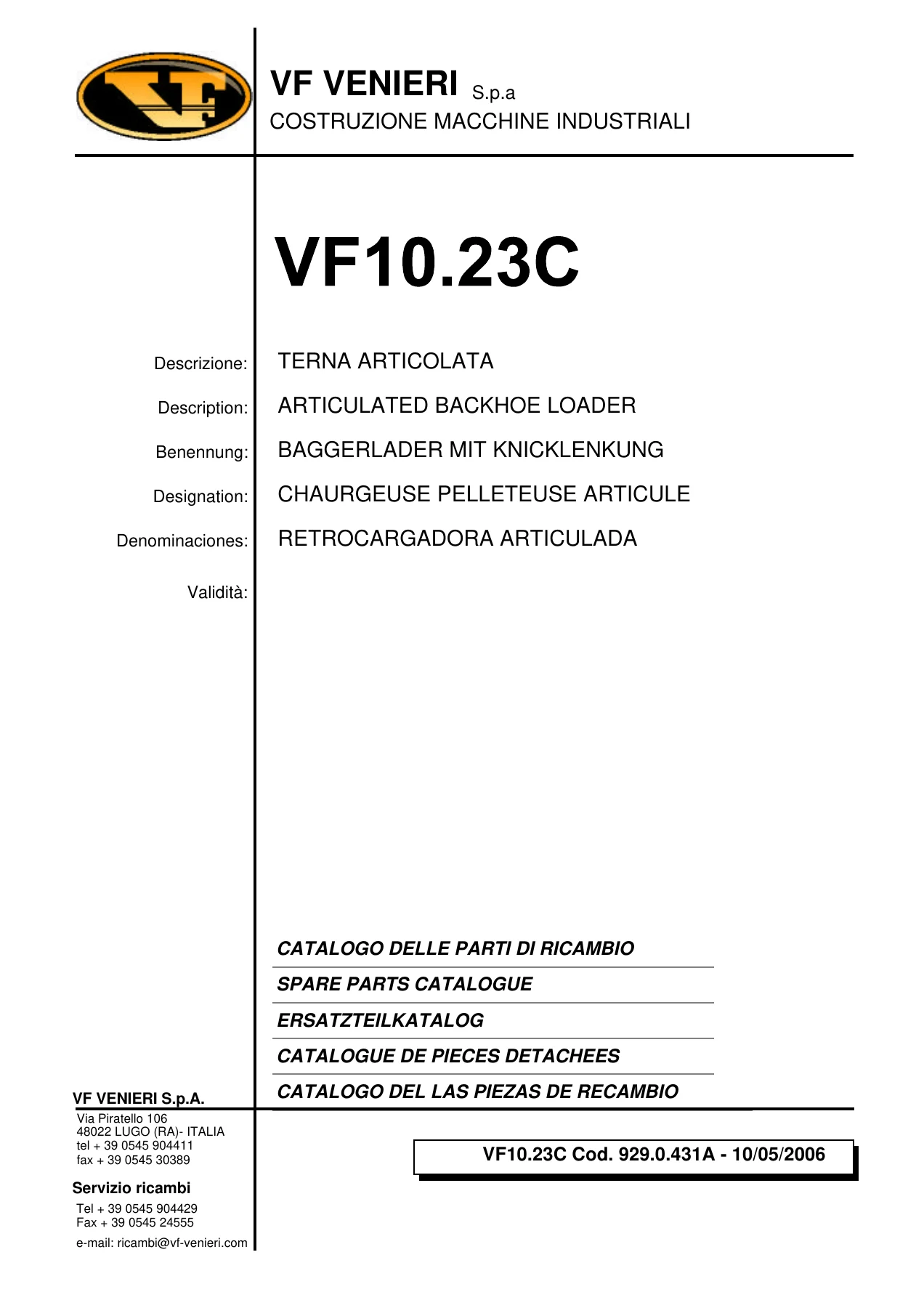

The Venieri VF10.23C Articulated Backhoe Loader Spare Parts Catalogue is the illustrated parts book for the VF10.23C, published by VF Venieri S.p.A. of Via Piratello 106, 48022 Lugo (RA), Italy, under document code 929.0.431A and dated 10/05/2006. Every table runs in five languages side by side — Italian, English, German, French and Spanish — so a component can be traced from its balloon number on the drawing, through its reference code, straight to a denomination confirmed in whichever language the parts counter or workshop happens to use. The same file also carries a separate twenty-table section for the VF4.65B backhoe, issued under code 959.0.041 and dated 11/2005.

File Details

• Manual type: Illustrated spare parts catalogue (parts book)
• Machine covered: VF Venieri VF10.23C articulated backhoe loader
• Additional section: VF4.65B backhoe — 20 tables
• Publisher: VF Venieri S.p.A., Lugo (RA), Italy
• Document code: 929.0.431A (VF10.23C); 959.0.041 (VF4.65B section)
• Date of issue: 10/05/2006 (VF10.23C); 11/2005 (VF4.65B section)
• Languages: Italian, English, German, French, Spanish
• Tables: 67 numbered tables for the VF10.23C, 20 for the VF4.65B
• File format: PDF
• Pages: 250

Chapters Covered

The VF10.23C part of the catalogue is divided into 67 numbered tables (Tavola 01 through 67), each one an assembly or sub-assembly. The VF4.65B section follows the same convention with its own tables 01 to 20.

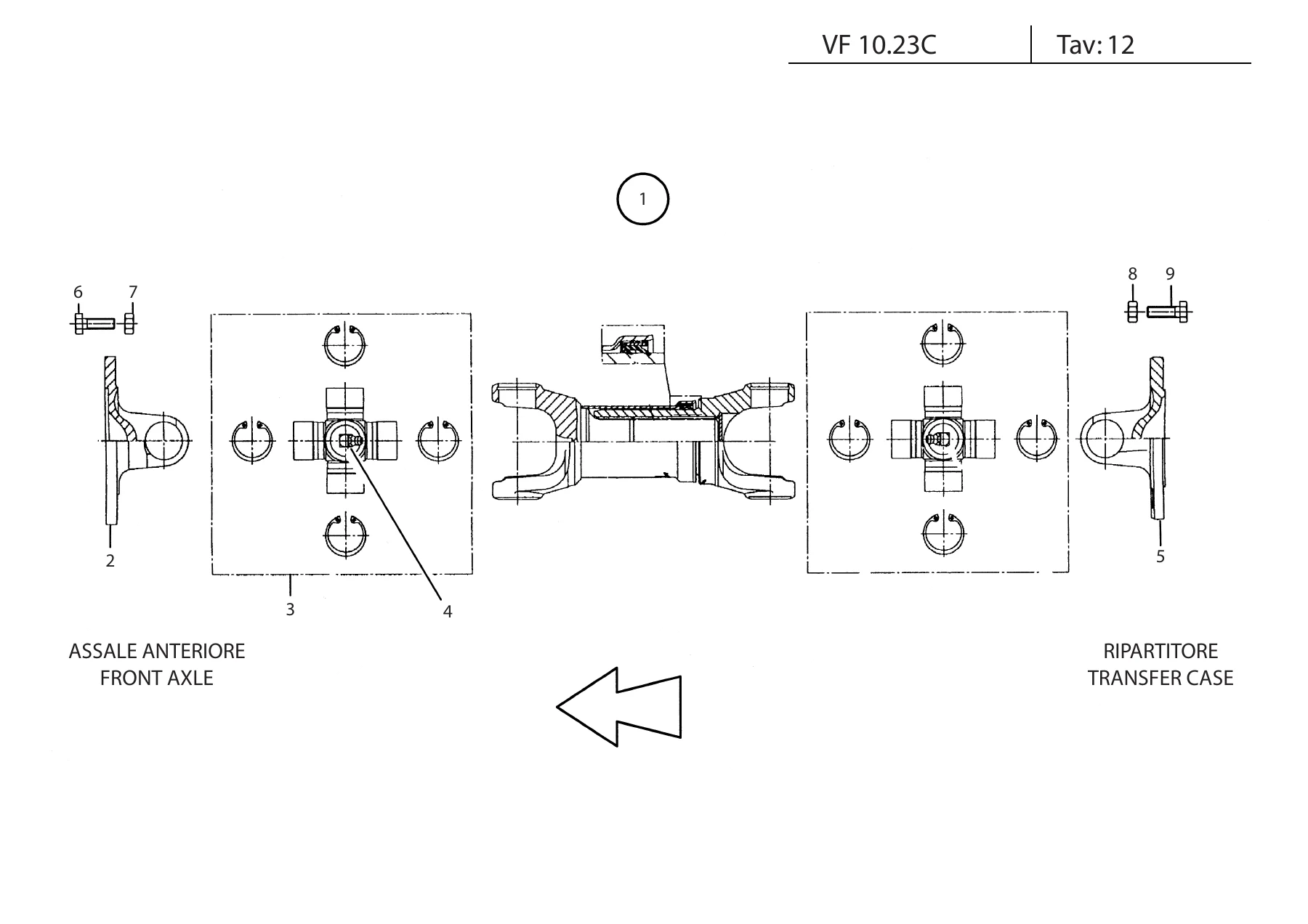

VF10.23C — Tavole 01 to 67

• Engine and cooling: Radiator (01); Radiator–water circuit (02); Radiator–fan hydraulic circuit (03); Engine arrangement (04); Engine (05); Aspiration and filtration (06); Exhaust (07)
• Transmission and drive line: Transmission (08); Hydrostatic motor (09); Hydrostatic pump (10); Transfer case (11); Front cardan shaft (12); Rear cardan shaft (13)
• Axles: Axle (14); Front axle/axle housing (15); Front axle/bevel gear set (16); Front axle/differential (17); Front axle/wheel hub (18); Front axle/brake (19); Front axle/final reduction (20); Rear axle/axle housing (21); Rear axle/bevel gear set (22); Rear axle/differential (23); Rear axle/wheel hub (24); Rear axle/brakes (25); Rear axle/final reduction (26); Rear axle/brake caliper (27); Complete wheel (28)
• Brakes and operator controls: Brake control (29); Braking system (30); Accelerator (31); Handbrake (32); Central floor lever (33)
• Frames, tank and bodywork: Front frame (34); Rear frame (35); Oil tank (36); Complete seat (37); Bodywork (38); Engine cover (39)
• Boom and bucket: Boom (40); Bucket (41)
• Operator cab: Complete cab (42); Cab details (43); Cab doors (44); Cab glass (45); Cab heating (46); Cab upholstery (47)
• Hydraulic systems: Hydraulic circuit (48); Bucket cylinder circuit (49); Bucket cylinder (50); Lift cylinder circuit (51); Lifting cylinder (52); Steering hydraulic circuit (53); Steering cylinder (54); Oscillating axle hydraulic lock (55); Locking device cylinder (56); Centralised pressure outlets (57); Valve bank (58)

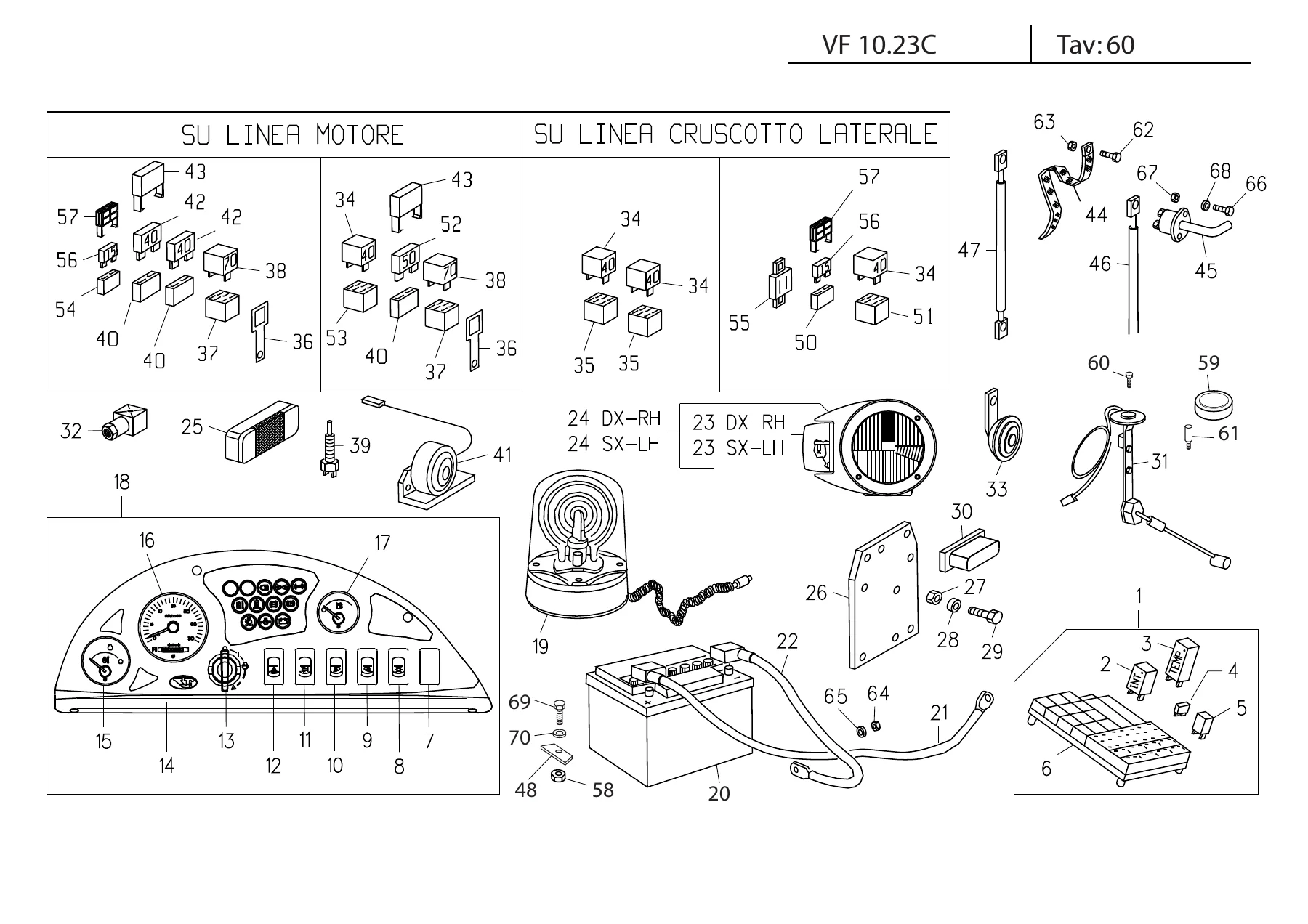

• Electrical: Electrical circuit 1 (59); Electrical circuit 2 (60); Complete steering column (61)
• Decals and equipment: Decal kit I (62); Decal kit GB (63); Decal kit D (64); Decal kit F (65); Decal kit S (66); Tool kit (67)

VF4.65B — Tavole 01 to 20

• Boom offset frame and legs (01); Sliding plate (02); Slewing support (03); Rotation lock (04); Boom and bucket (05); Controls (06); Boom cylinder circuit (07); Boom cylinder (08); Dipperstick cylinder circuit (09); Dipperstick cylinder (10); Bucket cylinder circuit (11); Bucket cylinder (12); Rotation circuit (13); Rotation cylinder (14); Stabilizer cylinder circuit (15); Stabilizer cylinders (16); Locking device circuit (17); Locking device cylinder (18); Valve bank (19); Decal kit (20)

Read as a whole, the Venieri VF10.23C spare parts catalogue is a complete breakdown of the machine into its purchasable components. Cylinders are not simply listed as a single line — the boom, dipperstick, bucket, steering, stabilizer, rotation and locking-device cylinders each have their own table where barrel, rod, piston, head, bearings, seals, O-rings, back-up rings, wiper rings, grease fittings and complete gasket kits appear individually. The same depth applies to the axles, where housing, bevel gear set, differential, wheel hub, brake, final reduction and caliper are split into separate tables for front and rear. Hydraulic circuits are documented pipe by pipe and hose by hose, complete with nipples, unions, elbows, tees, restrictor valves, check valves and anti-shock valves, so a damaged line can be identified rather than guessed at.

Consumables and fasteners are not left out either. Washers, nuts, screws, studs, dowels, circlips, cotter pins, clamps, plugs, breathers, grease nipples and shims are carried as their own line items with quantities per assembly, and shim entries marked AR indicate that the thickness is supplied on request. Electrical content is covered across two tables plus the steering column table, listing relays with diodes, fuses by rating, flasher, switching delay, light switches, emergency and starting switches, the instrument panel, revolution/hour meter, fuel level sender and gauge, temperature instrument, battery cables, front and rear lights, indicators, rotating beacon, horn and socket. Cab tables handle glass, gaskets, hinges, handles, locks, gas dampers, mirrors, wiper motor, brush holder, sprayer and the heating and ventilation kit. The decal tables for the Italian, British, German, French and Spanish markets list every safety and information decal separately, which is what you need when a machine is repainted or a warning label is lost.

How Each Table Is Set Out

Every table uses the same column structure, explained in the opening pages of the catalogue: reference number on the illustration, part code, quantity, assembly group, denomination in five languages, and DM/FM columns for parts that differ before or after a given serial number. A reference number followed by an asterisk means the part is not shown on the drawing, and the quantity AR means the amount is supplied on request. That convention is what makes the VF10.23C parts book usable without a separate key — the illustration reference, the code and the description all sit on one line, so there is no cross-referencing between pages to place an order.

Ordering the Correct Component the First Time

Ordering hydraulic or driveline parts from a photograph or a description alone is how wrong parts get shipped. A cylinder seal kit for the bucket circuit is not the same as the kit for the steering circuit, the front axle brake caliper kit is not the rear one, and the shim thicknesses used to set a bevel gear set are specified individually. Because this catalogue separates each of those assemblies and gives every seal, ring, bearing, shim and fastener its own code and quantity, a machine can be identified down to the exact variant before anything is bought. With 67 tables covering the VF10.23C from radiator to decals, and a further 20 tables for the VF4.65B backhoe, it is the reference that keeps a parts order accurate.

Who This Catalogue Suits

Owners running a VF10.23C articulated backhoe loader, independent workshops servicing VF Venieri equipment, and parts departments rebuilding hydrostatic drive, axle, brake or hydraulic cylinder assemblies will all find the tables directly usable. The five-language column layout also makes it practical for a workshop that does not work in Italian, since the same line can be read in English, German, French or Spanish without a separate edition. Anyone maintaining a VF4.65B backhoe gains the same treatment through the twenty tables bound into the same file.
