VF Venieri VF7.23B Articulated Backhoe Loader Spare Parts Catalogue PDF

Description

VF Venieri VF7.23B Articulated Backhoe Loader Spare Parts Catalogue

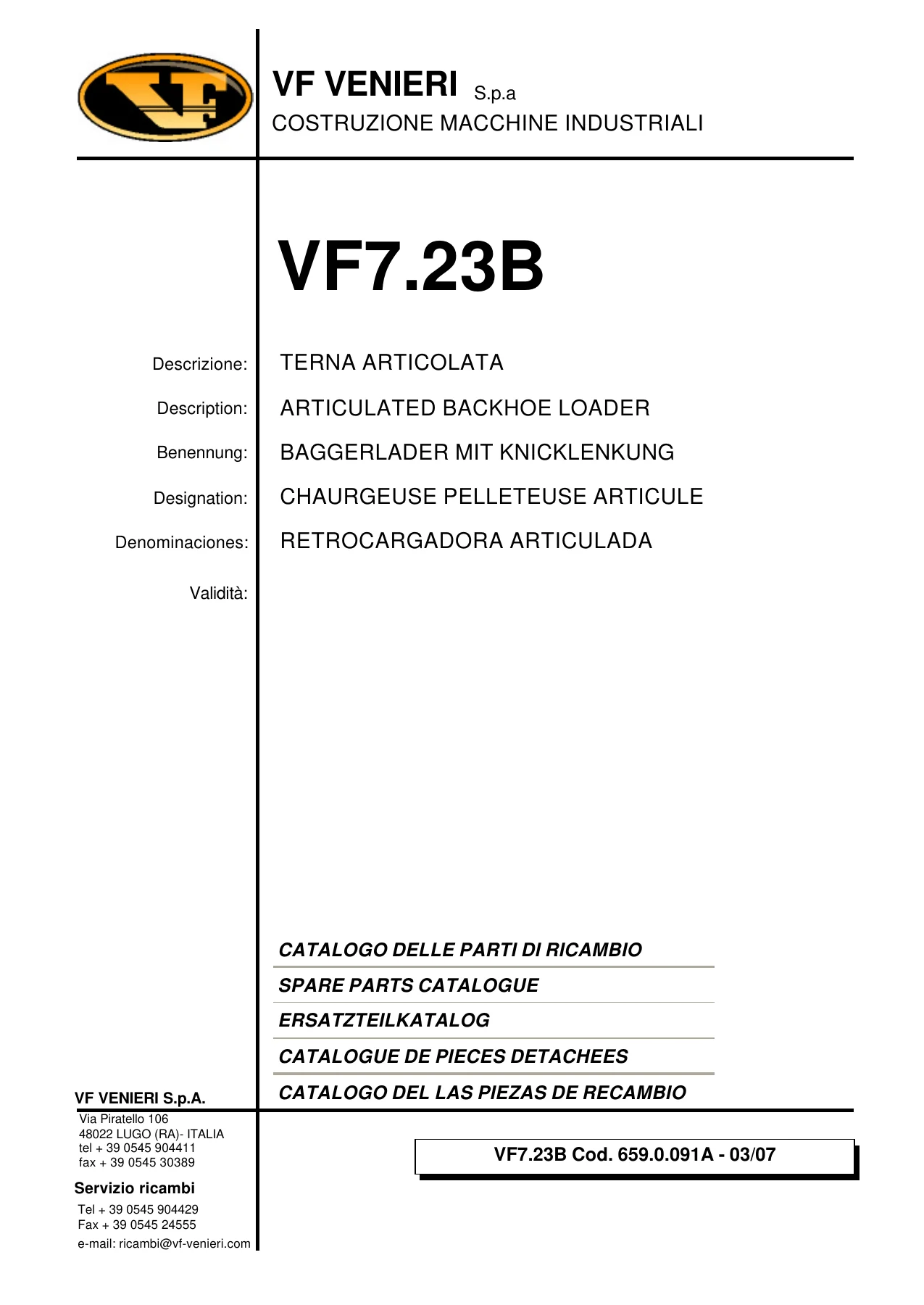

This is the complete illustrated spare parts catalogue for the VF Venieri VF7.23B articulated backhoe loader, published by VF Venieri S.p.A. of Lugo, Italy. It is the book you reach for when a component needs to be identified, cross-checked or ordered: every major assembly of the machine is shown in an exploded illustration, and each numbered item in that illustration is matched to a part table giving the reference code, description, quantity and group. The same PDF also includes the VF4.15 backhoe attachment parts catalogue, so the boom, dipperstick, bucket and stabiliser assemblies are covered alongside the base machine.

File Details

• Manual type: Illustrated spare parts catalogue (parts book)
• Brand / manufacturer: VF Venieri S.p.A., Via Piratello 106, 48022 Lugo (RA), Italy
• Primary machine: VF7.23B articulated backhoe loader
• Attachment covered: VF4.15 backhoe attachment parts catalogue (bound in the same PDF)
• Document codes: 659.0.091A (VF7.23B catalogue), 959.0.071 (VF4.15 catalogue)
• Edition date: 03/07 (March 2007)
• Languages: Italian, English, German, French and Spanish, presented side by side on the same page
• File format: PDF
• Page count: approximately 335 pages

Chapters Covered

Each assembly is published as a numbered Tavola (table) with its own illustration and part list. The VF7.23B catalogue covers:

• Radiator (Tav. 01)
• Engine – FM.21716 and DM.21717 versions (Tav. 02, 02A)
• Aspiration / filtration (Tav. 03)
• Exhaust system (Tav. 04)
• Transmission (Tav. 05)
• Drive shaft / cardan (Tav. 06)
• Axle housing (Tav. 07, 07A, 07I)
• Bevel gear set / couple conique (Tav. 07B, 07L)
• Differential (Tav. 07C, 07M)
• Wheel hub (Tav. 07D, 07O)
• Front axle final reduction (Tav. 07E)
• Axle box (Tav. 07F)
• Rear axle brake assembly (Tav. 07N)
• Epicycloidal reduction (Tav. 07P)
• Complete wheel and tyre (Tav. 08)
• Brake control (Tav. 09)
• Braking system (Tav. 10)
• Accelerator (Tav. 11)
• Parking brake (Tav. 12)
• Central floor lever / cloche (Tav. 13)
• Front frame (Tav. 14)
• Rear frame (Tav. 15)
• Oil tank (Tav. 16)
• Seat (Tav. 17)
• Bodywork (Tav. 18)
• Engine cover (Tav. 19)
• Support (Tav. 20)

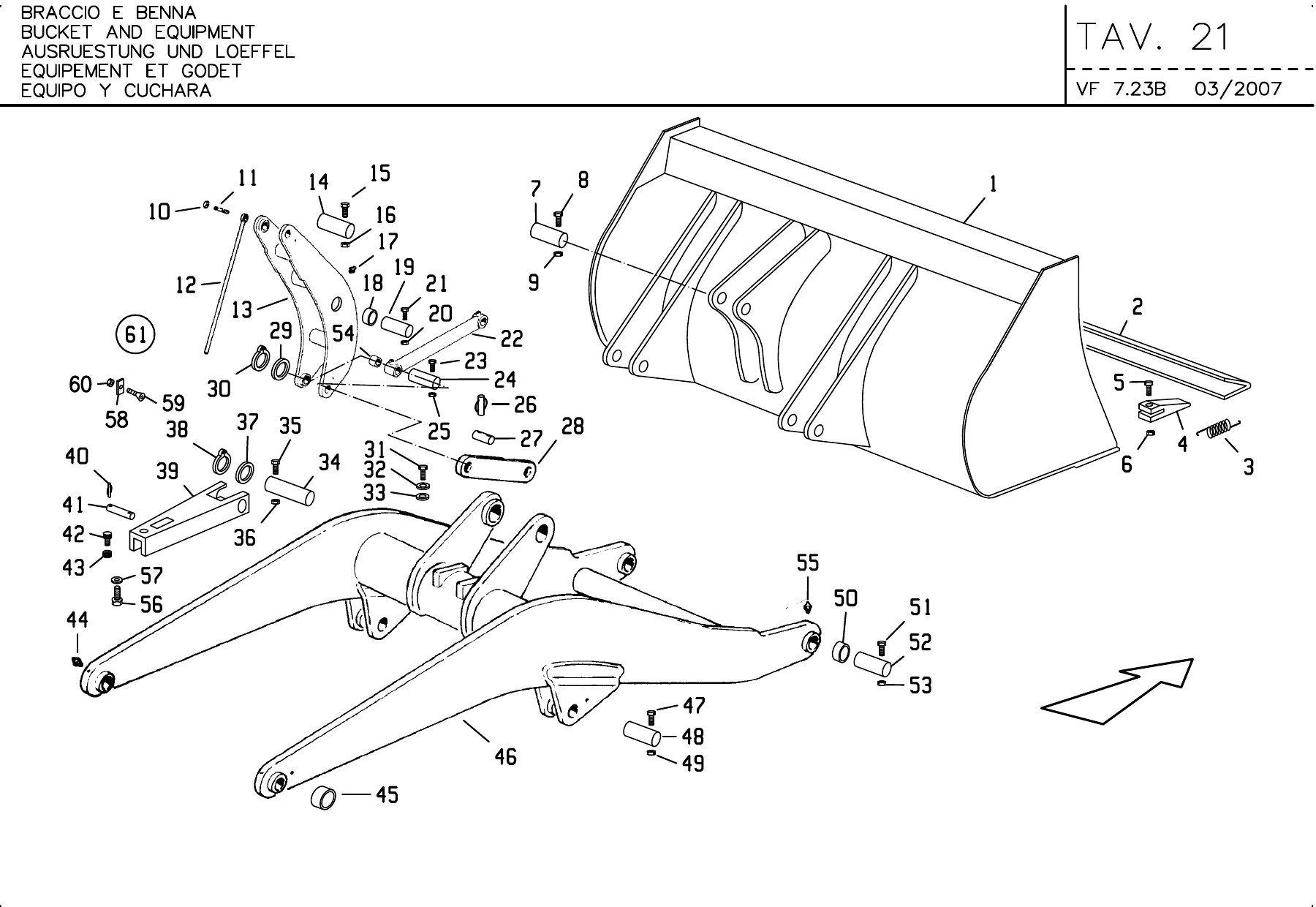

• Boom, dipperstick and bucket (Tav. 21)
• Cabin complete and variants (Tav. 22, 22A, 22B, 22C, 22D)
• Hydraulic circuit (Tav. 23)
• Bucket cylinder circuit and cylinder (Tav. 24, 25)
• Lift cylinder circuit and cylinder (Tav. 26, 27)
• Steering hydraulic circuit and steering cylinder (Tav. 28, 29)
• Oscillating axle hydraulic lock and locking cylinder (Tav. 30, 31)
• Valve bank / distributor (Tav. 32)
• Control panel instrumentation (Tav. 33)
• Electrical circuit, parts 1 and 2 (Tav. 34, 34A)
• Decal kits for Italian, GB, German, French and Spanish markets (Tav. 35, 36, 37, 38, 39)
• Tool kit and delivery items (Tav. 40)

The VF4.15 backhoe attachment section then repeats the same treatment for the offset boom frame, sliding plate, slewing support, rotation lock, boom and bucket, control levers, boom cylinder, dipperstick cylinder, bucket cylinder, offset cylinder, stabiliser circuit and cylinders, locking plate circuit, valve bank and decal kits.

How the Catalogue Is Structured

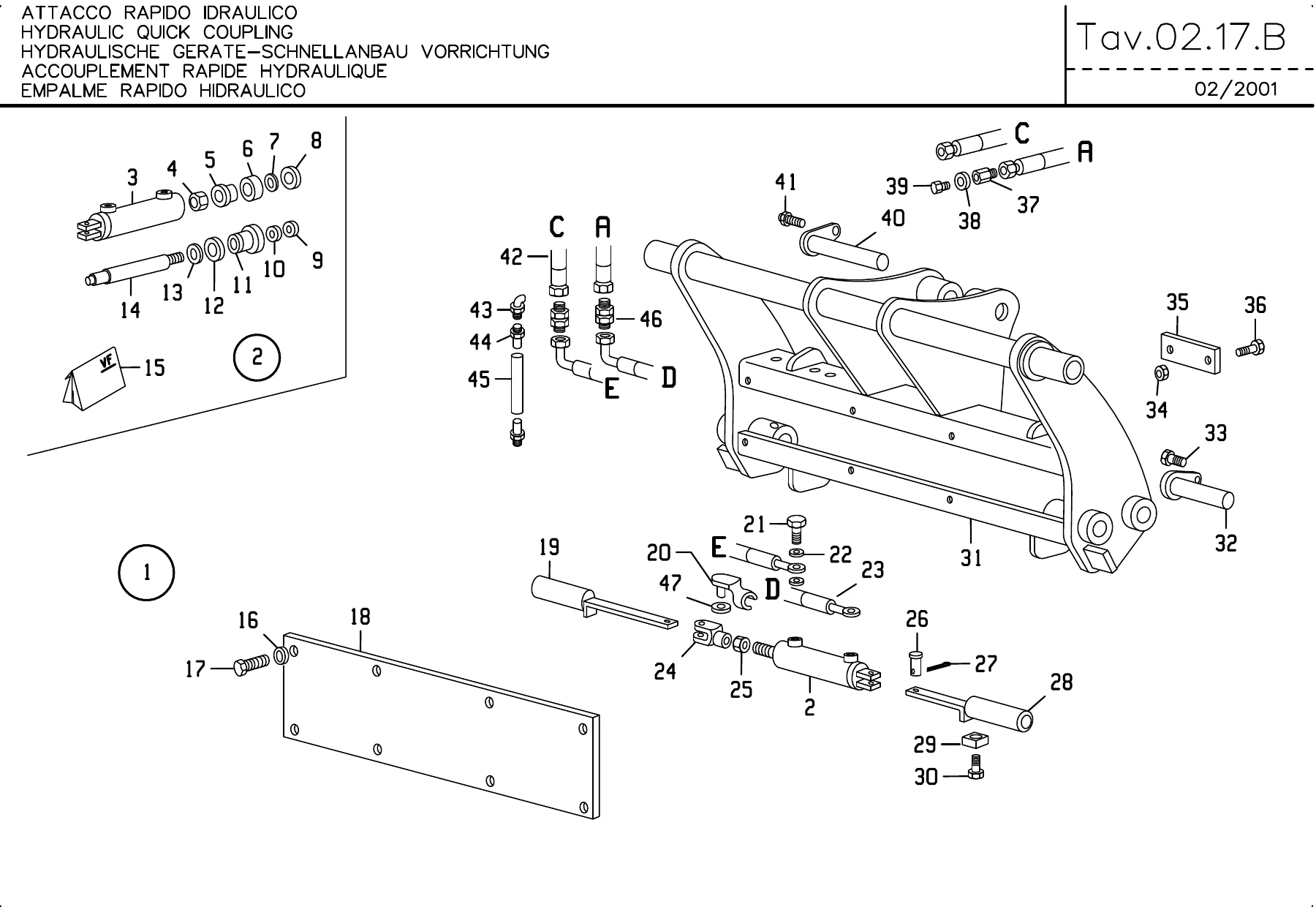

VF Venieri organises this catalogue so a technician can move from a photo or an exploded illustration straight to a part code. Every drawing is keyed with circled reference numbers that point to a table showing the reference code, denomination in five languages, quantity and, where relevant, the group the item belongs to. When a part carries a serial-number split, the DM and FM columns tell you whether it was fitted up to a given machine number or from that number onwards – a crucial detail when the machine has passed through several build revisions.

Because the same page also lists the Italian, English, German, French and Spanish names, the VF7.23B spare parts catalogue doubles as a quick translation tool: you can confirm that a ‘rondella’ is a washer, that a ‘martinetto’ is a cylinder, or that a ‘distributore’ is a valve bank, before placing an order with a dealer or a parts supplier.

What You Can Do With This Catalogue

Whether you are maintaining a single VF7.23B on a farm, running a fleet of articulated backhoe loaders, or repairing one that has come into the workshop with a cracked axle housing or a leaking boom cylinder, this catalogue gives you the exact part reference rather than a guess. The exploded diagrams let you see how the axle, transmission, hydraulic circuits and cabin are assembled before you touch a fastener, and the part lists confirm exactly which components are involved – so you can source the right items first time instead of ordering twice.

For restorations or rebuilds, the alphanumerical parts list at the back of the PDF is the fastest way to trace a code you already have back to its Tavola. For planned service, the radiator, filtration, exhaust and hydraulic sections are laid out so the assemblies can be inspected methodically. For anyone sourcing parts on the used market, the group and serial-number references are the difference between a part that fits and one that does not.

IMAGES PREVIEW

Instant PDF Delivery

The VF Venieri VF7.23B articulated backhoe loader spare parts catalogue is supplied as a single downloadable PDF. No shipping, no waiting for a parcel, no scanning of a dog-eared paper book. Download it after checkout and read it on a laptop, tablet or phone in the workshop, or print the individual Tavola pages you need and keep them next to the machine. Search and navigate it the way you would any PDF: jump straight to the assembly you are working on and get the part code you came for.
