Case 570MXT Series 3 Tier 3 Loader Landscaper Repair Manual 87728463

Description

Case 570MXT Series 3 Tier 3 Loader Landscaper Repair Manual 87728463

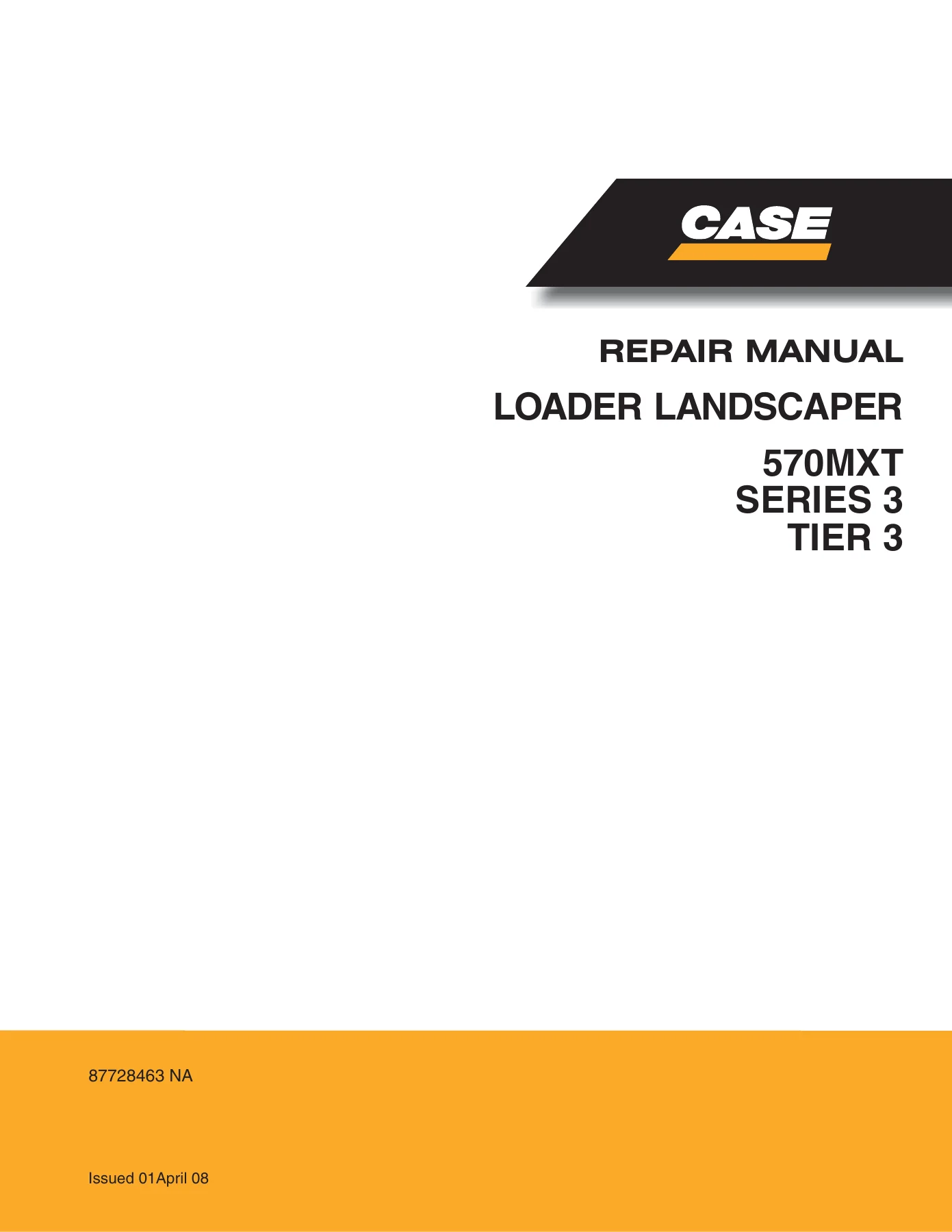

This repair reference follows the Case 570MXT Series 3 Tier 3 from engine removal and stall testing through transmission pressure checks, hydraulic troubleshooting and cab equipment service. Its 888 pages bring together numbered service sections, removal and installation sequences, component illustrations and a hydraulic and electrical schematic set. The document is dated 01 April 2008 and identifies publication 87728463 NA on the cover.

The machine-specific material is particularly useful when a fault crosses the boundary between the engine, torque converter and loader hydraulics. Instead of presenting those systems as isolated component lists, the stall-test section provides a check sheet for comparing the hydraulic, converter and combined stall results. The transmission and hydraulic chapters then supply the pressure tests and component procedures needed for further investigation.

File Details

• Manual type: repair manual.
• Equipment: Case 570MXT Series 3 Tier 3 loader landscaper.
• Publication: 87728463 NA.
• Cover issue date: 01 April 2008.
• Language: English.
• Length: 888 PDF pages.
• Format: PDF.

Chapters Covered

• General: standard torque specifications, fluids and lubricants, metric conversion chart.
• Engine: engine and radiator removal and installation, stall test, diagnosing engine oil consumption, counter balance removal and installation, turbocharger diagnosis procedure family 3 engines.
• Fuel System: in vehicle injector pump removal, installation and static timing.
• Electrical: removal and installation of electrical components, electrical specifications and troubleshooting, batteries, starter and starter solenoid, instrument cluster.
• Steering: removal and installation of steering components, steering specifications and pressure checks, steering control valve, steering cylinders, two wheel drive and four wheel drive front axles.
• Power Train: removal and installation of power train components, standard transmission specifications and troubleshooting, wheels and tires, rear axle and planetaries, standard transmission.
• Brakes: removal and installation, hydraulic brake troubleshooting, master cylinder.
• Hydraulics: component removal and installation, hydraulic system specifications and troubleshooting, cleaning the system, hydraulic pump, loader control valve and cylinders.
• Hydraulics: three point hitch control valve, ride control accumulator, ride control solenoid valve, flow control valve and lock valve.
• Mounted Equipment: pedals and levers, air conditioning troubleshooting, system service and component service, loader, ROPS cab and canopy, suspension seat and plug-in weight.
• Schematic Set: hydraulic and electrical schematics.

These sections support a systematic path from identifying the affected circuit to checking its operating conditions and servicing its components. The organization also keeps general fastener guidance separate from the special values and procedures printed for individual assemblies.

IMAGES PREVIEW

Transmission tests with operating conditions attached

The power-train material distinguishes two-wheel-drive and four-wheel-drive arrangements. It includes supply-pump output, clutch regulation, converter inlet and outlet pressures, lubrication pressure and solenoid resistance. The pressure data are accompanied by engine-speed ranges rather than being presented as isolated numbers. Normal transmission oil operating temperature is given as 78 to 82 degrees C, an important part of interpreting the checks in their proper setting.

Pressure-test ports and the regulated-clutch test provide a route for examining forward and reverse operation. The removal and installation material is followed by standard-transmission and rear-axle service coverage, so a technician can move from an external test to the relevant assembly information. Wheel and tire material belongs to the same power-train group, while the steering axles have their own section.

Loader, hitch and optional ride-control hydraulics

The hydraulic chapter covers more than the main pump. It treats the loader valve, cylinders, three-point hitch control, accumulator and optional ride-control valve, together with flow-control and lock valves. The diagnostic flow begins with visible leakage, damaged parts, reservoir level and linkage checks before progressing to oil condition, stall testing and pump output. This helps place a pressure reading alongside the mechanical and fluid-condition checks that the manual requires.

Hydraulic specifications identify the main relief, hitch relief, quick-coupler relief and bucket-port circuit reliefs separately. The publication also specifies hand-pump settings for the two hitch spool ports. Accumulator charging equipment and the nitrogen regulator are illustrated in the special-tool material. Procedures for cleaning the hydraulic system address contamination as a repair consideration, alongside replacement of an individual damaged component.

Electrical diagnosis and the operator environment

The Case 570MXT repair manual includes component removal, batteries, starter and starter solenoid, and instrument-cluster service. The schematic set provides wire identification, connector and circuit references, grounding conventions and component symbols. The instrument material explains the initial warning-lamp self-test and identifies subsequent indications, including the rear-axle oil-temperature warning. These details connect what the operator sees at the console with the electrical components and circuits being tested.

Mounted-equipment sections address pedals and levers, loader service, the ROPS cab and canopy, and the standard mechanical suspension seat. Air-conditioning information spans troubleshooting, system service and individual components. This gives the repair volume practical reach beyond the driveline, covering the controls and operator environment that can also keep a loader landscaper out of service.

Service fluids and the scope of engine coverage

The fluid chart differentiates a filter-change quantity from a total-system or refill quantity. For example, hydraulic capacity with a filter change is 54.5 litres, while transmission quantities vary between two-wheel-drive and four-wheel-drive machines. Cooling-system capacity is split by heater installation. Front-drive-axle lubricant selection includes an instruction to identify the axle part number before choosing the specified fluid. Those distinctions matter when planning consumables for a particular machine.

Engine and radiator removal, stall testing, oil-consumption diagnosis and turbocharger diagnosis are included here. Internal engine and fuel-system repair are referred to the separate engine repair manual 87630273. This volume should therefore be selected for its stated machine-repair scope rather than treated as a substitute for that separately referenced engine book.

Put the repair information beside the machine

The Case 570MXT Series 3 Tier 3 Loader Landscaper Repair Manual 87728463 supports fault isolation, pressure testing, assembly service and restoration of the machine’s controls and hydraulic functions. Its procedures, specifications and diagrams help keep identification, test conditions and reassembly requirements together. Receive the PDF instantly after payment, with no shipping delay; consult it on a compatible phone, tablet or computer and print the pages needed for the job.
