Vogele Super 1900/2100 Paver Spare Parts Catalog 2005 – PDF Download

Description

Vogele Super 1900/2100 Paver Spare Parts Catalog 2005

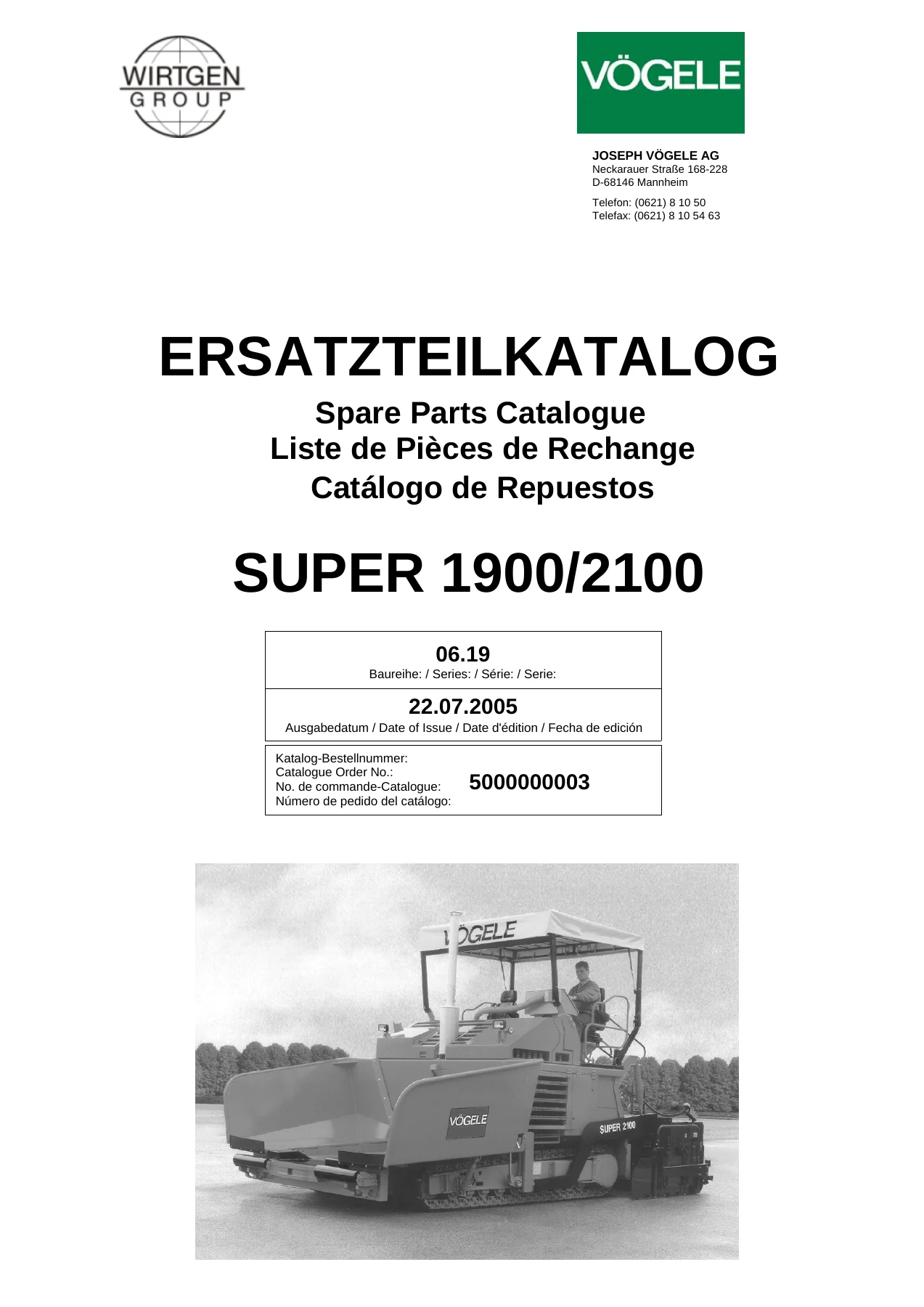

This Vogele Super 1900/2100 Paver Spare Parts Catalog 2005 is the illustrated VÖGELE Ersatzteilkatalog for the SUPER 1900 and SUPER 2100 tracked asphalt pavers, series 06.19, issued 22.07.2005 under catalogue order number 5000000003. It is the parts reference VÖGELE published for these two paving machines, with every assembly broken into exploded views, item positions, part numbers, and per-machine applicability so the correct component can be identified before ordering.

File Details

• Manual type: Illustrated spare parts catalogue (Ersatzteilkatalog)
• Brand: VÖGELE
• Model: SUPER 1900 / SUPER 2100
• Series: 06.19
• Catalogue order no.: 5000000003
• Date of issue: 22.07.2005
• Languages: German, English, French, Spanish (four-column parts lists and captions)
• File format: PDF
• Page count: 470

Chapters Covered

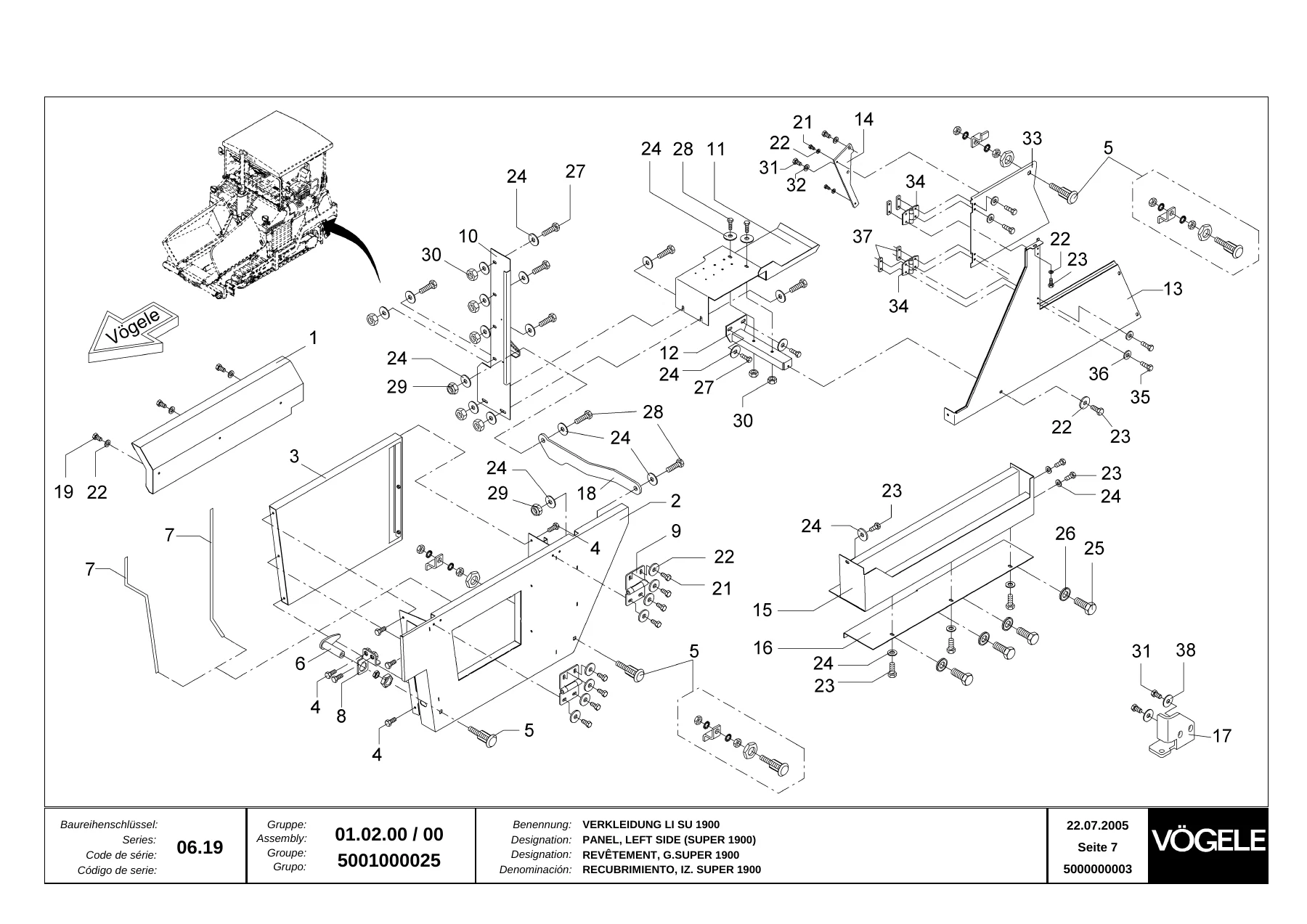

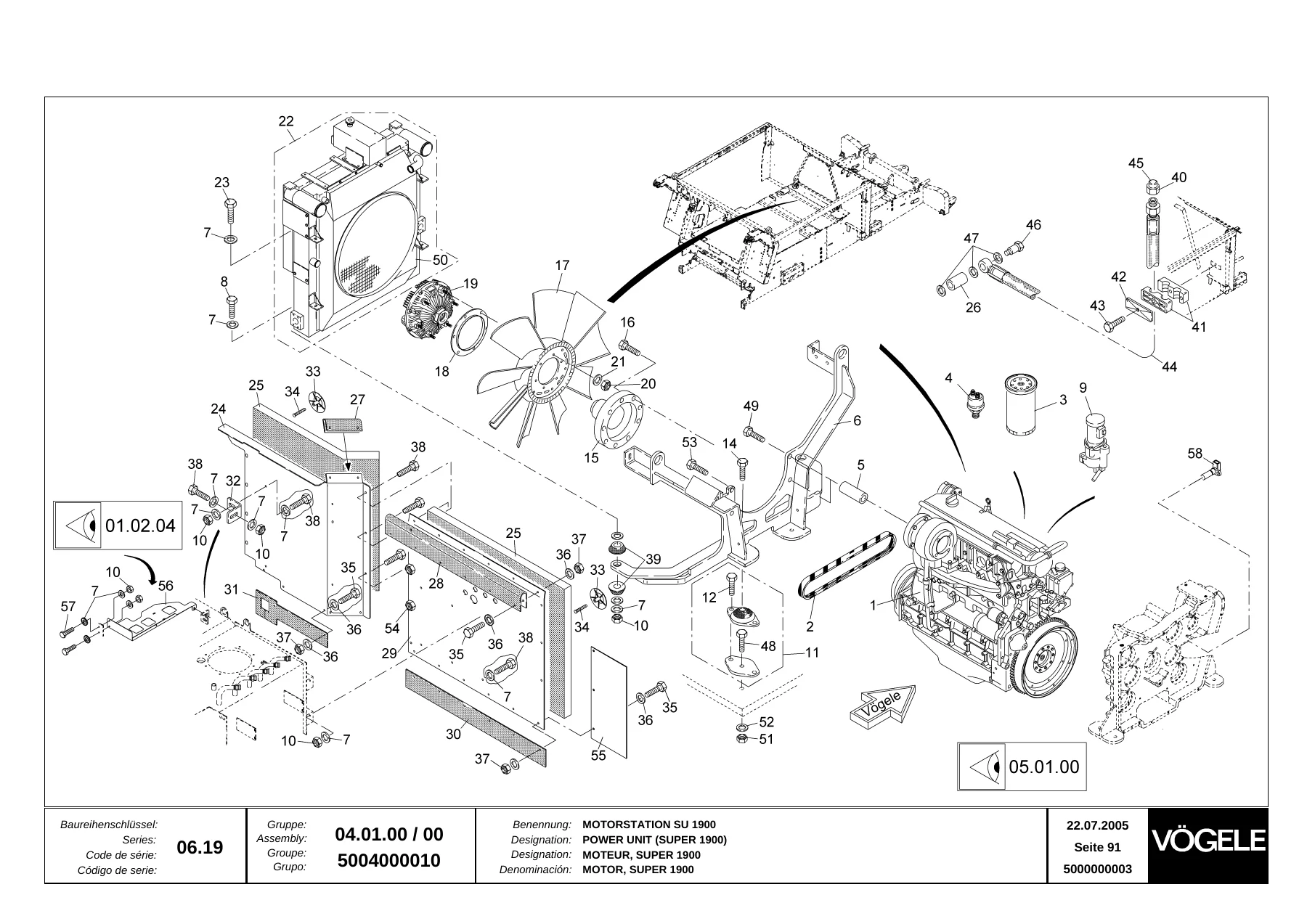

Every page is split into the same functional assembly headings VÖGELE used on the machine, and each assembly has its own exploded drawing with numbered positions tied to a multilingual parts table.

• 01 Chassis / Safety Device — chassis, operating and warning indications (left and right), side panel Super 1900, side panel Super 2100, sound insulation left and right, sound and heat insulation, engine cover, lighting and warning equipment, footstep
• 02 Control Desk — control desk, control desk electrics 1, control desk electrics 2, platform, platform lifting gear, driver’s seat with guardrail, remote control, canopy and rear-view mirror, front window and windscreen wiper, canopy side panels, rear-view mirror, tools
• 04 Power Unit — motor station Super 1900, motor station Super 2100, additional engine electrics, fuel supply, silencer, air intake Super 1900, air intake Super 2100, cooling system, engine throttle control, refuelling and washdown system
• 05 Hydraulic Oil Supply — tank / hydraulic pump drive, transfer gearbox, pump hydraulic rams, oil supply traction drive, pump conveyor left and right, return pipe, leakage oil
• 06 Electrical Installation — voltage supply, plug sockets, additional plug sockets, CEE plug sockets, switch box, screed heating control box, three-phase A.C. generator 13/18 kW, 22/36 kW and 27/44 kW
• 08 Traction Drive — crawler track right, crawler track left, roller / crawler track, front idler, spring assembly, spring package, gearbox, traction drive right, traction drive left, brake, material deflector left and right, reverse motion / horn
• 09 Steering System — direction indicator, automatic steering control, tube with tie rods
• 10 Material Feed System — push-roller, material hopper, 14-tonne hopper, hopper sides hydraulic left and right, hopper front mechanical, hopper front hydraulic, return pulley, bottom plate, conveyor drive shaft, conveyor chain, conveyor guard, conveyor drives, conveyor monitoring, auger bearing blocks, auger gearboxes, auger drive, auger speed control, sonic sensor, auger monitoring, limiting plates, auger extensions, bearing blocks, auger height adjustment
• 11 Auto Grade & Slope Control — Niveltronic basics, mounting device, sensor, sensor fixation, Roadscan system, accessories for stringline
• 13 Washdown System — washdown without tank, washdown with tank, switch, spray assembly, hose rewinder
• 14 Screed Mounting Parts — screed arms Super 1900 and Super 2100, hydraulic ram, screed up/down cylinders, screed assist, screed lock hydraulic, screed lock mechanical, tamper 40L, tamper 80L, screed pump, high-power compaction
• 18 Centralized Lubrication — lubrication system, pump connector, auger lubrication, pump, filling grease reservoir
• 41 Service Kits — 50-hour, 500-hour and 1000-hour kits, service package Super 1900, service package Super 2100
• 42 Accessories — accessories Super 1900, accessories Super 2100

Read together, these sections turn the Vogele Super 1900/2100 Paver Spare Parts Catalog 2005 into a complete parts map of the machine. Each chapter is a self-contained group with its own exploded view, and every numbered call-out on the drawing is matched in the parts list with the position number, VÖGELE part number, applicable machine number range, and the description in all four languages. That structure lets a workshop identify a single bolt, bearing, hose, valve, blade or casting by position rather than by guesswork, and cross-check the part number against the machine’s own identification before ordering.

How the Catalogue Is Organised

The Vogele Super 1900/2100 spare parts catalogue opens with general instructions and a machine identification page — every VÖGELE machine is identified by its identification number stamped on the type plate and chassis, formatted as a series code plus a consecutive number (for example 06.19 / 020). The catalogue then groups every assembly under its own two-digit chapter, and each assembly drawing uses an arrow to show the paving direction so the exploded views can be oriented correctly on the machine.

Inside each group, positions are numbered and cross-referenced to a table that includes the part number, the machines the item applies to, the designation in German, English, French and Spanish, and the quantity per unit. Where the same physical position differs between the Super 1900 and the Super 2100, the catalogue lists separate machine applicability so the correct part number is selected for the machine on the shop floor.

What This Catalogue Lets You Do

With the Vogele Super 1900/2100 Paver Spare Parts Catalog 2005 open, you can pin down parts for chassis and cladding, both control desk electrics, the whole motor station on either model, hydraulic oil supply, the full electrical installation including generators, the crawler track and traction drive, steering, the material feed system from push-roller through to the auger extensions, the Niveltronic grade and slope hardware, the washdown system, screed mounting, lubrication, and the scheduled service kits. Because every chapter ends with the same exploded drawing plus parts table format, the same workflow applies to any section: find the position on the drawing, read the part number, confirm the machine applicability, and order the correct item.

Using the correct part numbers from the Vogele Super 1900/2100 parts catalogue matters on tracked pavers, where a single wrong bearing, valve, hose length or auger blade can stall a paving shift or damage a mated component. Matching the item to the exact position and machine number is what keeps the Super 1900 and Super 2100 running to spec.
