Volvo L150E Wheel Loader Parts Catalog S/N 8001 Up – VOE 63A9920046 PDF

The Volvo L150E Wheel Loader Parts Catalog S/N 8001 Up – VOE 63A9920046 PDF is a comprehensive illustrated parts reference for the Volvo L150E wheel loader beginning with serial number 8001. Across 1088 pages, the catalog identifies components with exploded illustrations, position numbers, part numbers, quantities, parts-status information, kit references, notes and cross-references between related assemblies. Coverage extends across the complete machine, from the D9 ALBE2 engine and HTE210 transmission to the axles, brakes, steering, cab, electrical equipment, hydraulic system, loading unit and optional equipment.

This catalog is particularly useful when a machine must be broken down by assembly before parts are ordered. Illustration pages show the relationship and position of individual components, while the corresponding text pages identify those positions with Volvo part numbers and descriptions. The catalog also records replaced-part information, kit membership and application notes where applicable, helping distinguish individual service parts from complete assemblies and variant-specific components.

File Details

• Manual type: Parts Catalog
• Brand / model: Volvo L150E Wheel Loader
• Serial coverage: S/N 8001 –
• Publication number: VOE 63A9920046
• Language: English, French, German, Spanish and Swedish
• Page count: 1088 pages
• File format: PDF

Machine, Engine and Driveline Coverage

The introductory machine information identifies the basic L150E as product number 33516 with serial number coverage beginning at 8001. The catalog also identifies cab product number 33517, hydraulic transmission product number 22553 HTE210, and the applicable planetary axle configurations. These include product number 23881 AWB 40B front axle, product number 23948 AWB 40C rear axle, and product number 23895 AWB 40B rear axle with the application notation 82605.

The engine identified for the principal machine configuration is part number 8188704, D9 ALBE2. Engine-related catalog sections extend from complete engine and repair-kit references down through cylinder head, cylinder block, liners and pistons, valve gear, camshaft, crankshaft, lubrication, fuel injection, turbocharging, air intake and cooling components. The loading equipment information includes L150 LA units and cataloged long-boom and load-unit variants, allowing part identification to be matched more closely to the equipment fitted to the machine.

Illustrated Parts Identification

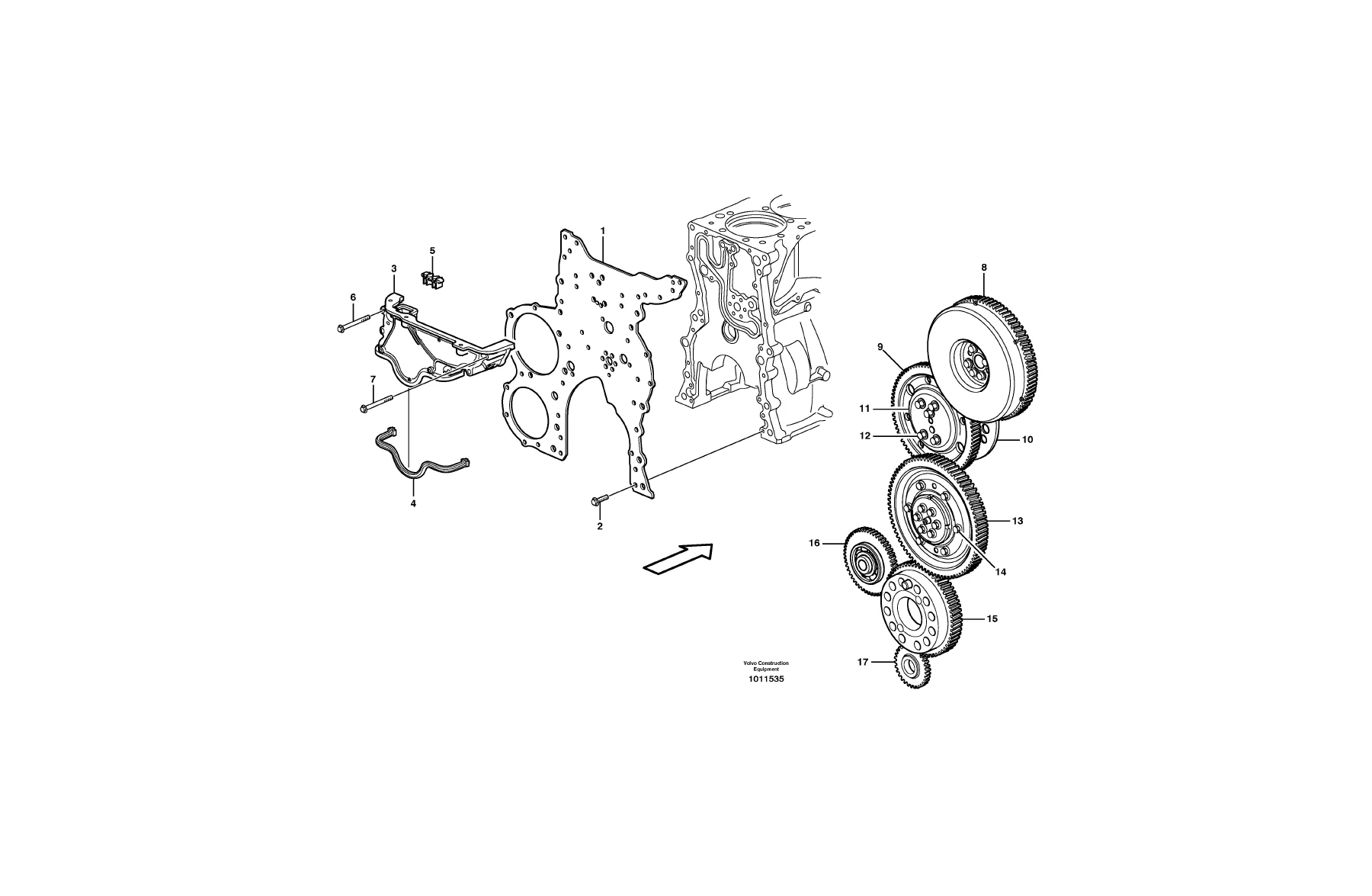

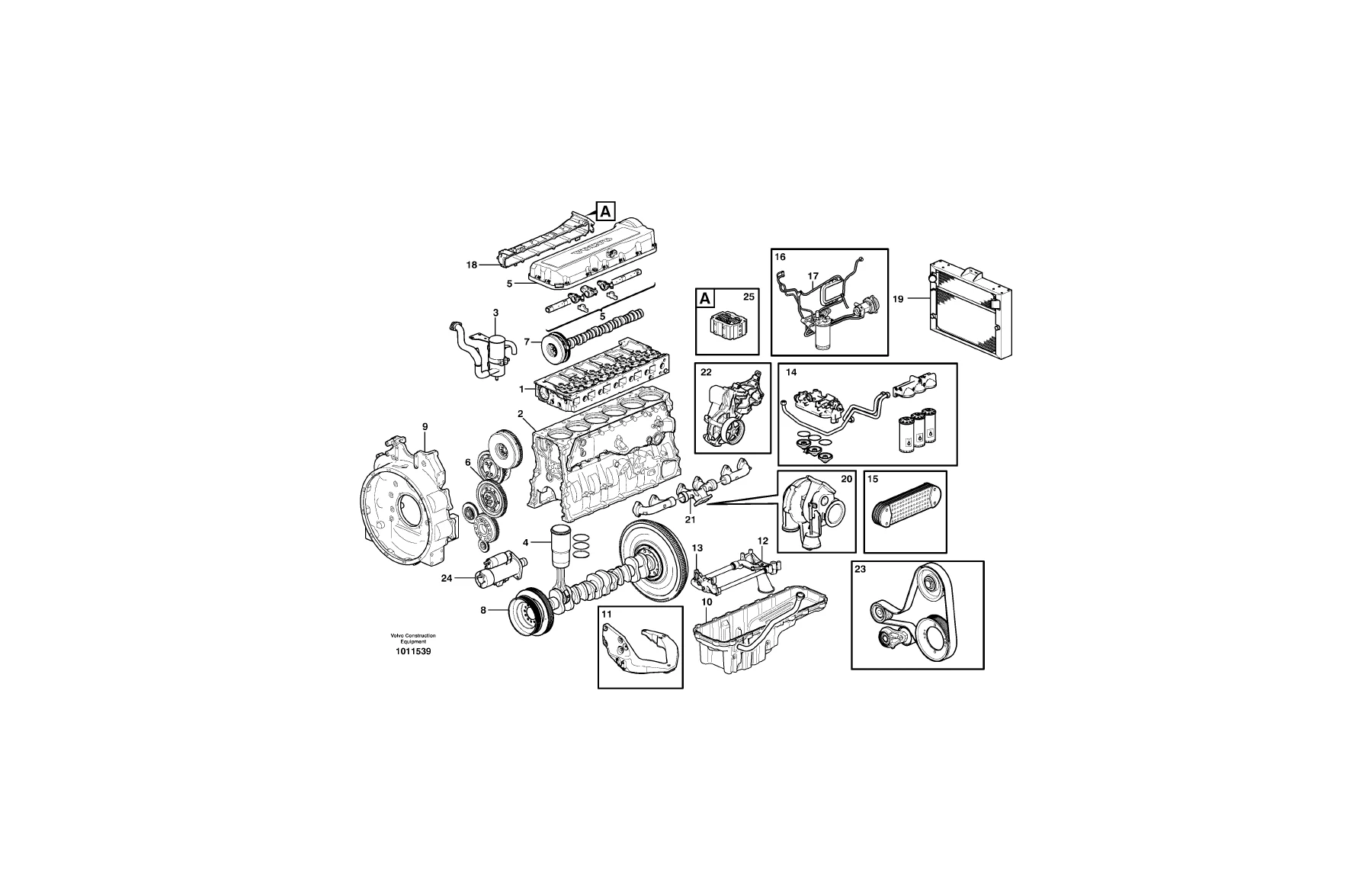

The Volvo L150E parts catalog uses paired illustration and text information throughout the main parts groups. Position numbers on exploded drawings correspond to entries on the associated text pages. Those entries can include the part number, required quantity, description, parts status, kit designation and notes. Indented descriptions show when components belong within a larger assembled unit, while notes can provide product or manufacturing-number restrictions, technical details and references to other catalog groups.

The catalog guide explains two particularly useful status conventions. Parts marked NS are identified as not stocked, while SS denotes a superseded or replaced part. Items marked with K belong to a parts kit. Group 10 provides replaced-part information and a numerical index so a known part number can be traced back to its group, section and catalog page. This makes the catalog useful both when working outward from an exploded assembly and when starting with an existing part number.

IMAGES PREVIEW

Product and Equipment Variants

A substantial equipment-variant section precedes the main system groups and records configurations that can affect the parts fitted to an L150E. Cataloged examples include long-boom equipment, hydraulic attachment functions, boom suspension, secondary steering, CDC steering, automatic greasing, different operator seats, lighting arrangements, guards, air-conditioning equipment, engine heaters, wheel and rim arrangements and various market-specific accessories.

Among the identified options are third and fourth hydraulic functions, hydraulic attachment brackets, BSS boom suspension, automatic temperature control, R134A air conditioning, cold-climate equipment, additional work lighting, cameras with monitors, radiator and window protection, fuel and air-filtration options, and central lubrication equipment. Because these variants are tied to equipment numbers and individual catalog sections, checking the machine’s fitted configuration is important before selecting a part.

Chapters Covered

• Group 1 – Preface and Instructions: publication identification, product signs, catalog guide, equipment variants and abbreviation tables.
• Group 2 – Engine: engine repair kits, complete engine, cylinder head, cylinder block, crankcase ventilation, cylinder liners and pistons, valve mechanism, timing gears, camshaft, crankshaft, flywheel housing, oil sump and engine mounting; lubricating oil system, oil pump, filters and oil cooler; fuel system, fuel filter, water separator, fuel tank and fuel pipes; injectors, inlet and exhaust manifolds, silencer, turbocharger, air cleaner and precleaner arrangements; intercooler, radiator, expansion tank, cooling system, water pump, fan drive, reversible fan, engine heaters and throttle controls.
• Group 3 – Electrical Systems and Instruments: battery box, alternator configurations, starter motor and pre-heater; front, rear, work and marker lighting; back-up warning equipment and rotating beacons; windshield wipers and washer; battery, engine ECU, alternator, cab, instrument-panel, transmission, steering, hydraulic-function and accessory cable harnesses; electrical distribution box, circuit board, wires, terminals, connectors, instrument panel, switches, relays, sensors, solenoid valves, camera/monitor equipment and radio wiring.
• Group 4 – Power Transmission: torque converter, transmission repair kit, HTE210 hydraulic transmission, transmission oil filler, testing and ventilation; converter housing, gears and shafts, oil filter, oil distributor, hydraulic clutches, lubrication and range-selector valves; transfer case and parking-brake components, gearbox housing, propeller shafts, planetary axles, front and rear final drives, differential lock and transmission oil cooling.
• Group 5 – Brakes: front and rear multi-disc brakes, brake lines and pipes, accumulators, axle brake oil-cooler circuits, pressure limiting valve, dual brake pedals, footbrake valve, brake valves and parking brake.
• Group 6 – Steering System: steering column, adjustable steering wheel, pressure and return circuits, steering cylinders, shift valve, steering unit and valve body; secondary steering pump and pressure monitoring, plus CDC steering and its relief-valve components.
• Group 7 – Frame and Wheels: frame, protecting plates, brake-pipe protection, lighting guards, radiator protection, rear hitch, counterweight, frame link and wheel arrangements including cataloged 26,5R25 and 800/65R29 applications.
• Group 8 – Body with Associated Parts: driver’s cab, cab structure and mountings, engine hood, hydraulic-tank hatches, radiator casing, front and rear fenders, mudguards, footsteps, doors, side hatches, mirrors, glass and windows; operator and instructor seats, cab and hose protection, insulation and noise reduction; air distribution, filtration, heating, automatic temperature control and R134A air-conditioning components; instrument-panel and interior parts, tool equipment, sign plates and decals.
• Group 9 – Miscellaneous Equipment: hydraulic oil tank and filter, suction/feed/return/drain lines, lift and tilt circuits, load-sensing lines, control valves and hydraulic pumps; servo-hydraulic controls, boom suspension, third and fourth hydraulic functions, attachment-bracket hydraulics, tool bar, loading unit, lift frame, linkage, lifting and tilt cylinders, bucket positioner, boom kickout and central lubrication equipment.
• Group 10 – Replaced Parts / Numerical Index: superseded-part references and numerical indexing of cataloged part numbers back to their group, section and page.

Taken together, these chapters make the Volvo L150E Wheel Loader Parts Catalog S/N 8001 Up – VOE 63A9920046 PDF a machine-wide parts identification reference rather than a narrow component list. The exploded illustrations are especially valuable for understanding how assemblies are broken down, identifying seals, fasteners, housings, hoses, valves, electrical components and internal parts, and then matching their illustration positions to catalog numbers and quantities.

Important Catalog Use Note

This publication is a parts catalog, not a workshop or assembly manual. The catalog itself states that its illustrations should not be used as assembly or workshop instructions and directs users to separate literature for those purposes. Its purpose is parts identification, application checking, assembly breakdown reference and part-number lookup rather than step-by-step repair procedures.

Parts Reference for the Volvo L150E

For owners, parts departments, workshops and technicians working with an applicable Volvo L150E S/N 8001 and up, this catalog can support accurate identification of components across the engine, drivetrain, brake, steering, electrical, chassis, cab, hydraulic and loader systems. Being able to check the correct exploded view, position, part number, quantity and application note before sourcing components helps reduce confusion between visually similar parts, superseded numbers and equipment-dependent variants.

The Volvo L150E Wheel Loader Parts Catalog S/N 8001 Up – VOE 63A9920046 PDF is supplied as an instant PDF download after purchase. There is no physical book and no shipping delay. Open the PDF on a computer, tablet or compatible mobile device and print the pages you need for parts identification at the machine, workshop or parts counter.
